Sulab GR63X25 Elevator Door Motor 12V 44.5W
Brand Name:
Sulab
Model Number:
GR63X25
Minimum Order Quantity:
1
Delivery Time:
2-3 working days
Payment Terms:
T/T,Western Union,
Inquiry Now
Get A Quote
Specifications
Highlight Features
Sulab GR63X25 elevator motor
,12V elevator door motor
,44.5W elevator spare parts
Brand:
Sulab
Description:
Elevator Parts
Model:
GR63X25
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description

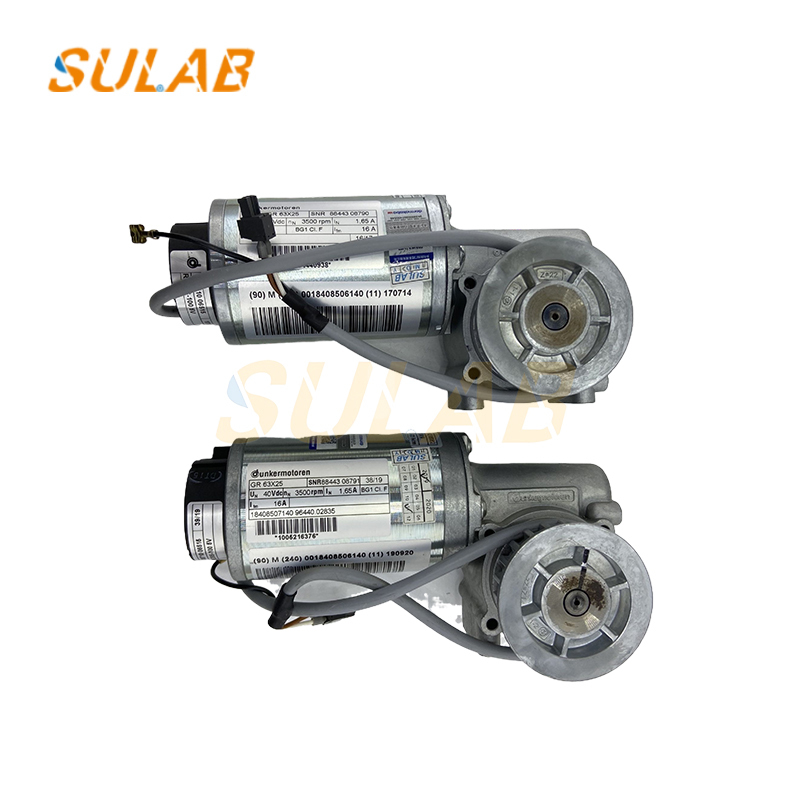

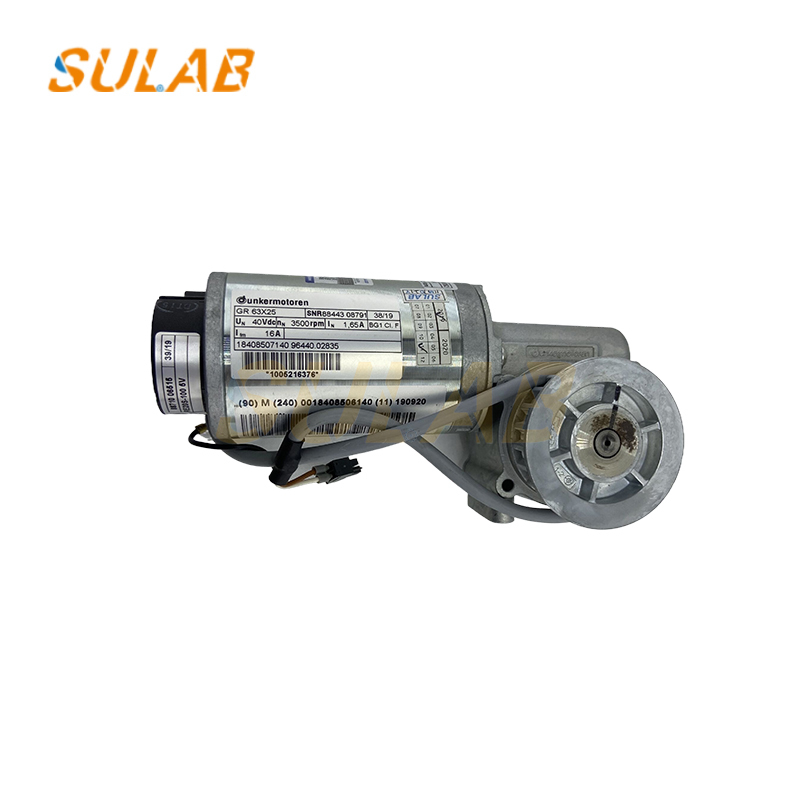

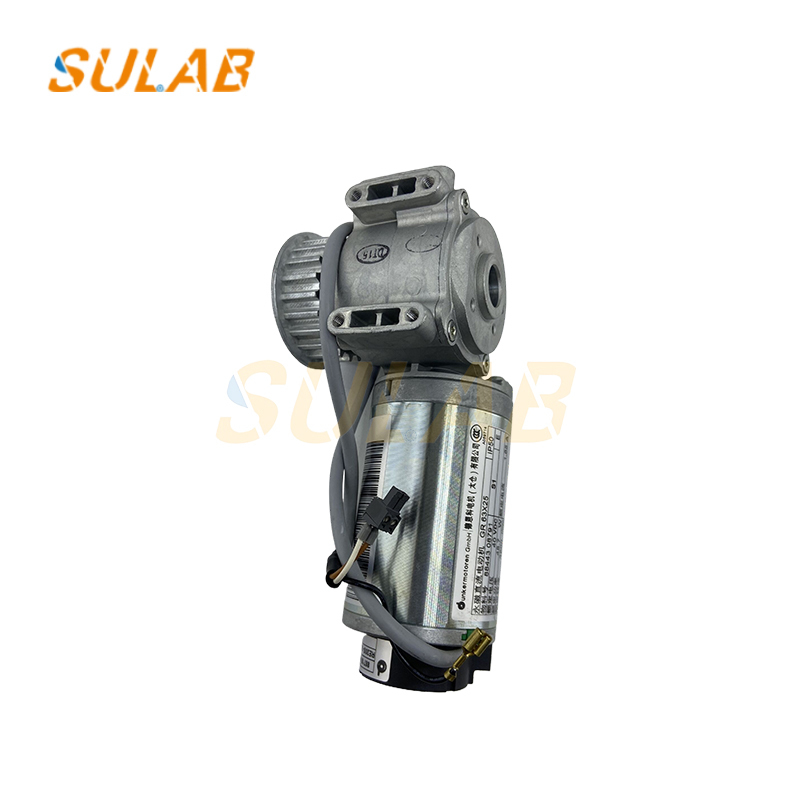

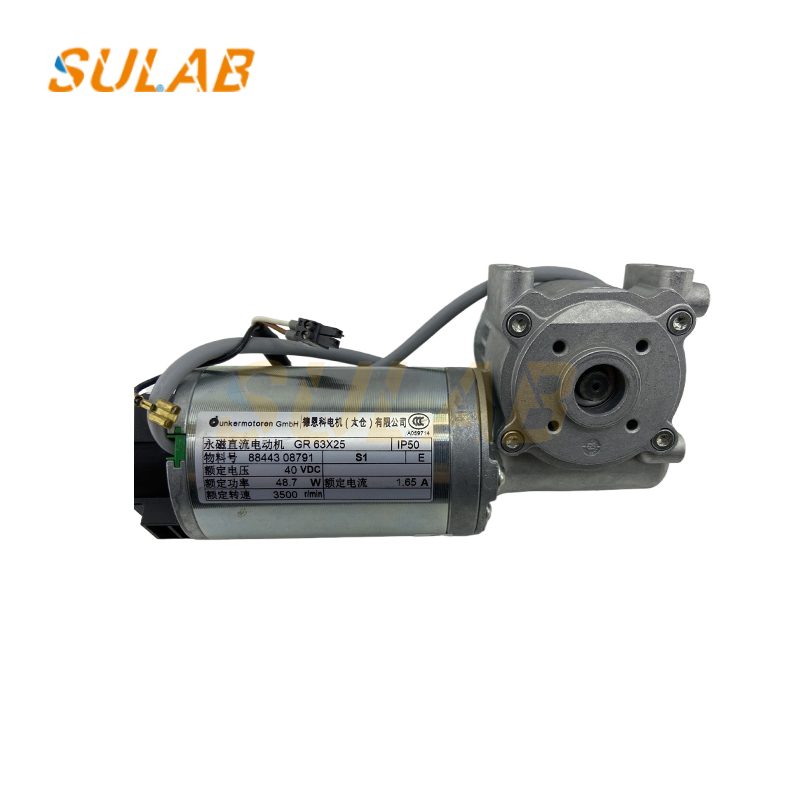

Elevator Door Motor GR 63X25 RE20-2-100LB105AALX02 Brand New

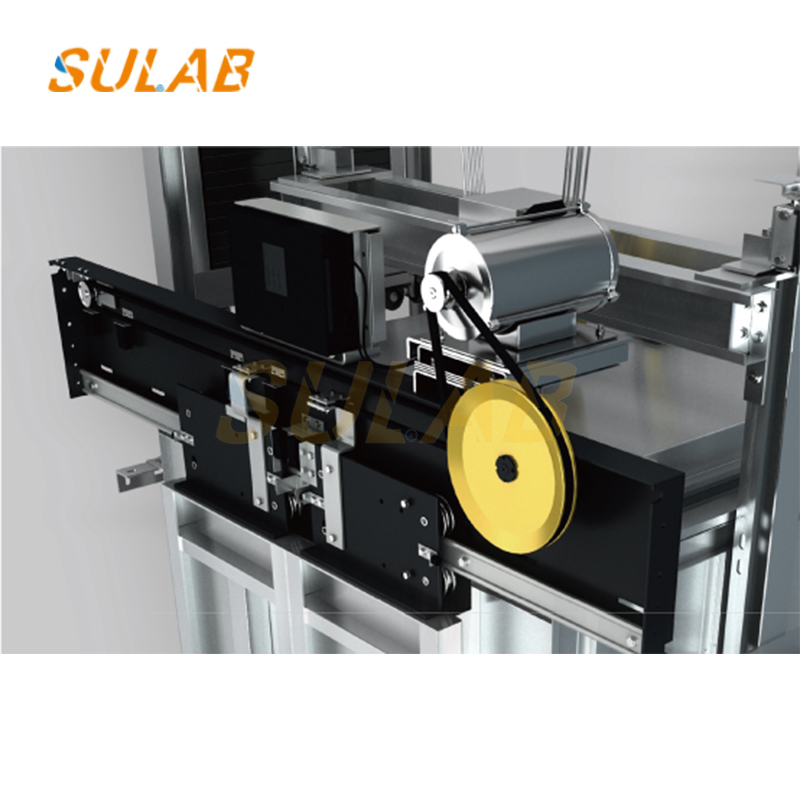

The GR63X25 door motor is a high-performance Dunkermotoren product designed for automatic door systems, including elevator applications like the Dorma ES200E automatic sliding door opener/operator.
Product Specifications
| Brand | Sulab |
|---|---|
| Description | Elevator parts |
| Model | GR63X25 |
| MOQ | 1PC |
| Transportation | TNT, UPS, DHL, Fedex, Air, Sea |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, Alibaba, Paypal etc |
Technical Parameters
- GR63X25-12V Model: Rated voltage 12V, current 5.2A, torque 13.7Ncm, speed 3100rpm, power 44.5W, rotor inertia 400gcm², weight 1.2kg
- GR63X25-40V Model: Rated voltage 40V, speed 3500rpm
- GR63X25 with SG80 Reducer: Rated voltage 24V, current 2.7A, torque 0.14Nm, speed 3300rpm, no-load speed 3600rpm, stall torque 1.08Nm, output power 48.4W (max 101.8W), rotor inertia 400gcm², weight 2.4kg
Key Features
- High efficiency and energy-saving operation
- Compact design with high reliability
- Easy control and convenient maintenance
- Constructed with premium materials and advanced manufacturing
- IP54 protection rating for harsh environments
- Full functional control (start/stop, forward/reverse, speed regulation)
- Optional encoder for precise speed and position control
This brand new motor is designed for demanding elevator and automatic door applications, offering superior performance and durability.
