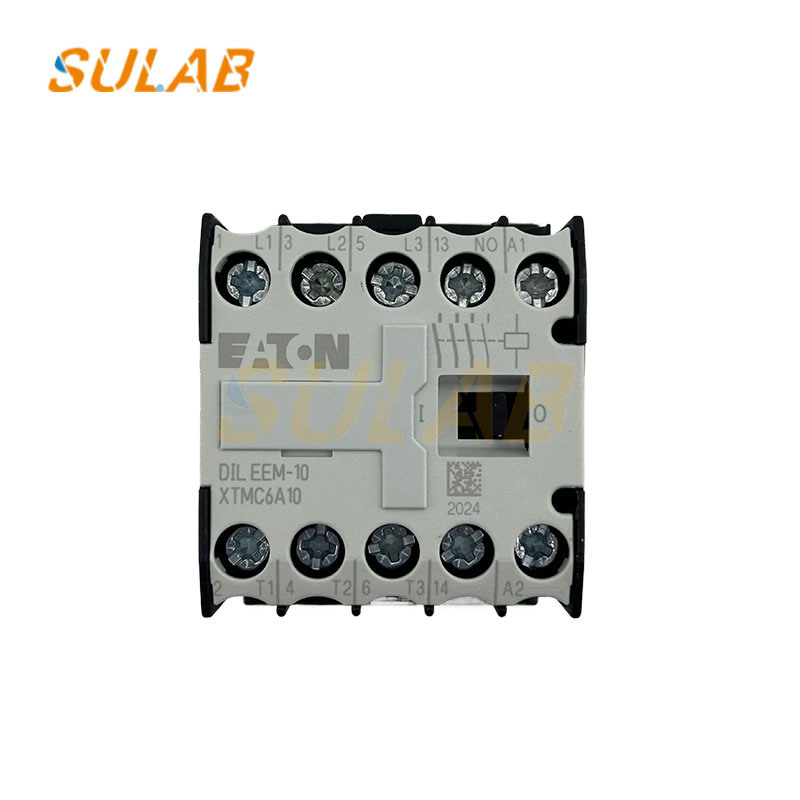

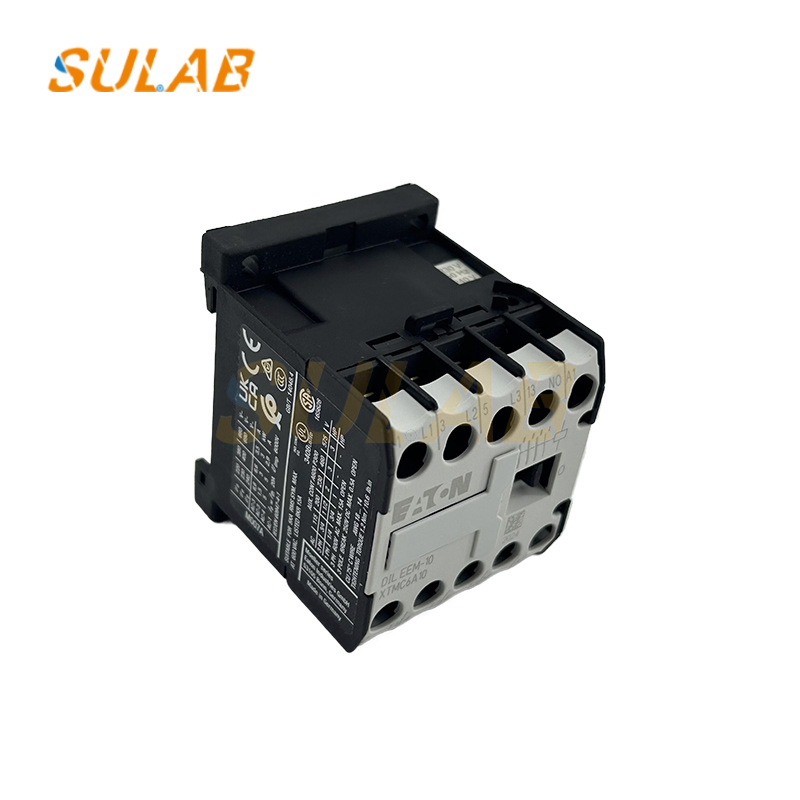

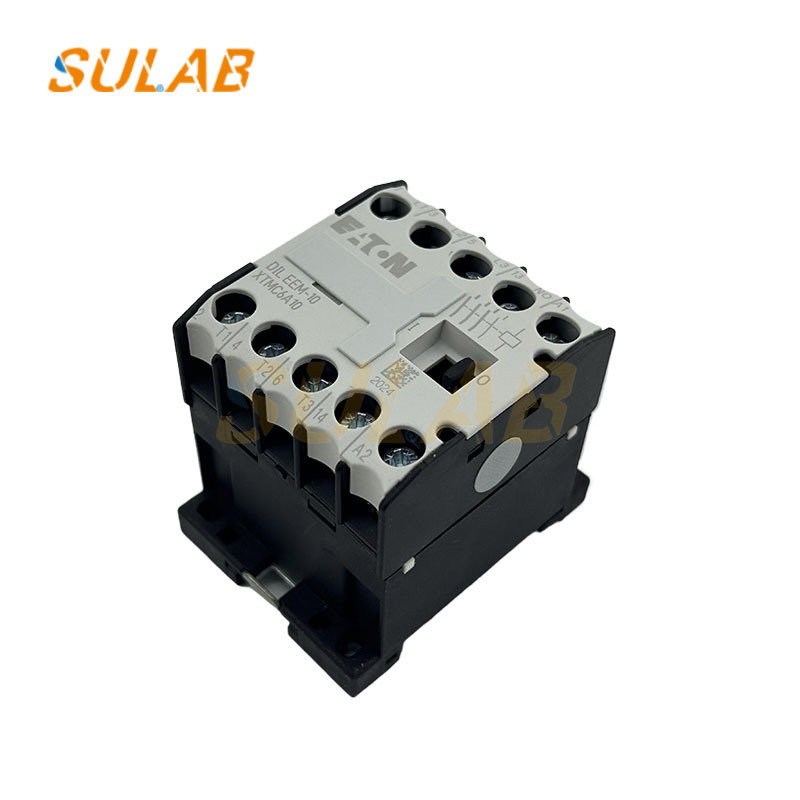

The DIL EEM-10 XTMC6A10 is a small AC contactor from Eaton & Moller. Its main functions include the following:
Circuit On/Off Control: As the core function of the contactor, the DIL EEM-10 XTMC6A10 controls the on/off of the main circuit through an electromagnetic system. When the coil is energized, a magnetic field is generated that attracts the armature, closing the main contacts and completing the circuit. This enables remote control of the start, stop, and operation of loads such as motors.
Load Control: With a rated current of 6.6A (380/400VAC, AC-3) and a rated power of 3kW (380-400VAC, AC-3, IEC, 50/60Hz), this contactor can be used to control loads such as three-phase asynchronous motors. It meets the control requirements of direct-on-line starting and full-voltage non-reversing of small and medium-sized motors in general industrial applications.
Auxiliary Contact Signal Feedback: The DIL EEM-10 XTMC6A10 is equipped with one normally open auxiliary contact. The auxiliary contacts operate synchronously with the main contacts and can be used for signal feedback, such as feeding back the working status of the contactor to control devices such as PLCs, or for controlling other related circuits, thereby enhancing the control capability of the contactor and the flexibility of the system.

Electrical Isolation: The contactor electrically isolates the control circuit from the main circuit. This allows operators to control the high-voltage, high-current main circuit using a low-voltage, low-current control circuit. This not only improves operational safety but also effectively prevents electrical interference from the main circuit from affecting the control circuit.

Frequent Operation: The contactor has a mechanical durability of up to 10 million operations and an operating frequency of 9,000 operations per hour, making it suitable for frequent start-stop operations, such as in automated production lines, where frequent motor control is required.
