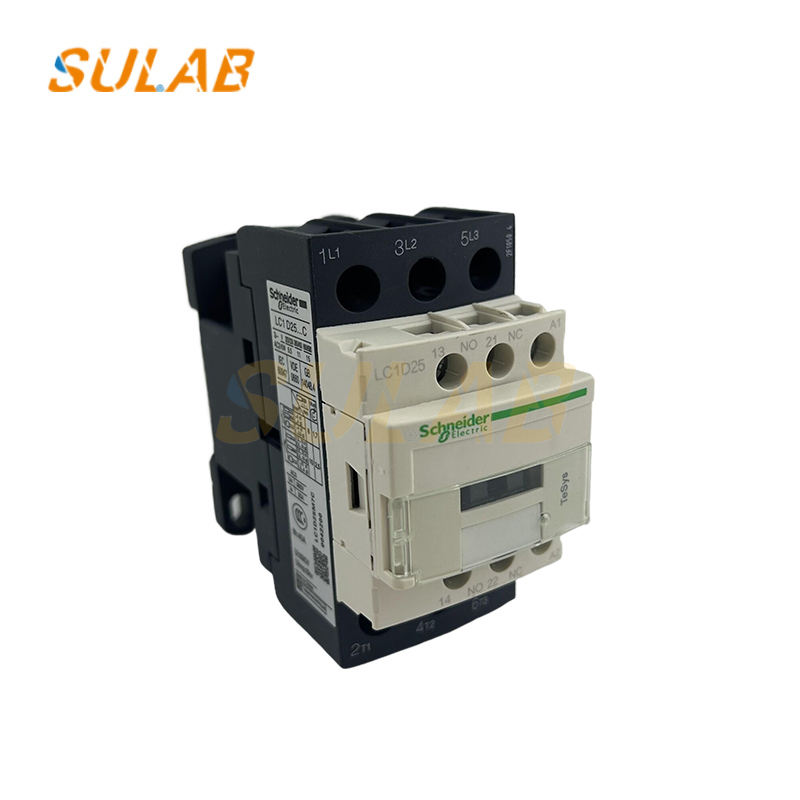

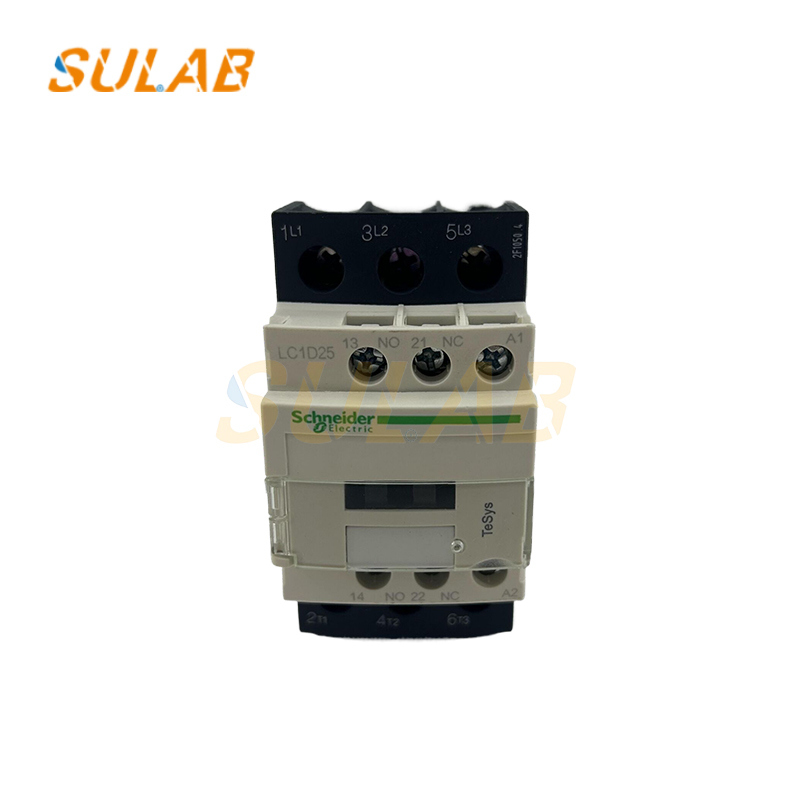

The LC1D25 contactor is a commonly used AC contactor. The following is a detailed introduction:
Basic Parameters:
Rated insulation voltage: 690V.
Rated operating current: In AC-3 utilization category, 25A at 380V/400V, 18A at 660V/690V.
Control circuit voltage: AC coil voltages include 24V, 36V, 48V, 110V, 127V, 220V, 240V, 380V, 415V, 440V, 480V, 500V, and 600V; DC coil voltages include 24V, 36V, 48V, 110V, and 220V.
Auxiliary contacts: Typically 1 NO (normally open) + 1 NC (normally closed).
Product Features:
Compact Structure: Utilizing a guarded, direct-acting mechanism with double-break contacts, this device is compact and lightweight.
Reliable Performance: Featuring low power consumption, long life, and safety, it boasts an electrical lifespan of up to 1 million cycles and a mechanical lifespan of up to 10 million cycles in AC-3 operating category.
Easy Installation: It can be mounted on a baseplate or on a DIN rail. The terminal screws must be tightened. After verifying that the wiring is correct, energize the pull-in coil several times with the main contacts de-energized. Only operate after reliable operation is confirmed.

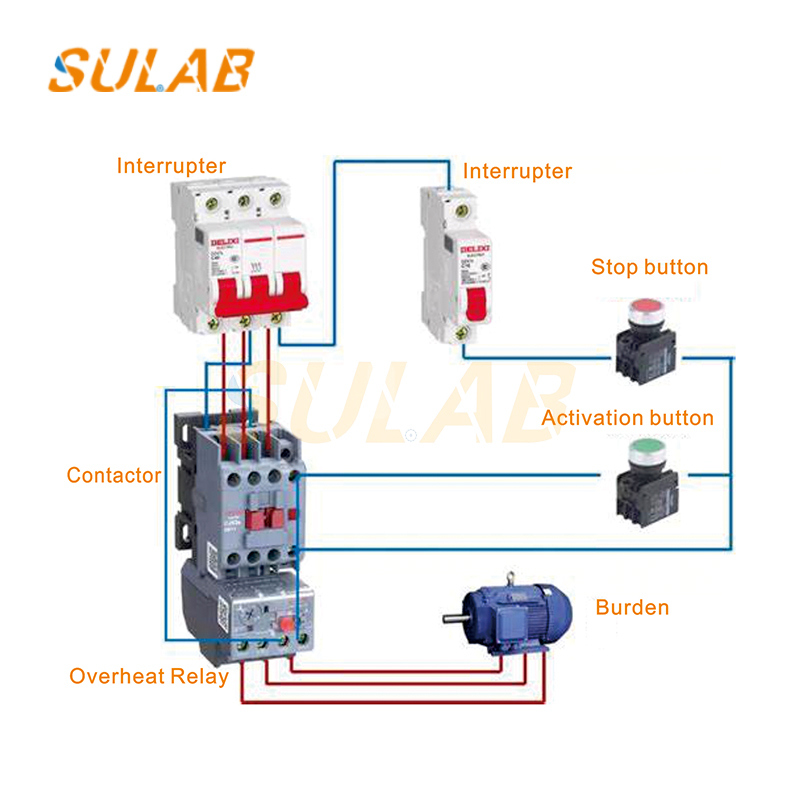

Applications: Suitable for AC 50Hz or 60Hz circuits, rated voltage up to 690V, and rated current up to 25A. It can be used for remote circuit connection and disconnection, frequent starting, and control of AC motors. It can also be combined with a thermal relay to form an electromagnetic starter for overload protection.
