Mitsubishi Elevator LCD Display Board with DC 24V ±10% Power 180mm × 120mm × 25mm Dimensions and 12-Pin Industrial Connector
-
Highlight
DC 24V Elevator LCD Display Board
,180mm × 120mm × 25mm Elevator PCB Panel
,12-Pin Industrial Connector Elevator Display Board
-
Product TypeElevator LCD Display Board / PCB Panel
-
Display TechnologyHigh-contrast LCD With LED Backlight
-
VoltageDC 24V ±10%
-
Dimensions180mm × 120mm × 25mm (Standard Mounting)
-
Interface12-pin Industrial Connector
-
Brand NameMitsubishi
-
Model NumberP235726B000G22 (Compatible with G01/G02/G11/G12)
-
Minimum Order Quantity1
-
Delivery Time3-5 working days
-
Payment TermsD/A,D/P,T/T,Western Union,MoneyGram
Mitsubishi Elevator LCD Display Board with DC 24V ±10% Power 180mm × 120mm × 25mm Dimensions and 12-Pin Industrial Connector

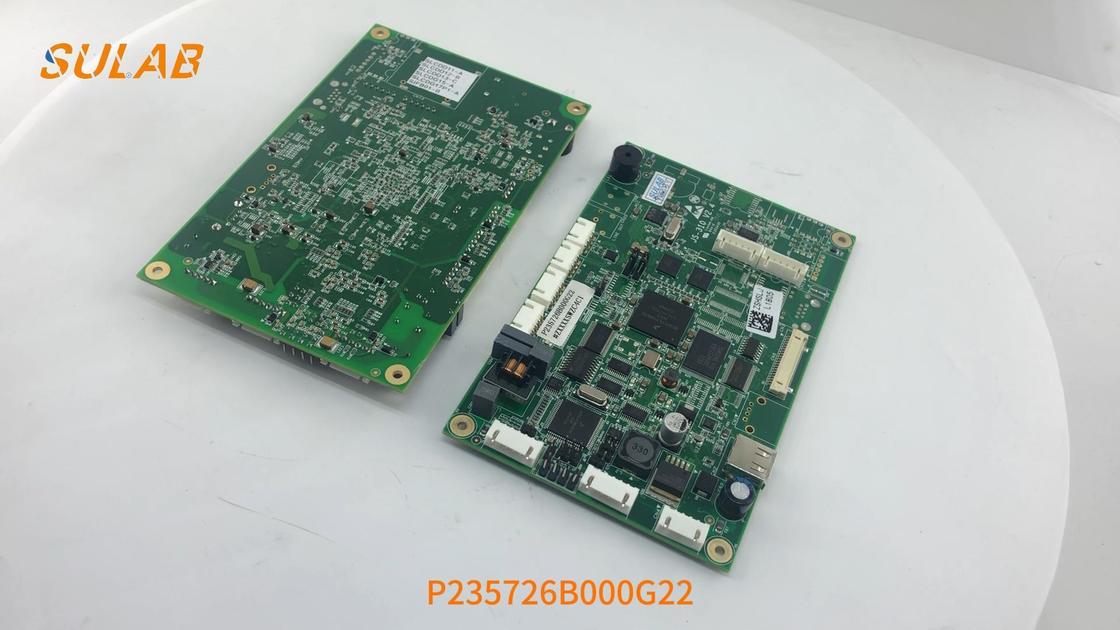

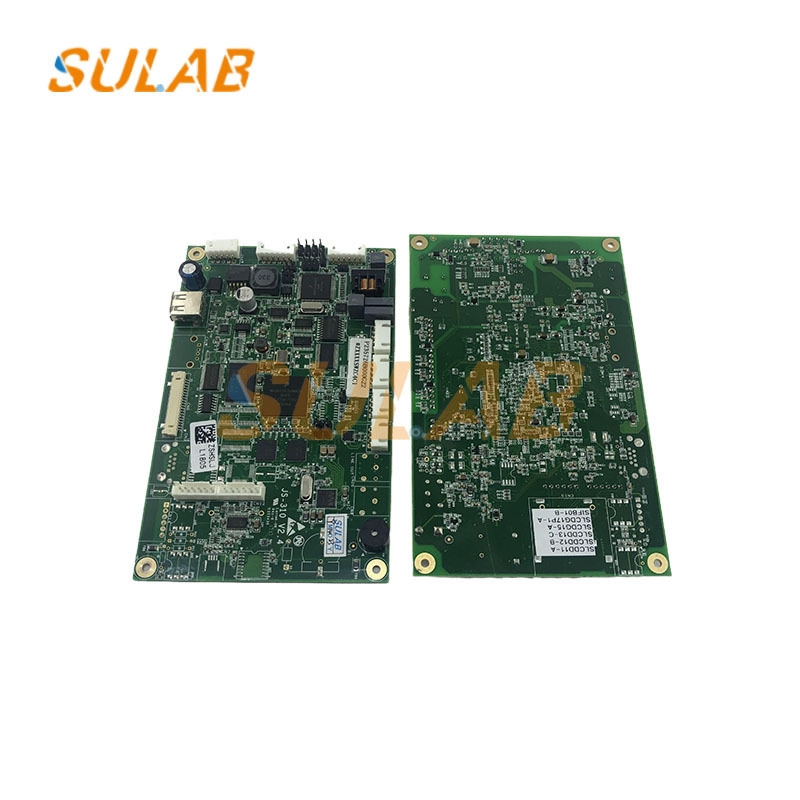

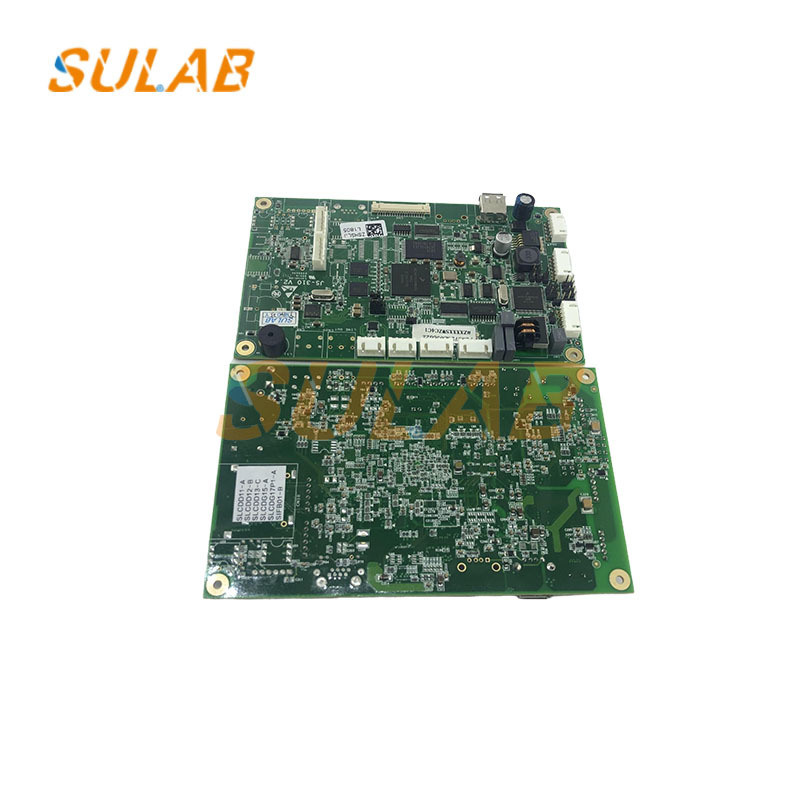

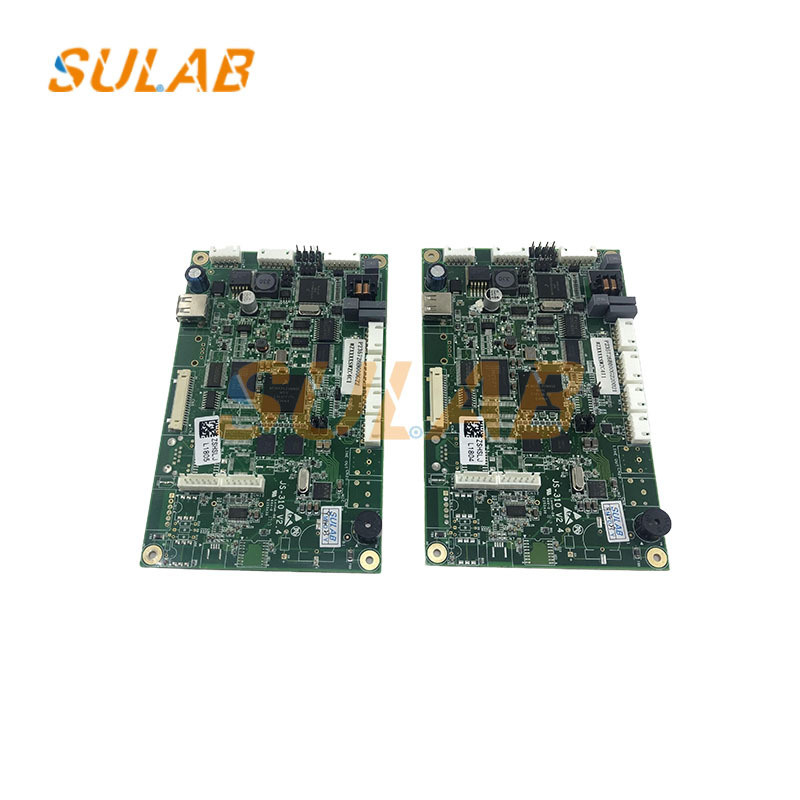

Mitsubishi Elevator Parts LCD Panel P235726B000G22 G01 G02 G11 G12 Elevator Display Board
Original Mitsubishi elevator LCD display panel P235726B000G22, designed for modern elevator control systems. This high-performance display board serves as both COP (Car Operating Panel) and LOP (Landing Operating Panel) interface, ensuring clear floor indication and status display for passengers. Compatible with multiple variants including G01, G02, G11, and G12 specifications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Mitsubishi |
| Model | P235726B000G22 (Compatible with G01/G02/G11/G12) |
| Product Type | Elevator LCD Display Board / PCB Panel |
| Display Technology | High-contrast LCD with LED backlight |
| Voltage | DC 24V ±10% |
| Dimensions | 180mm * 120mm * 25mm (Standard mounting) |
| Interface | 12-pin industrial connector |
| Certification | CE, ISO 9001, Mitsubishi original standards |
Key Features
- Genuine Mitsubishi Part - 100% original factory component with Mitsubishi holographic seal and part number verification
- Multi-Model Compatibility - Interchangeable with P235726B000G01, G02, G11, G12 series, reducing inventory complexity
- Crystal Clear Display - High-brightness LCD ensures excellent visibility in all lighting conditions, including direct sunlight in lobbies
- Plug-and-Play Installation - Exact OEM dimensions and connector layout for tool-free replacement in under 15 minutes
- Industrial-Grade Durability - Vibration-resistant design rated for 10+ years of continuous elevator operation
- Comprehensive Warranty - 12-month replacement guarantee with free technical support
Application Scope
Primary Applications:
- Passenger elevators (≤ 3.5m/s speed)
- Freight elevators with passenger cabin
- Hospital elevators requiring reliable status display
Compatible Mitsubishi Systems:
- HOPE-II Series
- GPS-III Series
- NEXWAY Series
- ELENESSA Series
Installation Positions:
- Car Operating Panel (COP) - Inside elevator cabin
- Landing Operating Panel (LOP) - Floor hall stations
Why Choose Our Mitsubishi Display Panels?
1. Verified Authenticity
Every P235726B000G22 panel undergoes Mitsubishi's strict testing protocol. Scan the QR code on the PCB to verify production batch and authenticity.
2. Extensive Model Coverage
Instead of stocking 4 separate SKUs, this single board covers G01 through G12 variants, simplifying procurement and reducing spare parts inventory by 60%.
3. Same-Day Shipping
Orders placed before 3:00 PM (UTC+8) ship the same business day from our 5,000+ unit inventory. Emergency air freight available to 120+ countries.
4. Technical Support Included
Free 24/7 video call assistance during installation. Our Mitsubishi-certified engineers speak English, Spanish, and Arabic.
5. Bulk Pricing Advantage
Tiered discounts starting at 5 units. OEM maintenance contractors enjoy additional 8% off with annual service agreements.

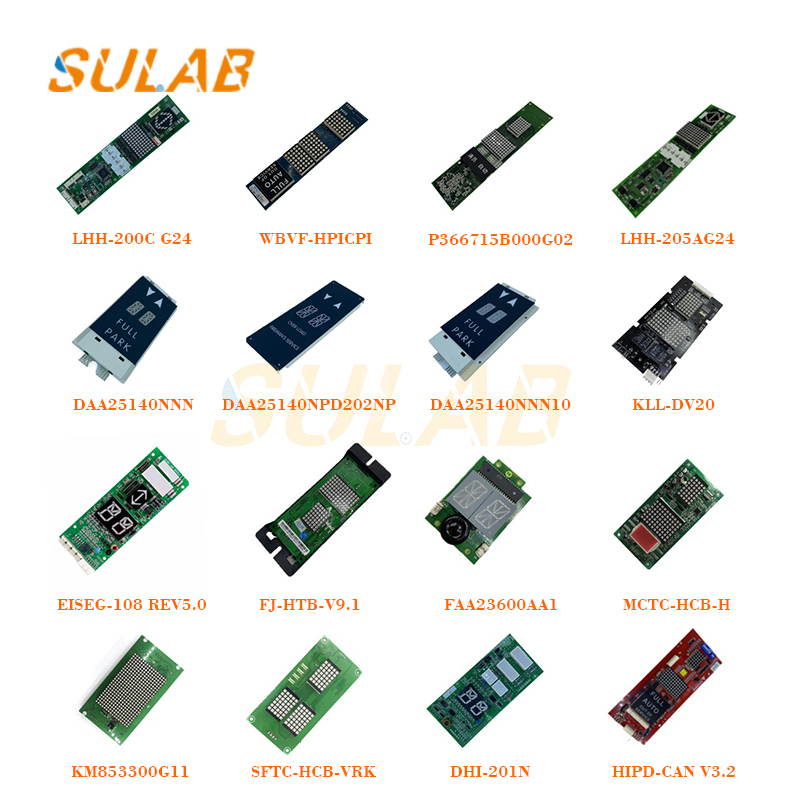

Related Products
