KONE Elevator Key Switch KM747076G12 with EN 81-20/50 Compliance 100000 Cycles and IP54 Protection
-
Highlight
EN 81-20/50 Compliance Elevator Key Switch
,100000 Cycles KONE Elevator Switch
,IP54 Protection KM747076G12
-
BrandKone
-
DescriptionElevator Key Switch
-
ModelKM747076G12
-
MOQ1PC
-
TransportionTNT, UPS, DHL, Fedex, Air, Sea
-
PackagesCarton, Wooden Case, Pallet Etc
-
Delivery TimeNormally 2-3 Working Days After Payment
-
WarrantyOne Year
-
Payment MethodCompany Bank, Western Union, Alibaba, Paypal Etc
-
Brand NameKone
-
Model NumberKM747076G12
-
Minimum Order Quantity1
-
Delivery Time2-3 working days
-
Payment TermsT/T,Western Union,MoneyGram
KONE Elevator Key Switch KM747076G12 with EN 81-20/50 Compliance 100000 Cycles and IP54 Protection
Suitable For Giant KONE Elevators Elevator Operator Call Base Station Electric Lock Control Box OSS ATS PRC FRD KM747076G12

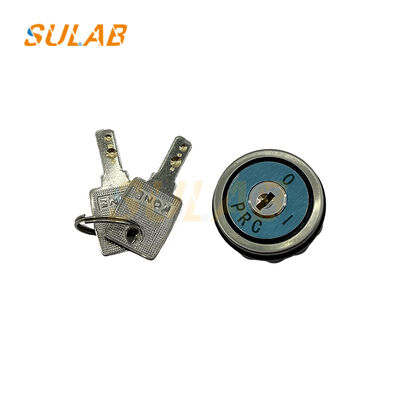

The KM747076G12 is a dedicated electromechanical key switch for KONE elevator systems, featuring a dual-contact safety structure. It is used for elevator mode switching, fire service activation, and authorized operation control, complying with EN 81-20/50 safety standards.
| Brand | Kone |
|---|---|
| Description | Elevator Key Switch |
| Model | KM747076G12 |
| MOQ | 1PC |
| Transportion | TNT, UPS, DHL, Fedex, Air, Sea |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, alibaba, Paypal etc |
Technical Specifications
- Electrical Ratings:
- Rated Voltage: AC 250V / DC 30V
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ (500VDC)
- Mechanical Life: ≥100,000 cycles
- Protection Class: IP54 (when panel-mounted)
- Operating Temperature: -40℃ to +85℃
Structural Features
- Lock Mechanism:
- Zinc alloy lock body with nickel silver pin tumbler structure
- 30,000 key combinations, compatible with KONE dedicated C101/C201 keys
- Anti-tamper design, withstands 200N*m torque
- Contact System:
- Dual silver alloy contacts (1NO+1NC)
- Snap-action structure, operation time ≤8ms
- Installation Configuration:
- 22mm standard panel cutout
- Rear terminals accept 2.5mm² wires
