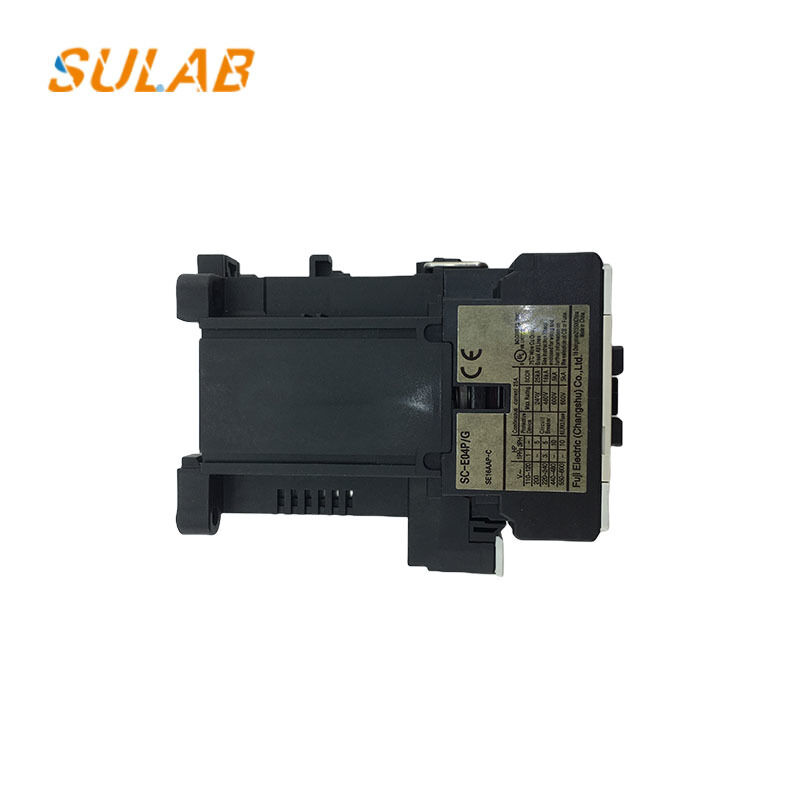

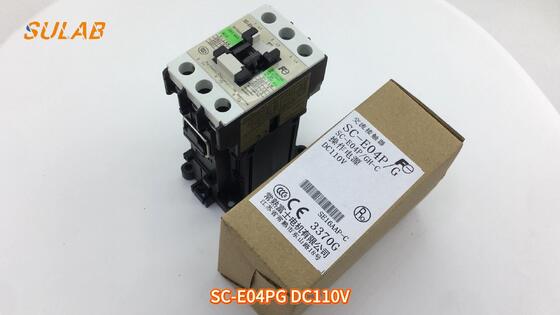

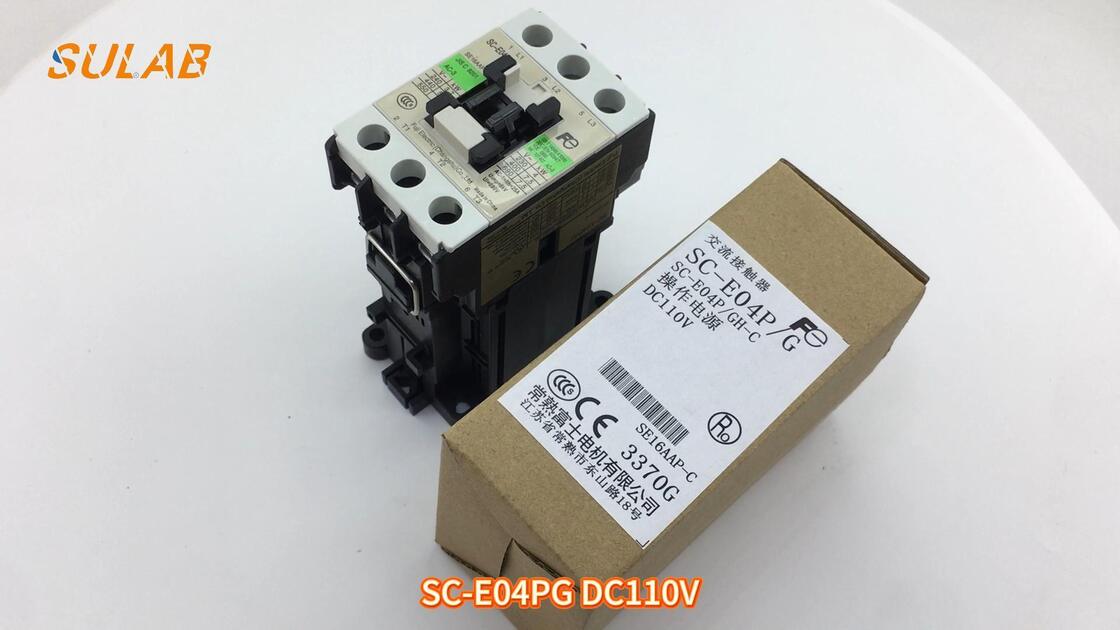

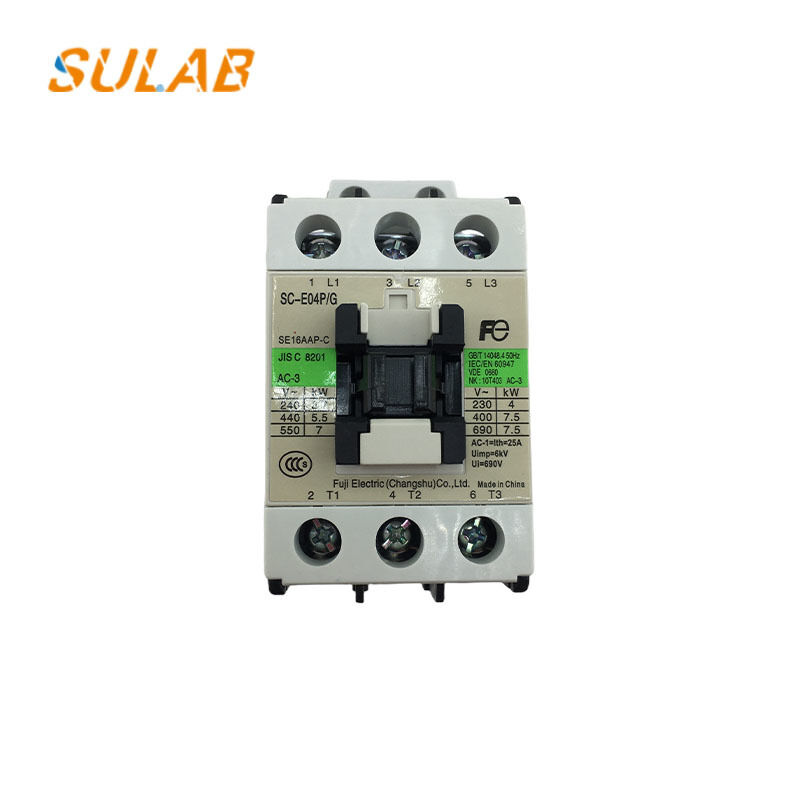

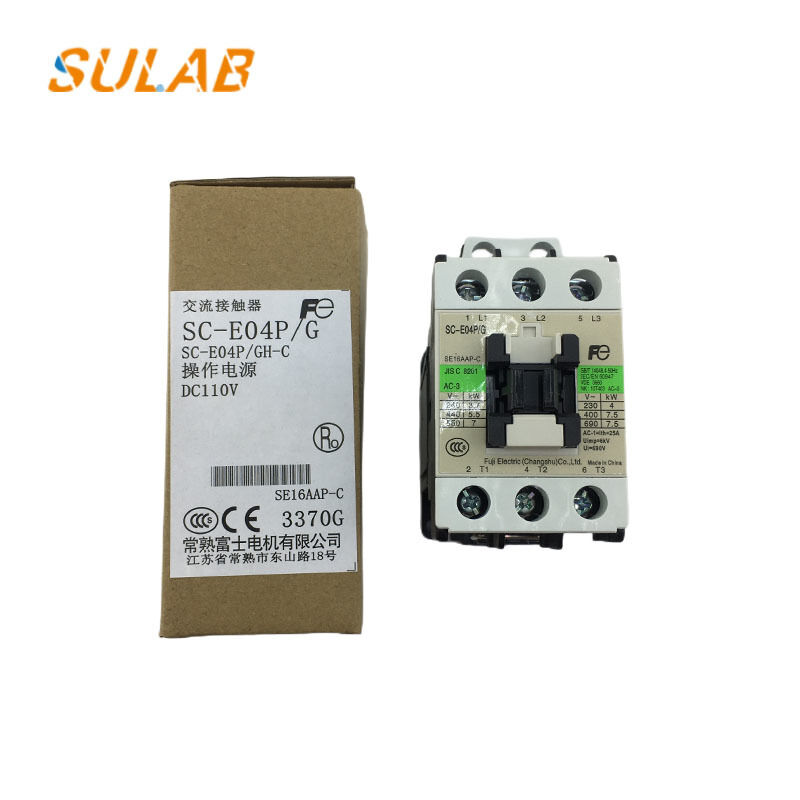

Fuji Electric SC-E04PG-110VDC IEC Contactor with 18A Rated Current 3-Pole and 110V DC Coil
Brand Name:
Fuji
Model Number:
SC-E04PG DC110V
Minimum Order Quantity:
1
Delivery Time:
3-5 Working Days
Payment Terms:
D/A,D/P,T/T,Western Union,
Inquiry Now
Get A Quote
Specifications
Highlight Features
110V DC Coil Contactor
,18A Rated Current IEC Contactor
,3-Pole Magnetic Contactor
Type:
SC-E04PG-110VDC IEC
Product Name:
Electric SC-E04PG-110VDC IEC Contactor
Warranty Time:
6 Months
Application:
Elevator
Business Type:
Manufacturer
Packing:
Standard
Product Description
Fuji Electric SC-E04PG-110VDC IEC Contactor
Reliable Motor Control Solution
The Fuji Electric SC-E04PG-110VDC is a high-performance IEC standard contactor designed for reliable motor control and switching applications. With an 18A rated current and 110V DC coil voltage, this 3-pole contactor delivers exceptional performance in industrial automation systems.
Key Features
- Standard Compliance: Meets IEC, UL, and CE standards for global compatibility
- Compact Design: Space-saving 43mm width for efficient panel layout
- DC Coil Operation: Optimized for 110V DC control circuits
- Heavy-Duty Contacts: Three normally open (N.O.) power poles rated for 18A continuous current
- Wide Application Range: Suitable for 3-phase motor control up to 7.5kW at 400V AC
Applications

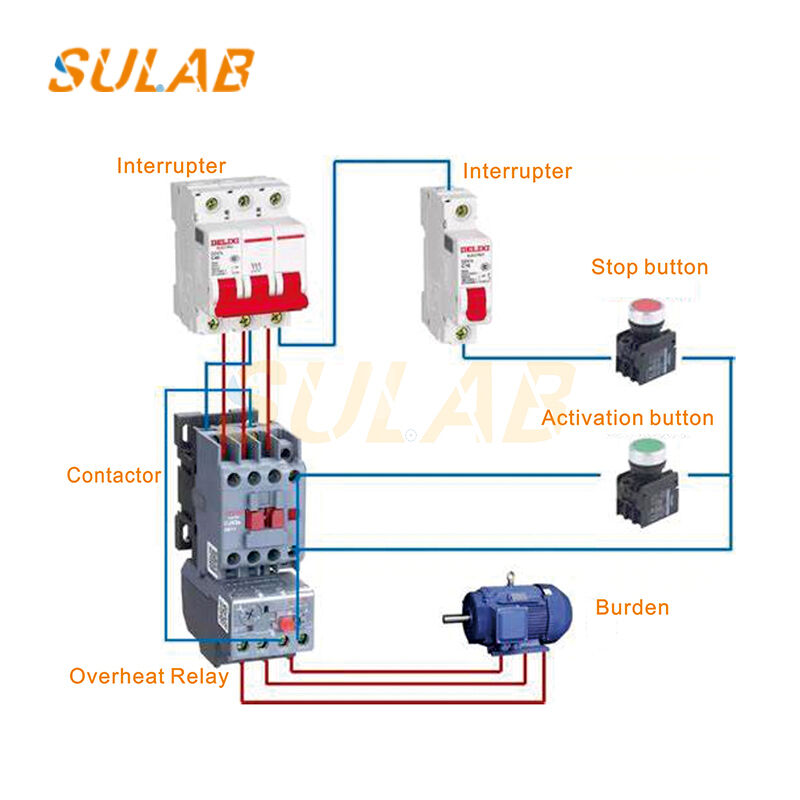

- Motor starters and control circuits
- Conveyor systems
- HVAC equipment
- Pump and compressor control
- General industrial machinery
Certifications: UL Listed (E42419), CE Marked, RoHS Compliant, REACH Compliant
Technical Specifications
| Manufacturer | Fuji Electric |
|---|---|
| Series | SC-E04PG |
| Model Number | SC-E04PG-110VDC |
| Contactor Type | IEC Magnetic Contactor |
| Rated Current | 18A (AC-3) |
| Main Contacts | 3 Poles, Normally Open (N.O.) |
| Coil Voltage | 110V DC |
| Coil Power | Approx. 6W (hold) |
| Rated Insulation Voltage | 690V |
| Operational Voltage Range | 85-110% of Rated Coil Voltage |
| Mechanical Life | 10 million operations |
| Electrical Life | 1 million operations (AC-3) |
| Operating Temperature | -5°C to +55°C (23°F to 131°F) |
| Mounting | DIN Rail 35mm or Panel Mount |
| Dimensions (WxHxD) | 43mm x 74mm x 84mm |
| Standards | IEC 60947-4-1, UL508, CSA C22.2 |
| Certifications | UL Listed, CE, RoHS, REACH |
| Auxiliary Contacts | Optional add-on blocks available |
Order Information: Standard packaging, 1 piece per unit.
