KONE OEM Elevator Door Operator Controller Board KM606030G01 with Dual Model Compatibility and Precision Door Control
Brand Name:
KONE
Model Number:
KM606040G01 KM606030G01
Minimum Order Quantity:
1
Delivery Time:
3-5 Working Days
Payment Terms:
D/A,D/P,T/T,Western Union,
Inquiry Now
Get A Quote
Specifications
Highlight Features
OEM Authenticity Elevator Door Operator Controller Board
,Dual Model Compatibility Door Motor Drive PCB
,Precision Door Control KONE PCB
Type:
KM606030G01 (Replaces KM606040G01)
Product Name:
KONE Elevator Door Operator Controller Board KM606030G01 (Replaces KM606040G01)
Warranty Time:
6 Months
Transportation:
Clients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
Application:
Lift Parts
Packing:
Stardard Package
Product Description

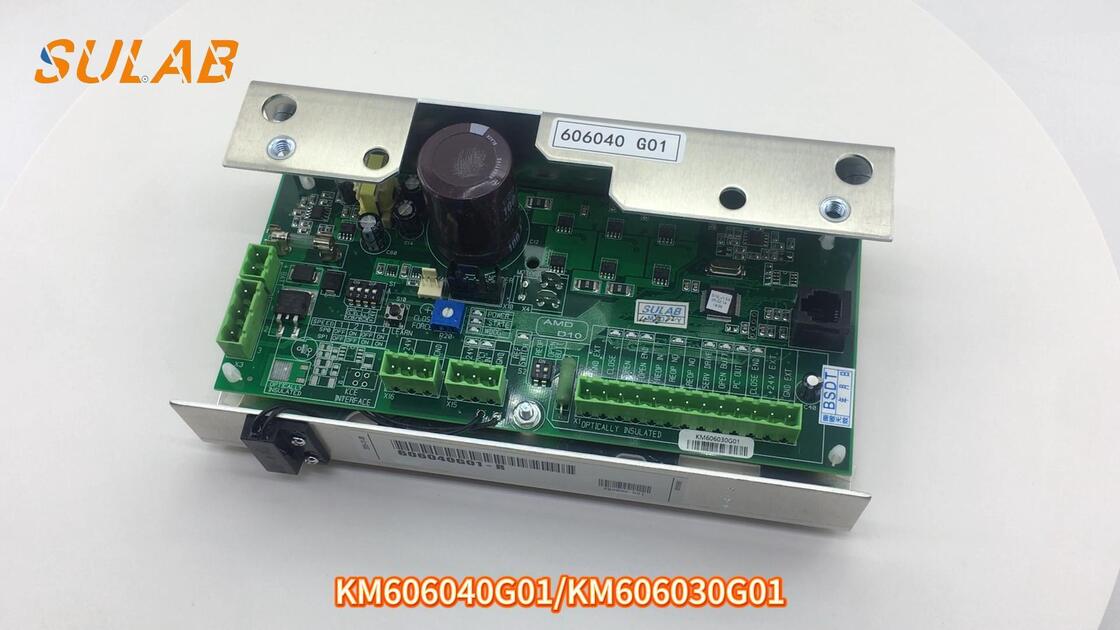

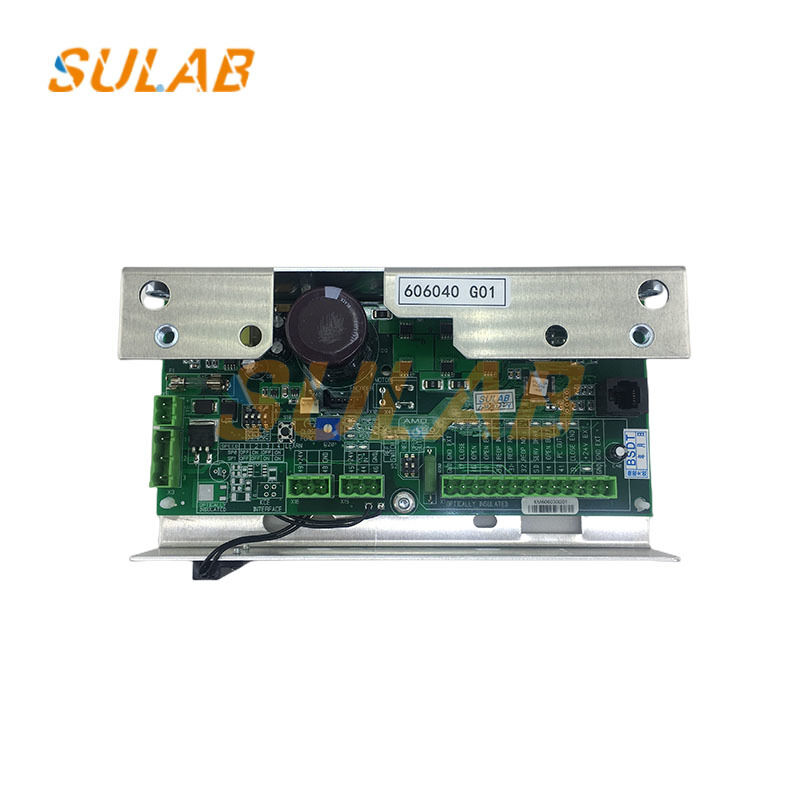

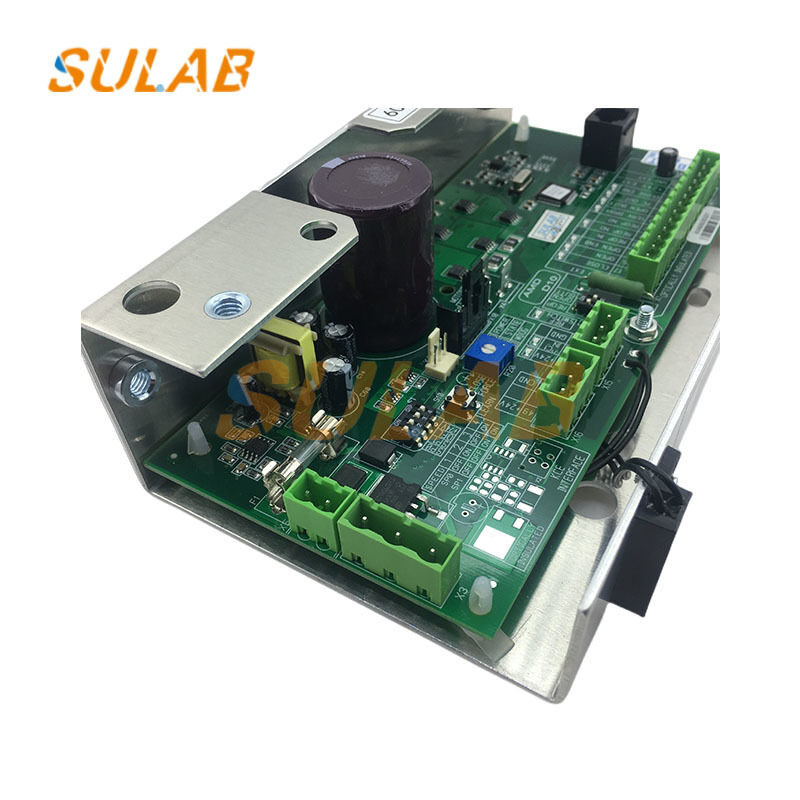

KONE Elevator Door Operator Controller Board KM606030G01 (Replaces KM606040G01) – OEM Door Motor Drive PCB
Genuine KONE OEM Door Drive PCB with Dual Model Compatibility
The KONE KM606030G01 is an authentic Original Equipment Manufacturer (OEM) printed circuit board serving as the core control module for KONE elevator door operators. This advanced door motor controller precisely manages door speed, torque, and positioning to ensure smooth, safe, and reliable passenger entry and exit.
The KONE KM606030G01 is an authentic Original Equipment Manufacturer (OEM) printed circuit board serving as the core control module for KONE elevator door operators. This advanced door motor controller precisely manages door speed, torque, and positioning to ensure smooth, safe, and reliable passenger entry and exit.
Critical Compatibility Note: The KM606030G01 directly supersedes and is 100% interchangeable with the older KM606040G01 part number, offering seamless replacement without system modifications.
Key Performance Features
- Precision Door Control: Advanced motor drive algorithms ensure whisper-quiet operation and accurate door panel synchronization
- Broad System Integration: Compatible across multiple KONE elevator platforms including MonoSpace, MiniSpace, TranSys, and Alta series
- Intelligent Diagnostics: Built-in fault detection and status feedback for proactive maintenance
- Robust Design: Industrial-grade components rated for 1 million+ operation cycles in high-traffic installations
- Safety Compliant: Integrates with KONE safety circuits meeting EN 81 and ASME A17.1 standards
Why Choose Our Genuine KONE Boards?
- Verified OEM Authenticity: Factory-sealed, original anti-static packaging eliminates counterfeit risks
- Drop-in Replacement: Identical mounting points and connector layout ensure 15-minute installation
- Extended Lifecycle Support: Continued availability for legacy systems beyond typical OEM support periods
- Technical Expertise: Free pre-installation consultation and post-installation troubleshooting from certified elevator technicians
- Global Logistics: DHL/FedEx/UPS express shipping with 3-5 day delivery to major markets
Typical Applications: High-rise commercial buildings, residential elevators, hospital lifts, and industrial freight elevators requiring reliable door operation.
Technical Specifications Comparison
| Specification | KM606030G01 (Current) | KM606040G01 (Legacy) |
|---|---|---|
| Brand | KONE | KONE |
| Part Type | Door Operator Controller PCB | Door Operator Controller PCB |
| Model Status | Active Production | Superseded |
| Direct Compatibility | ✅ 100% Compatible with KM606040G01 | ❌ Replaced by KM606030G01 |
| Function | Door motor drive, encoder feedback, safety circuit interface | Same as current model |
| Compatible Elevator Series | MonoSpace, MiniSpace, TranSys, Alta, ReSolve, ReGenerate | Same as current model |
| Input Voltage | 24V DC (control circuit) | 24V DC (control circuit) |
| Output Power | Max 500W brushed DC motor drive | Max 500W brushed DC motor drive |
| Encoder Interface | Incremental encoder (5V differential) | Incremental encoder (5V differential) |
| Safety Inputs | Door lock, light curtain, nudge sensor | Door lock, light curtain, nudge sensor |
| Connectors | Standardized 12-pin power + 8-pin signal | Standardized 12-pin power + 8-pin signal |
| Dimensions (L × W × H) | 180mm × 120mm × 45mm | 180mm × 120mm × 45mm |
| Mounting | 4×M4 threaded standoffs | 4×M4 threaded standoffs |
| Operating Temperature | -10°C to +60°C (14°F to 140°F) | -10°C to +60°C (14°F to 140°F) |
| Weight | 0.32 kg (0.71 lbs) | 0.32 kg (0.71 lbs) |
| Certifications | ISO9001, CE, RoHS Compliant | ISO9001, CE, RoHS Compliant |
| Warranty Period | 12 Months Limited Warranty | 12 Months Limited Warranty |
| Packaging | Anti-static bag + bubble wrap + carton | Anti-static bag + bubble wrap + carton |
| Country of Origin | Finland / China (OEM production) | Finland / China (OEM production) |
| Moisture Sensitivity | MSL Level 3 - dry storage recommended | MSL Level 3 - dry storage recommended |
