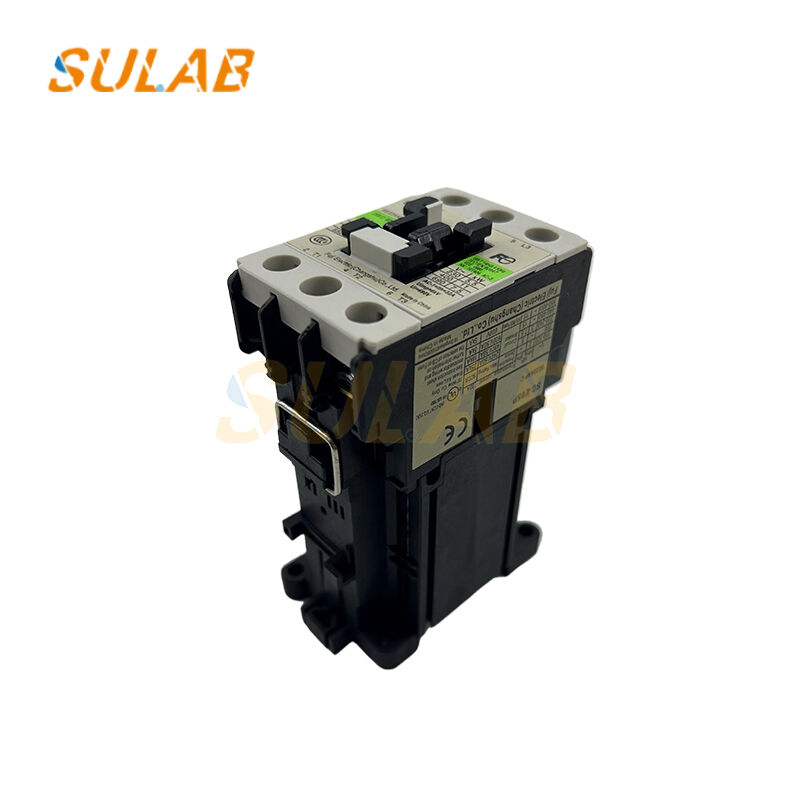

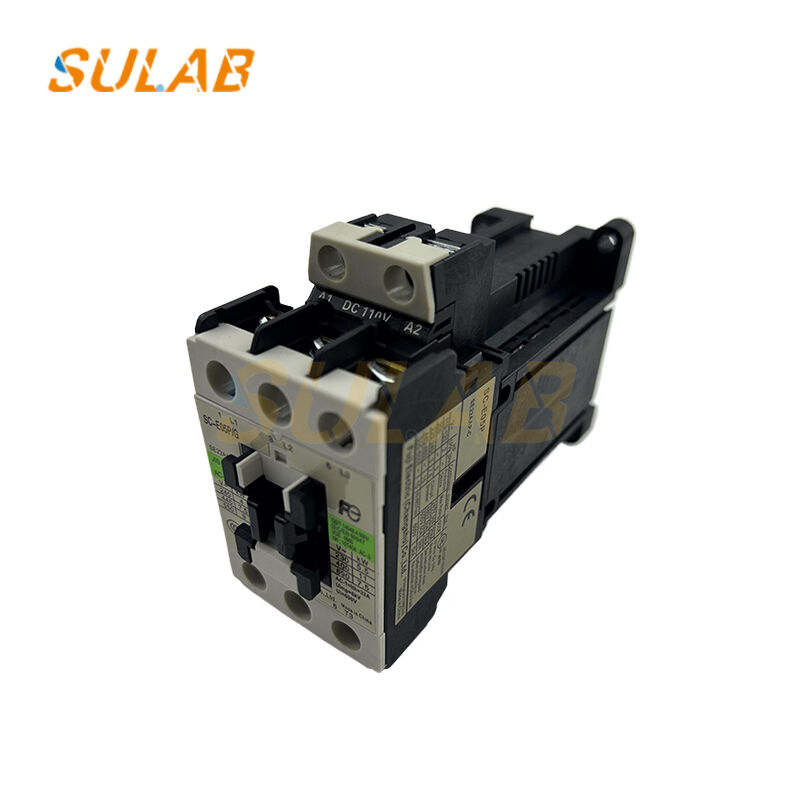

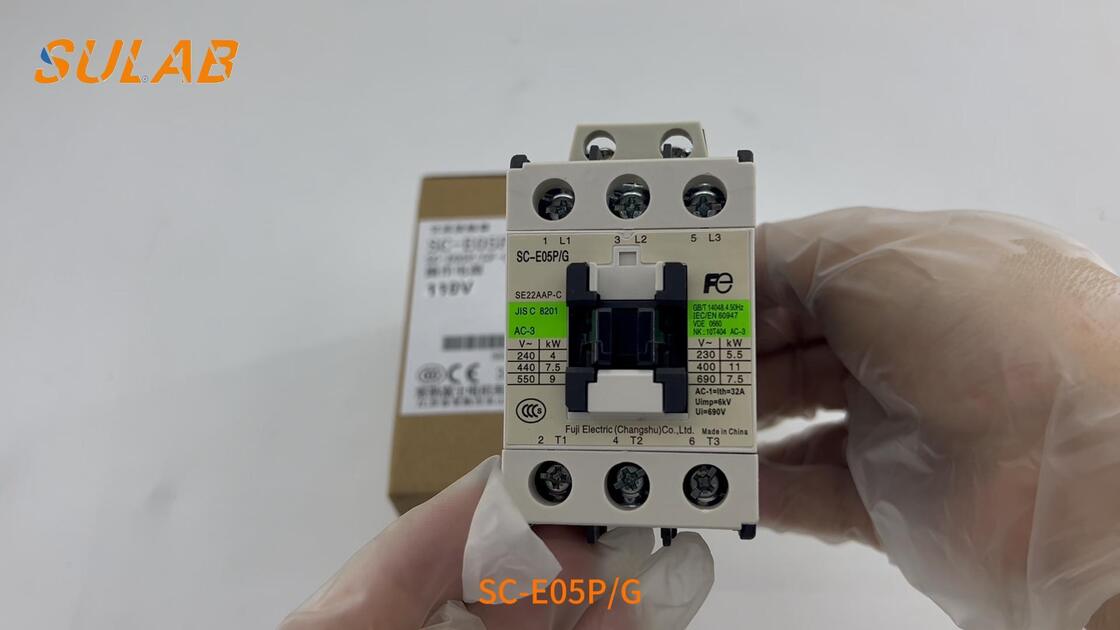

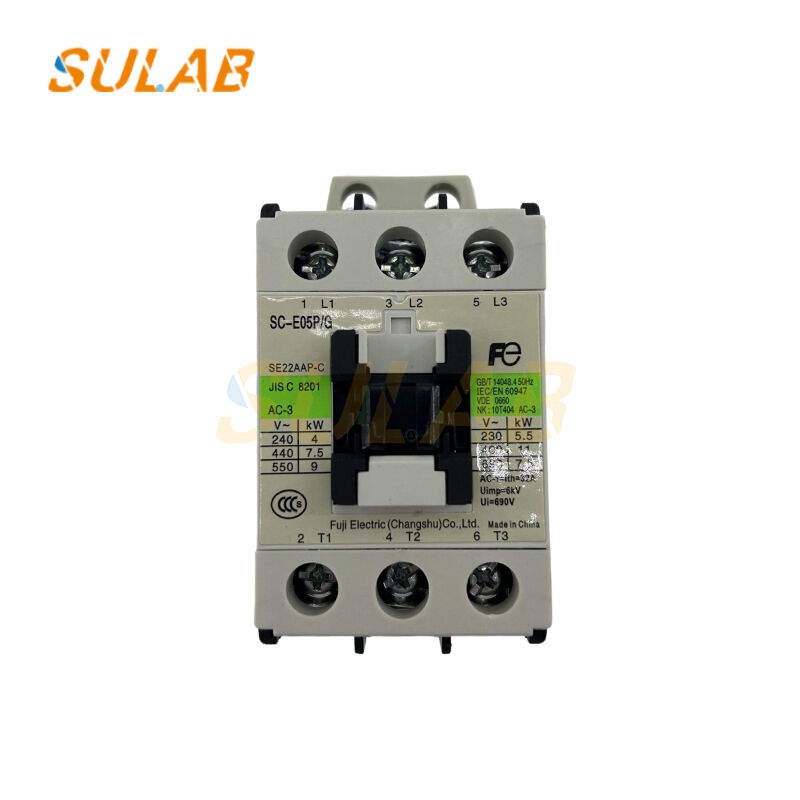

Fuji Electric SC-E05P-G Magnetic Contactor for Elevator Spare Parts - 25A, 24VDC Coil, 3-Pole with Ring Terminal Connection
-
Highlight
25A Magnetic Contactor
,24VDC Coil SC-E05P-G
,3-Pole Elevator Spare Parts
-
TypeSC-E05P-G
-
Product NameFuji Electric SC-E05P-G Magnetic Contactor
-
TransportationClients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
-
ApplicationElevator Parts
-
Business TypeManufacturer
-
KeywordsReliable Motor Starts Begin With The Fuji Electric SC-E05P-G Magnetic Contactor.
-
PackingStandard Package
-
Brand NameFuji
-
Model NumberSC-E05P-G
-
Minimum Order Quantity1
-
Delivery Time3-5 Working Days
-
Payment TermsD/A,D/P,T/T,Western Union,MoneyGram
Fuji Electric SC-E05P-G Magnetic Contactor for Elevator Spare Parts - 25A, 24VDC Coil, 3-Pole with Ring Terminal Connection
Fuji Electric SC-E05P-G Magnetic Contactor - 25A, 24VDC Coil, 3-Pole, Ring Terminal Connection
The Fuji Electric SC-E05P-G is a high-performance magnetic contactor engineered for reliable motor control and switching in industrial automation systems. With a 24VDC coil and 25A rated current, this contactor is ideal for elevator systems, HVAC, pumps, and general motor control applications.
Designed for durability and efficiency, the SC-E05P-G features ring terminal connections for secure wiring and a compact E05 frame size that saves panel space. It supports AC-3 and AC-1 duty, making it suitable for both motor and resistive loads.
This model is part of Fuji's SC-E series, known for its long mechanical and electrical life, wide operating temperature range, and global compliance with IEC and UL standards.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | SC-E05P-G |
| Coil Voltage | 24VDC |
| Rated Operating Current (AC-3) | 25A (200-240V / 380-440V) |
| Rated Thermal Current (AC-1) | 32A (200-240V / 380-440V) |
| Motor Capacity (AC-3) | 5.5kW @ 200-240V / 11kW @ 380-440V |
| Number of Poles | 3 (Normally Open) |
| Connection Type | Ring Terminal |
| Frame Size | E05 |
| Dimensions (L × W × H) | 118mm × 81mm × 43mm |
| Weight | 1.31 lbs (approx. 0.59 kg) |
| Operating Temperature | -5°C to +55°C |
| Standards Compliance | IEC 60947, UL, CSA, RoHS |
| Application | Elevators, motor control, automation, HVAC, pumps |
