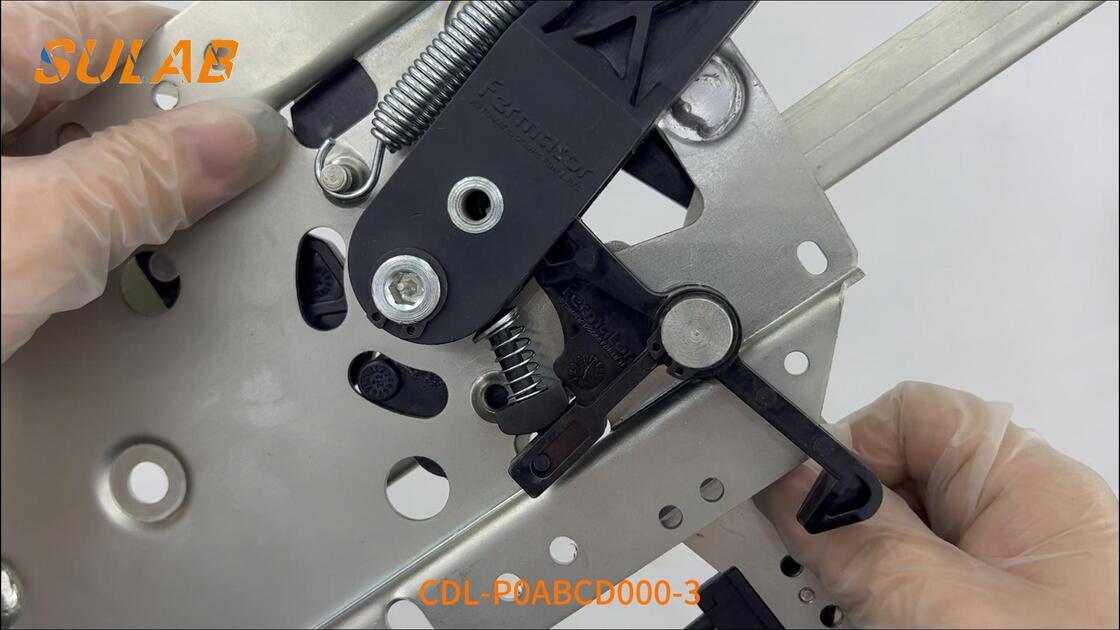

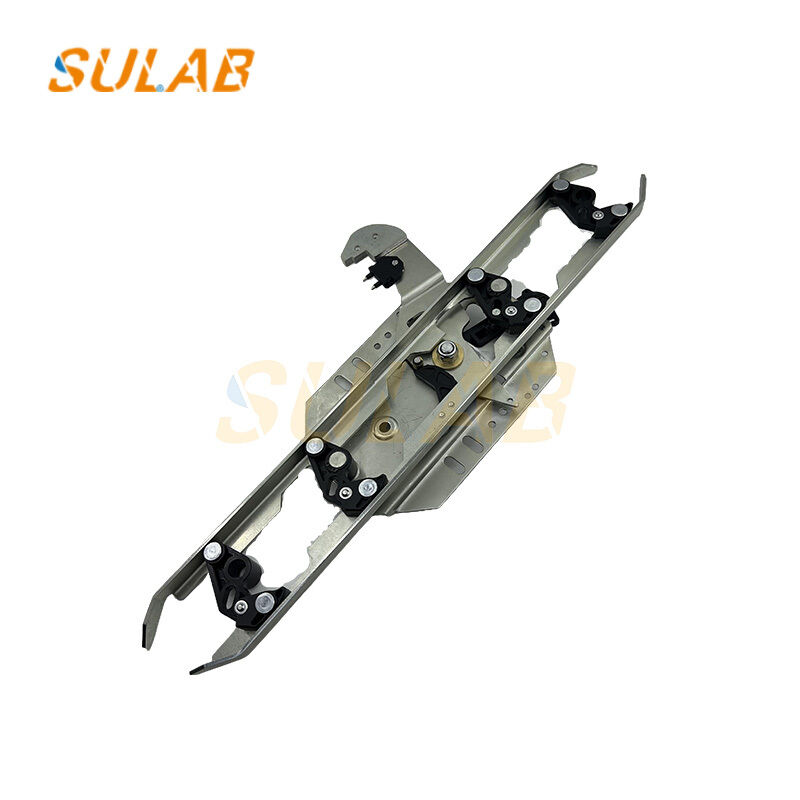

Fomat CDL-P0ABCD000-3 Elevator Door Knife with 304 Stainless Steel CNC-Ground ±0.02 mm and 12° Taper Blade Landing Door Lock Mechanism
Brand Name:
Fomat
Model Number:
CDL-P0ABCD000-3
Minimum Order Quantity:
1
Delivery Time:
3-5 Working Days
Payment Terms:
D/A,D/P,T/T,Western Union,
Inquiry Now
Get A Quote
Specifications
Highlight Features
304 Stainless Steel Elevator Door Knife
,CNC-Ground ±0.02 mm Landing Door Lock Mechanism
,12° Taper Blade Fomat CDL-P0ABCD000-3
Type:
CDL-P0ABCD000-3
Product Name:
Fomat Door Knife CDL-P0ABCD000-3
Transportation:
Clients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
Application:
Elevator Parts
Business Type:
Manufacturer
Keywords:
Precision-machined Fomat CDL-P0ABCD000-3 Door Knife Guarantees Silent
Packing:
Standard Package
Product Description
Fomat Door Knife CDL-P0ABCD000-3 Elevator Landing Door Lock Mechanism
Precision-machined Fomat CDL-P0ABCD000-3 door knife guarantees silent, reliable unlocking of elevator landing doors up to 1.75 m/s. Forged from 304 stainless steel and CNC-ground to ±0.02 mm, the blade maintains a 12° taper that reduces wear on rollers and extends door-lock life by 30%.
Key Features
- Drop-in replacement for Fomat P0 series; identical 60 mm bolt pattern
- Corrosion-proof electropolished finish, 96 h salt-spray tested
- Pre-lubricated graphite-impregnated bushings—no field greasing needed
- Temperature range -20 °C … +60 °C, suitable for outdoor MRL shafts
- UL/CE marked; complies with EN 81-20/50 and A17.1
Technical Specifications
| Attribute | Value / Range |
|---|---|
| Brand | Fomat |
| Model | CDL-P0ABCD000-3 |
| Material | 304 stainless steel, electropolished |
| Blade angle | 12° ±0.5° |
| Mounting pattern | 4 × M8, 60 mm × 20 mm rectangle |
| Overall length | 180 mm |
| Blade thickness | 5 mm |
| Max. door speed | 1.75 m/s |
| Static load rating | 1,500 N |
| Dynamic load rating | 800 N |
| Operating temperature | -20 °C … +60 °C |
| Standards | EN 81-20/50, A17.1, CE, UL |
| Net weight | 0.42 kg |
| Package | 1 pc/box, 50 pcs/export carton |
