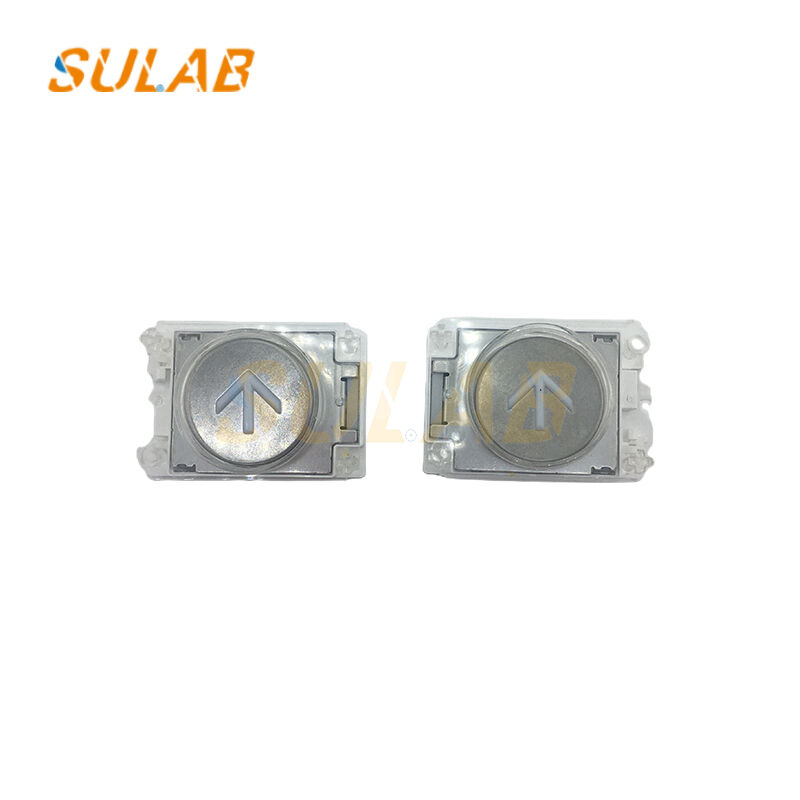

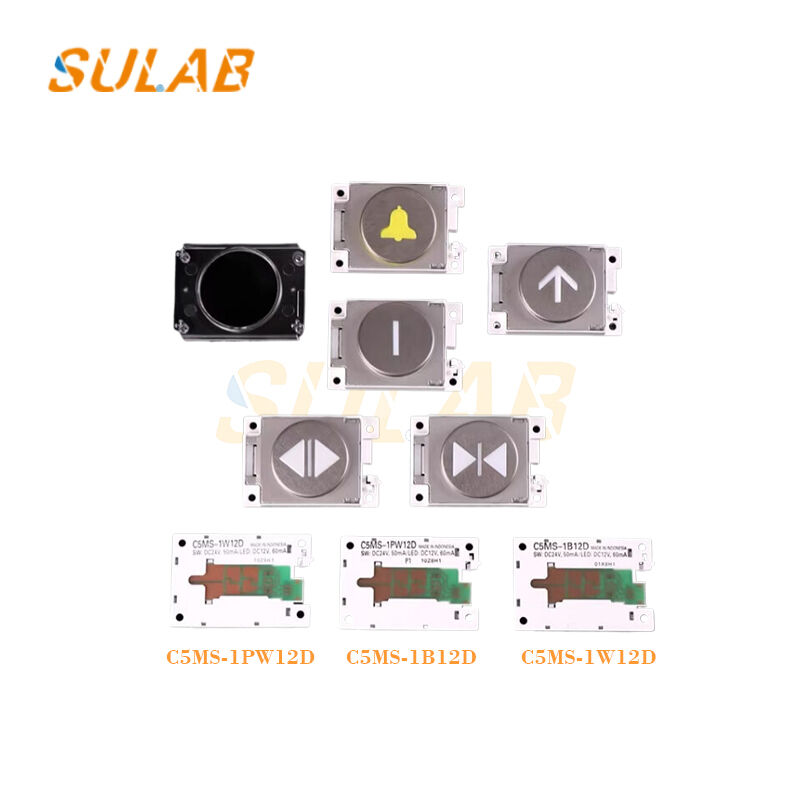

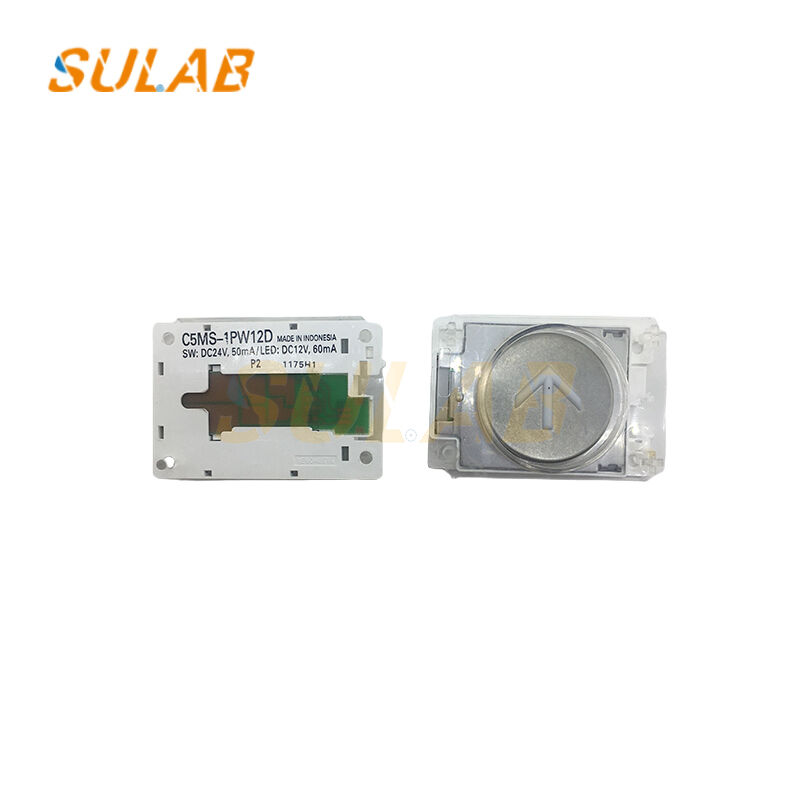

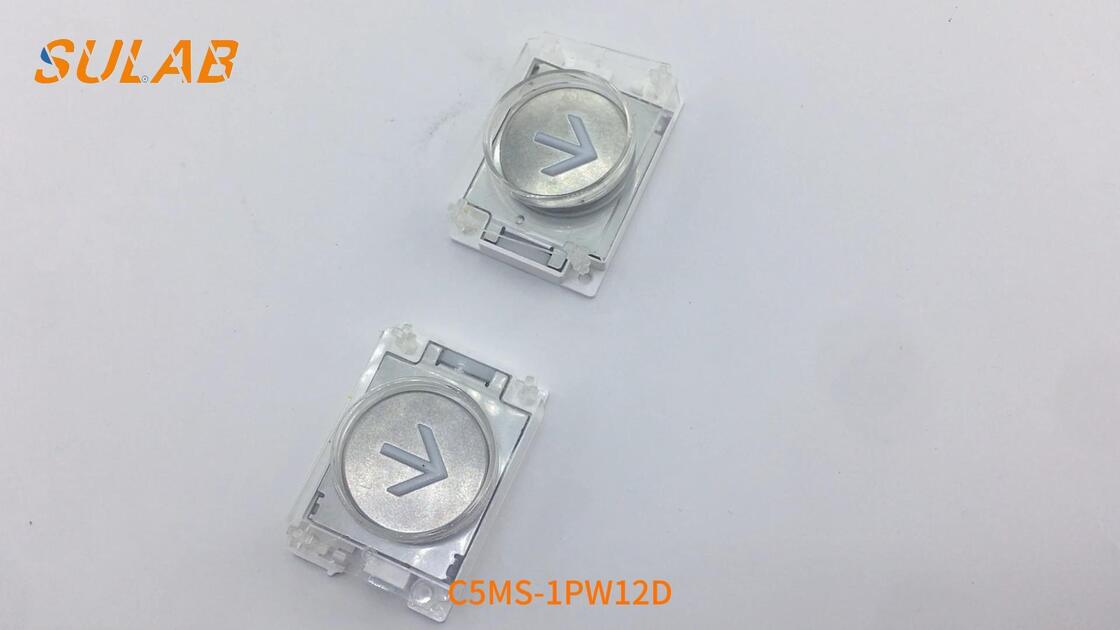

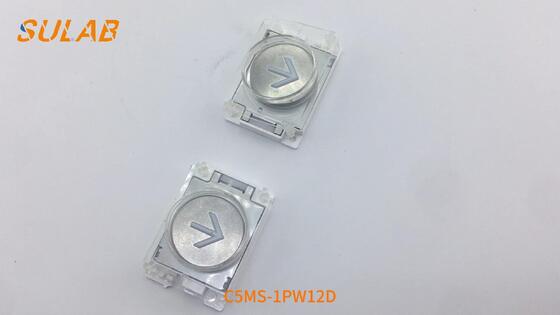

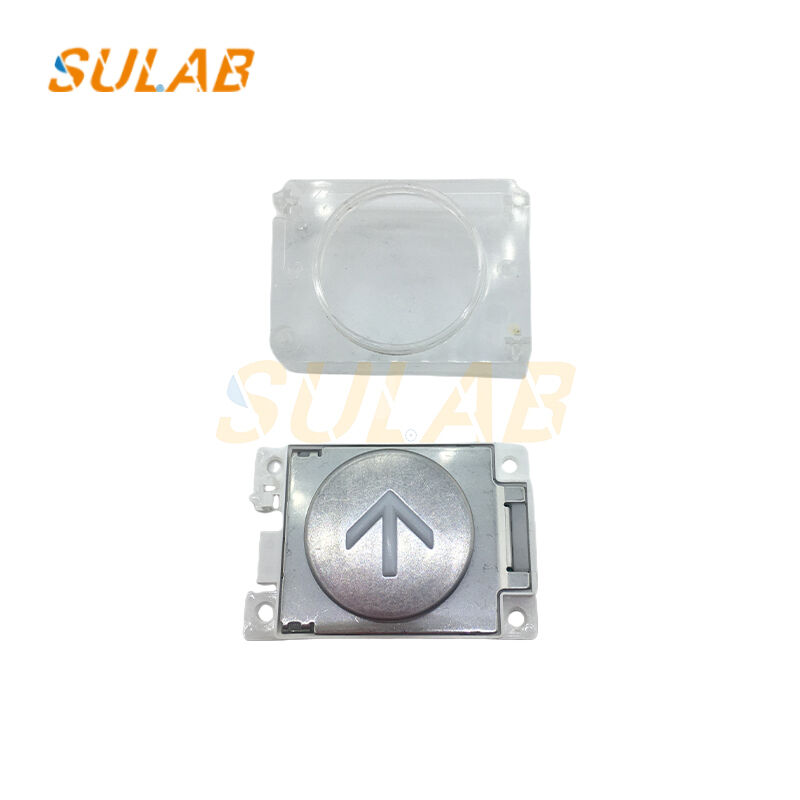

Mitsubishi Elevator Push Button C5MS-1PW12D with White LED 24 VDC Snap-in Mount for Elevator Stations

Mitsubishi Elevator Push Button C5MS-1PW12D with White LED 24 VDC Snap-in Mount for Elevator Stations

Products - Elevator Spare Parts
  • Highlight

    White LED Elevator Push Button

    ,

    24 VDC Elevator Button

    ,

    Snap-in Mount Push Button

  • Type
    C5MS-1PW12D
  • Product Name
    Mitsubishi Elevator Push Button C5MS-1PW12D
  • Application
    Elevator Parts
  • Transportation Mode
    Air,FedEx TNT DHL,FOB,EMS Or UPS) /LCL By Sea Or Train
  • Business Type
    Manufacturer
  • Packing
    Packed In Carton
  • Brand Name
    Mitsubishi
  • Model Number
    C5MS-1PW12D
  • Minimum Order Quantity
    1
  • Delivery Time
    3-5 Working Days
  • Payment Terms
    D/A,D/P,T/T,Western Union,MoneyGram

Mitsubishi Elevator Push Button C5MS-1PW12D with White LED 24 VDC Snap-in Mount for Elevator Stations

Get Price Contact Now
Mitsubishi Elevator Push Button C5MS-1PW12D
OEM Square Button with White LED, 24 VDC, Snap-in Mount
Genuine Mitsubishi spare part for car and hall stations. The C5MS-1PW12D square push-button provides passengers with a crisp white LED ring and positive tactile click, while installers benefit from tool-free snap-in mounting and long 1 million-cycle lifespan.
Key Benefits
  • 100% OEM match - no firmware or face-plate changes required
  • Built-in white LED ring, 24 VDC, <15 mA per lamp
  • Snap-in front-fixing: install or swap in 5 seconds without removing the panel
  • 1 × NO gold-plated contact block, rated 24 VDC / 1 mA … 30 VDC / 2 A
  • > 1 million mechanical cycles, >100,000 electrical cycles at full load
  • ABS flame-retardant housing, UV-stable lens, IP40 front protection
Technical Specifications
Parameter Value
Model C5MS-1PW12D
Type Square illuminated push-button
Supply voltage 24 VDC (±10 %)
LED colour White
LED current ≤15 mA
Contact 1 × NO, snap-action
Contact rating 1 mA … 2 A, 24 … 30 VDC
Mechanical life 1 million cycles
Electrical life 100,000 cycles at 30 VDC / 2 A
Operating temperature -10 °C … +60 °C
Front protection IP40
Mounting 30 × 30 mm square cut-out, snap-in
Material ABS + PC, UL94 V-0
Weight 12 g (button only)
