Brand New OTIS Elevator RS32 Series Communication Address Board DBA26800J1 Compatible with Multiple Otis Models and One Year Warranty

Brand Name: OTIS
Model Number: DBA26800J1
Minimum Order Quantity: 1
Delivery Time: 2-3 working days
Payment Terms: T/T,Western Union,
Inquiry Now
Get A Quote
Specifications
Highlight Features

Brand New Elevator Communication Board

,

Compatible with Multiple Otis Models RS32 Series Board

,

One Year Warranty Elevator Address Board

Brand:
OTIS
Description:
Elevator Board
Model:
DBA26800J1
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description

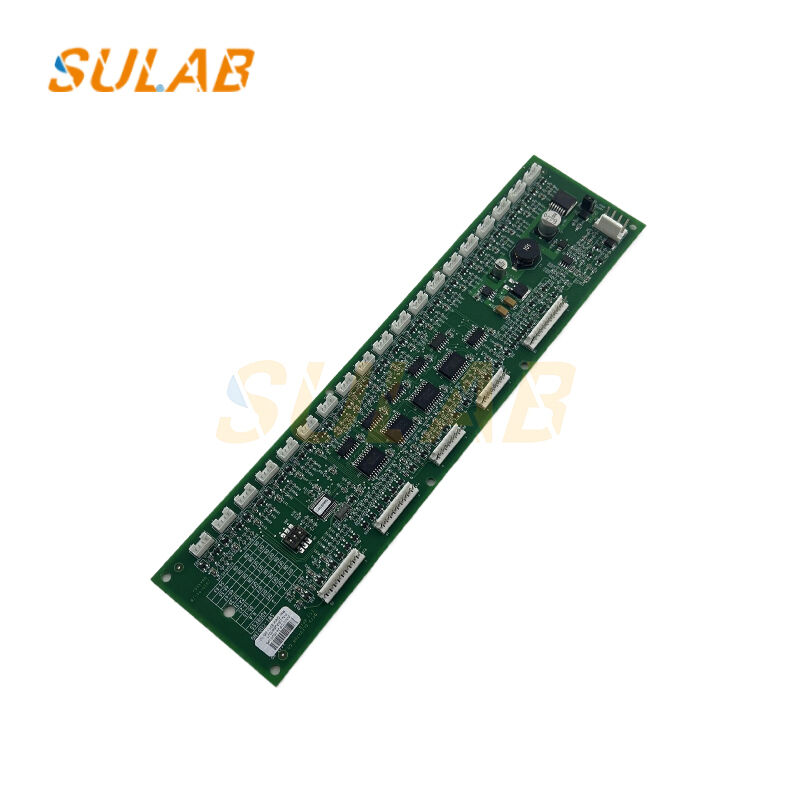

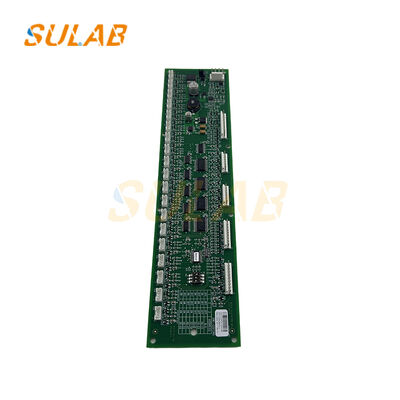

OTIS Elevator Car RS32 Communication Board Address Board DBA26800J1 DAA26800J1 Brand New
The Otis DBA26800J1 is an RS32 series car communication/address board designed for signal interaction and address allocation between elevator cars and main control systems. This brand new component is compatible with multiple Otis elevator models including Xizi Otis and Tianjin Otis, serving as a critical element in elevator communication infrastructure.
Product Specifications
Brand OTIS
Description Elevator board
Model DBA26800J1
MOQ 1PC
Transportation TNT, UPS, DHL, Fedex, Air, Sea
Packages Carton, Wooden case, Pallet etc
Delivery Time Normally 2-3 working days after payment
Warranty One year
Payment Method Company Bank, Western union, Alibaba, Paypal etc
Core Functions
  • Collects and transmits car commands including floor selection buttons and door opening controls
  • Monitors and communicates car position and door status signals
  • Performs car address encoding to ensure main control board accurately identifies car position
  • Enhanced versions support comfort functions such as voice floor announcements
Common Versions
  • Basic Version (without voice function): Compatible with Xizi Otis V1.2 and Hangzhou Xizi Otis V1.0. Features black connectors and lacks voice announcement capability.
  • Enhanced Version (with voice function): Compatible with Xizi Otis V2.0 and Hangzhou Xizi Otis V3.0. Integrates voice floor announcement functionality for models requiring this feature.
Important Note: This board is not interchangeable with other models in the same series such as DAA26800J1 and RS32-C. Proper matching according to specific elevator model requirements is essential for optimal performance.

Elevator PCB Board - FAQ

Q1: How do I identify the correct replacement elevator PCB board?
To identify a replacement elevator PCB board, check the original part number, hardware revision, board markings, and elevator controller model. Clear photos of both sides of the PCB can help distinguish different versions.

Q2: Can elevator PCB boards with similar part numbers be interchangeable?
Not necessarily. Elevator PCB boards with similar part numbers may differ in hardware revisions, firmware, connector layouts, or communication protocols. Compatibility must be verified against the existing elevator system.

Q3: Does a replacement elevator PCB board require programming?
Some replacement PCB boards require firmware configuration, parameter settings, or system-specific programming. Others may already contain the required software. The correct procedure depends on the PCB model and its role in the elevator control system.

Q4: Can a faulty elevator PCB board be replaced without changing the complete control system?
In some cases, an individual PCB can be replaced if the replacement is compatible with the existing controller, firmware, wiring, and connected components. A qualified technician should confirm the fault before deciding on replacement.

Q5: What information should I provide when sourcing a replacement elevator PCB board?
Please provide the original PCB part number, hardware revision, elevator model, clear board photos, and required quantity. SULAB can help review these details and check available replacement options.
