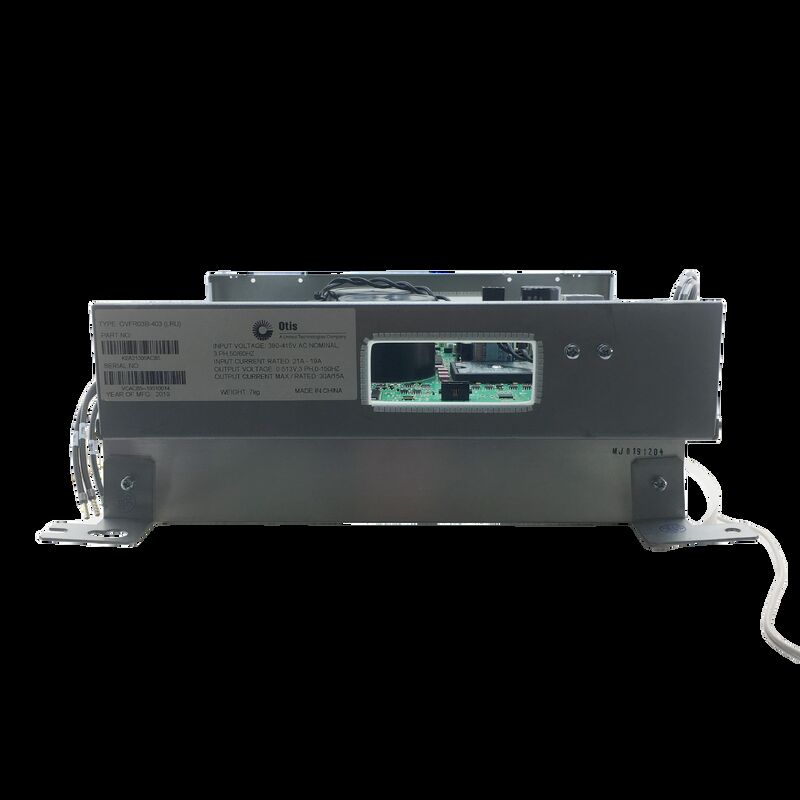

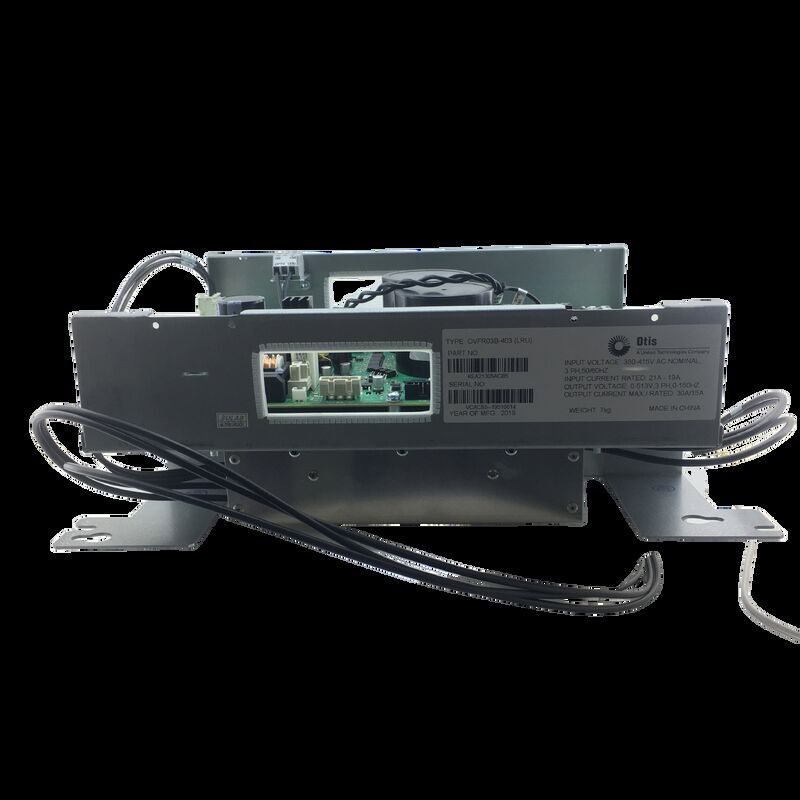

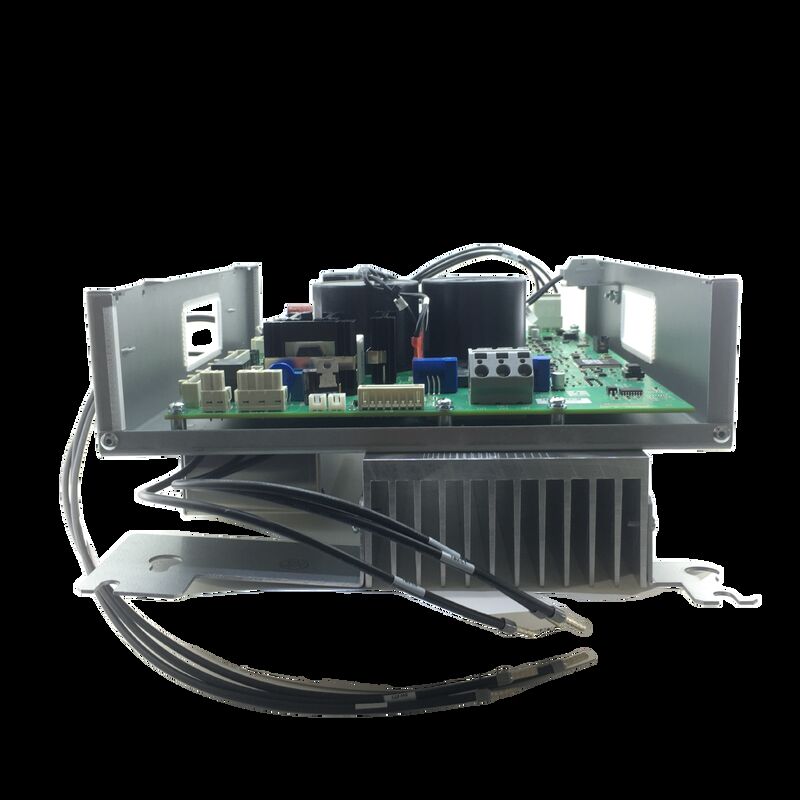

OTIS Elevator KEA21305ACB5 Frequency Inverter Matching Board for OVFR03B-403 LRU with 380-415V Input and Speed Regulation

Brand Name: OTIS
Model Number: KEA21305ACB5
Minimum Order Quantity: 1
Delivery Time: 2-3 working days
Payment Terms: T/T,Western Union,
Inquiry Now
Get A Quote
Specifications
Highlight Features

KEA21305ACB5 Elevator Inverter Board

,

380-415V Input Frequency Inverter Matching Board

,

Speed Regulation OTIS OVFR03B-403 LRU Board

Brand:
OTIS
Description:
Elevator Inverter
Model:
KEA21305ACB5
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description
Otis Elevator LRU-403 Frequency Inverter KB KC KD KEA21305ACB1 2 3 5 7 9 - Brand New

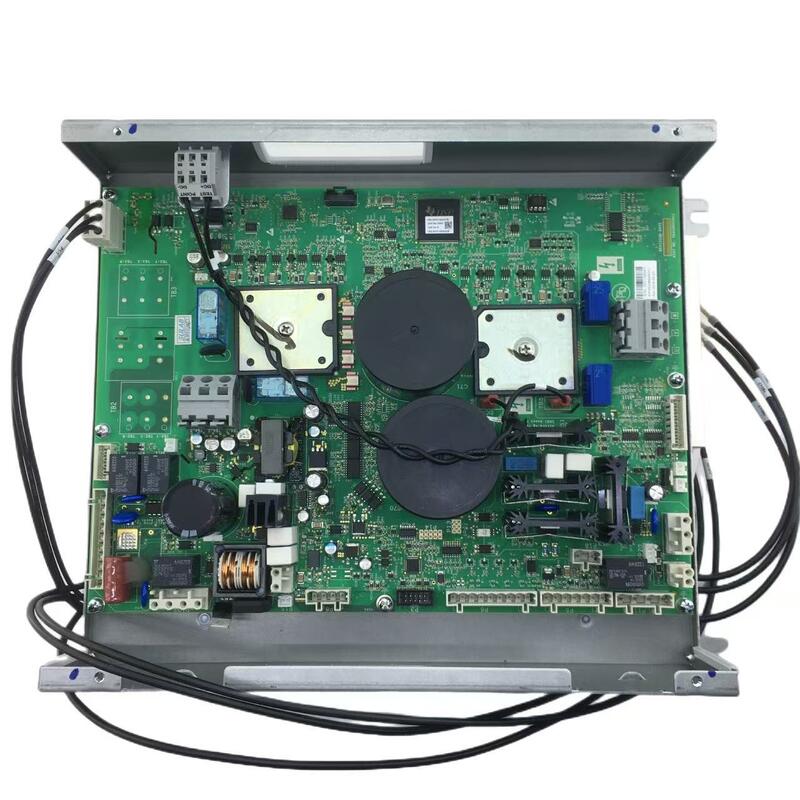

The KEA21305ACB5 is a dedicated matching board specifically designed for the OTIS OVFR03B-403 (LRU) inverter. This essential accessory ensures stable inverter operation and proper functioning of the elevator traction system.
Product Specifications
Brand OTIS
Description Elevator Inverter Matching Board
Model KEA21305ACB5
MOQ 1 PC
Input Voltage 380-415V
Input Current 19-21A
Transportation TNT, UPS, DHL, Fedex, Air, Sea
Packaging Carton, Wooden Case, Pallet
Delivery Time 2-3 Working Days After Payment
Warranty One Year
Payment Methods Company Bank, Western Union, Alibaba, PayPal
Core Functions & Operational Benefits
Speed Regulation & Energy Conservation
This matching board works in conjunction with the inverter to regulate frequency and voltage for the elevator traction motor. This enables smooth, stepless speed control that provides gentle starts and stops, reducing mechanical stress on components and minimizing wear on gears, belts, and other parts. By optimizing motor operation based on actual elevator load, it eliminates unnecessary energy consumption for significant energy savings.
Safety Protection Assistance
The board supports critical safety protection functions by detecting abnormal conditions such as overcurrent, overvoltage, undervoltage, or motor overheating. When anomalies occur, it rapidly captures signals and coordinates with the inverter to trigger alarms or initiate shutdown protocols, protecting both the traction motor and inverter while ensuring overall elevator system safety.
Compatibility: Highly compatible with OTIS OVFR03B-403 (LRU) inverters and widely used as a supporting component in Xizi OTIS elevators. The electrical parameter configuration ensures stable power transmission and reliable control signal communication between the board and inverter.

Elevator PCB Board - FAQ

Q1: How do I identify the correct replacement elevator PCB board?
To identify a replacement elevator PCB board, check the original part number, hardware revision, board markings, and elevator controller model. Clear photos of both sides of the PCB can help distinguish different versions.

Q2: Can elevator PCB boards with similar part numbers be interchangeable?
Not necessarily. Elevator PCB boards with similar part numbers may differ in hardware revisions, firmware, connector layouts, or communication protocols. Compatibility must be verified against the existing elevator system.

Q3: Does a replacement elevator PCB board require programming?
Some replacement PCB boards require firmware configuration, parameter settings, or system-specific programming. Others may already contain the required software. The correct procedure depends on the PCB model and its role in the elevator control system.

Q4: Can a faulty elevator PCB board be replaced without changing the complete control system?
In some cases, an individual PCB can be replaced if the replacement is compatible with the existing controller, firmware, wiring, and connected components. A qualified technician should confirm the fault before deciding on replacement.

Q5: What information should I provide when sourcing a replacement elevator PCB board?
Please provide the original PCB part number, hardware revision, elevator model, clear board photos, and required quantity. SULAB can help review these details and check available replacement options.
