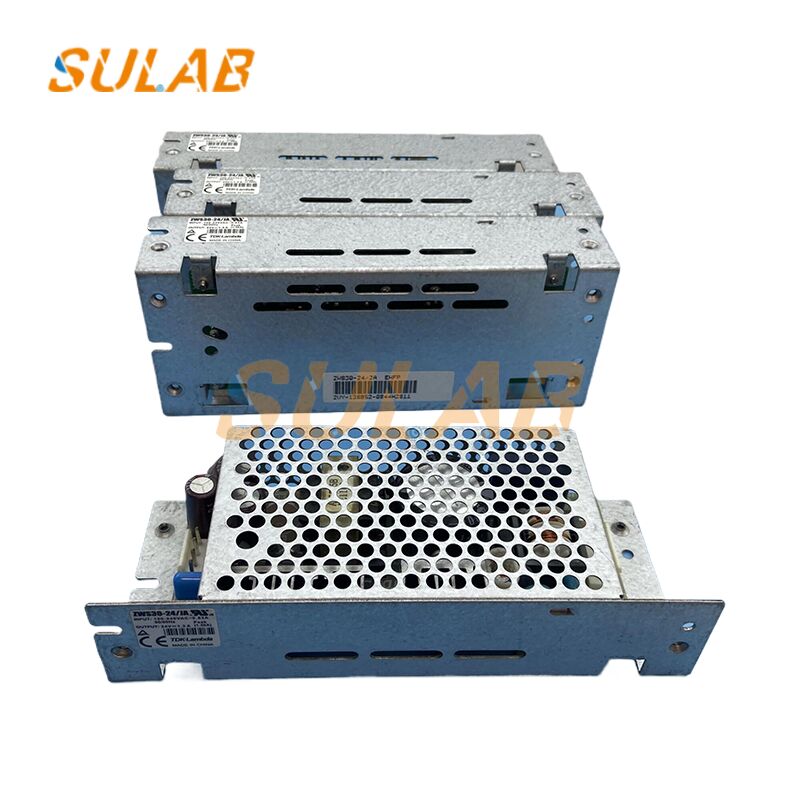

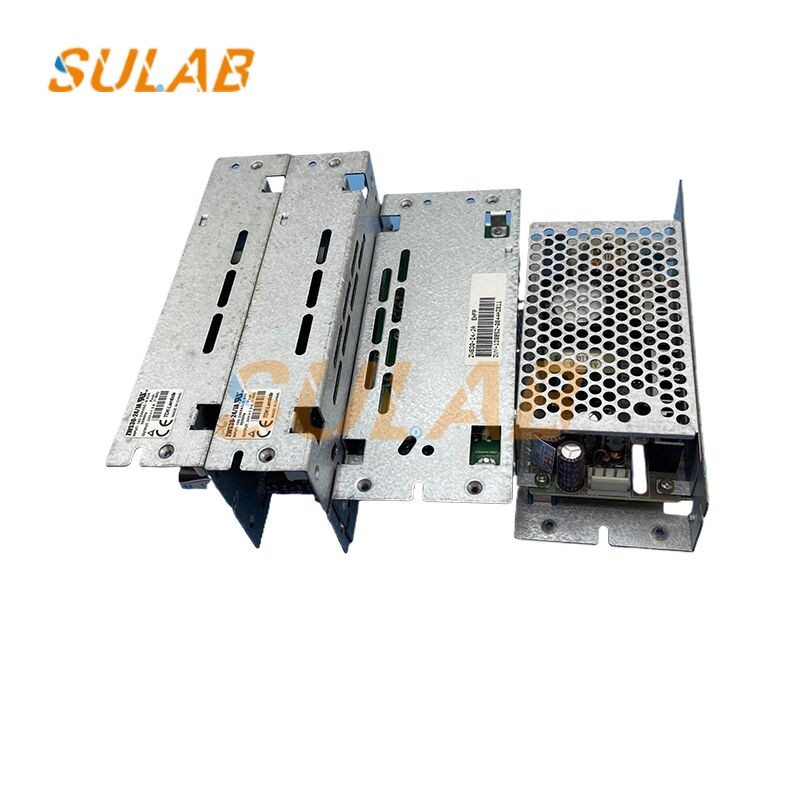

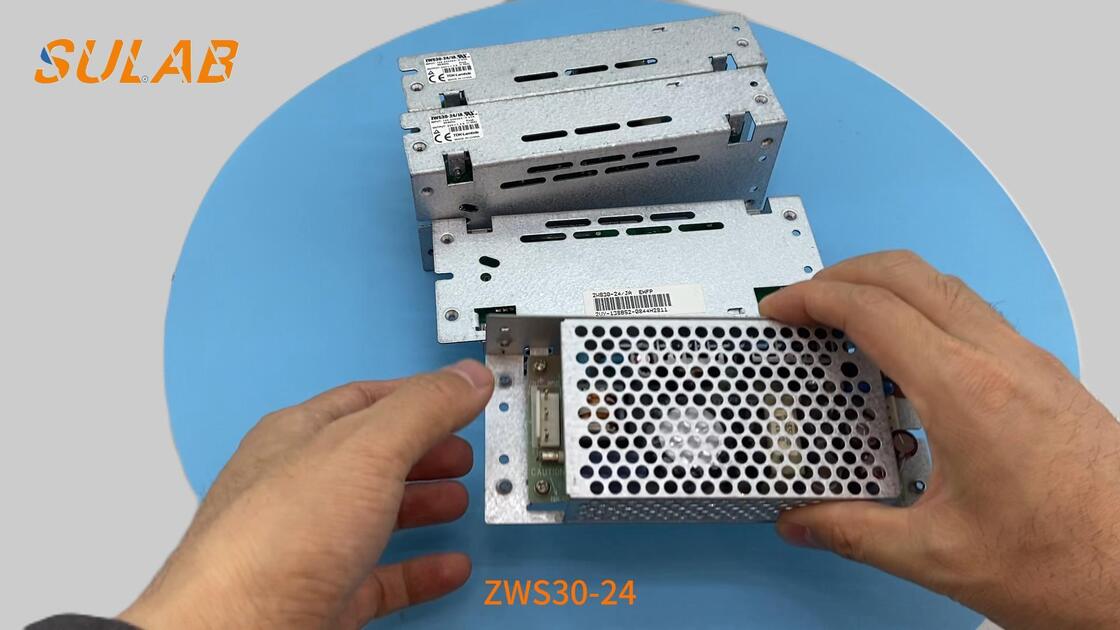

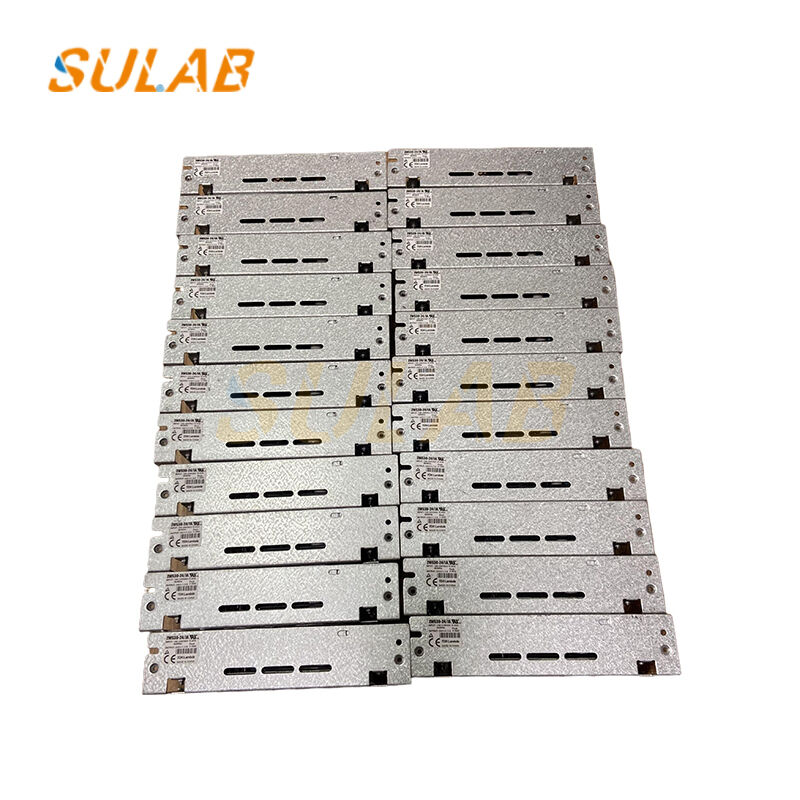

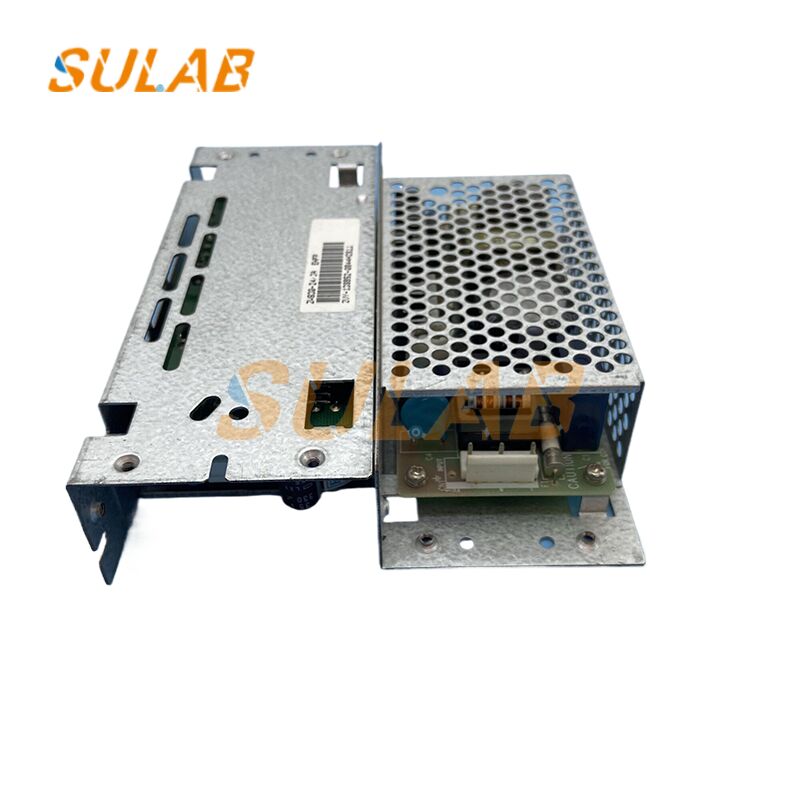

Mitsubishi Elevator Switching Power Supply ZWS30-24 | 24 VDC 30 W DIN-Rail Mounted for Reliable Elevator Systems
Brand Name:
Mitsubishi
Model Number:
ZWS30-24
Minimum Order Quantity:
1
Delivery Time:
3-5 Working Days
Payment Terms:
D/A,D/P,T/T,Western Union,
Inquiry Now
Get A Quote
Specifications
Highlight Features
24 VDC Switching Power Supply
,30 W Elevator Power Supply
,DIN-Rail Mounted Power Supply
Type:
ZWS30-24
Product Name:
Mitsubishi Elevator Switching Power Supply ZWS30-24
Transportation:
Clients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
Application:
Elevator Parts
Business Type:
Manufacturer
Keywords:
Elevator Parts,Elevator Safety , Mitsubishi Elevator Switching Power Supply ZWS30-24
Packing:
Packed In Carton
Product Description
Mitsubishi Elevator Switching Power Supply ZWS30-24 | 24 VDC 30 W DIN-Rail Type
Keep your Mitsubishi elevator system running reliably with the ZWS30-24 switching power supply.
This compact, DIN-rail mounted unit delivers a regulated 24 VDC @ 1.3 A (30 W) output and accepts a wide 85-264 VAC input, making it ideal for lift control cabinets, door operators, and safety circuits worldwide.
Built-in over-current, over-voltage, and short-circuit protections extend the service life of both the PSU and the connected controller boards.
The ZWS30-24 is a direct plug-and-play replacement for obsolete Mitsubishi power modules, minimizing downtime and costly field re-wiring.
Technical Specifications
| Parameter | Value / Feature |
|---|---|
| Part Number | ZWS30-24 |
| Input Voltage | 85-264 VAC, 47-63 Hz |
| Output Voltage | 24 VDC ±1% |
| Rated Output Current | 1.3 A |
| Output Power | 30 W |
| Efficiency | ≥ 85% @ 230 VAC |
| Mounting | DIN-rail (TS-35/7.5 or TS-35/15) |
| Operating Temperature | -10°C … +60°C (derating >45°C) |
| Protections | OCP, OVP, SCP |
| Dimensions (W×H×D) | 25 × 90 × 90 mm |
| Weight | ≈ 0.18 kg |
| MTBF | > 100,000 h @ 25°C |
Key Benefits
- Drop-in replacement for legacy Mitsubishi elevator PSU modules
- Global voltage compatibility — no tap switching required
- Ultra-slim 25 mm width saves panel space
- CE & UL 508 certified for worldwide shipment and installation
Typical Applications
- Mitsubishi elevator controller racks
- Lift door operator drives
- Floor position indicators & button panels
- Safety chain and light-curtain supplies
Need higher power or different voltage?

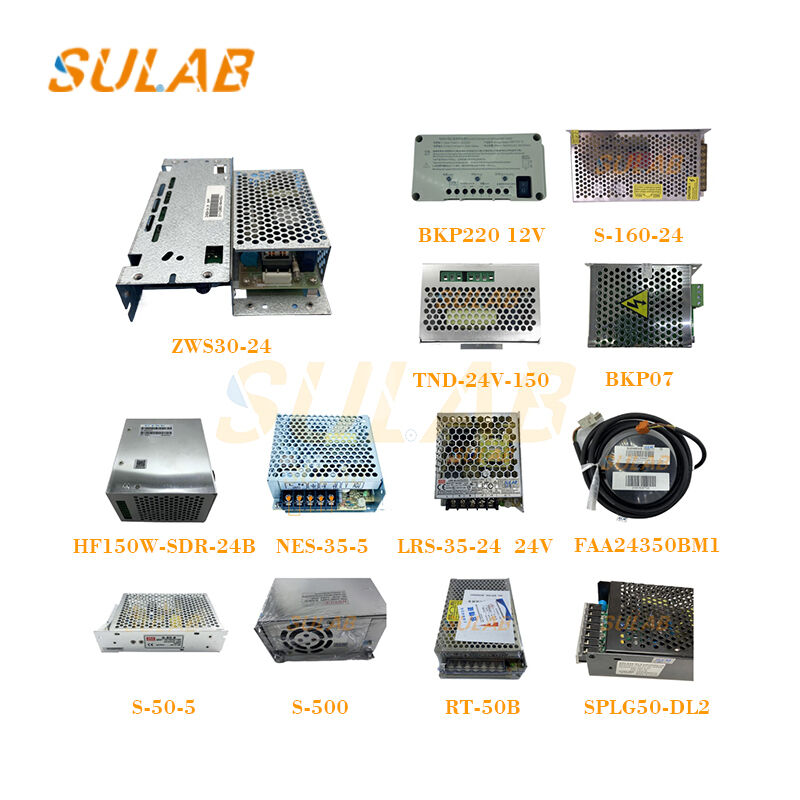

Browse our full range of Mitsubishi-compatible power supplies or contact our sales engineers for instant cross-references and bulk pricing.
Browse our full range of Mitsubishi-compatible power supplies or contact our sales engineers for instant cross-references and bulk pricing.
