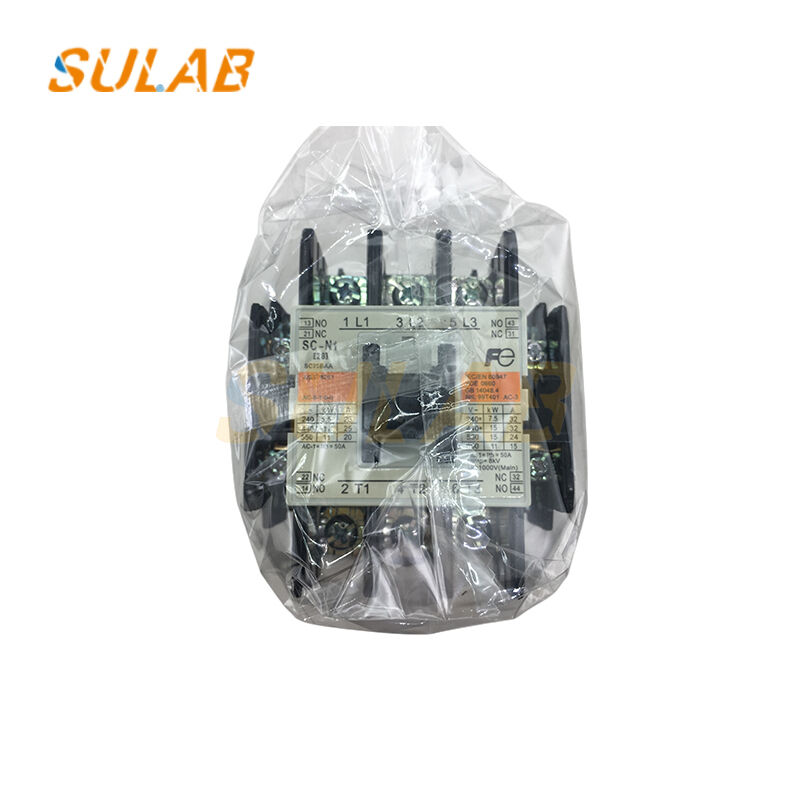

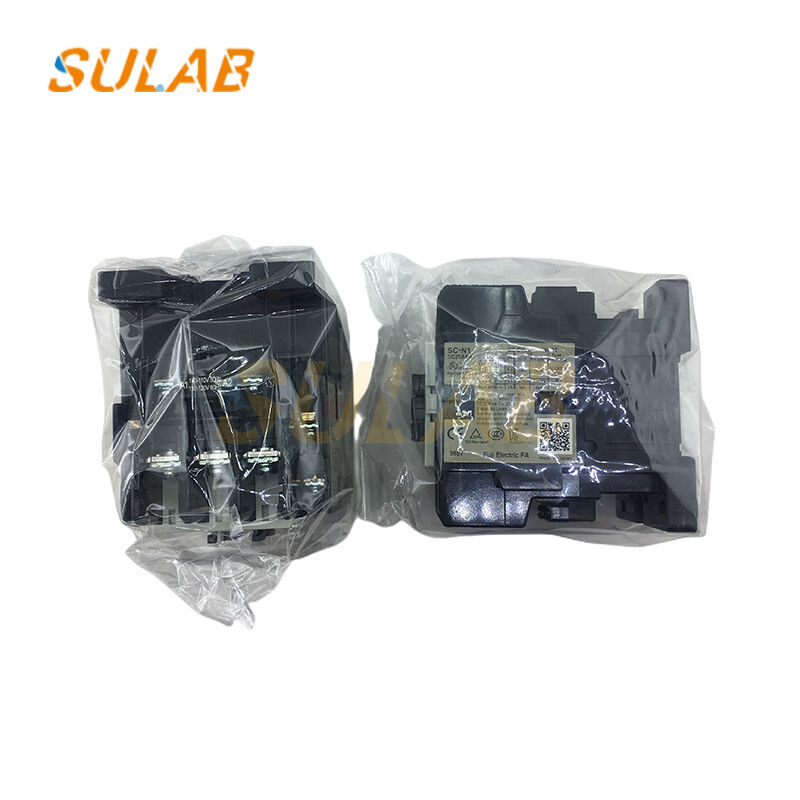

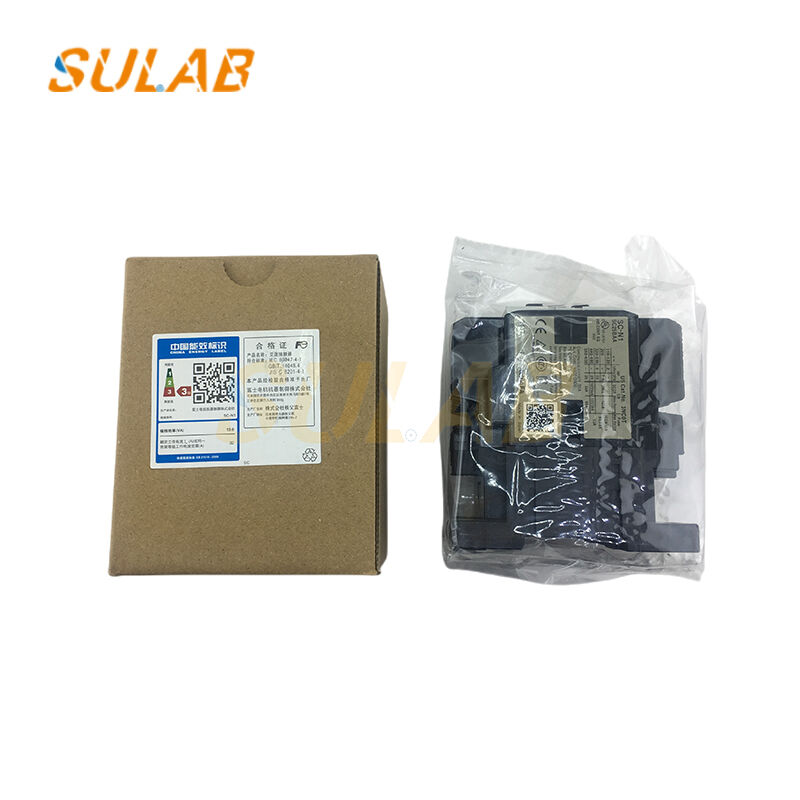

Genuine Fuji AC Contactor SC-N1 with 32A Rated Current Multiple Coil Voltage Options and 2 Million Operations Life
-
Highlight
32A Rated Current AC Contactor
,Multiple Coil Voltage Options Fuji Contactor
,2 Million Operations Life Electromagnetic Contactor
-
BrandFuji
-
DescriptionElevator Contactor
-
ModelSC-N1
-
MOQ1PC
-
TransportionTNT, UPS, DHL, Fedex, Air, Sea
-
PackagesCarton, Wooden Case, Pallet Etc
-
Delivery TimeNormally 2-3 Working Days After Payment
-
WarrantyOne Year
-
Payment MethodCompany Bank, Western Union, Alibaba, Paypal Etc
-
Brand NameFuji
-
Model NumberSC-N1
-
Minimum Order Quantity1
-
Delivery Time2-3 working days
-
Payment TermsT/T,Western Union,MoneyGram
Genuine Fuji AC Contactor SC-N1 with 32A Rated Current Multiple Coil Voltage Options and 2 Million Operations Life
Genuine Fuji AC Contactors SC-N1 SC-N2 N2S SC-N3 N4 and N5A
Genuine Fuji AC Contactors SC-N1, SC-N2, N2S, SC-N3, N4, and N5A are available in stock for immediate delivery.
Product Overview
The Fuji SC-N1 is a compact-frame AC electromagnetic contactor from Fuji's SC series, designed for power distribution and control applications including motor control and electrical circuit switching.
Core Specifications
Electrical Parameters: Rated current of 32A with multiple coil voltage options including AC 100V, 110V, 220V, 380V and DC 24V, 48V, 110V. A DC-dedicated variant model SC-N1/G is also available for different power supply environments.
Structural Configuration: Standard configuration includes 2 normally-open and 2 normally-closed auxiliary contacts with bifurcated structure, enabling reliable contact even in low-level circuits of 5V and 3mA. Supports rail-mounted installation for quick assembly in control cabinets.
Key Performance Features
Long Service Life and High Reliability
Enhanced contact materials and structural design provide electrical service life exceeding 2 million operations. Certified with UL, CSA, CE, and CCC approvals, complying with IEC and new JIS standards for global electrical safety requirements.
Enhanced Practicality and Easy Modification
Supports snap-on installation of optional accessories including auxiliary contact blocks, coil surge suppressors, and operation counter units. Features unified M3.5 screw sizes for auxiliary contact and coil terminals, streamlining control circuit wiring operations.
Effective Arc Suppression
Incorporates advanced arc-extinguishing mechanisms including double-break electric arc extinction and grid arc extinction. Quickly eliminates arcs generated during contact operation, preventing contact ablation and ensuring stable circuit switching performance.
All Fuji SC series contactors are genuine products available from stock with comprehensive technical support and worldwide shipping options.
