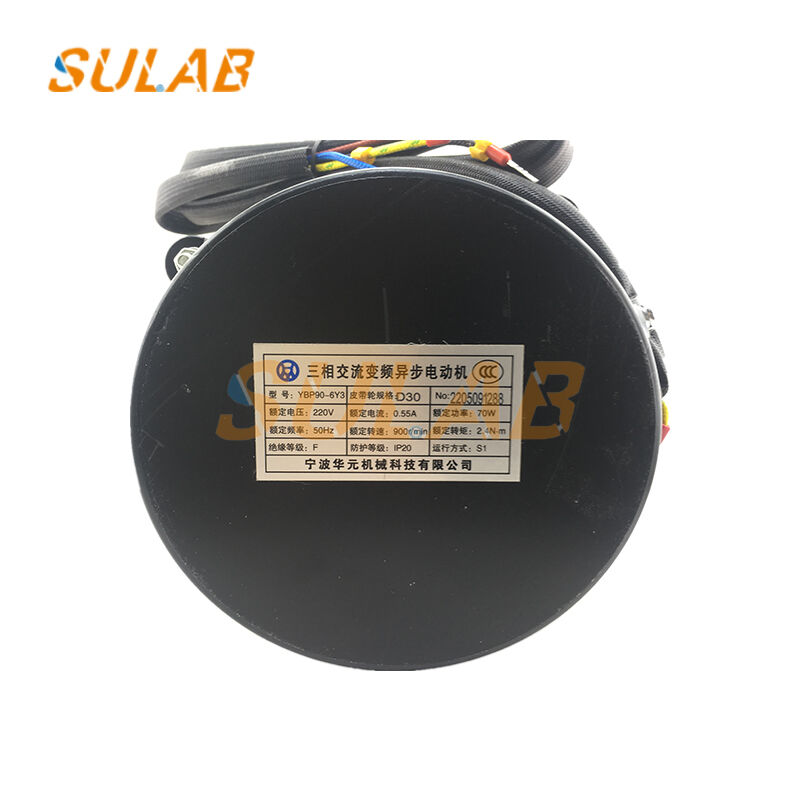

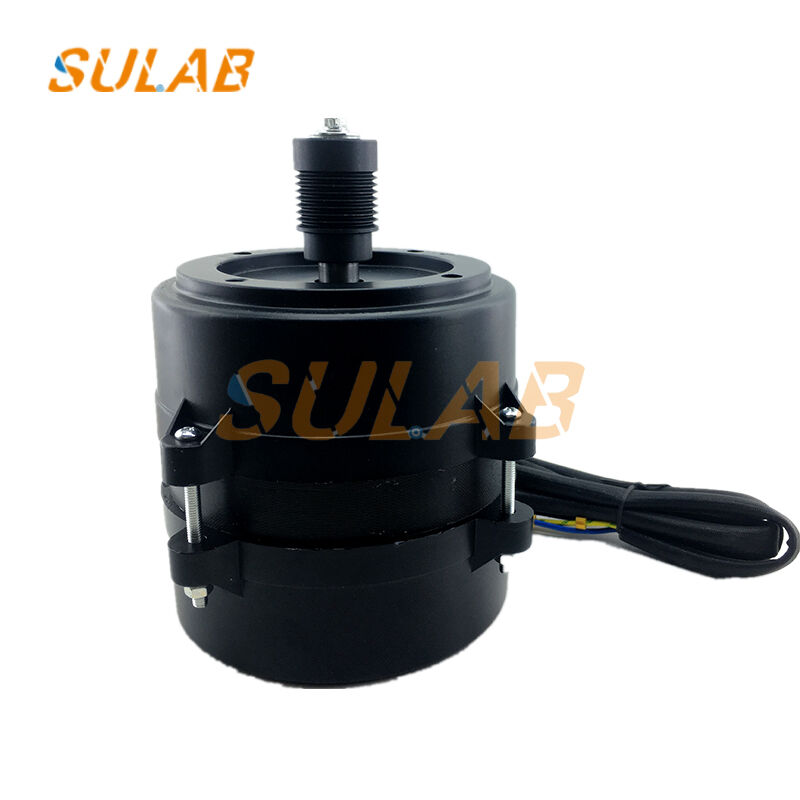

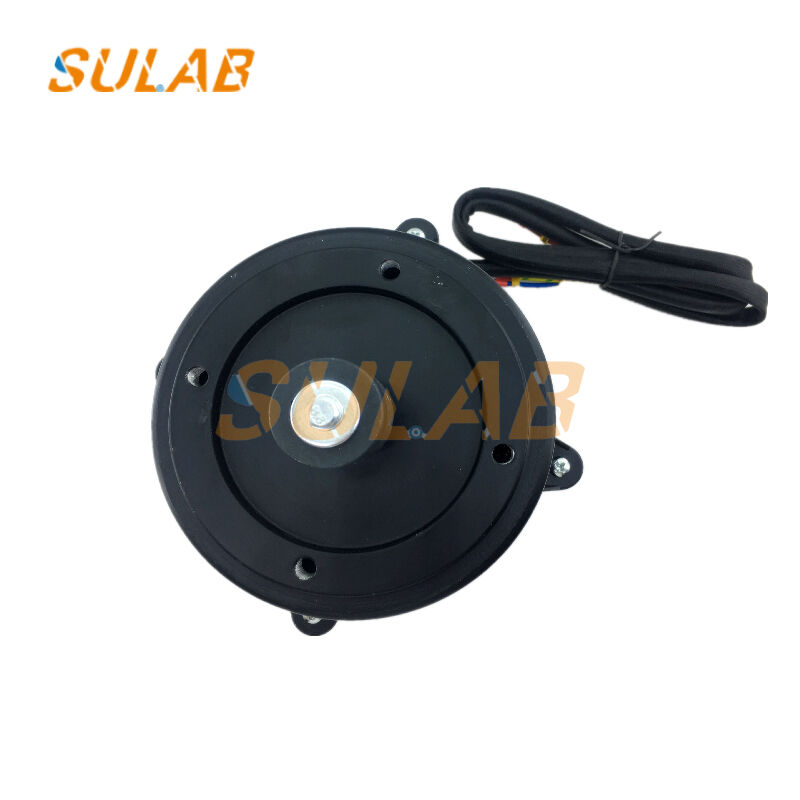

Factory Direct YBP90-6Y3 Three-phase AC Variable Frequency Asynchronous Motor for Elevator Door with Precise Speed Regulation

Brand Name: SULAB
Model Number: YBP90-6Y3
Minimum Order Quantity: 1PC
Delivery Time: Normally 2-3 working days after payment
Payment Terms: L/C,D/A,D/P,T/T,Western Union,
Inquiry Now
Get A Quote
Specifications
Highlight Features

Three-phase Elevator Door Motor

,

YBP90-6Y3 AC Variable Frequency Motor

,

Precise Speed Regulation Asynchronous Motor

Brand:
SULAB
Description:
Elevator Parts
Model:
YBP90-6Y3
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Applicable:
Elevator
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description

Factory Direct Elevator Parts YBP90-6Y3 Three-phase AC Variable Frequency Asynchronous Motor Elevator Door Motor


Power Output and Precise Speed ​​Regulation

The motor achieves stepless speed regulation through frequency converter control, precisely matching the entire process of elevator door operation: "start-up acceleration → constant speed operation → deceleration braking → smooth stopping." This avoids impacts, shaking, or jamming during door opening and closing, ensuring passenger safety and comfort.

Adaptable to Frequent Start-Stop Conditions

Elevator doors require frequent opening and closing during operation (up to thousands of times per day). This motor is designed for this condition, possessing strong overload capacity and stable start-stop performance. It can operate continuously in a high-frequency cyclic mode, and is less prone to failure due to fatigue wear.


Brand SULAB
Description Elevator  parts
Model YBP90-6Y3
MOQ 1PC
Transportion TNT, UPS, DHL, Fedex, Air, Sea
Applicable Elevator
Packages Carton, Wooden case, Pallet etc
Delivery Time Normally 2-3 working days after payment
Warranty One year
Payment Method Company Bank, Western union, alibaba, Paypal etc


Coordinated with the door operator system for safe operation

The motor works in conjunction with the door operator controller, encoder, safety touch panel/light curtain, and other components. When abnormalities such as a person trapped in the door, obstruction by a foreign object, or an incompletely closed door are detected, it can quickly respond to commands, reversing the door opening or applying an emergency brake, meeting the safety protection requirements of the elevator door system.

Compatible with specific elevator brands and models

This motor model is primarily compatible with door operator systems from brands such as EasyRise and ThyssenKrupp. It can be used directly as an original part or replacement, ensuring compatibility between the door operator system and the entire elevator, and reducing the difficulty of maintenance and replacement.

Elevator Door Motor - FAQ

Q1: How do I identify the correct replacement elevator door motor?
Check the original motor part number, motor type, rated voltage, power or current, speed, mounting dimensions, and shaft specifications. The door controller and feedback device requirements must also be considered.

Q2: Can an elevator door motor be replaced with a different model?
A different motor may be suitable if its electrical characteristics, control method, mechanical mounting, shaft arrangement, and feedback system are compatible with the existing door operator.

Q3: What can cause an elevator door motor to run slowly or irregularly?
Possible causes include excessive mechanical resistance, incorrect controller settings, voltage problems, feedback errors, or motor deterioration. Abnormal door movement does not necessarily indicate motor failure.

Q4: Can an elevator door motor be replaced without replacing its encoder?
This depends on the motor design and encoder compatibility. Some motors use separate feedback devices, while others have integrated encoders. The replacement must meet the controller's feedback requirements.

Q5: What measurements are important when sourcing a replacement elevator door motor?
Important measurements include the motor mounting dimensions, shaft diameter and length, coupling or pulley interface, and available installation space. The electrical nameplate and connector details should also be provided.
