KONE 77U Magnetic Reed Leveling Sensor with 15-25 AT Sensitivity 1 Million Cycle Life and 0.1 mm Repeat Accuracy

Brand Name: KONE
Model Number: 77U
Minimum Order Quantity: 1
Delivery Time: 3-5 Working Days
Payment Terms: D/A,D/P,T/T,Western Union,
Inquiry Now
Get A Quote
Specifications
Highlight Features

15-25 AT Sensitivity Leveling Sensor

,

1 Million Cycle Life Magnetic Reed Sensor

,

0.1 mm Repeat Accuracy Smoke Rod

Type:
KONE 77U
Product Name:
KONE 77U Magnetic Reed Leveling Sensor
Transportation:
Clients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
Application:
Elevator Parts
Business Type:
Manufacturer
Keywords:
KONE 77U Sensor, KONE Smoke Rod, 77U Leveling Sensor, KONE Elevator Spare Parts, 740337G01 Replacement, Elevator Door-zone Reed Switch, KONE MonoSpace Sensor
Packing:
Packed In Carton
Product Description

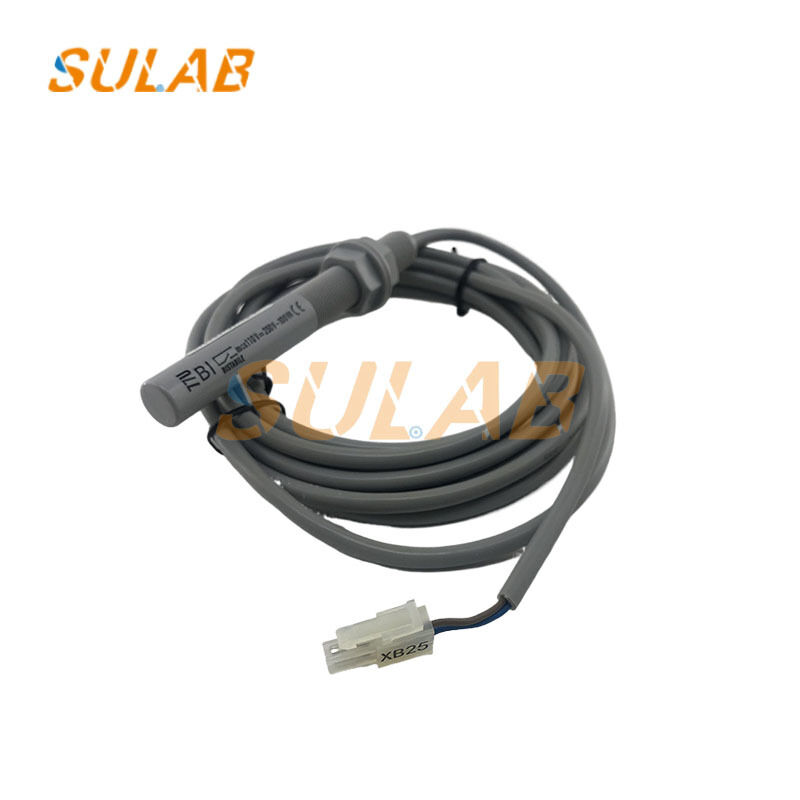

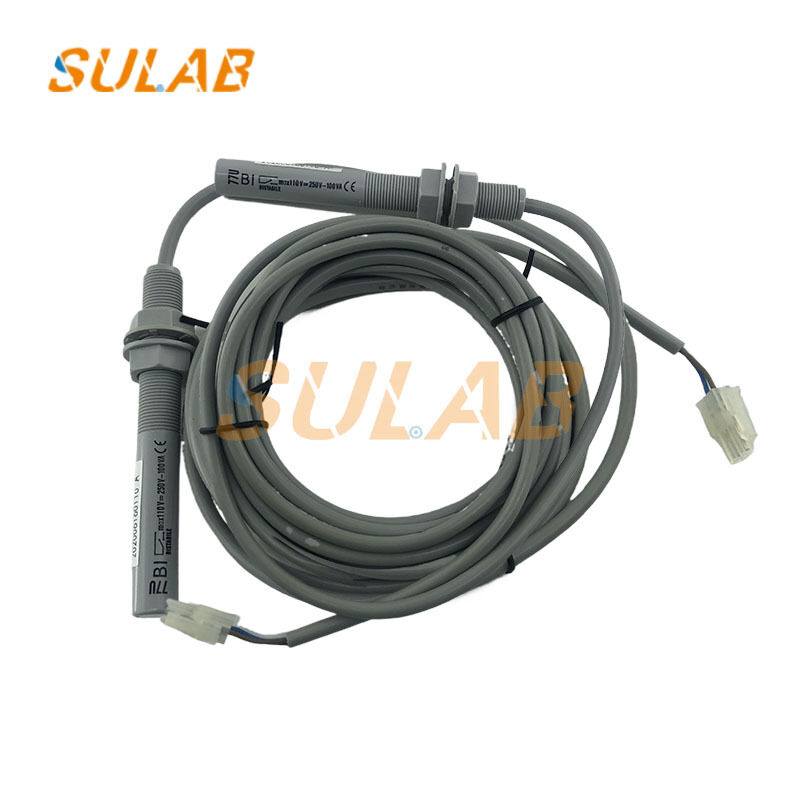

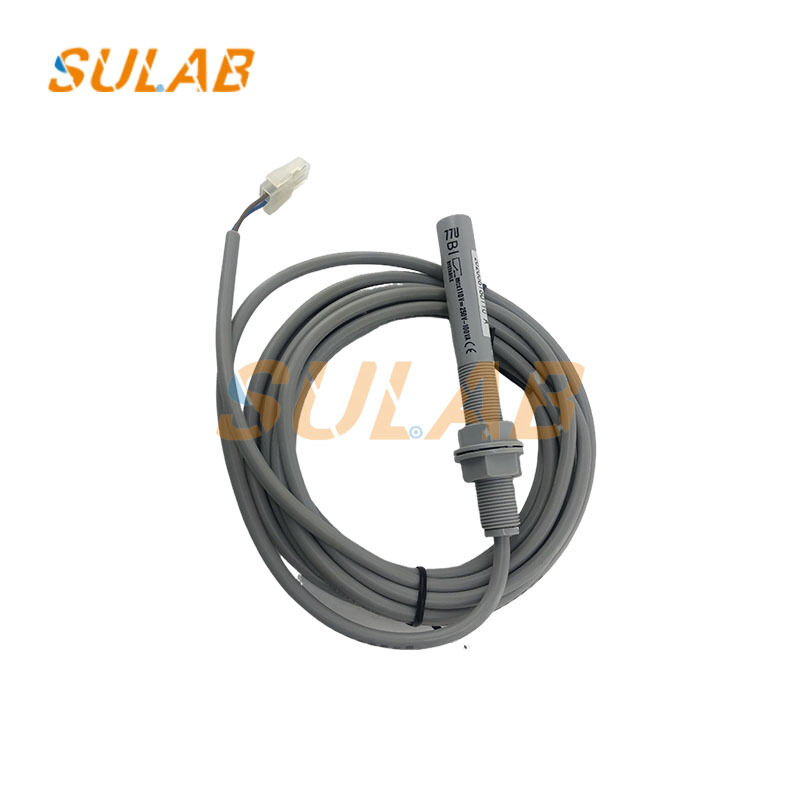

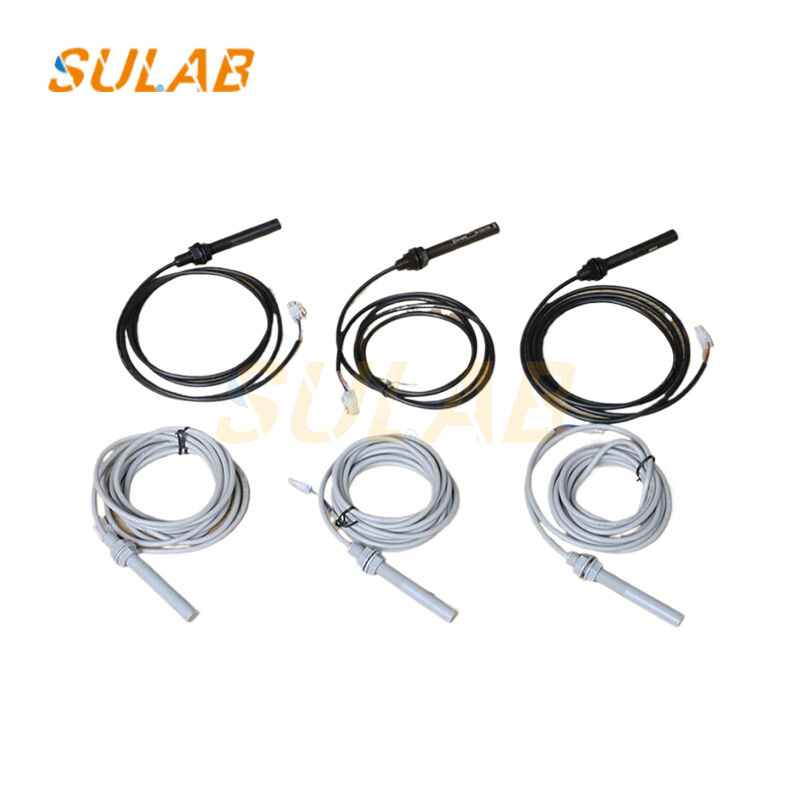

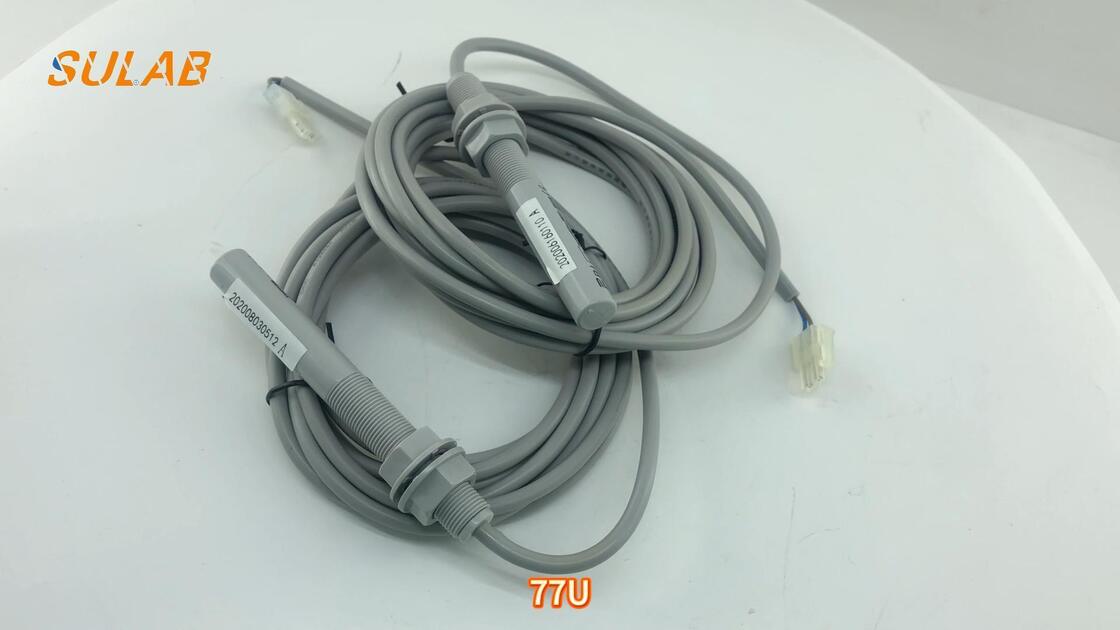

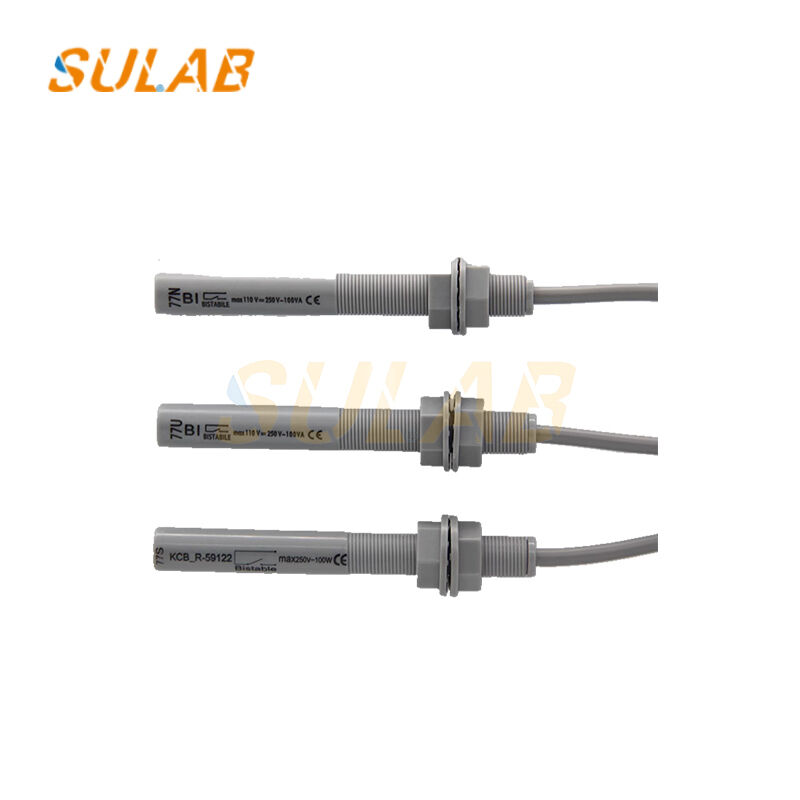

KONE 77U Magnetic Reed Leveling Sensor / Door-Zone "Cigarette Rod"
The KONE 77U Magnetic Reed Leveling Sensor, commonly known as the "Cigarette Rod," is a precision upstream magnetic-reed sensor that provides exact positioning data to the KONE LCE controller when the elevator car begins to exit the landing zone.
Key Features & Benefits
  • CNC-machined ABS housing with neodymium trigger magnet and silver-plated reed capsule
  • 1 million cycle lifespan with 0.1 mm repeat accuracy for reliable performance
  • Plug-and-play installation with original mounting clip and 2 m PVC oil-resistant cable
  • 3-minute installation time - no rewiring or software configuration required
  • 100% factory tested on actual KONE LCE-CPU boards to eliminate false floor errors
  • OEM quality without OEM lead times or pricing
Why Buyers Choose Our Solution
  • 100% dimensional match to KONE parts 740337G01 / KM713227G01
  • Pre-adjusted sensitivity 15-25 AT for drop-in replacement
  • Individual bubble bag packaging with 5-layer export carton
  • Passes 1.2 meter drop test for secure shipping
  • Stock available in Shanghai & Shenzhen warehouses
  • Orders up to 50 pieces ship within 48 hours
Technical Specifications
Part Name Leveling sensor, door-zone "smoke rod", 77U
Suitable Elevators KONE MonoSpace®, MiniSpace®, Mono3000® (1.0-2.5 m s⁻¹)
OEM Reference 740337G01, KM713227G01, 77U-740337G01
Operating Principle Magnetic-reed, bistable, normally open
Operating Distance 15-20 mm to steel tape
Switching Voltage Max. 100 V DC / AC
Switching Current Max. 0.5 A
Contact Resistance ≤ 150 mΩ (initial)
Cable 2 m PVC, 3 × 0.5 mm², oil & flame resistant
Housing Black ABS, IP54, -25 °C ~ +80 °C
Weight 85 g per piece
Package 1 pc / anti-static bag, 50 pcs / carton (42 × 28 × 18 cm, 4.8 kg)

Elevator Sensor – FAQs

Q1: What types of sensors are commonly used in elevator systems?
Elevators use sensors for position detection, leveling, door monitoring, and other control functions. Common sensing technologies include magnetic, inductive, and photoelectric types, depending on the application.

Q2: Can elevator sensors with the same appearance be interchangeable?
Not necessarily. Similar-looking sensors may differ in sensing principles, supply voltages, output logic, detection distances, or connector arrangements.

Q3: What is the difference between NPN and PNP sensor outputs?
NPN and PNP sensors use different transistor output configurations. The correct type depends on the input circuit and wiring requirements of the elevator controller.

Q4: What can cause an elevator sensor to provide an incorrect signal?
Possible causes include incorrect alignment, damaged wiring, unstable power supply, contamination, electrical interference, or sensor failure. The connected controller and sensing target should also be checked.

Q5: What information is required to identify a replacement elevator sensor?
Please provide the original part number, sensing type, supply voltage, output signal, sensing distance, mounting dimensions, and connector details.
