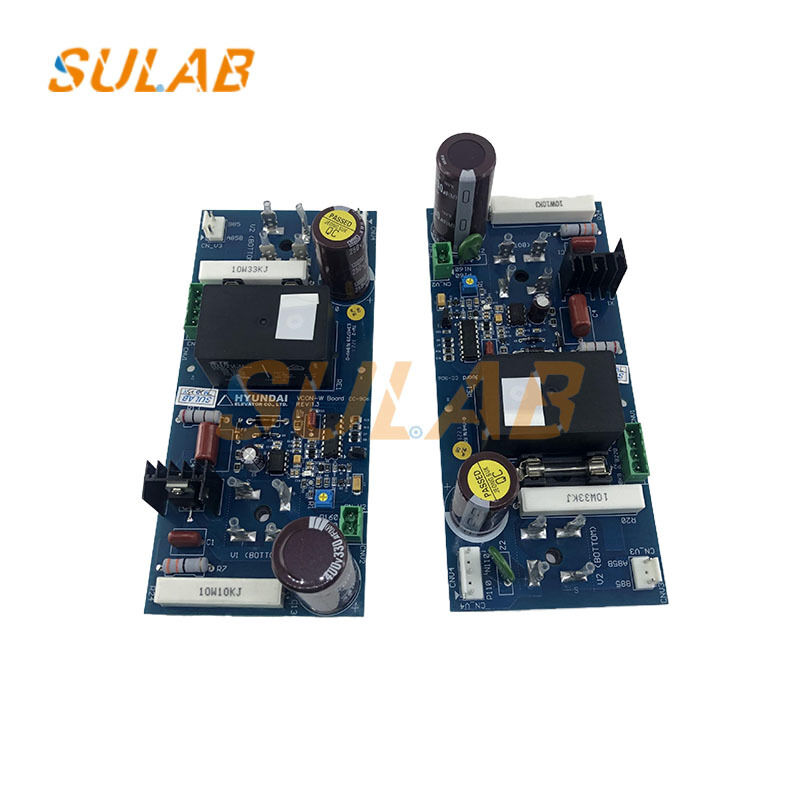

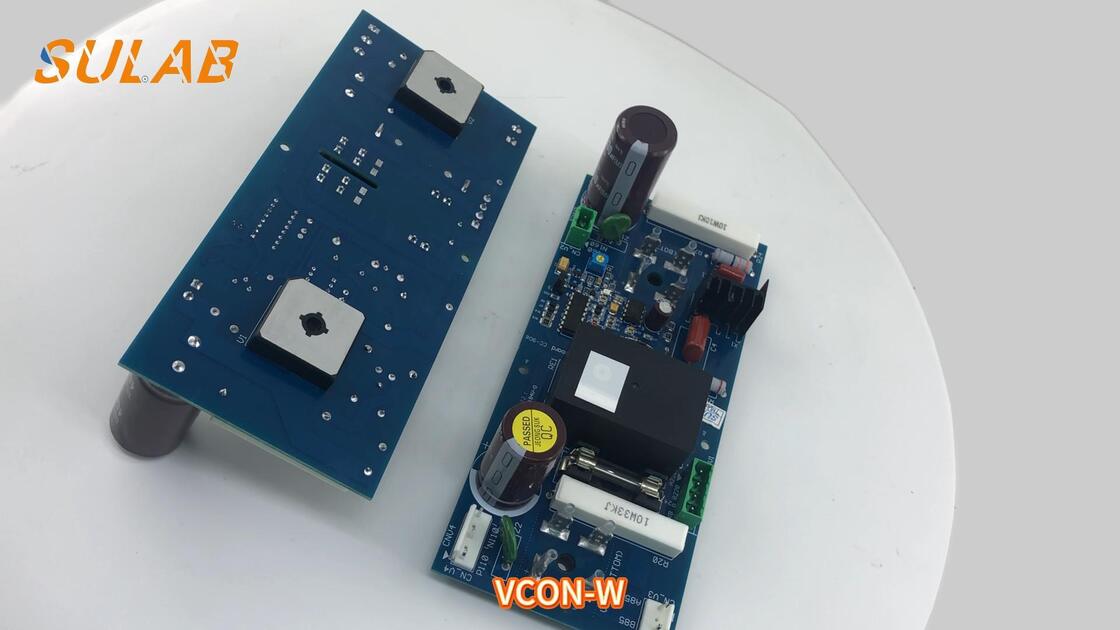

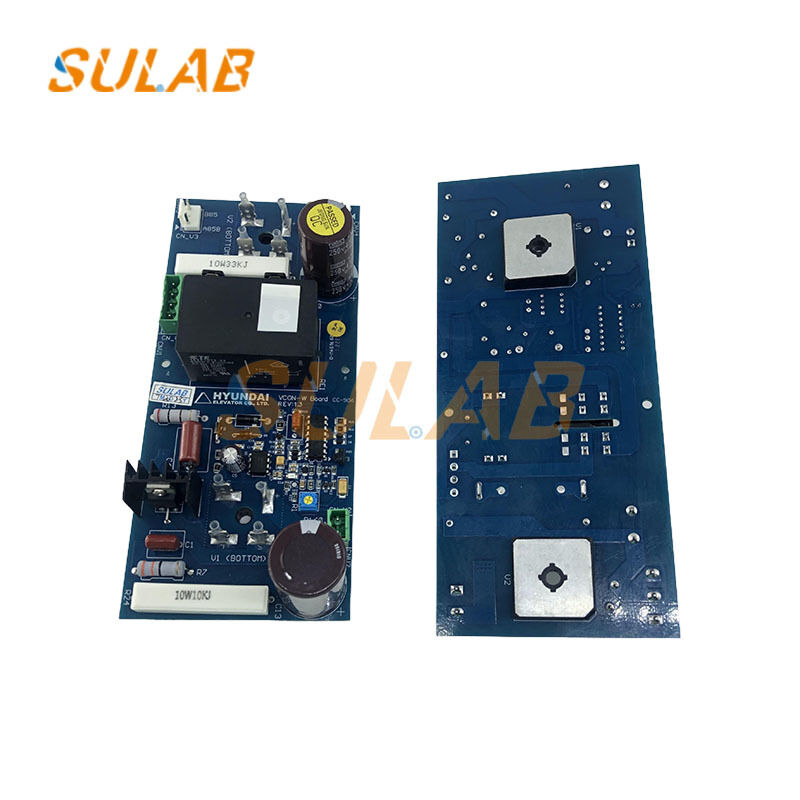

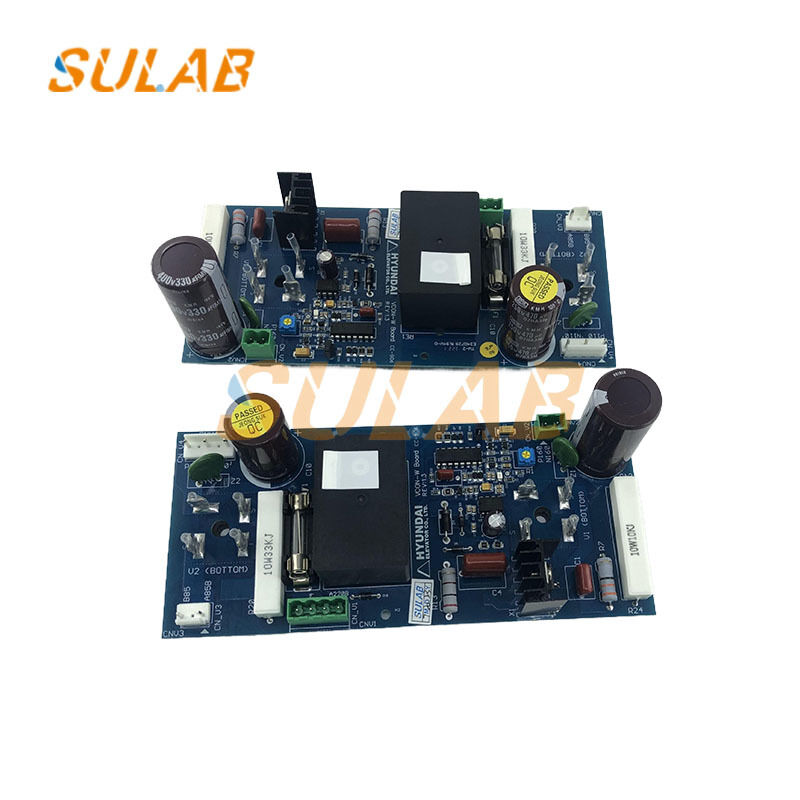

HYUNDAI VCON-W Main Controller Board with 32-bit ARM Cortex-M3 Processor and 24 V DC Input for Elevator Lift Car Station MCU
-
Highlight
32-bit ARM Cortex-M3 Main Controller Board
,24 V DC Lift Car Station MCU
,CAN-bus 125 kbit/s Elevator Spare Part
-
TypeVCON-W
-
Product NameHYUNDAI VCON-W
-
TransportationClients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
-
ApplicationElevator Parts
-
Business TypeManufacturer
-
KeywordsElevator Parts, HYUNDAI VCON-W Main Controller Board, Lift Car Station MCU, Original Elevator Spare Part
-
PackingPacked In Carton
-
Brand NameHYUNDAI
-
Model NumberHYUNDAI VCON-W
-
Minimum Order Quantity1
-
Delivery Time3-5 Working Days
-
Payment TermsD/A,D/P,T/T,Western Union,MoneyGram
HYUNDAI VCON-W Main Controller Board with 32-bit ARM Cortex-M3 Processor and 24 V DC Input for Elevator Lift Car Station MCU
HYUNDAI VCON-W Main Controller Board
Original elevator spare part designed as a direct drop-in replacement for the HYUNDAI VCON-W car-control board. Pre-loaded with factory firmware for immediate installation without requiring hand-held programmers or parameter re-entry. Each PCB undergoes 100% powered-up testing, conformal coating, and ships in anti-static packaging for reliable on-site deployment.
Key Features
- Direct replacement for original HYUNDAI VCON-W controller
- Factory firmware pre-installed for plug-and-play operation
- 100% powered-up tested for reliability
- Conformal coated for environmental protection
- Anti-static packaging for safe transport
- 32-bit ARM Cortex-M3 processor
- Comprehensive I/O capabilities
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | VCON-W |
| Brand / System | HYUNDAI Elevator, VCON series |
| Description | Main controller board (MCU) for car station |
| PCB Size | 180 × 130 × 20 mm |
| Mounting | 4 × M3 standoffs, 160 × 110 mm spacing |
| Input Voltage | 24 V DC ±10 % |
| Quiescent Current | ≤80 mA |
| Max. Load Current | 2 A (fuse-protected) |
| Processor | 32-bit ARM Cortex-M3 |
| Memory | 512 kB Flash, 64 kB RAM |
| Communication | CAN-bus 125 kbit/s, RS485 optional |
| I/O Ports | 24 × digital input, 16 × relay output |
| Protection Class | IP20 (panel mounted) |
| Operating Temperature | -10 °C ~ +60 °C |
| Compliance | CE, RoHS, EN 81-20/50 |
Package Contents
1 × VCON-W controller board, 4 × M3 standoffs, 1 × gasket
