Hyundai Elevator PCB TNP7A BD (CH) 20400177H11 – Control-Cabinet Relay Board with Gold-plated Contacts and Flame-retardant FR-4 Substrate for 12 VDC ±5 % Input Voltage

Brand Name: Hyundai
Model Number: TNP7A BD (CH) 20400177H11
Minimum Order Quantity: 1
Delivery Time: 3-5 Working Days
Payment Terms: D/A,D/P,T/T,Western Union,
Inquiry Now
Get A Quote
Specifications
Highlight Features

Gold-plated contacts Elevator PCB

,

Flame-retardant FR-4 substrate Control-Cabinet Relay Board

,

12 VDC ±5 % input voltage Hyundai Elevator PCB

Type:
TNP7A BD (CH) 20400177H11
Product Name:
Hyundai Elevator PCB TNP7A BD (CH) 20400177H11
Transportation:
Clients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
Application:
Elevator Part
Business Type:
Manufacturer
Keywords:
Elevator Parts,Hyundai Elevator PCB TNP7A BD (CH) 20400177H11 – Control-Cabinet Relay Board
Packing:
Packed In Carton
Product Description

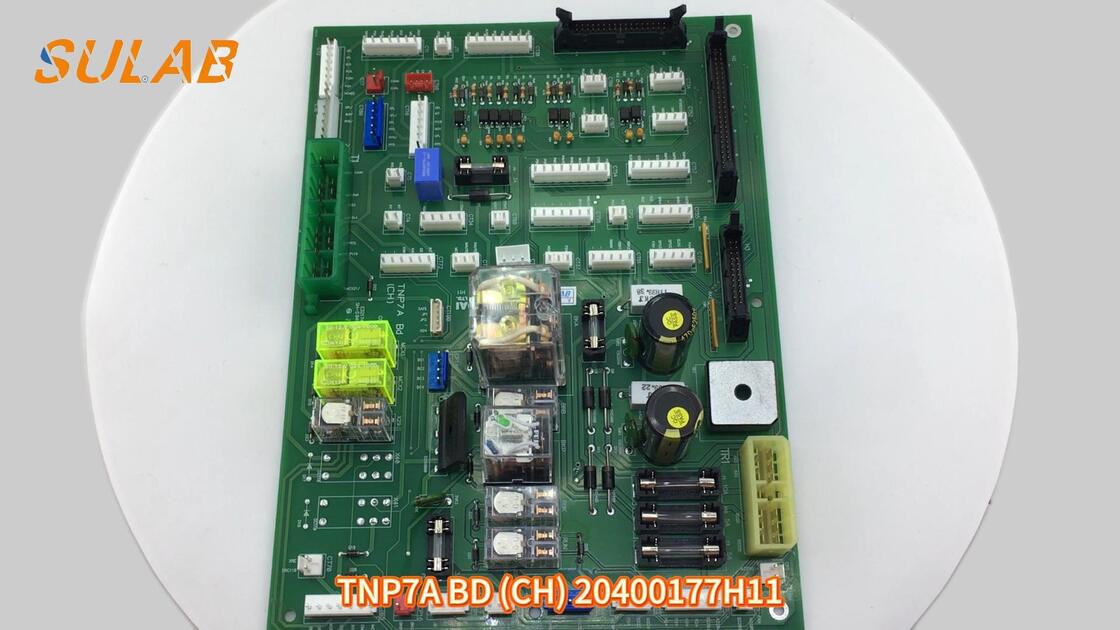

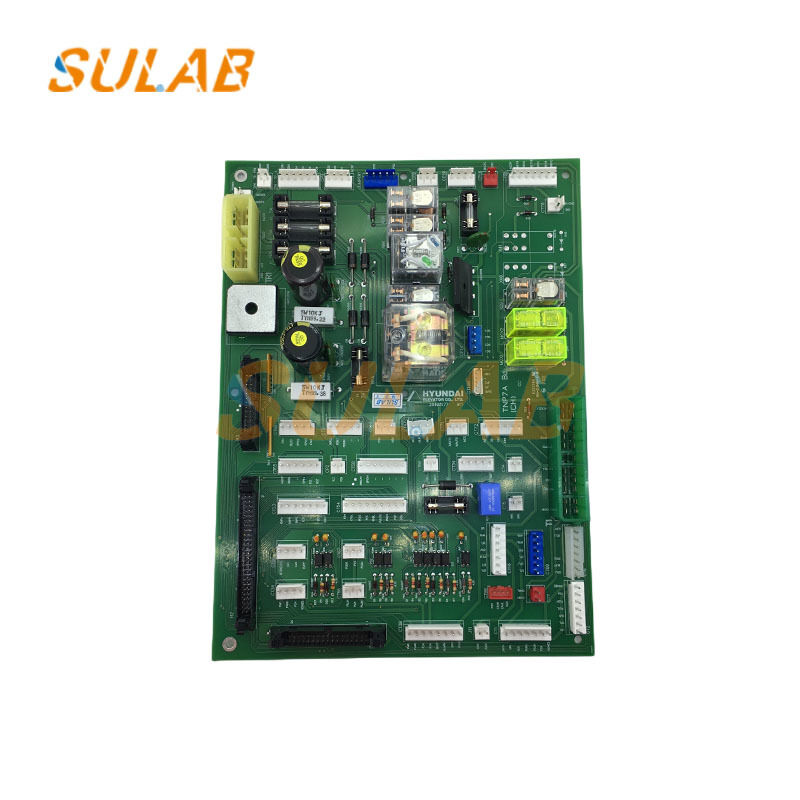

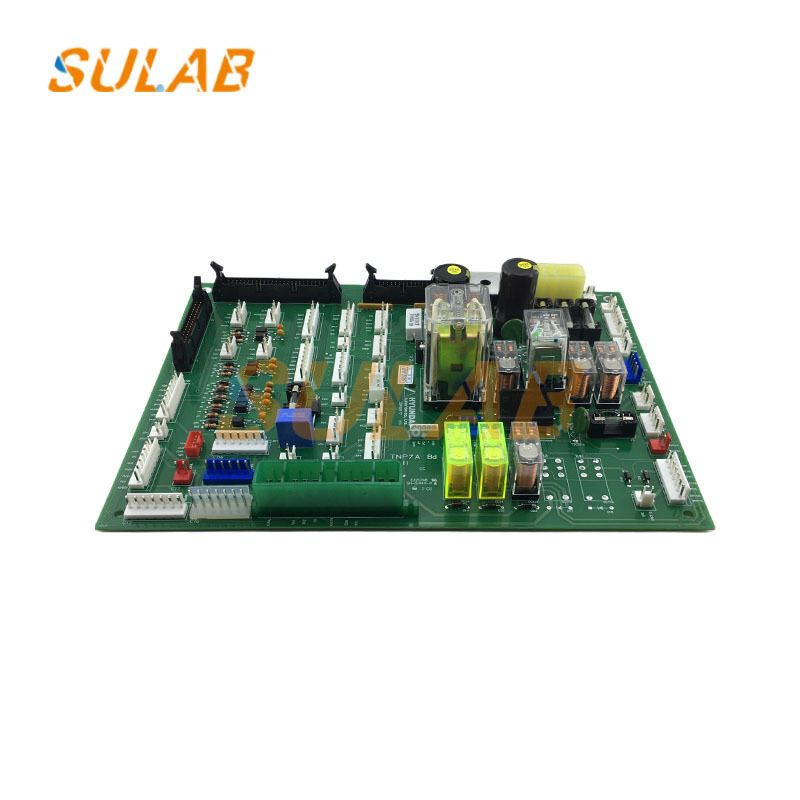

Hyundai Elevator PCB TNP7A BD (CH) 20400177H11 – Control-Cabinet Relay Board
Brand-new, OEM-compatible Hyundai elevator PCB. Model TNP7A BD (CH) 20400177H11 acts as the central relay board inside the control cabinet, handling all low-voltage logic signals between the controller and drive system. 1-year warranty, 7-day lead time, global shipping.
Key Features
  • 100% compatible with Hyundai TNP7A BD (CH) systems
  • Gold-plated contacts for reliable switching up to 3 A / 250 V AC
  • Flame-retardant FR-4 substrate, -20 °C ~ +85 °C operating range
  • Every board ICT & burn-in tested before shipment
  • Drop-in replacement—no software change required
Technical Specifications
Part Number 20400177H11
Model on silkscreen TNP7A BD (CH)
PCB size 170 mm × 130 mm × 1.6 mm
Copper layers Double-sided, 35 µm
Relay quantity 8 × 12 VDC SPDT (Omron G2R-1-E)
Input voltage 12 VDC ±5 %
Max switching power 750 VA, 90 W
Connector type Pluggable screw terminal, 5.08 mm pitch
Protection Reverse-polarity diode, LED status indicators
Operating humidity 20 % ~ 90 % RH non-condensing
Certification CE & RoHS compliant
Package & Shipping
Anti-static bag + foam box + export carton
UPS / DHL / FedEx express, 3-7 days worldwide
Warranty & Support
12-month functional warranty; technical support by e-mail within 12 hours.

Elevator PCB Board - FAQ

Q1: How do I identify the correct replacement elevator PCB board?

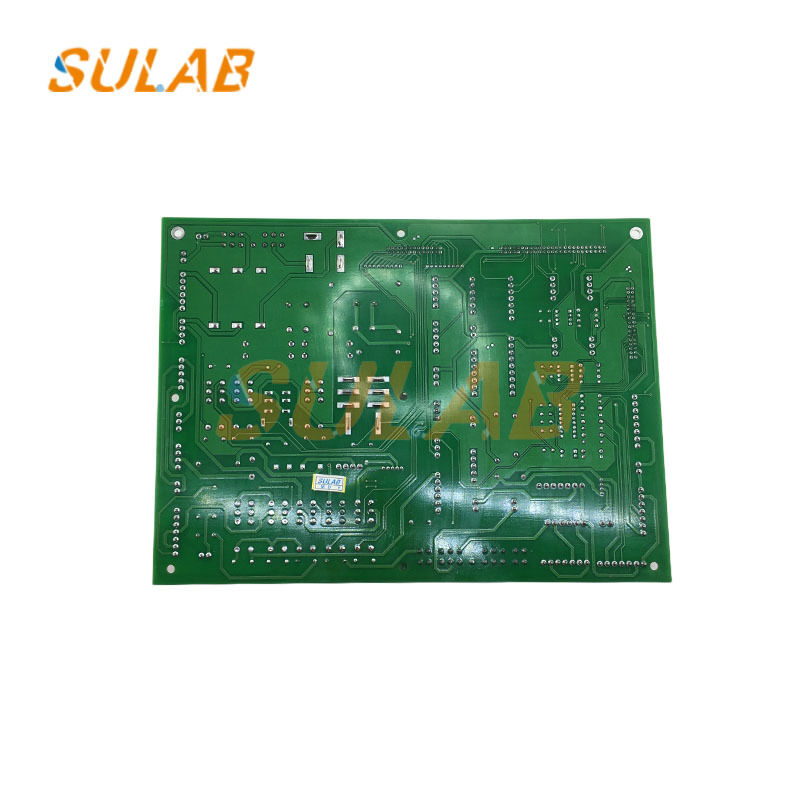

To identify a replacement elevator PCB board, check the original part number, hardware revision, board markings, and elevator controller model. Clear photos of both sides of the PCB can help distinguish different versions.

Q2: Can elevator PCB boards with similar part numbers be interchangeable?
Not necessarily. Elevator PCB boards with similar part numbers may differ in hardware revisions, firmware, connector layouts, or communication protocols. Compatibility must be verified against the existing elevator system.

Q3: Does a replacement elevator PCB board require programming?
Some replacement PCB boards require firmware configuration, parameter settings, or system-specific programming. Others may already contain the required software. The correct procedure depends on the PCB model and its role in the elevator control system.

Q4: Can a faulty elevator PCB board be replaced without changing the complete control system?
In some cases, an individual PCB can be replaced if the replacement is compatible with the existing controller, firmware, wiring, and connected components. A qualified technician should confirm the fault before deciding on replacement.

Q5: What information should I provide when sourcing a replacement elevator PCB board?
Please provide the original PCB part number, hardware revision, elevator model, clear board photos, and required quantity. SULAB can help review these details and check available replacement options.
