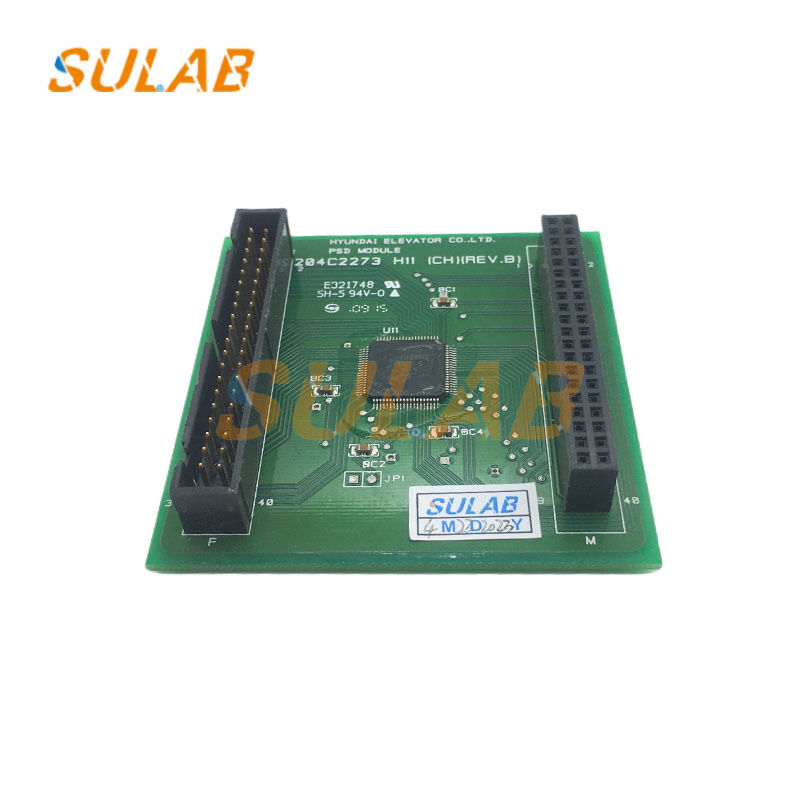

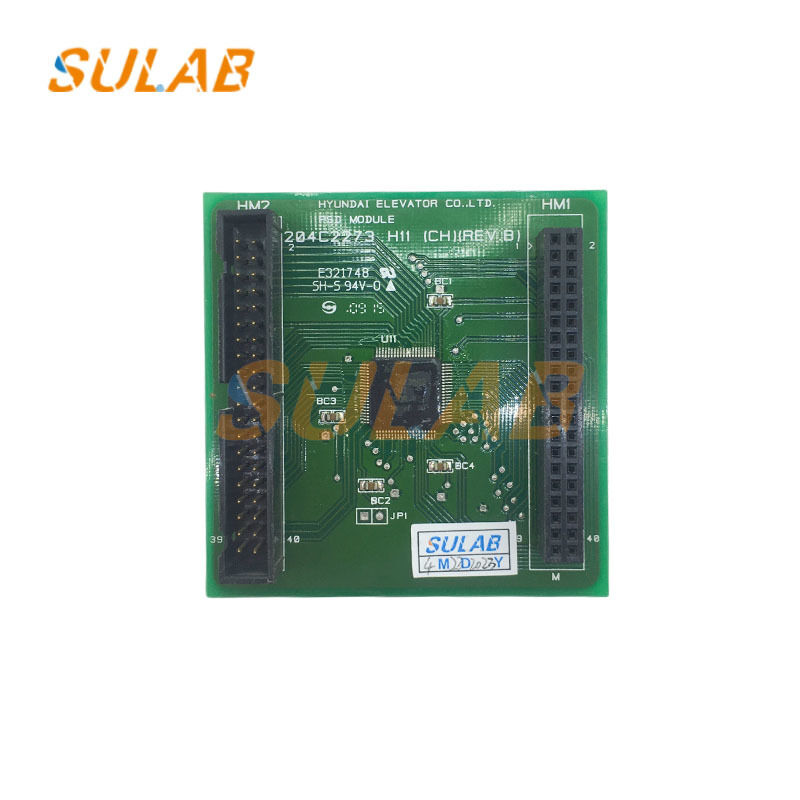

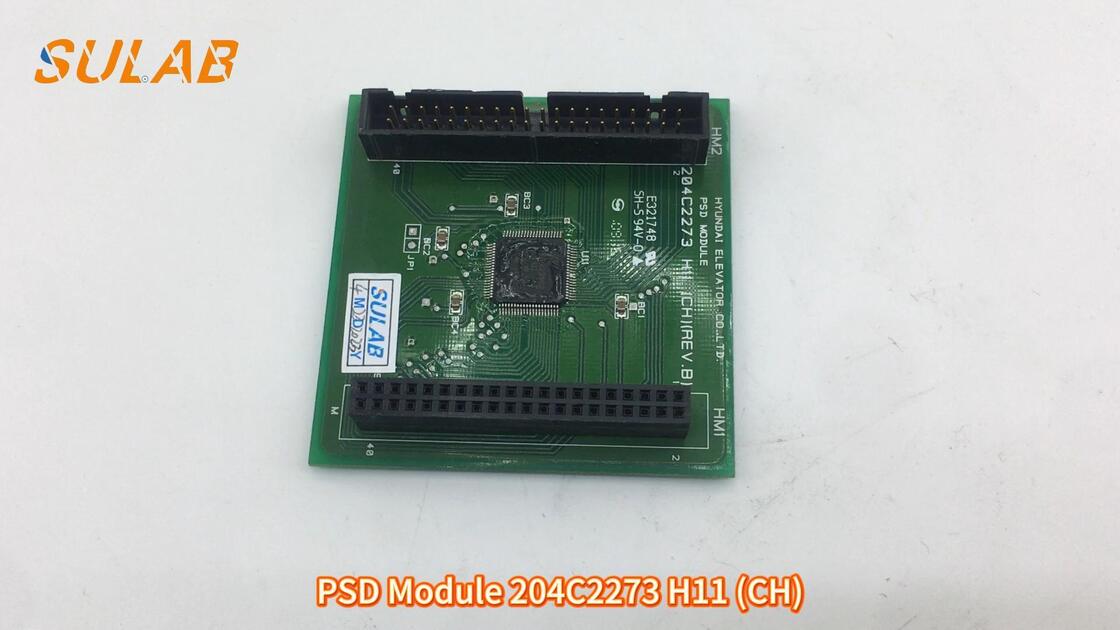

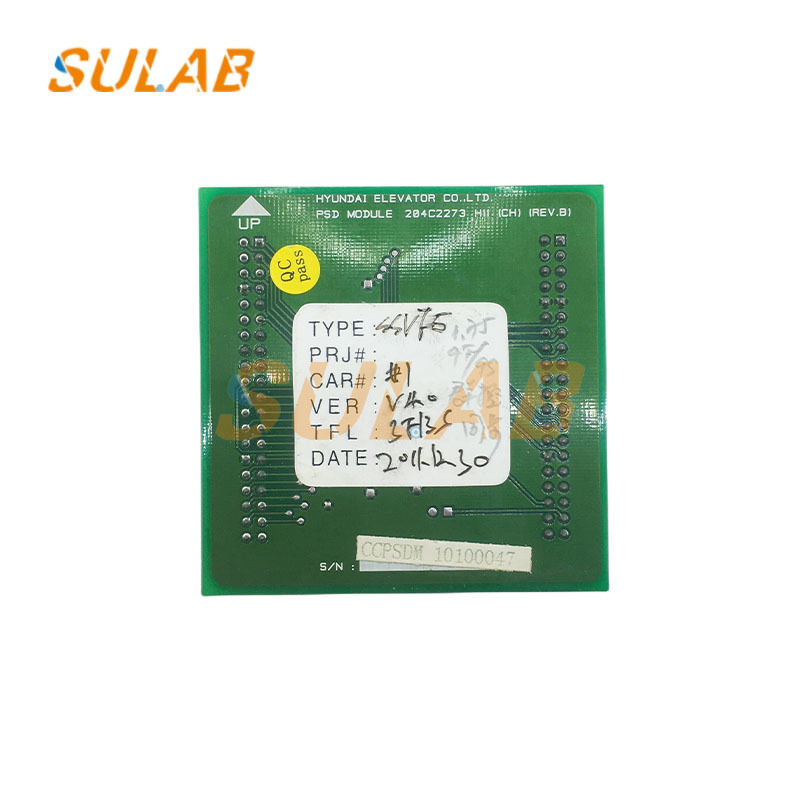

Original Hyundai PSD Module 204C2273 H11 (CH) - Elevator Position Sensor Board with Plug-in Replacement and 100% Tested
-
Highlight
Original PSD Module
,Plug-in Replacement Elevator Position Sensor Board
,100% Tested Hyundai PSD Module
-
Type204C2273 H11 (CH)
-
Product NameHyundai PSD Module 204C2273 H11 (CH)
-
ApplicableElevator Parts,Elevator Equipment,General For Escalator Parts,Passenger Lift,Passenger Elevator
-
TransportationAir Transportation,Sea Transportation,Clients' Requestment,DHL TNT FEDEX UPS
-
Business TypeManufacturer
-
PackingPacked In Carton
-
Brand NameHyundai
-
Model NumberPSD Module 204C2273 H11 (CH)
-
Minimum Order Quantity1
-
Delivery Time3-5 Working days
-
Payment TermsD/A,D/P,T/T,Western Union
Original Hyundai PSD Module 204C2273 H11 (CH) - Elevator Position Sensor Board with Plug-in Replacement and 100% Tested
Hyundai PSD Module 204C2273 H11 (CH) – Original Elevator Position Sensor Board, Plug-in Replacement, 100 % Tested
Keep your Hyundai elevator door system perfectly synchronized. This PSD Module 204C2273 H11 (CH) is the original position-sensor PCB that tells the controller exactly where the car and landing doors are, millisecond by millisecond. Every module is run on our in-cage simulator, calibrated to OEM pulses and burn-in tested for 4 hours before shipping—so you plug it in and ride.
Key Features
- 100% hardware & firmware match to Hyundai 204C2273 H11 (CH)
- Gold-plated Molex contacts—no ghost signals
- Conformal-coated against shaft humidity & oil vapor
- Supports both 24 VDC & 5 VDC TTL encoder inputs
- Fast world-wide dispatch; 12-month functional warranty
Typical Applications
- Hyundai VVVF passenger lifts (≥ 2015)
- Hyundai EPS/EFS door machines
- Replacement of obsolete 204C2272 boards
What's in the Box
1× PSD module, 2× mounting clips, 1× quick-install guide (English)
Specifications
| Item | Detail |
|---|---|
| Brand / Manufacturer | Hyundai Elevator |
| Model | PSD Module 204C2273 H11 (CH) |
| Part Number | 204C2273 H11 (CH) |
| Function | Car & landing door position feedback |
| Input Voltage | 24 VDC logic / 5 VDC encoder |
| Output Signal | 2-channel quadrature, TTL |
| Connector | Molex 20-pin (locking) |
| Operating Temperature | -25 °C ~ +70 °C |
| Protection Class | IP20 (panel-mounted) |
| Warranty | 12 months |
| Condition | New, calibrated & tested |

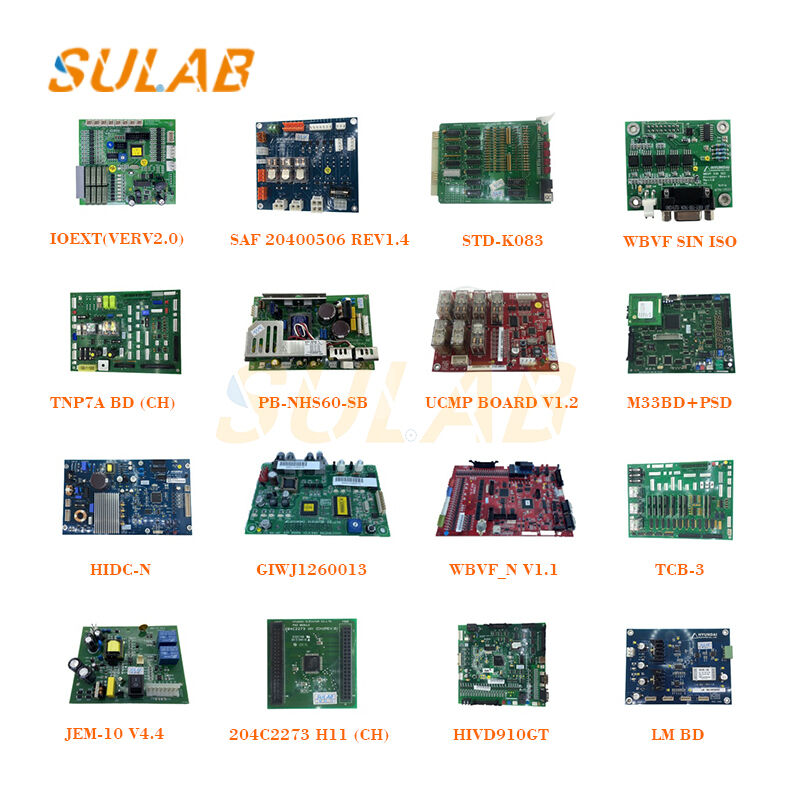

Related Products
