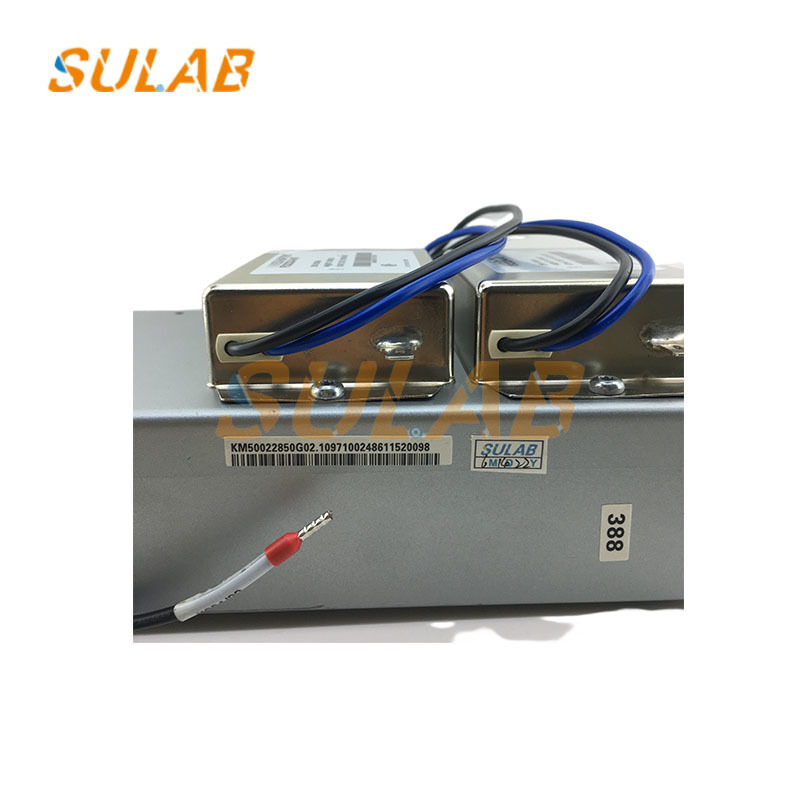

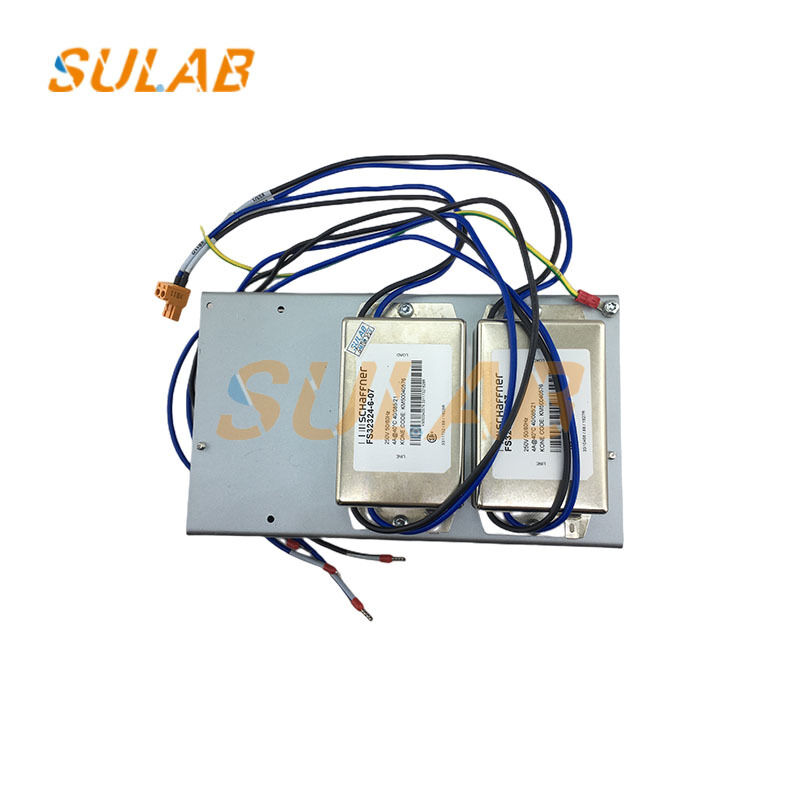

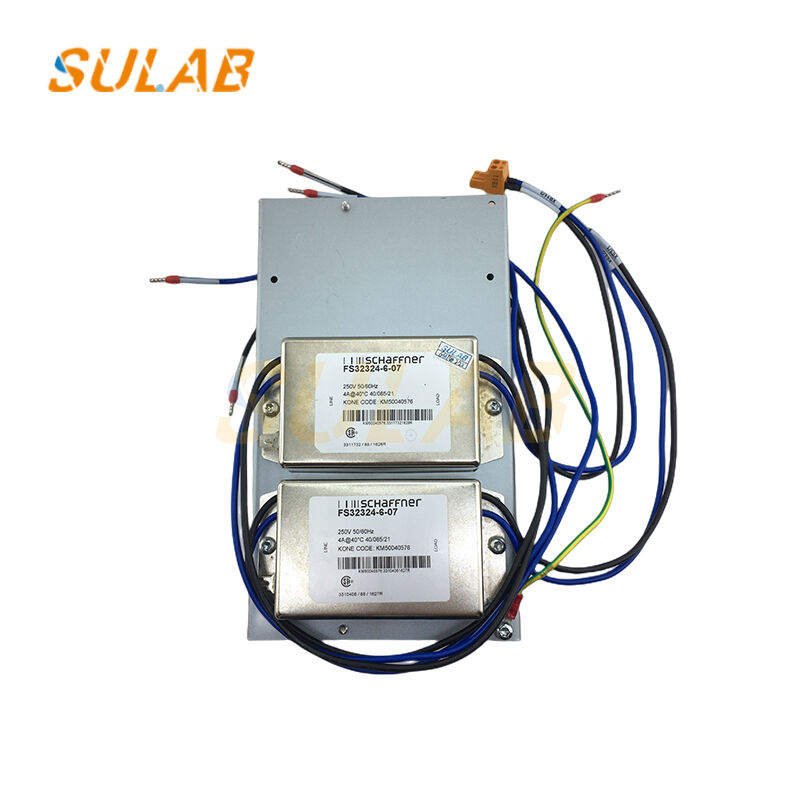

Original Elevator Brake Module Board Brake Drive Module For KONE Elevators Model KM50022850G02

 Original Elevator Brake Module Board, Brake Drive Module, Elevator Accessories For KONE Elevators KM50022850G02

Brake Drive and Timing Control: Receives commands from the main control board and outputs DC voltage to drive the brake coil. It controls the brake's "release-hold-lock" timing according to the operating logic, ensuring smooth start/stop.

Supports "zero-speed brake" control to prevent car slippage and improve stopping accuracy.

Status Monitoring and Fault Protection: Monitors the brake coil current and feedback contact status in real time. In case of abnormalities, it immediately cuts off the drive and reports a fault code to prevent brake failure.

Integrates overcurrent, overvoltage, and undervoltage protection to prevent coil burnout or malfunction.

Safety Redundancy and System Compatibility: The safety circuit design is independent of the main control unit, compatible with KONE EcoDisc machine-room-less and machine-room-based elevators, and adaptable to mainstream drive systems.

It supports forced braking of the holding brake in special modes such as fire protection and maintenance, complying with EN 81-20/GB 7588 safety standards.

Energy Optimization and Maintenance Convenience: Utilizing PWM modulation technology to reduce coil power consumption and extend component lifespan; the modular design facilitates quick replacement and reduces downtime.
