HYUNDAI 22 kW Elevator Inverter Gate Driver Board - HELCO GATE BD Ver2.0 IEC 61800-5-1 Certified Plug-and-Pin Compatible for HIVD900GT
-
Highlight
22 kW Elevator Inverter Gate Driver Board
,IEC 61800-5-1 Certified HELCO GATE BD
,Plug-and-Pin Compatible Gate Driver PCB
-
TypeHELCO GATE BD
-
Product NameHYUNDAI 22 KW Elevator Inverter Gate Driver Board – HELCO GATE BD
-
TransportationClients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
-
ApplicationElevator Part
-
Business TypeManufacturer
-
KeywordsHYUNDAI 22 KW Elevator Inverter Gate Driver Board – HELCO GATE BD Ver2.0 For HIVD900GT
-
PackingNormal 40 Pcs In One Pack,as Per Client's Request,Packed In Carton
-
Brand NameHYUNDAI
-
Model NumberHELCO GATE BD
-
Minimum Order Quantity1
-
Delivery Time3-5 Working Days
-
Payment TermsD/A,D/P,T/T,Western Union,MoneyGram
HYUNDAI 22 kW Elevator Inverter Gate Driver Board - HELCO GATE BD Ver2.0 IEC 61800-5-1 Certified Plug-and-Pin Compatible for HIVD900GT

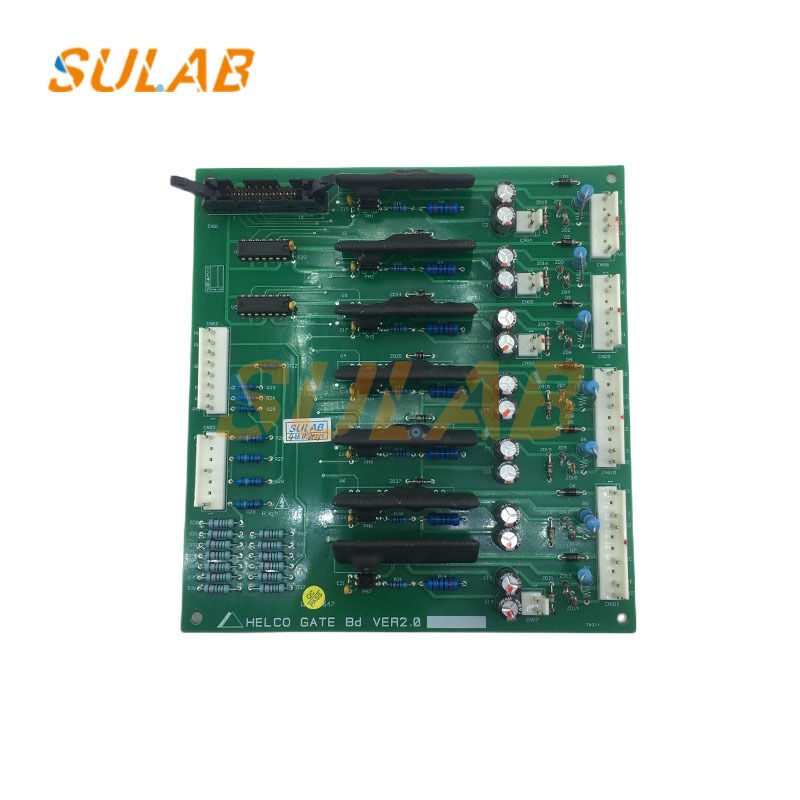

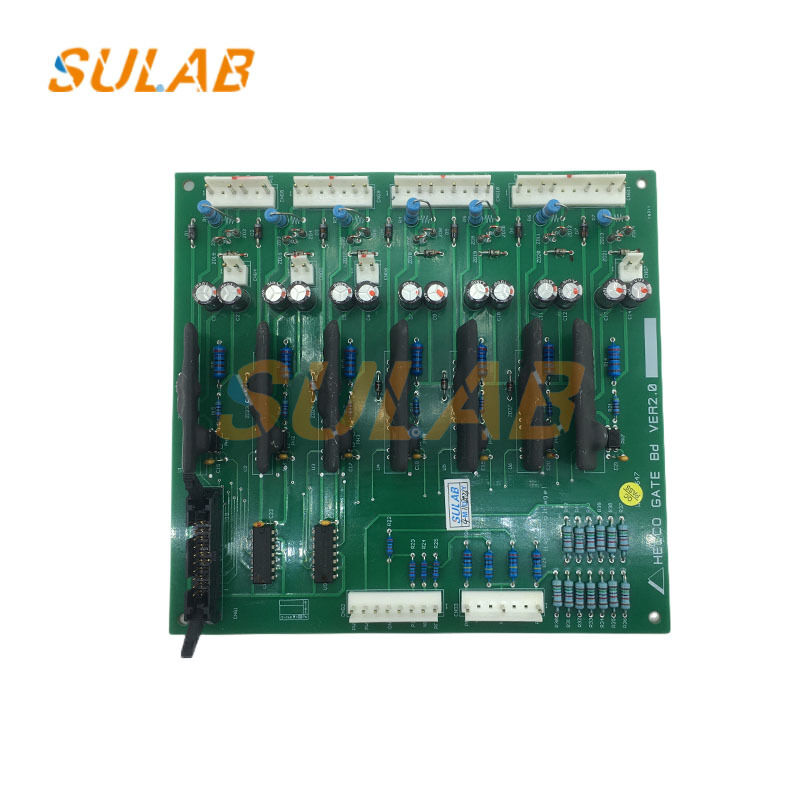

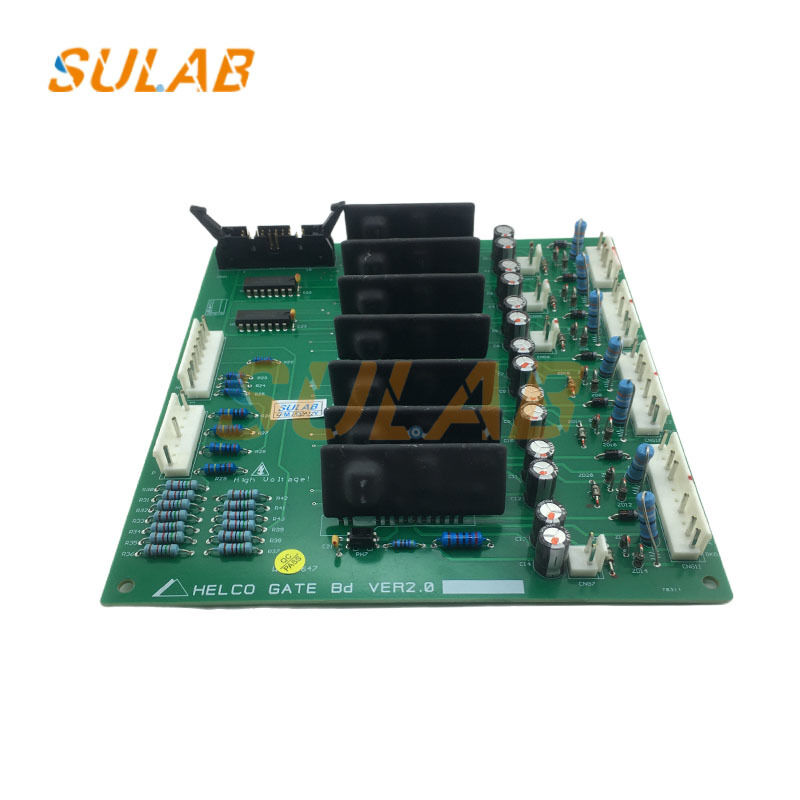

HYUNDAI 22 kW Elevator Inverter Gate Driver Board – HELCO GATE BD Ver2.0 for HIVD900GT
The HELCO GATE BD is the original 22 kW gate-driver PCB for HYUNDAI HIVD900GT inverters, managing IGBT switching signals to ensure smooth, safe and energy-efficient elevator motor control. Plug-and-pin compatible with Ver2.0 hardware, it is built for 24/7 traction-duty cycles and certified to IEC 61800-5-1.
Technical Specifications
| Model | HELCO GATE BD |
|---|---|
| Power Class | 22 kW |
| Application | HYUNDAI HIVD900GT (synchronous-motor version) |
| PCB Revision | Ver2.0 |
| Connector Layout | CN1 (keyed), CN2, CN3 |
| Isolation Voltage | 2.5 kV RMS |
| Operating Temperature | -10 °C ~ +70 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 5 % ~ 95 % RH non-condensing |
| Standards | IEC 61800-5-1, EN 50178 |
| MTBF | > 50,000 hours @ 40 °C |
| Dimensions | 200 mm × 120 mm × 35 mm |
| Weight | 0.22 kg |
Key Features
- Original OEM gate driver board for HYUNDAI HIVD900GT inverters
- Manages IGBT switching signals for precise motor control
- Plug-and-pin compatible with Ver2.0 hardware
- Designed for 24/7 traction-duty cycles
- Certified to international safety standards
Package Includes: Anti-static tray and multilingual installation sheet. Stock ready for same-day dispatch worldwide.
