HYUNDAI WBVF HIP CC-910 Elevator Display Board LCD PCB with 12-24 VDC Dot-matrix or Segment LCD and ISO9001 Certification
-
Highlight
12-24 VDC Elevator Display Board
,Dot-matrix or segment LCD LCD PCB
,ISO9001 Certified HYUNDAI WBVF HIP CC-910
-
TypeWBVF HIP CC-910
-
Product NameHYUNDAI WBVF HIP Display Board CC-910 – STVF9
-
TransportationClients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
-
Business TypeManufacturer
-
PackingPacked In Carton
-
Brand NameHYUNDAI
-
Model NumberCC-910 – STVF9
-
Minimum Order Quantity1
-
Delivery Time3-5 Working Days
-
Payment TermsD/A,D/P,T/T,Western Union,MoneyGram
HYUNDAI WBVF HIP CC-910 Elevator Display Board LCD PCB with 12-24 VDC Dot-matrix or Segment LCD and ISO9001 Certification

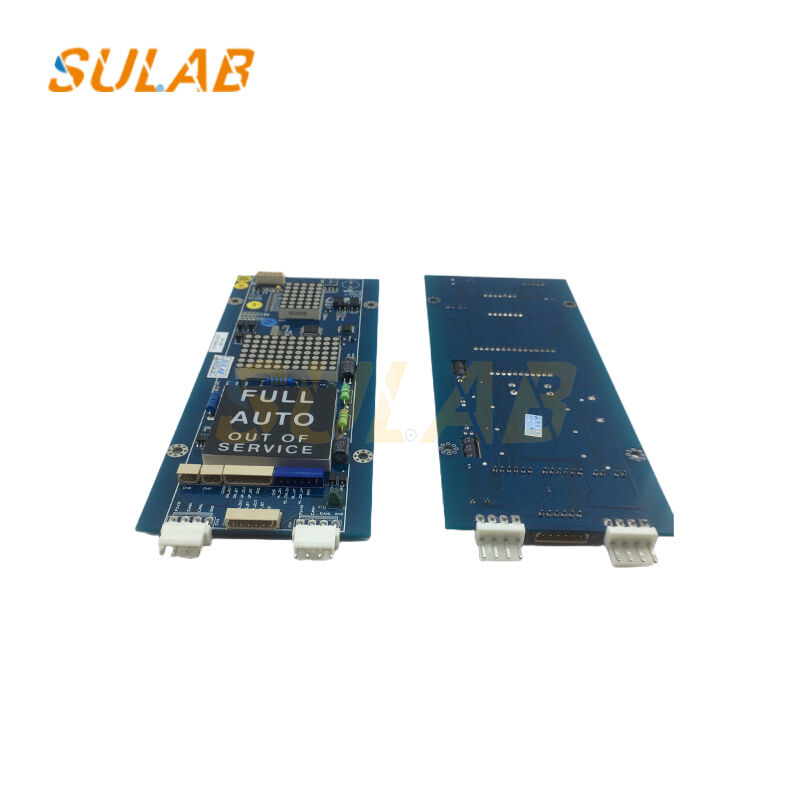

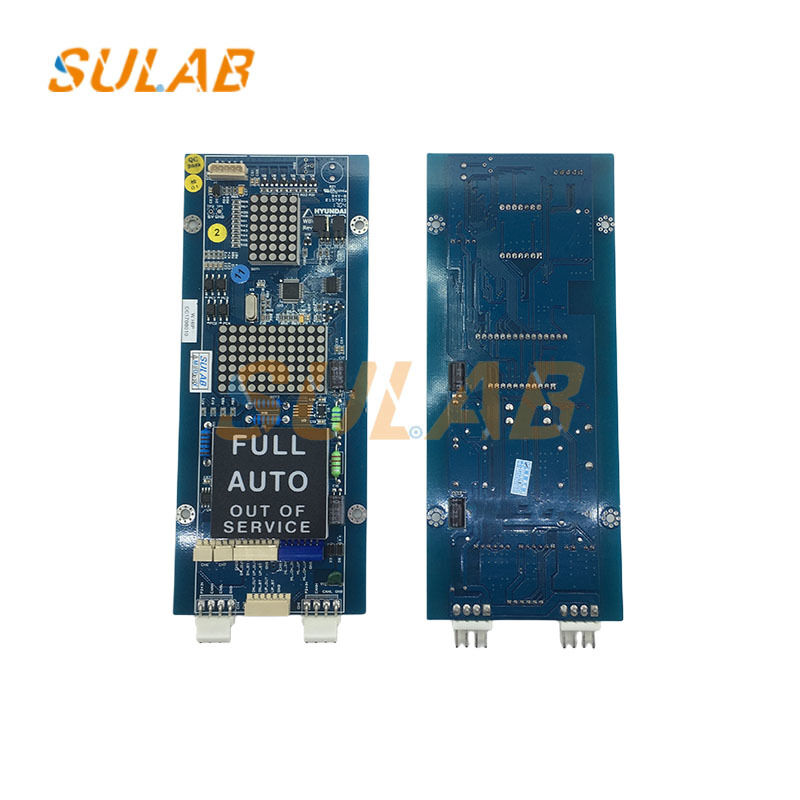

HYUNDAI WBVF HIP Display Board CC-910 – STVF9 Car-Panel / Hall-Call LCD PCB
Original HYUNDAI elevator display PCB WBVF HIP CC-910 for STVF9 systems. This plug-and-play replacement board supports both car-operation and landing-call indicators, featuring dot-matrix and segment LCD compatibility, multilingual floor symbols, and real-time fault code display.
Key Features
- Universal compatibility with STVF9 elevator systems
- Supports both dot-matrix and segment LCD displays (auto-detection)
- 8 built-in languages for international applications
- High brightness display with 5-level dimming control
- Real-time fault code monitoring and display
- Conformal coated for enhanced protection
- Plug-and-play installation
Technical Specifications
| Specification | Value |
|---|---|
| Model | WBVF HIP CC-910 |
| Function | Car / Hall display driver |
| Supply voltage | 12 - 24 VDC (±10 %) |
| Interface | UART-TTL @ 9,600 bps |
| Display type | Dot-matrix or segment LCD (auto-detect) |
| Max pixels | 128 × 64 |
| Languages | 8 built-in (EN, ES, FR, DE, RU, AR, CN, JP) |
| Brightness | 400 cd/m², 5-level dimming |
| Operating temperature | -10 °C ~ +60 °C |
| Storage temperature | -25 °C ~ +70 °C |
| Humidity | 5 % ~ 95 % RH non-condensing |
| Protection | Conformal-coated, IP20 |
| Dimensions | 162 mm × 92 mm × 20 mm |
| Weight | 0.11 kg |
| Compliance | CE, RoHS, ISO9001 |
Ordering Information
Package includes anti-static bag and carton packaging. Minimum order quantity: 1 piece. Lead time: ≤ 2 days.
Warranty & Shipping: 1-year manufacturer warranty with global same-day shipping available.
