IDEC ASW0335 Key-Operated Selector Switch with Spring-Return 22 mm Mounting Holes and IP65 Front Protection for Elevators
-
Highlight
Spring-Return Key-Operated Selector Switch
,22 mm Mounting Holes Elevator Selector Switch
,IP65 Front Protection ASW0335 Switch
-
TypeASW0335
-
Product NameIDEC / ASW Key-Operated Selector Switch ASW0335
-
ApplicableElevator Parts,Elevator Equipment,General For Escalator Parts,Passenger Lift,Passenger Elevator
-
TransportationClients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
-
Business TypeManufacturer
-
PackingPacked In Carton
-
Brand NameHyundai
-
Model NumberASW0335
-
Minimum Order Quantity1
-
Delivery Time3-5 Working Days
-
Payment TermsD/A,D/P,T/T,Western Union
IDEC ASW0335 Key-Operated Selector Switch with Spring-Return 22 mm Mounting Holes and IP65 Front Protection for Elevators

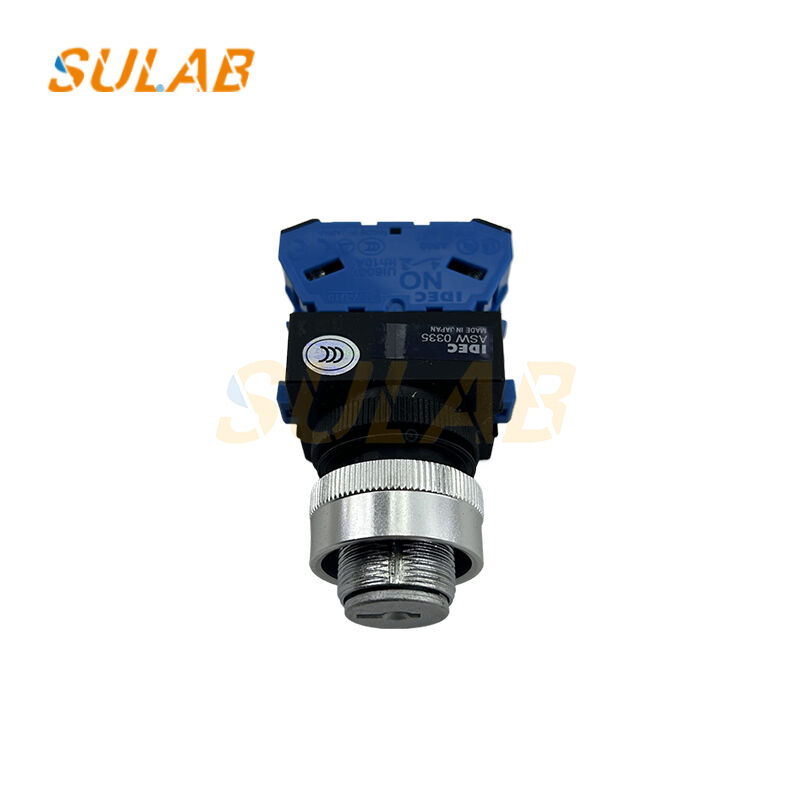

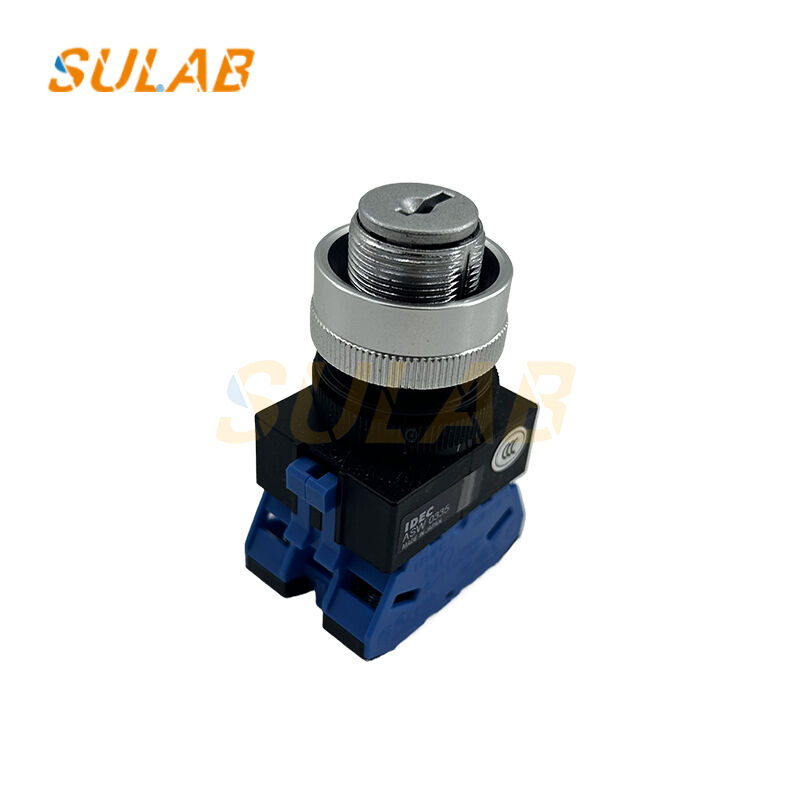

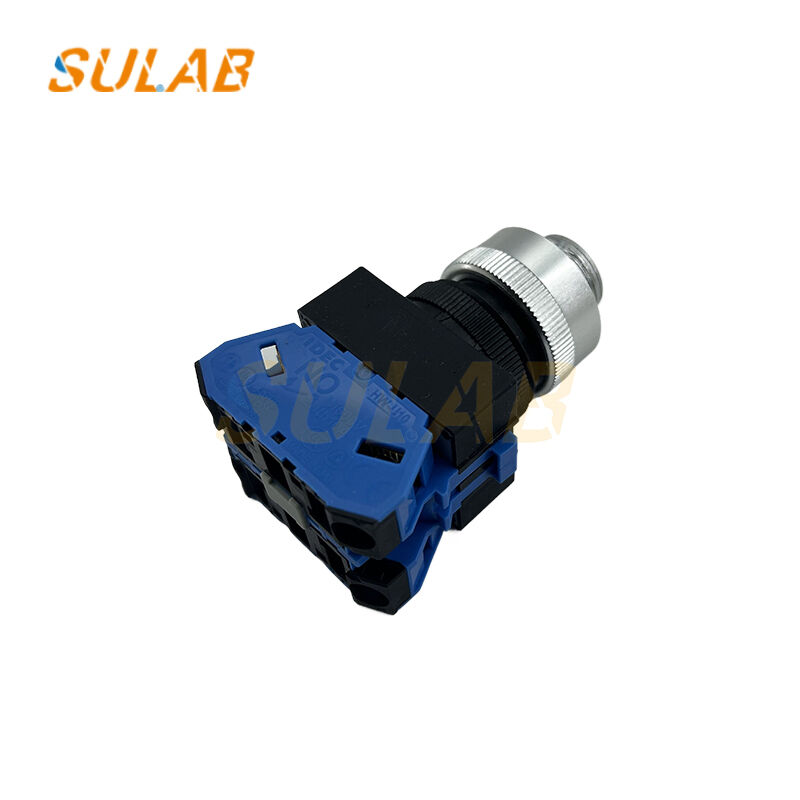

IDEC / ASW Key-Operated Selector Switch ASW0335
Heavy-duty elevator key switch with spring-return from right to center position. Designed to fit IDEC ASW series 22 mm mounting holes. Widely utilized in Schindler, Hyundai, and LG-Sigma control panels for inspection, service, and fire mode operations.
Technical Specifications
| Model | ASW0335 |
| Positions | 3 (Centre-Right-Centre) |
| Contact Blocks | 2 × SPDT (1NO + 1NC) |
| Rated Insulation | 600 V |
| Thermal Current | 10 A |
| Utilization | AC-15 3 A / 250 VAC; DC-13 2.5 A / 30 VDC |
| Key Code | 33K (supplied) |

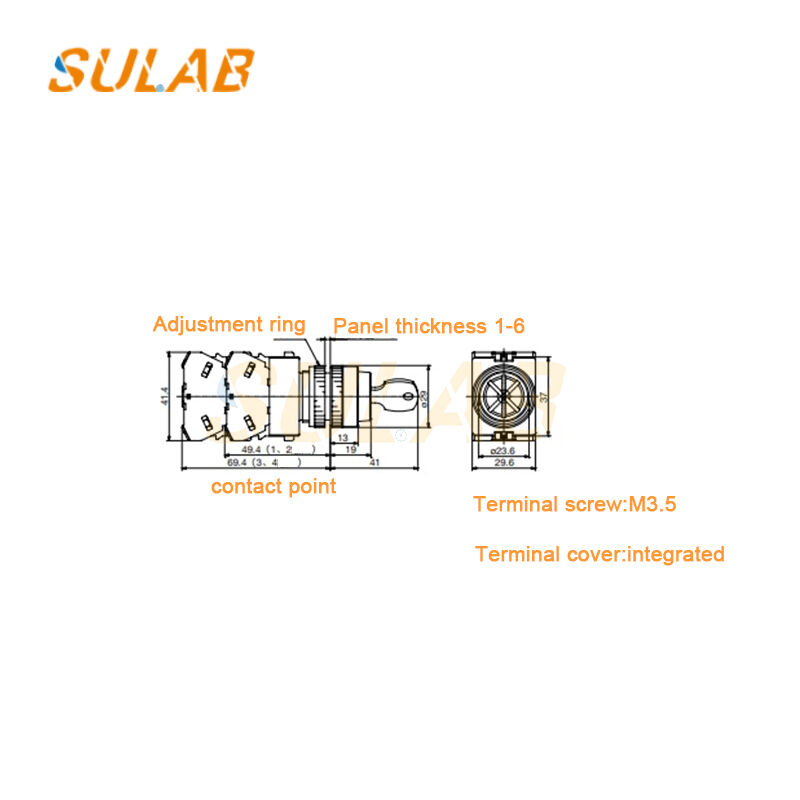

| Panel Cut-out | Ø 22.3 mm |
| Torque | 0.8 N*m max |
| Protection | IP65 front; IP20 terminals |
| Temperature Range | -25 °C ~ +70 °C |
| Mechanical Life | > 100,000 operations |
| Weight | 120 g |
Packaging & Shipping Information
1 piece per anti-static bag + white box, 50 pieces per carton (32 × 26 × 22 cm, 6.5 kg).
Stock MOQ: 1 piece
OEM label MOQ: 500 pieces (2-week lead time)
Stock MOQ: 1 piece
OEM label MOQ: 500 pieces (2-week lead time)
