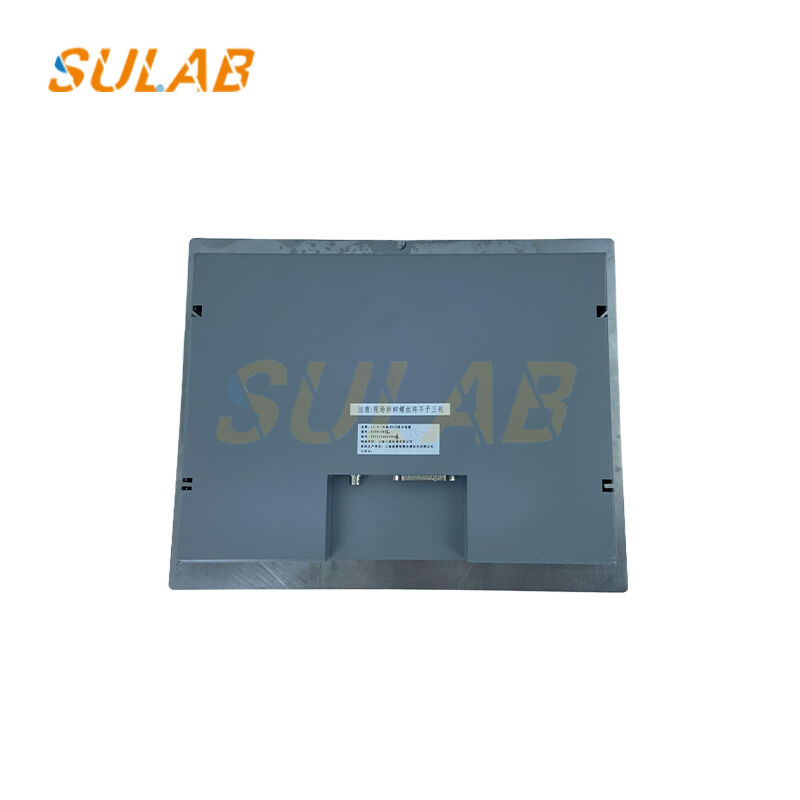

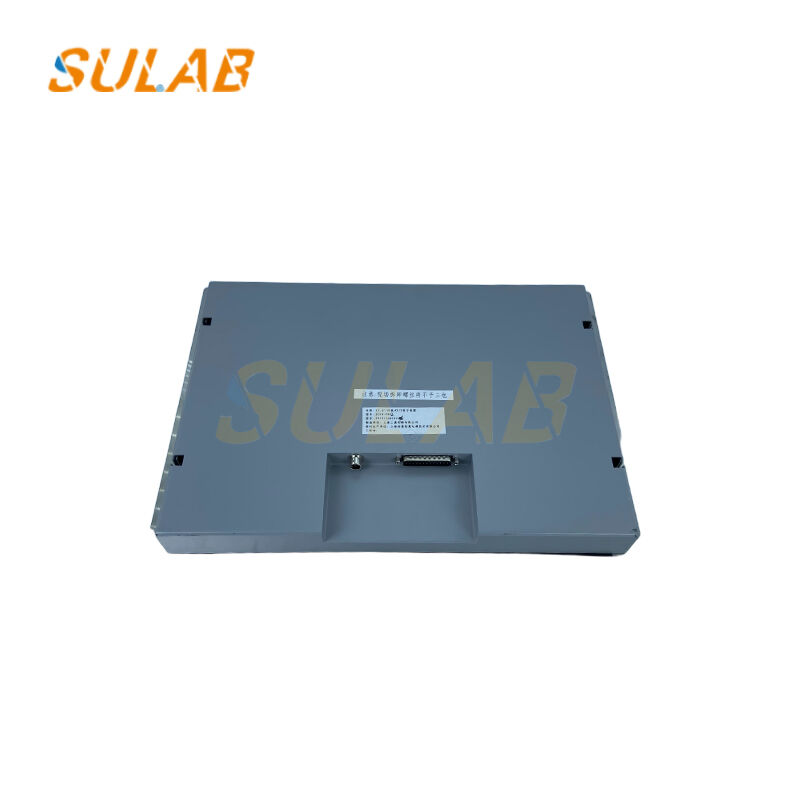

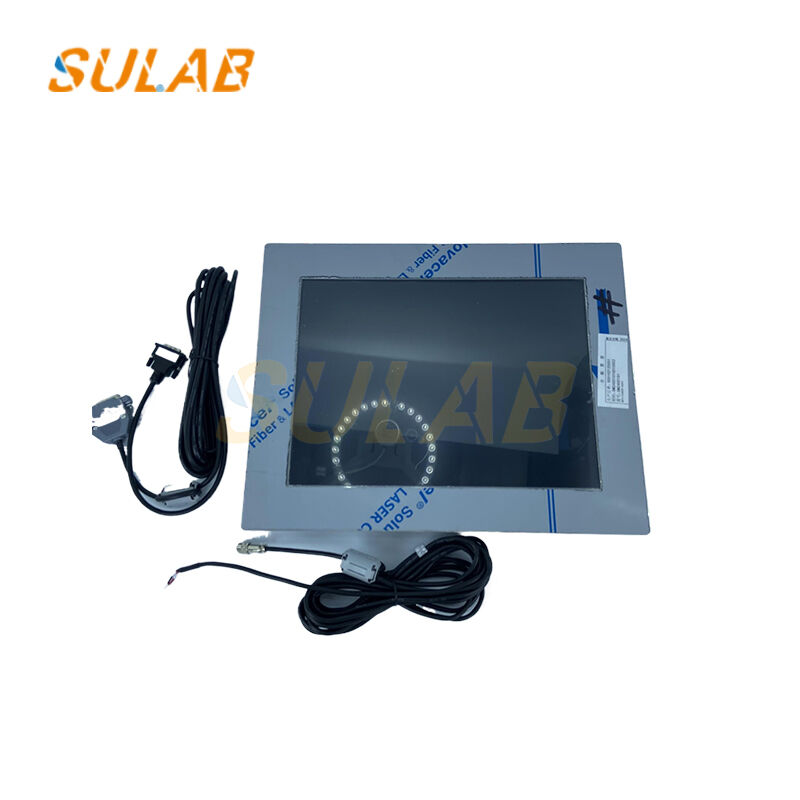

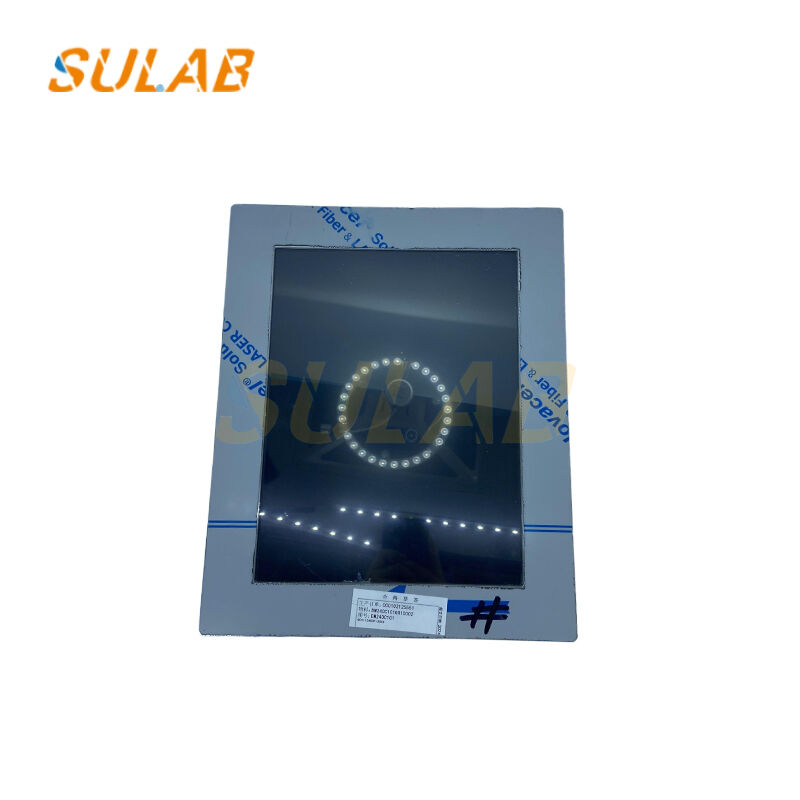

Mitsubishi Elevator Car LCD Display 12.1-inch Built-in Unit Plug-and-play for MX-G NexWay NEXIEZ Models
-
Highlight
12.1-inch Elevator LCD Display
,Built-in Unit Car LCD Display
,Plug-and-play Elevator Car Display
-
TypeZCPD-C802NC801
-
Product NameMitsubishi Elevator Car LCD Display ZCPD-C802NC801
-
ApplicableElevator Parts,Elevator Equipment,General For Escalator Parts,Passenger Lift,Passenger Elevator
-
TransportationClients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
-
Business TypeManufacturer
-
PackingPacked In Carton
-
Brand NameMitsubishi
-
Model NumberZCPD-C802NC801
-
Minimum Order Quantity1
-
Delivery Time3-5 Working Days
-
Payment TermsD/A,D/P,T/T,Western Union
Mitsubishi Elevator Car LCD Display 12.1-inch Built-in Unit Plug-and-play for MX-G NexWay NEXIEZ Models

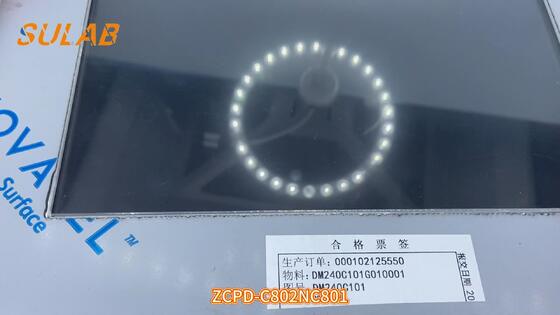

Mitsubishi Elevator Car LCD Display ZCPD-C802NC801 12.1-inch Built-in Unit
Original Mitsubishi replacement LCD display unit designed for elevator car-operating panels. This 12.1-inch TFT display features high-quality construction and reliable performance for demanding elevator applications.
Key Features:
- 12.1-inch TFT display with 800 × 600 SVGA resolution
- LED backlight with 400 cd/m² brightness
- Wide viewing angle: 160° horizontal / 140° vertical
- Operating temperature range: -10°C to +60°C
- Plug-and-play compatibility with MX-G, NexWay and NEXIEZ models
- Matches OEM harness P253111B000
- Metal bezel with anti-vandal tempered glass protection
- Quick-swap PCB design reduces on-site downtime to under 5 minutes
Technical Specifications
| Model | ZCPD-C802NC801 |
| Screen Size | 12.1" TFT-LCD |
| Resolution | SVGA 800 × 600 |
| Backlight | LED 400 cd/m² |
| Viewing Angle | 160° H / 140° V |
| Supply Voltage | DC 24 V (18-36 V range) |
| Power Draw | 10 W typical / 15 W maximum |
| Video Input | VGA (D-Sub 15) + composite CVBS |
| Operating Temperature | -10°C ~ +60°C |
| Storage Temperature | -20°C ~ +70°C |
| Vibration Resistance | 1 g, 5-55 Hz (IEC 68-2-6) |
| Enclosure Rating | IP 40 front, aluminium bezel |
| Mounting | Flush in-cab panel, 4 × M4 inserts |
| Dimensions | 280 × 218 × 35 mm |
| Weight | 1.1 kg |
| OEM References | P253111B000, ZCPD-N701/N401/N801 |
