CNTD CMV16031C2 Snap-Action Limit Switch 16 A 250 V Long-Lever Roller SPDT for Elevators
-
Highlight
16 A 250 V Limit Switch
,Long-Lever Roller Snap-Action Switch
,SPDT Micro Limit Switch
-
TypeCNTD CMV16031C2
-
Product NameCNTD CMV16031C2 Snap-Action Limit Switch 16 A 250 V Long-Lever Roller SPDT
-
ApplicableElevator Parts,Elevator Equipment,General For Escalator Parts,Passenger Lift,Passenger Elevator
-
TransportationClients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
-
Business TypeManufacturer
-
PackingPacked In Carton
-
Model NumberCNTD CMV16031C2
-
Minimum Order Quantity1
-
Delivery Time3-5 Working Days
-
Payment TermsD/A,D/P,T/T,Western Union
CNTD CMV16031C2 Snap-Action Limit Switch 16 A 250 V Long-Lever Roller SPDT for Elevators

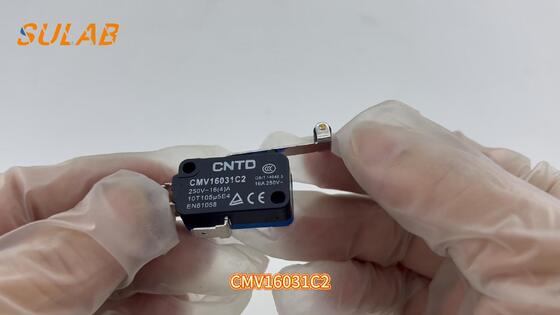

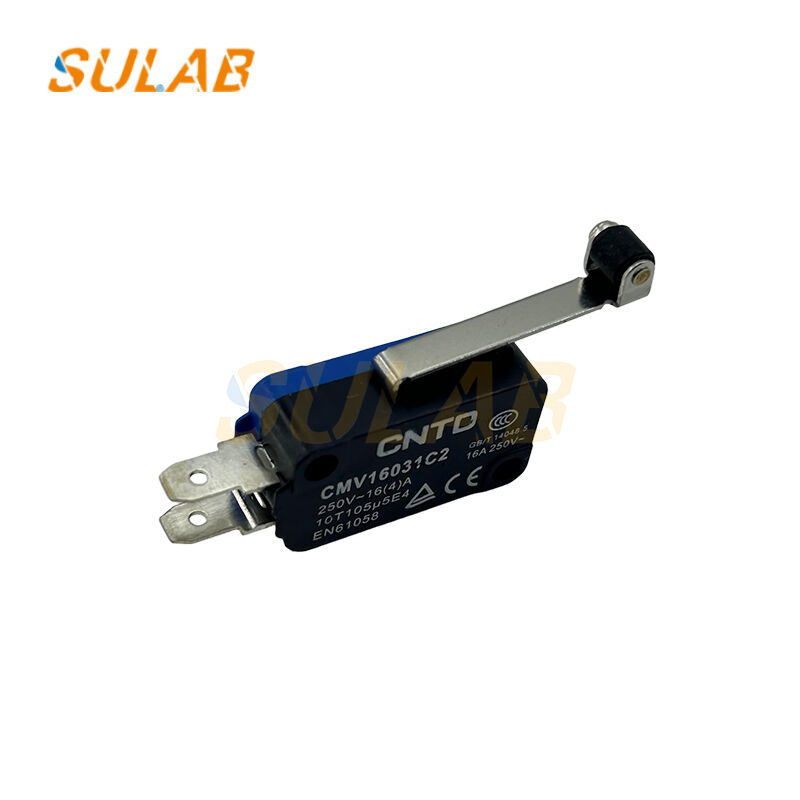

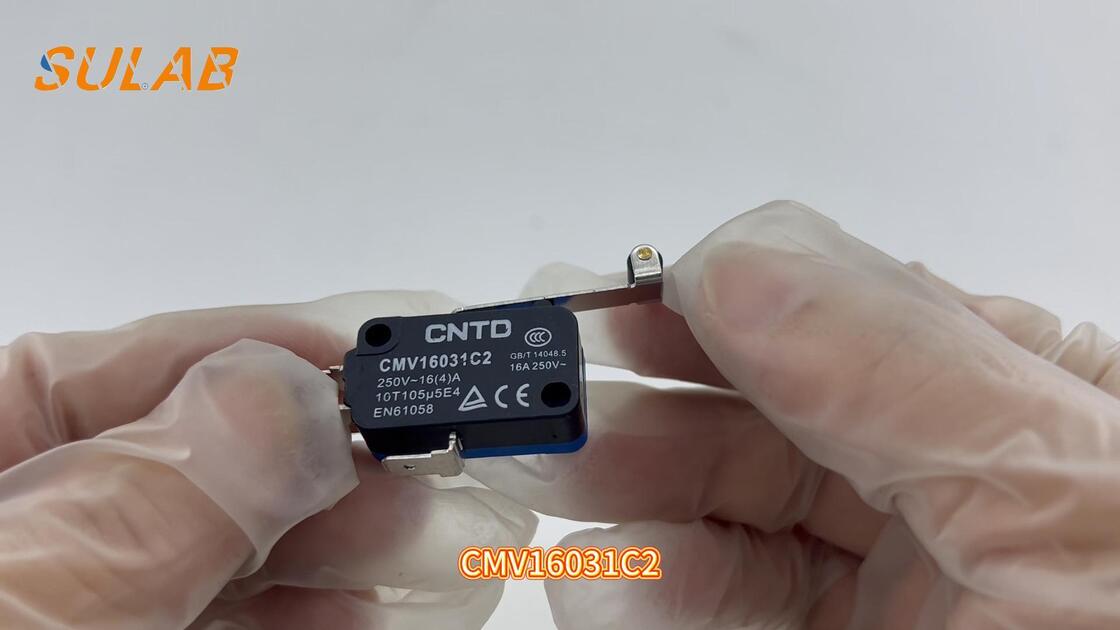

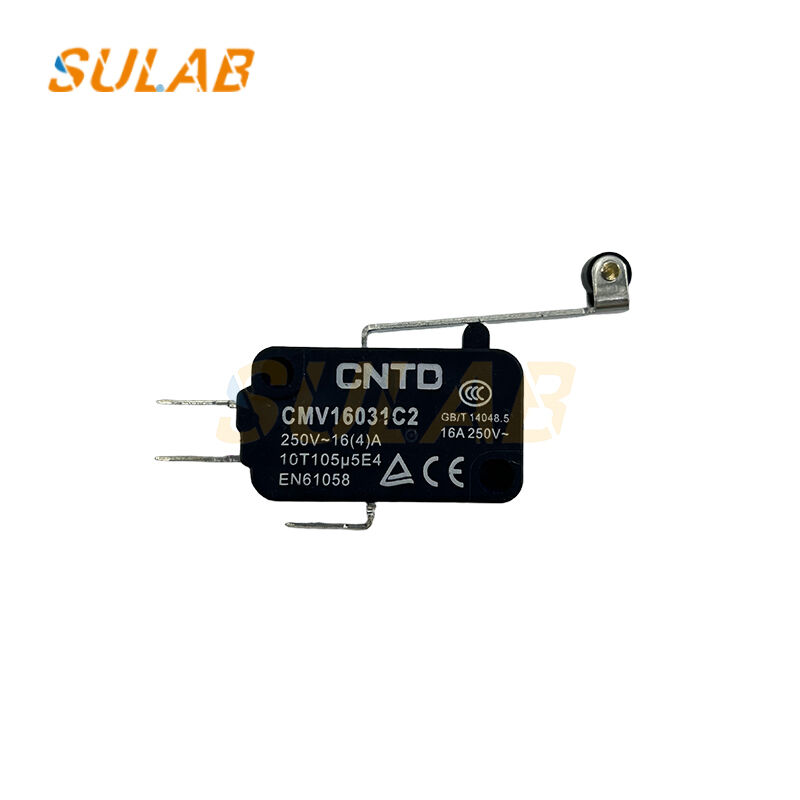

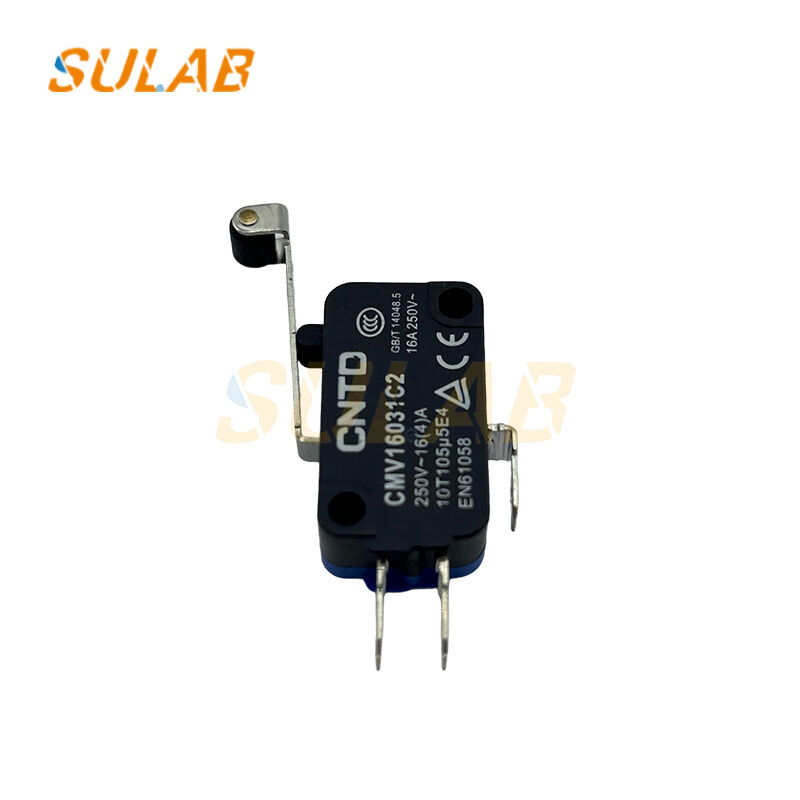

CNTD CMV16031C2 Snap-Action Limit Switch
Heavy-duty snap-action micro-limit switch designed for elevator door positioning, home-appliance interlocks, and industrial automation applications.
Key Features
- Long lever with 19 mm nylon roller provides 30° over-travel and positive NC/NO action
- Silver-alloy contacts rated for 16 A @ 250 V AC operation
- Glass-fiber reinforced housing with UL 94 V-0 rating and IP 40 protection
- Mechanical life exceeding 1 million cycles
- Wide operating temperature range: -25°C to +85°C

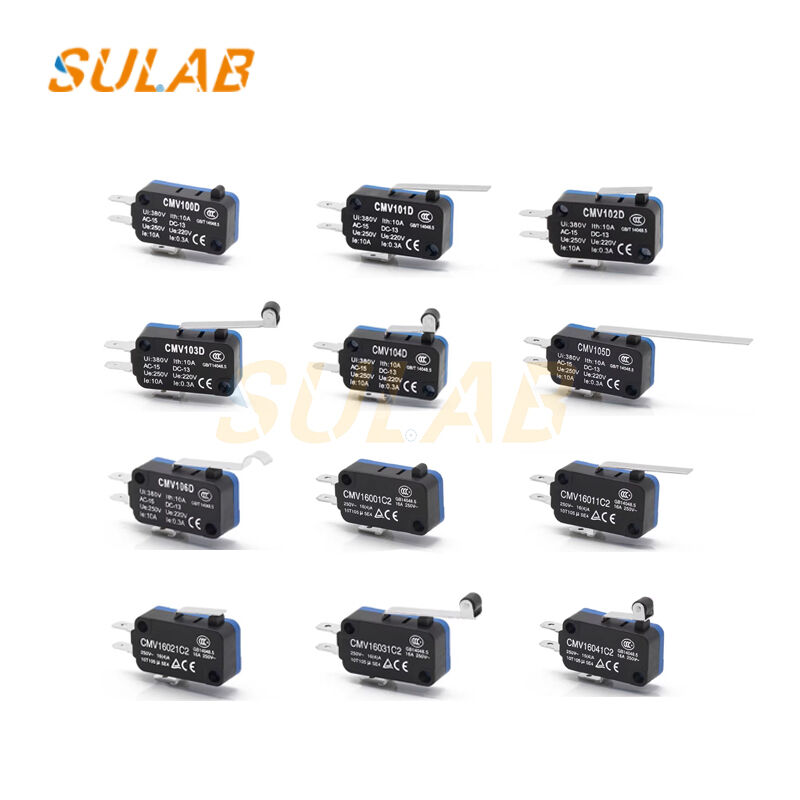

- Drop-in replacement for CMV16001C / 16011C / 16021C series
- Quick-connect 6.3 mm terminals for standard harness compatibility

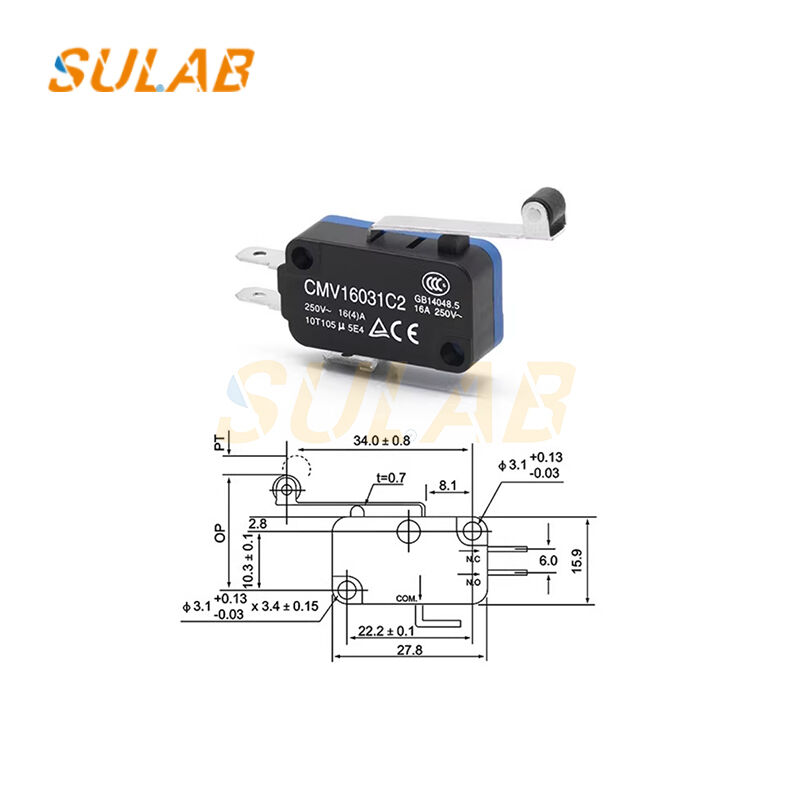

Technical Specifications
| Model | CMV16031C2 |
| Electrical Rating | 16 A 250 V AC, 1/4 HP 125 V |
| Contact Form | SPDT (1NO+1NC) |
| Operating Force | ≤ 0.5 N |
| Release Force | ≥ 0.15 N |
| Pre-travel | 6 mm ± 1 mm |
| Over-travel | ≥ 3 mm (30° lever) |
| Roller Diameter | 19 mm nylon |
| Terminals | 6.3 mm quick-connect |
| Dielectric Strength | 1,500 V RMS |
| Insulation Resistance | ≥ 100 MΩ (500 V DC) |
| Mechanical Life | 1 × 10⁶ cycles |
| Temperature Range | -25°C to +85°C |
| Protection Rating | IP 40 |
| Mounting | 2 × M4 screws, 25.2 mm centres |
| Weight | 28 g |
Certifications & Compliance
UL, CE, RoHS compliant (UL file E258663)
