Mitsubishi Elevator Alarm Bell Button P235083B178G01 24 V DC 20 A 2-Pole Change-Over with Double-Break Silver Contacts
-
Highlight
24 V DC 20 A Elevator Alarm Bell Button
,2-Pole Change-Over Emergency Alarm Button
,Double-Break Silver Contacts Elevator Push Button
-
TypeP235083B178G01
-
Product NameMitsubishi Elevator Alarm Bell Button P235083B178G01
-
ApplicableElevator Parts,Elevator Equipment,General For Escalator Parts,Passenger Lift,Passenger Elevator
-
TransportationClients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
-
Business TypeManufacturer
-
PackingPacked In Carton
-
Brand NameMitsubishi
-
Model NumberP235083B178G01
-
Minimum Order Quantity1
-
Delivery Time3-5 Working Days
-
Payment TermsD/A,D/P,T/T,Western Union
Mitsubishi Elevator Alarm Bell Button P235083B178G01 24 V DC 20 A 2-Pole Change-Over with Double-Break Silver Contacts

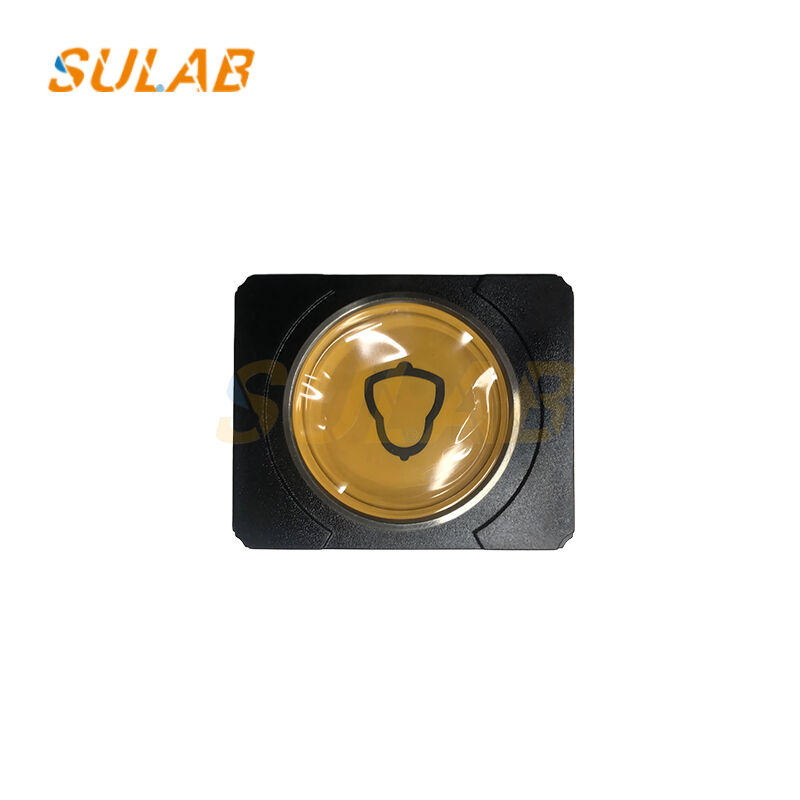

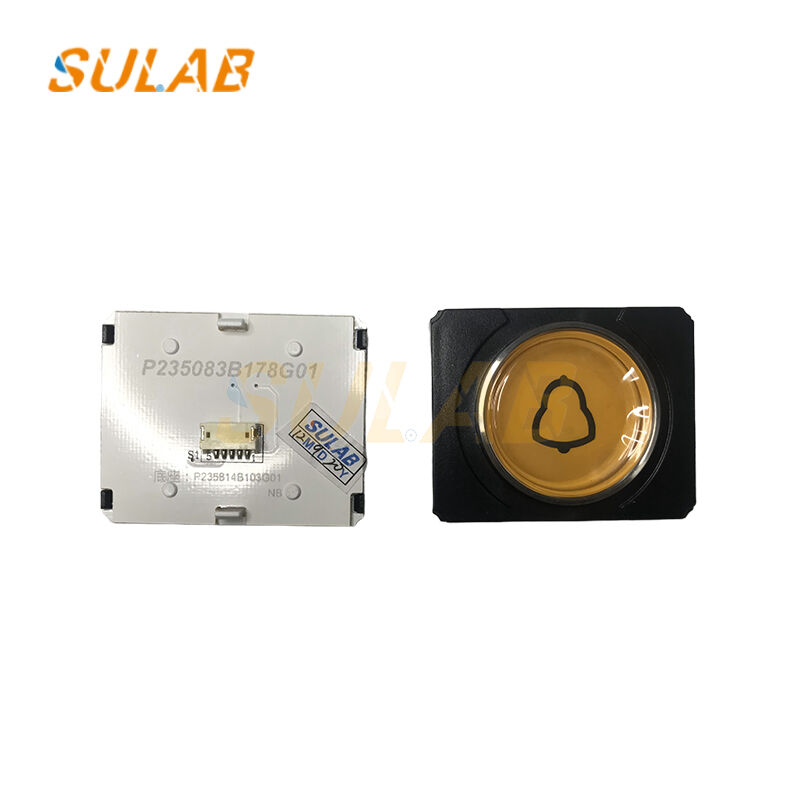

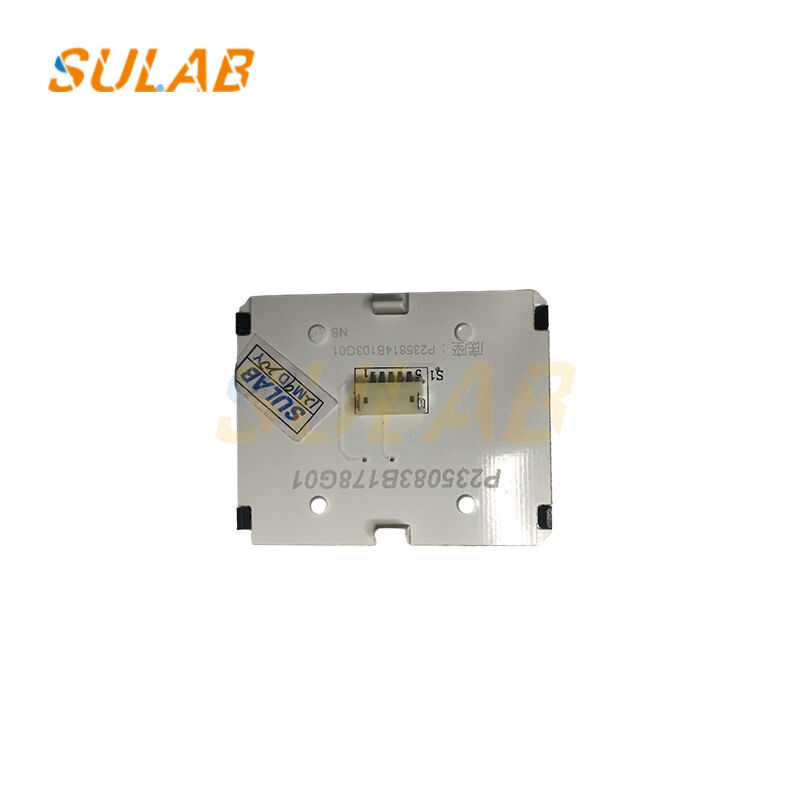

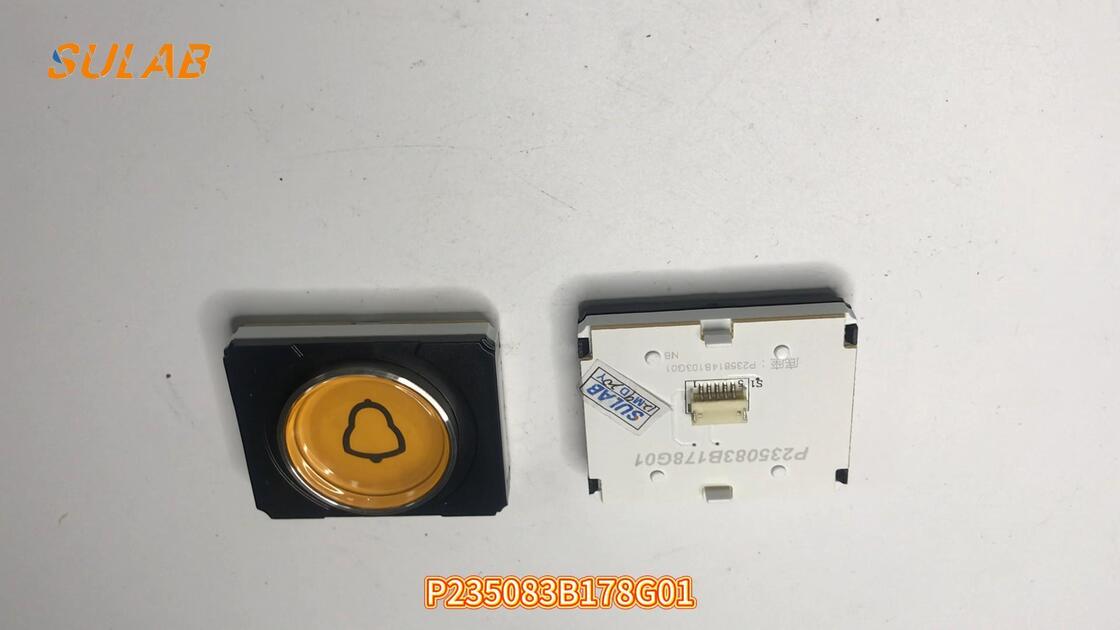

Mitsubishi Elevator Alarm Bell Button P235083B178G01
Genuine Mitsubishi emergency-alarm push-button designed for elevator COP & LOP panels. This 24 V DC 20 A 2-pole change-over button provides reliable emergency signaling with robust construction for demanding elevator applications.
Key Features
- Double-break silver contacts rated 24 V DC 20 A
- 2-pole change-over configuration (1NO+1NC) for reliable signal transmission
- Flush-mount Ø30 mm stainless steel bezel with brushed finish
- Red polycarbonate illuminated lens with LED indicator
- IP 54 front protection and IK 07 impact resistance rating
- Quick-connect 6.3 mm terminals with rear locking nut
- Includes "ALARM" nameplate for clear identification
Compatibility: Direct drop-in replacement for P235083B178G01 on Mitsubishi NexWay, NEXIEZ, and LEHY elevator series. CE and RoHS compliant for international standards.
Technical Specifications
| Model Number | P235083B178G01 |
|---|---|
| Function | Emergency alarm bell button |
| Contact Configuration | 2-pole change-over (1NO+1NC) |
| Rated Voltage / Current | 24 V DC 20 A (resistive) |
| Contact Material | Silver-alloy, double-break |
| Illumination | Red LED, 24 V DC |
| Bezel Material | Stainless steel, brushed finish |
| Lens Specifications | Polycarbonate, red, Ø30 mm |
| Protection Rating | IP 54 front, IP 20 rear |
| Mechanical Life | ≥ 1 million cycles |
| Electrical Life | ≥ 50,000 cycles (20 A) |
| Operating Temperature | -10 °C to +60 °C |
| Mounting Hole | Ø30.5 mm panel |
| Terminals | 6.3 mm quick-connect |
| Tightening Torque | 0.8 N*m |
| Weight | 65 g |
| OEM References | Mitsubishi P235083B178G01, P235083B178G00 |
Ideal for maintenance, repair, and modernization of Mitsubishi elevator control systems with guaranteed compatibility and performance.
