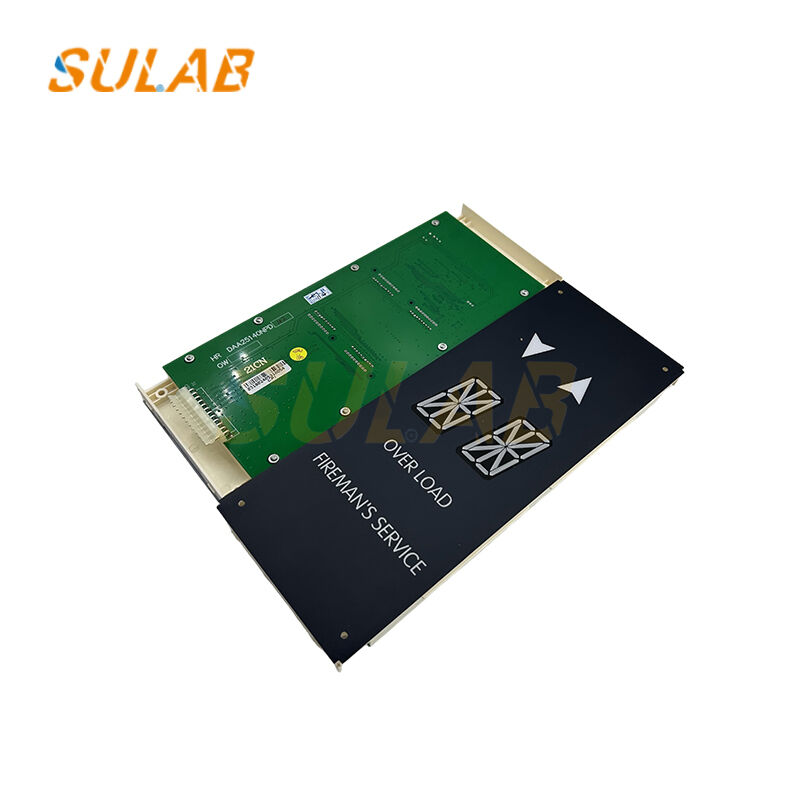

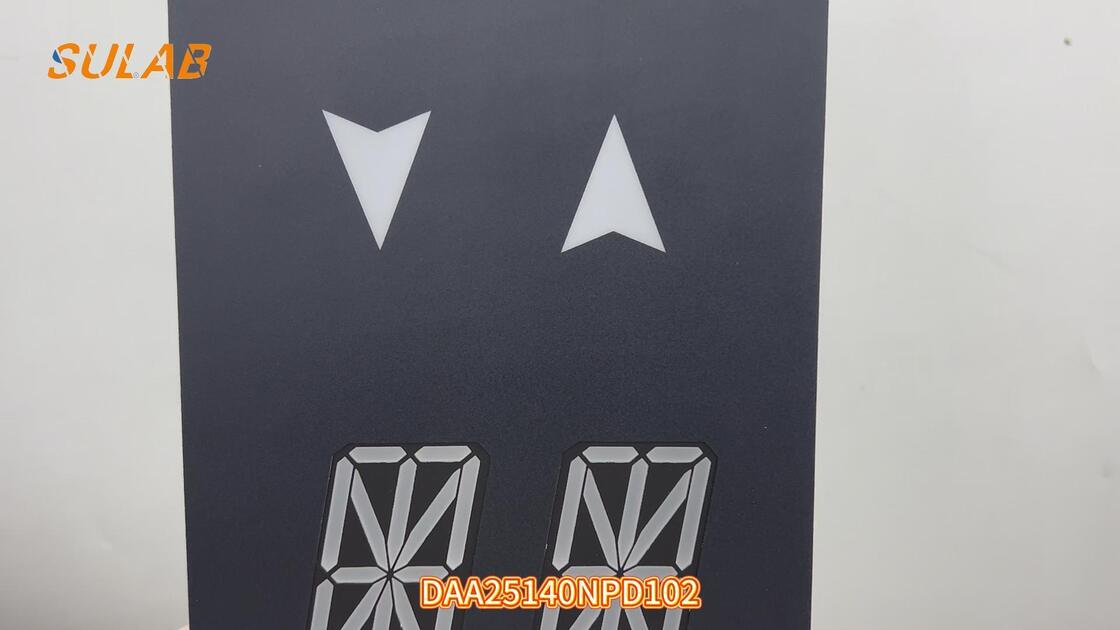

DAA25140NPD102 Elevator Car Display Board – 10.4-inch Anti-Glare LCD Position Indicator with Plug-and-Play Installation for Hotel-Grade Durability
-
Highlight
10.4-inch Anti-Glare LCD Elevator Car Display Board
,Plug-and-Play Installation LCD Position Indicator
,Hotel-Grade Durability Elevator Display Module
-
TypeDAA25140NPD10
-
Product NameDAA25140NPD102 Elevator Car Display Board
-
ApplicableElevator Parts,Elevator Equipment,General For Escalator Parts,Passenger Lift,Passenger Elevator
-
TransportationClients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
-
Business TypeManufacturer
-
PackingPacked In Carton
-
Model NumberDAA25140NPD102
-
Minimum Order Quantity1
-
Delivery Time3-5 Working Days
-
Payment TermsD/A,D/P,T/T,Western Union
DAA25140NPD102 Elevator Car Display Board – 10.4-inch Anti-Glare LCD Position Indicator with Plug-and-Play Installation for Hotel-Grade Durability
DAA25140NPD102 Elevator Car Display Board – Hotel-Grade LCD Position Indicator
Give any elevator cabin an instant five-star facelift with the DAA25140NPD102 car display board. Designed for 24/7 hotel traffic, this board combines a slim 10.4-inch anti-glare LCD with industrial-grade components, dropping straight into most traction or MRL cars without protocol complications.
Whether you're replacing a failed indicator or upgrading an entire fleet, one part number solves position, direction, voice synchronization, and multimedia branding in a single plug-and-play module.
Key Features
- 100% form-fit-function replacement for OEM DAA25140NPD102
- -20°C to +70°C operating range; survives machine-room heat spikes
- 24 VDC ±20% supply—no extra converter needed
- CAN-BUS + RS-485 dual interface with auto-baud detection
- 1280 × 800 IPS panel, 400 nits, 89° viewing angle
- Multi-language floor naming & custom logo boot screen (via free PC tool)
- UL94-V0 PCB, conformal-coated for dust & humidity resistance
- <0.5 W standby, Energy-Star compliant
Technical Specifications
| Parameter | Value |
|---|---|
| Part No. | DAA25140NPD102 |
| Supply voltage | 24 VDC (18-30 V) |
| Power draw | 6 W max / 0.3 W standby |
| Interface | CAN-BUS 2.0B, RS-485, 2× dry-contact inputs |
| Display | 10.4″ TFT, 1280×800, 400 cd/m² |
| Viewing angle | 89°/89°/89°/89° (typ.) |
| Operating temp | -20℃ to +70℃ |
| Storage temp | -30℃ to +80℃ |
| Humidity | 5%-95% RH non-condensing |
| PCB coating | Conformal, UV-resistant |
| Fire rating | UL94-V0 |
| MTBF | >50,000 h @ 40℃ |
| Certifications | CE, RoHS, FCC Part 15 |
| Dimensions | 285 × 185 × 15 mm (without bezel) |
| Weight | 480 g |
Application: Ideal for hotel-grade elevator modernization, guide-shoe replacement, and cabin upgrades. Plug-and-play compatibility ensures quick installation and reliable performance in demanding 24/7 environments.

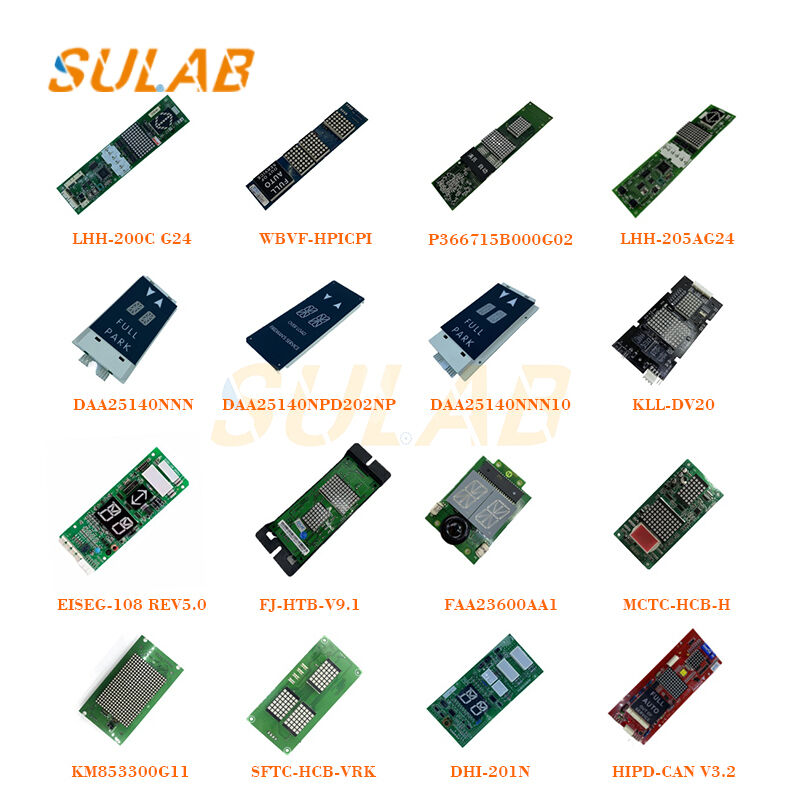

Related Products
