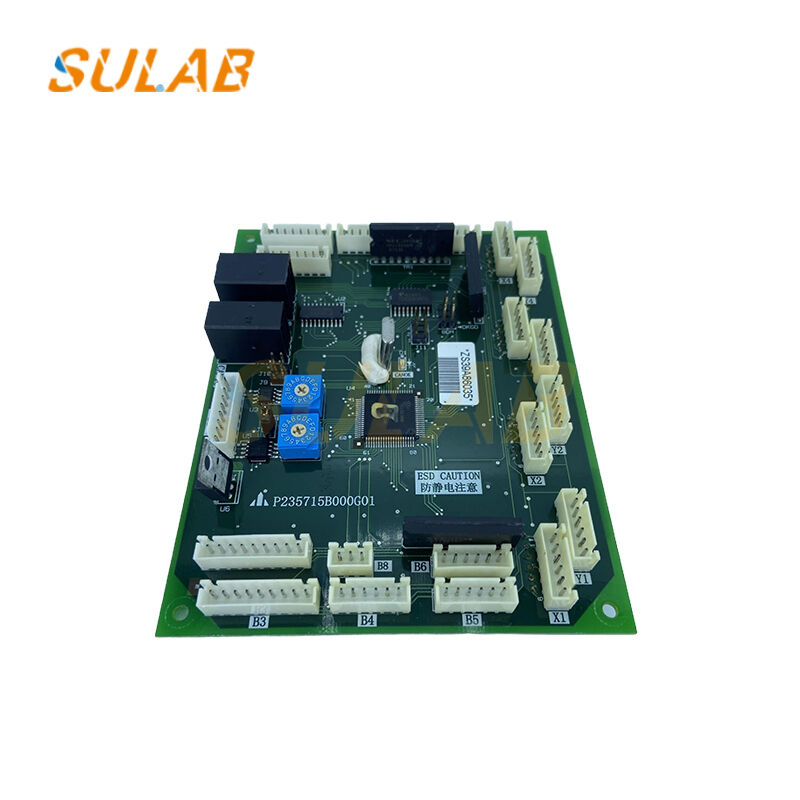

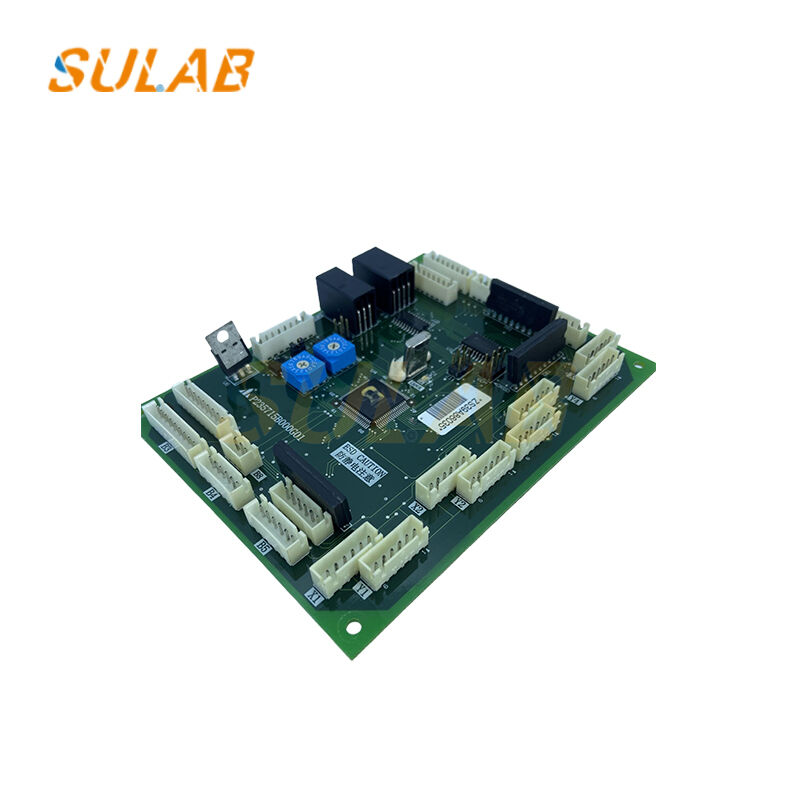

Mitsubishi Elevator COP Communication Board P235715B000G01 - Plug-and-Play Car-Station PCB for LEHY/NEXIEZ Series with 24 VDC and CE & RoHS Certification
Model Number:
P235715B000G01
Minimum Order Quantity:
1
Delivery Time:
3-5 Working Days
Payment Terms:
D/A,D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
Plug-and-Play Elevator Communication Board
,24 VDC COP Communication Board
,CE & RoHS Certified Car-Station PCB
Type:
P235715B000G01
Product Name:
Mitsubishi Elevator COP Communication Board P235715B000G01
Applicable:
Elevator Parts,Elevator Equipment,General For Escalator Parts,Passenger Lift,Passenger Elevator
Transportation:
Clients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
Business Type:
Manufacturer
Packing:
Packed In Carton
Product Description
Mitsubishi Elevator COP Communication Board P235715B000G01 – Plug-and-Play Car-Station PCB for LEHY / NEXIEZ Series, 24 VDC, CE & RoHS
Restore flawless car-station dialogue in seconds. The P235715B000G01 communication board is a drop-in OEM replacement for Mitsubishi LEHY, NEXIEZ-MR and MAXIEZ elevators. Engineered for 24 VDC systems, it handles push-button polling, lamp feedback and voice-bus sync over a single 4-pin CAN interface—no re-programming required. Conformal-coated PCB survives dust, humidity and voltage spikes common in high-rise machine rooms.
Key Advantages
- 100% pin-compatible with original P235715B000G01
- Burn-in tested 72 hours @ 70°C; MTBF > 50,000 hours
- Supports up to 48 floor nodes, expandable via on-board DIP switches
- Firmware auto-detects baud rate (125k / 250k / 500k)
- UL94-V0 substrate, -20°C to +70°C operating range
- 12-month replacement warranty, same-day shipping from US / EU / CN warehouses
Technical Specifications
| Part Number | P235715B000G01 |
|---|---|
| Supply Voltage | 24 VDC (18-30 V) |
| Current Draw | 45 mA typical / 120 mA max |
| Interface | CAN 2.0B, 125 k-500 k baud |
| I/O | 48 button inputs, 48 LED outputs, 2 dry-fire contacts |
| Operating Temperature | -20°C to +70°C |
| Humidity | 5%-95% RH non-condensing |
| PCB Coating | Conformal, UV-resistant |
| Dimensions | 160 × 95 × 22 mm |
| Mounting | 4 × M4 standoffs (included) |
| Certifications | CE, RoHS, FCC Part 15 |
Package Contents
1 × communication board, 1 × 30 cm CAN/power harness, 4 × M4 standoffs, 1 × quick-start guide
