KONE KM50006053H04 Elevator Control PCB Board with 32-bit MCU Industrial-Grade Components and Plug-and-Play Lift CPU Card
Brand Name:
KONE
Model Number:
KM50006053H04
Minimum Order Quantity:
1
Delivery Time:
3-5 Working Days
Payment Terms:
D/A,D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
32-bit MCU Elevator Control PCB Board
,Industrial-grade components Lift CPU Card
,Plug-and-play KONE KM50006053H04
Product Description

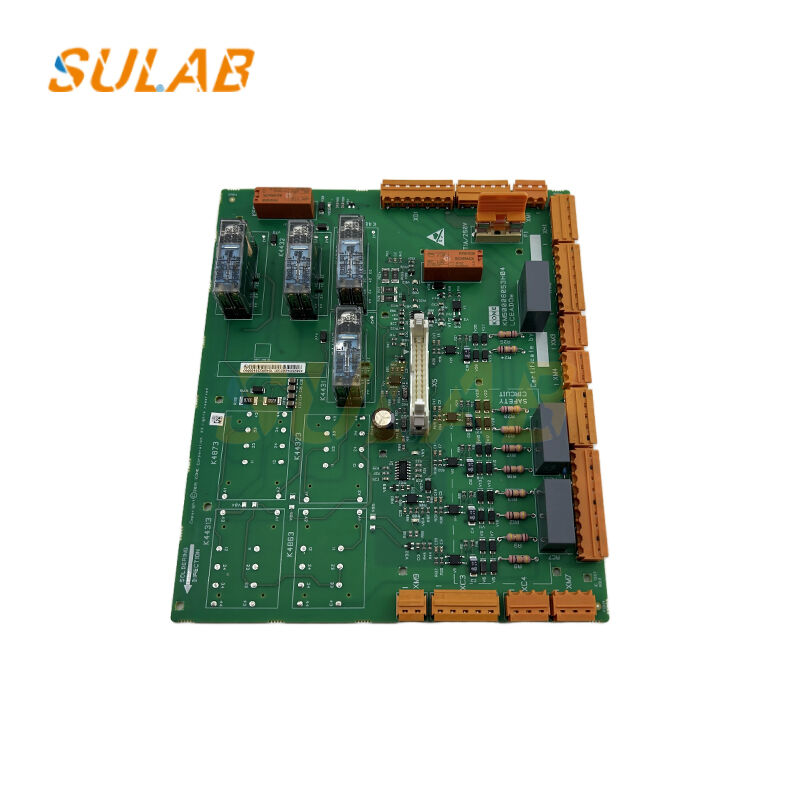

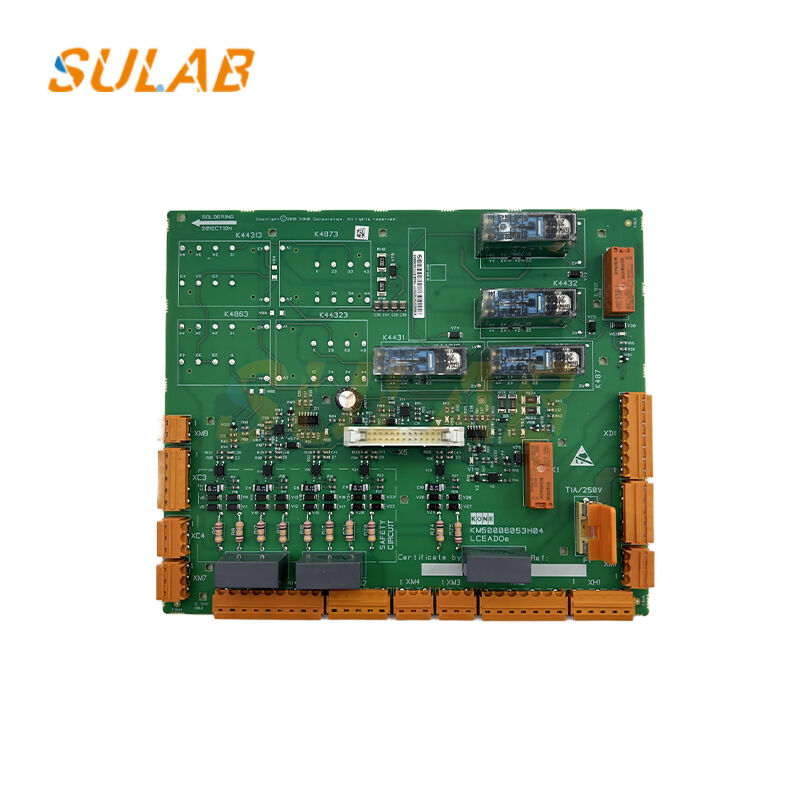

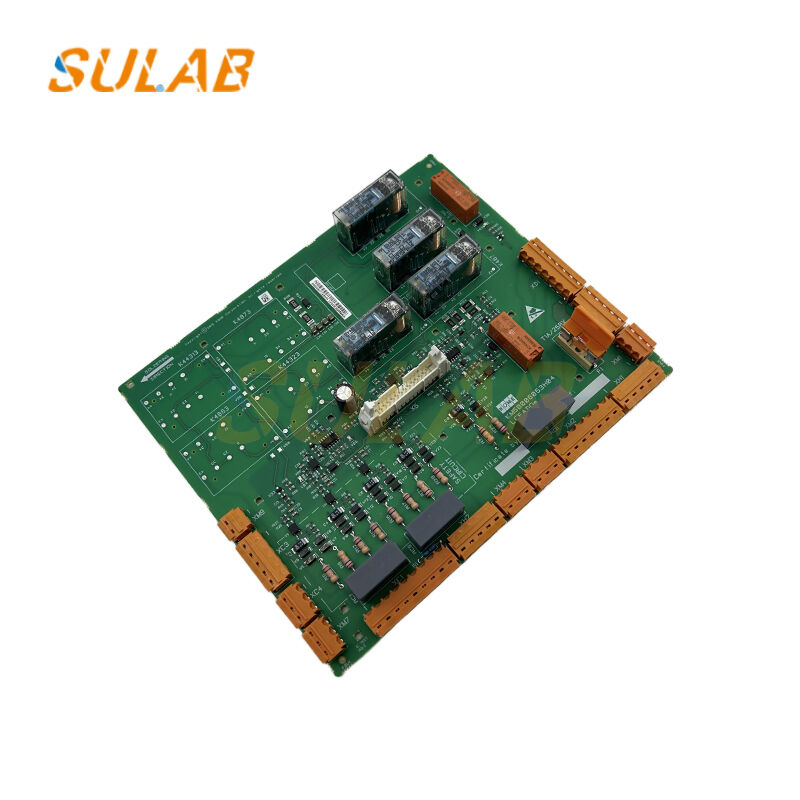

KONE KM50006053H04 Elevator Control PCB Board | Original Lift CPU Card
The KONE KM50006053H04 is an original control PCB manufactured by KONE, serving as the central processing unit for elevator systems. This high-performance board processes floor logic, safety-chain signals, and drive commands to ensure smooth and safe passenger transportation.
Key Features
- 100% genuine KONE spare part, RoHS compliant
- High-speed 32-bit MCU for rapid I/O response
- Plug-and-play compatibility with KONE MiniSpace™ & MonoSpace™ elevators
- Firmware pre-loaded; no additional programming required on site
- -40℃ to +85℃ industrial-grade components for 24/7 operation
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | KM50006053H04 |
| Brand | KONE |
| PCB Layers | 6-layer FR-4 |
| Input Voltage | 24 VDC ±10% |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% - 95% RH non-condensing |
| Dimensions | 160 mm × 100 mm × 25 mm |
| Weight | 0.18 kg |
| Connector Type | Pluggable screw terminal / IDC |
| Certification | CE, UL, ISO 8100 |
Package Contents: 1 × KONE KM50006053H04 Control Board (anti-static bag & carton)
Warranty & Support: 12-month replacement warranty; lifetime technical support; global DHL/UPS/FedEx shipping within 3-7 days.
Ordering Information: Please provide your elevator type and serial number before purchase to confirm compatibility. For bulk orders (10+ pieces), contact us for project-based pricing.
