Elevator External Call Panel Display Board with Real-time Operation Status Display Command Interaction and Fault Code Feedback

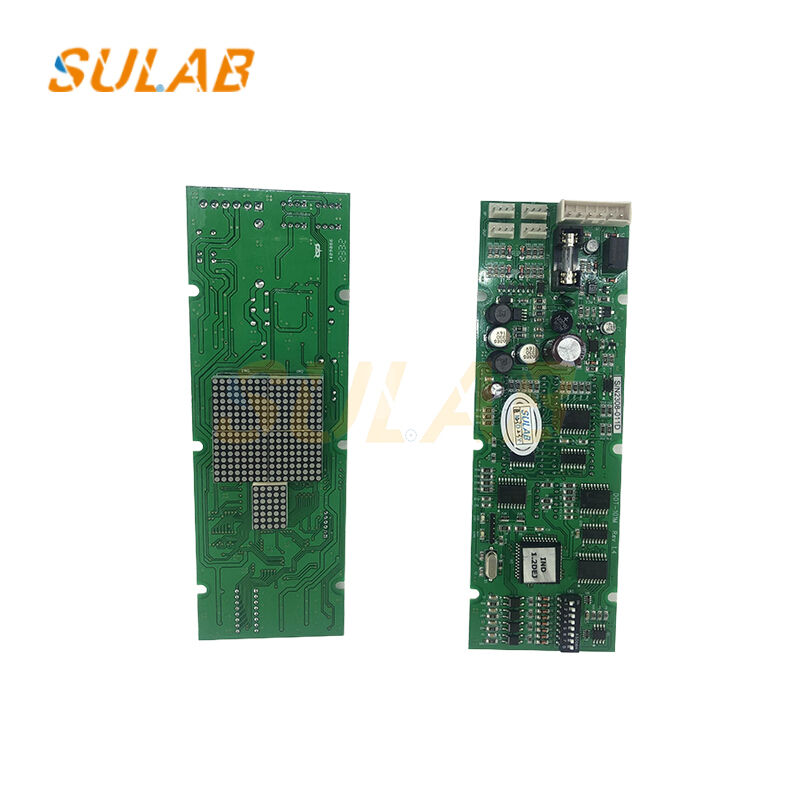

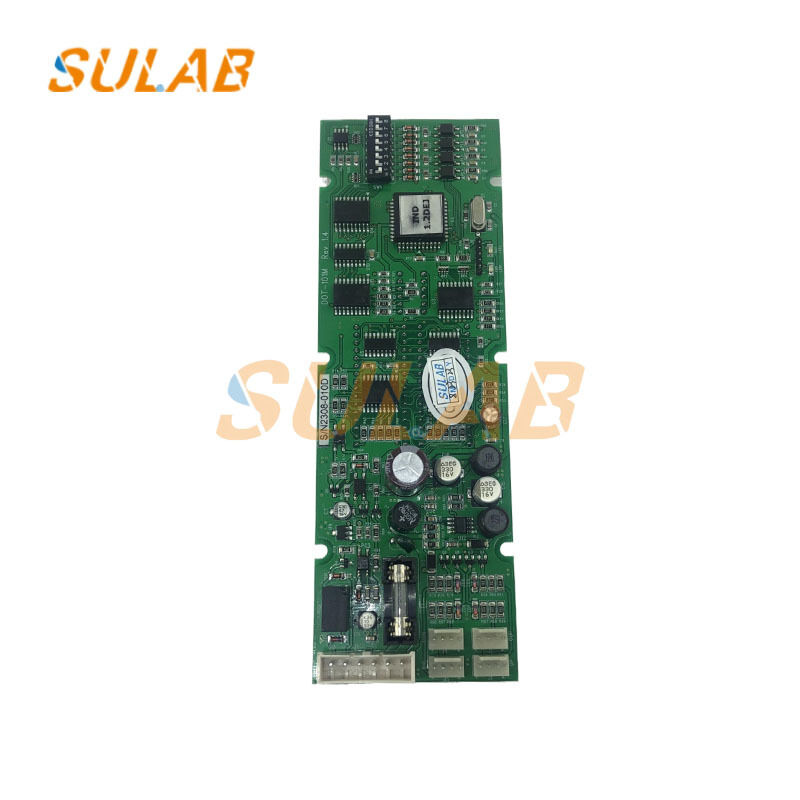

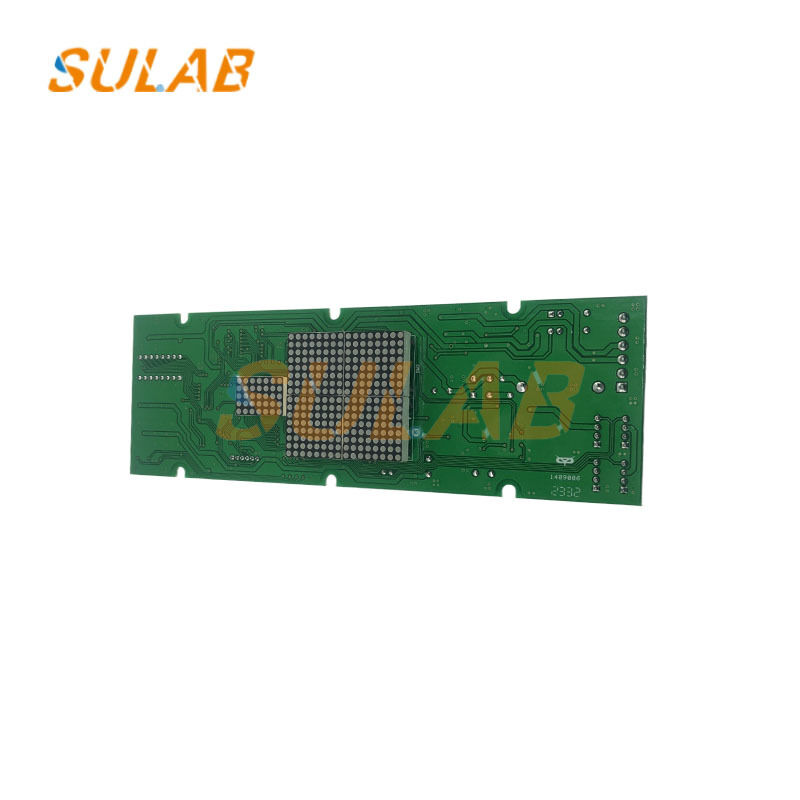

Elevator External Call Panel Display Board, Elevator PCB Board, Elevator Call Panel, Floor Display Board DOT-101

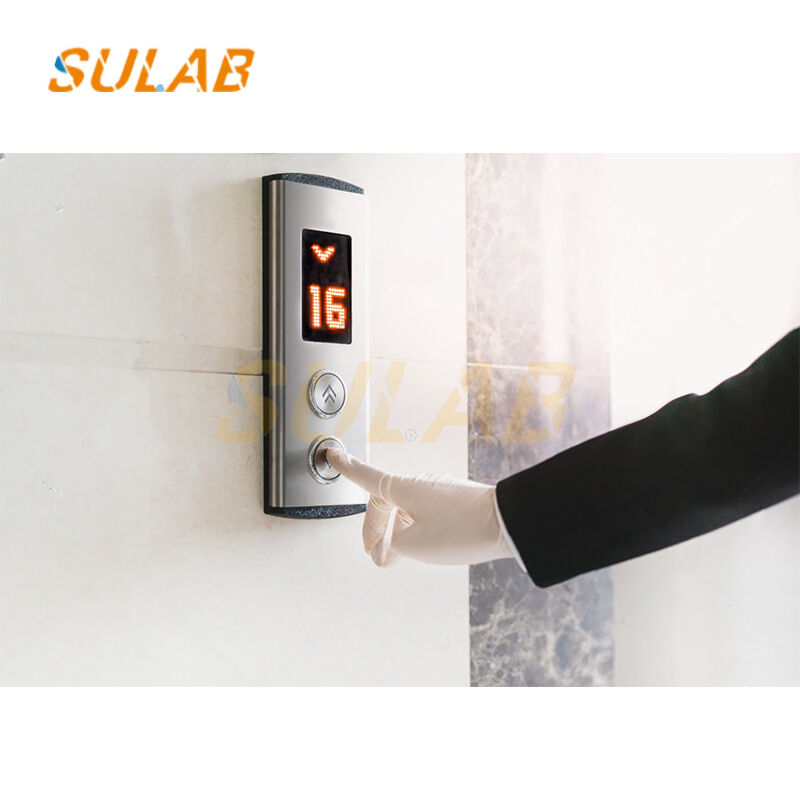

Real-time Operation Status Display: Accurately displays the current floor, direction of travel (up/down arrows), and some models support elevator operation mode (normal/maintenance/fire protection), fault codes, and other information, allowing passengers and maintenance personnel to intuitively understand the elevator's operating status.

Synchronously provides feedback on elevator door status (open/closed) to prevent passengers from forcibly entering or exiting when the doors are not fully closed, ensuring elevator safety.

Command Interaction and Status Feedback: Receives and displays the registration status of hall call and car floor selection commands (such as illuminating the corresponding floor button indicator), confirming that the command has been responded to by the system.

When the elevator malfunctions or is out of service, it displays fault codes or prompts to help maintenance personnel quickly locate the problem and shorten repair time.

Adaptable to Multiple Operating Conditions and Functional Expansion

Normal Operation: Clearly guides passengers, improving elevator efficiency and reducing waiting anxiety.

Maintenance Mode: Switches between displaying maintenance status and speed, reminding maintenance personnel to operate according to regulations and prevent accidents.

Fire Emergency: In conjunction with fire alarm linkage, displays elevator return to base station, locked status, etc., supporting emergency rescue procedures.

Functional Expansion: Some models support customized display content, such as property notices, advertisements, etc., adapting to different scenario needs.

Improved Operation and Management Efficiency
Fault code display simplifies the diagnostic process, reduces maintenance costs, and minimizes elevator downtime.

Real-time communication with the elevator control system allows for remote monitoring of display status, facilitating centralized management and maintenance by property management.
