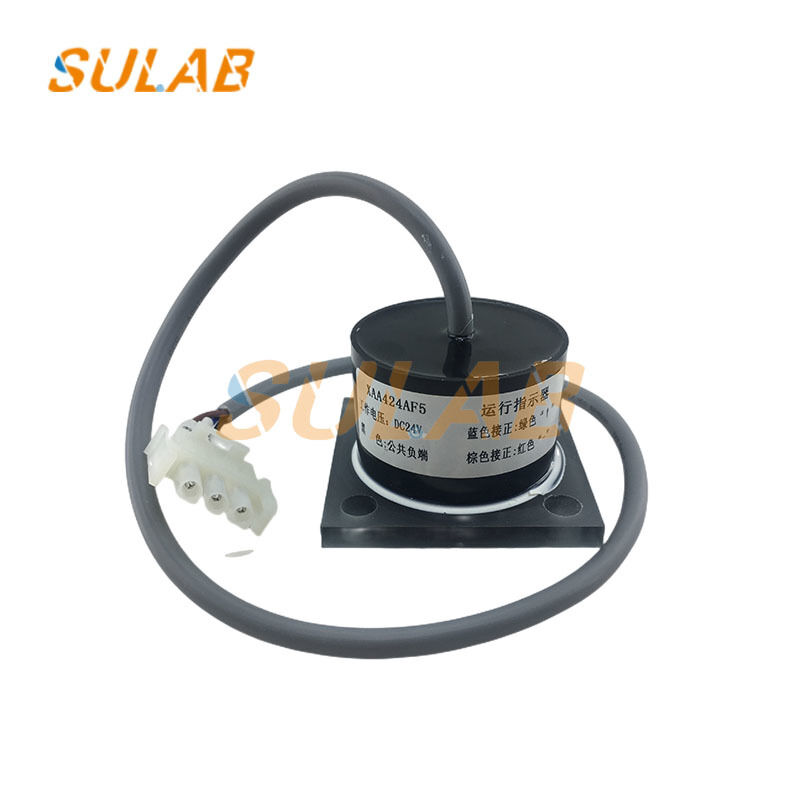

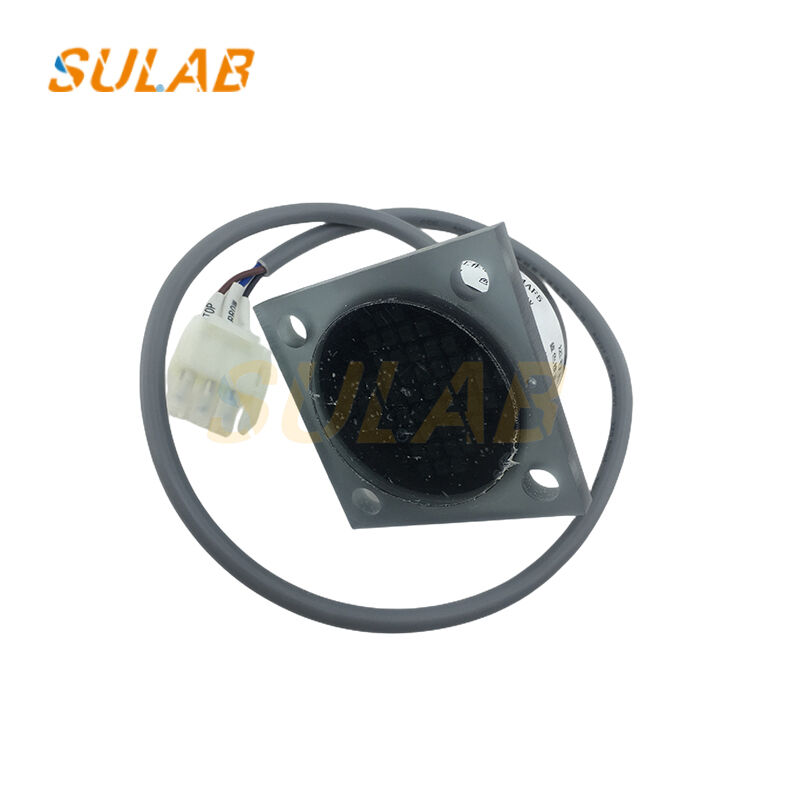

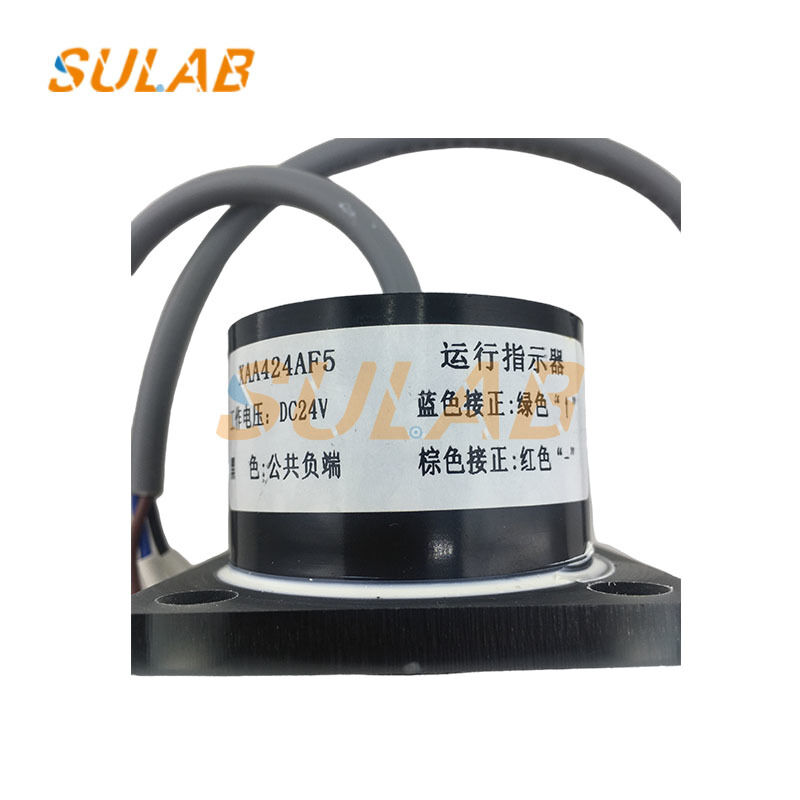

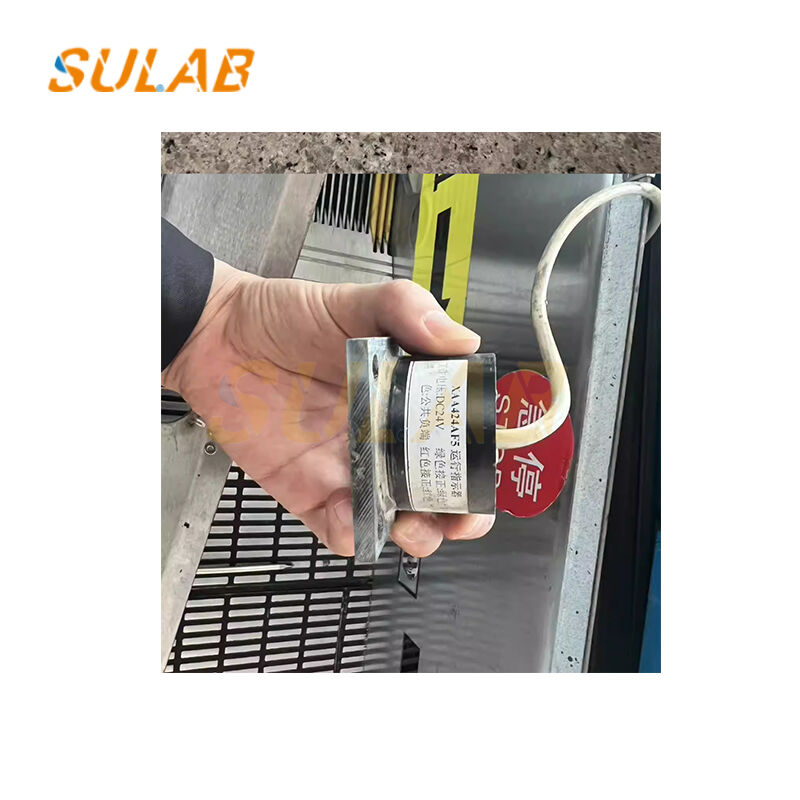

OTIS Original XAA424AF5 Escalator Running Indicator with 24 VDC Red/Green Bicolor Passenger Signal and UV-Stable Polycarbonate Lens
Brand Name:
OTIS
Model Number:
XAA424AF5
Minimum Order Quantity:
1
Delivery Time:
3-5 Working Days
Payment Terms:
D/A,D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
24 VDC Escalator Running Indicator
,Red/Green Bicolor Passenger Signal
,UV-Stable Polycarbonate Traffic Light
Type:
XAA424AF5
Product Name:
XAA424AF5 Escalator Running Indicator
Transportation:
Clients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
Application:
Lift Parts,hoist,elevator
Business Type:
Manufacturer
Packing:
Packed In Carton
Product Description
XAA424AF5 Escalator Running Indicator | OTIS Original 24 VDC Red/Green Passenger Signal

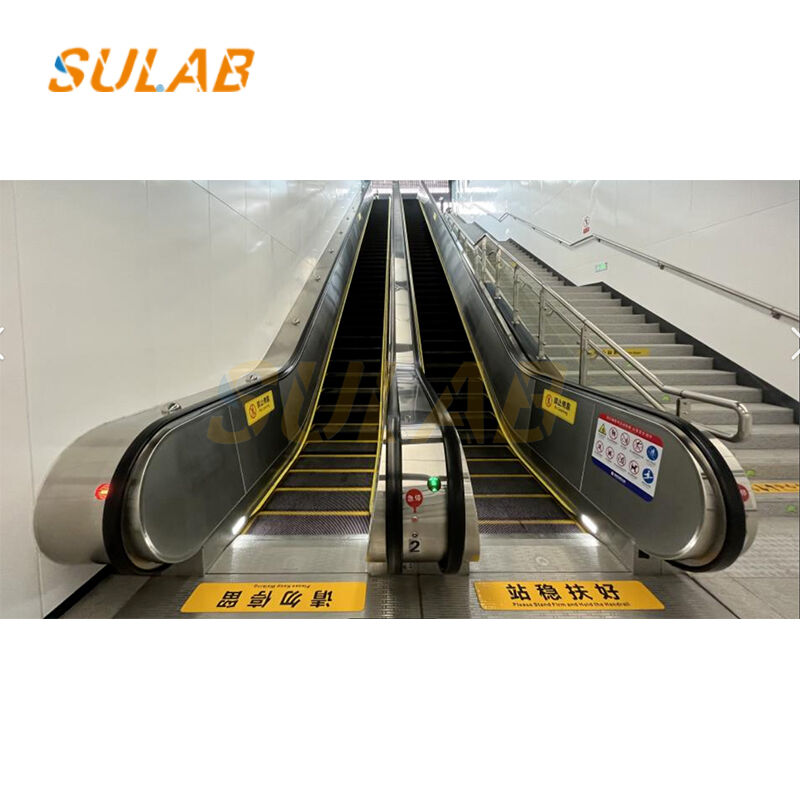

The XAA424AF5 is an OEM escalator-running indicator that tells passengers when the escalator or moving walk is ready to board. Factory-built for OTIS systems, it displays a bright red/green signal visible from 30 m away. The UV-stable polycarbonate lens and IP54 housing withstand mall and subway environments, while the 24 VDC constant-current board draws <0.3 A and auto-dims at night when connected to an ambient sensor. Drop-in replacement for XAA424AF2, XBA424Z1 and XBA424Z2. Ships with 0.5 m Molex harness, gasket and stainless screws. One-year warranty.
Bright red/green passenger signal visible from 30+ meters
UV-stable polycarbonate lens with IP54 rated housing
24 VDC operation with automatic night dimming capability
Direct replacement for XAA424AF2, XBA424Z1, and XBA424Z2 models
Includes 0.5 m Molex harness, gasket, and mounting hardware
Technical Specifications
| Part Number | XAA424AF5 |
|---|---|
| Brand | OTIS Original |
| Description | Escalator running indicator / traffic light |
| Supply Voltage | 24 VDC (18-30 V range) |
| Current | ≤0.3 A per color |
| Lens Color | Red & Green (bi-color) |
| Housing | UV-PC, IP54, RAL 3000 red |
| Viewing Distance | ≥30 m |
| Cable | 4-pin Molex, 0.5 m |
| Mounting | 2 × M6 studs, 60 mm pitch |
| Ambient Temp | -10 °C ~ +50 °C |
| Standards | EN 115-1, CE, RoHS |
| Warranty | 1 year |
