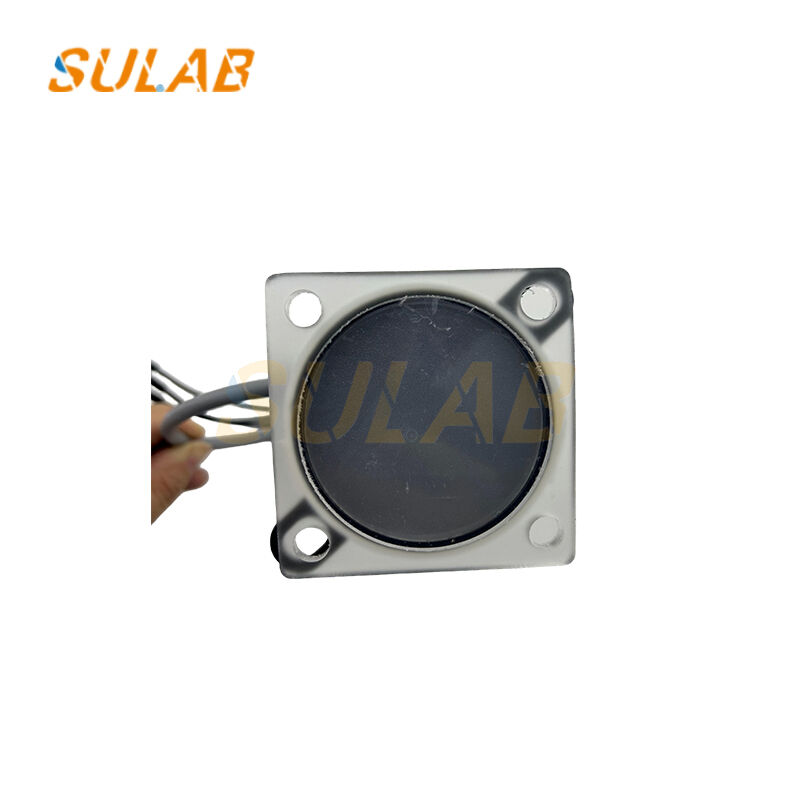

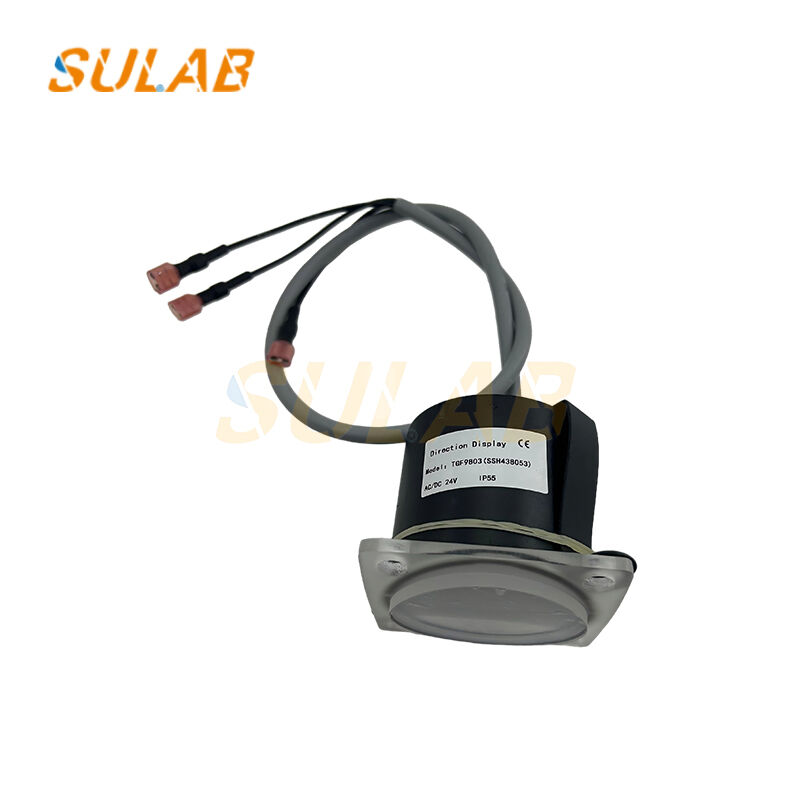

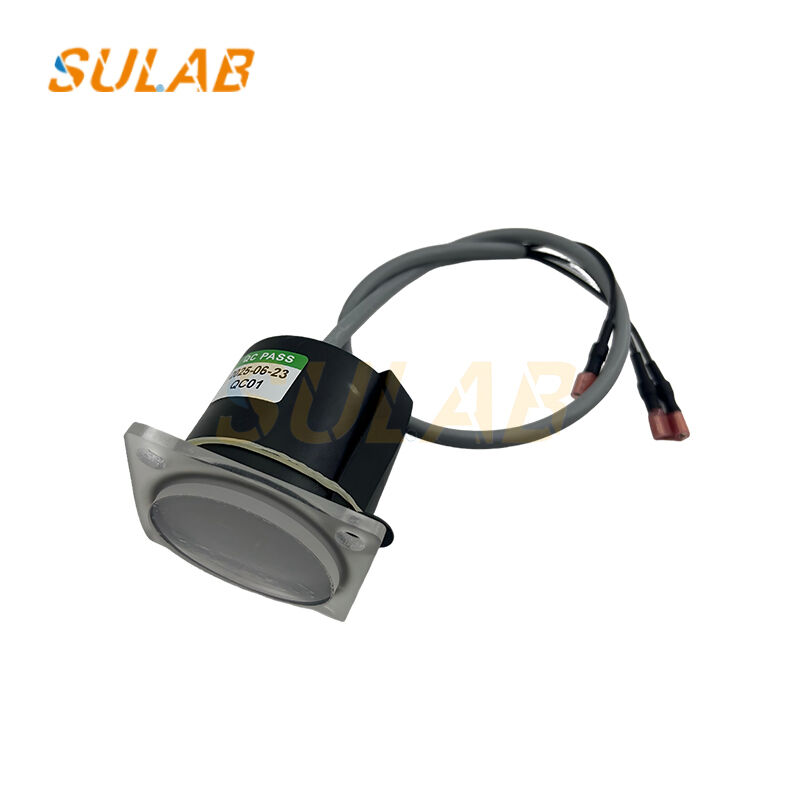

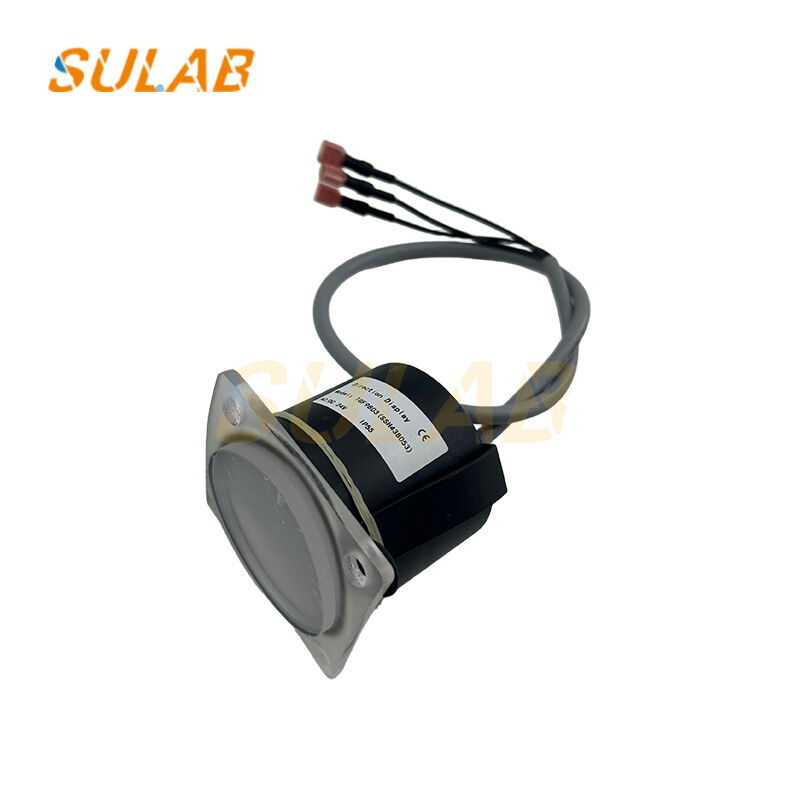

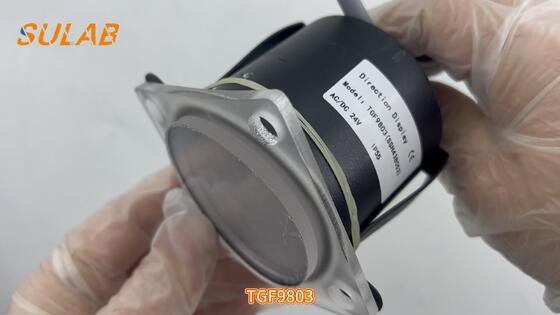

TGF9803 Escalator Direction Indicator 24 VDC Red/Green Arrow Passenger Signal OEM Replacement
-
Highlight
24 VDC Escalator Direction Indicator
,Red/Green Arrow Passenger Signal
,OEM Replacement Traffic Light
-
TypeTGF9803
-
Product NameTGF9803 Escalator Direction Indicator
-
ApplicableElevator Parts,Elevator Equipment,General For Escalator Parts,Passenger Lift,Passenger Elevator
-
TransportationClients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
-
Business TypeManufacturer
-
PackingPacked In Carton
-
Model NumberTGF9803
-
Minimum Order Quantity1
-
Delivery Time3-5 Working Days
-
Payment TermsD/A,D/P,T/T,Western Union
TGF9803 Escalator Direction Indicator 24 VDC Red/Green Arrow Passenger Signal OEM Replacement
TGF9803 Escalator Direction Indicator | 24 VDC Red/Green Passenger Signal, OEM Replacement

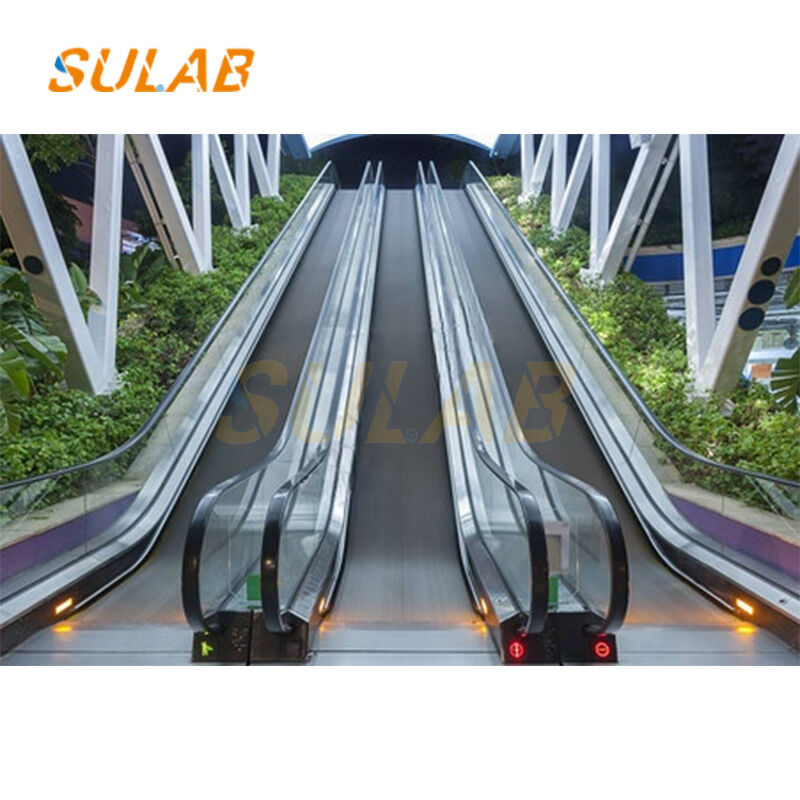

The TGF9803 heavy-duty escalator direction indicator provides clear red/green "go/stop" arrow signals to guide passengers before boarding escalators or moving walks. This OEM replacement unit ensures safe passenger flow in high-traffic environments.
Product Overview
Originally specified for Xunda 9300/9500 escalators, this indicator offers 100% plug-and-play compatibility with BIMORE SSH438053 and SHE438519 assemblies. Engineered for durability in demanding subway and mall environments, it features UV-stable polycarbonate construction and automatic dimming functionality for nighttime operation.
Key Features
- Bright bi-color red/green arrow display for clear passenger direction
- UV-stable polycarbonate lens with IP54-rated steel housing
- 24 VDC constant-current PCB with ≤0.3A power consumption per color
- Automatic dimming capability when connected to ambient light sensor
- Extended 30+ meter viewing distance for maximum visibility
- Complete with 0.5m 3-wire harness, EPDM gasket, and stainless steel mounting hardware
Technical Specifications
| Part Number | TGF9803 |
|---|---|
| Description | Escalator direction indicator / traffic light |
| Voltage | 24 VDC (18-30 V range) |
| Current | ≤0.3 A per color |
| Lens Color | Red & Green (bi-color arrow) |
| Housing | UV-PC, IP54, RAL 3000 red |
| Viewing Distance | ≥30 m |
| Cable | 3-core, 0.5 m |
| Mounting | 2 × M6 studs, 60 mm pitch |
| Ambient Temperature | -10 °C ~ +50 °C |
| Standards | EN 115-1, CE, RoHS |
Warranty: 1-year replacement warranty included
