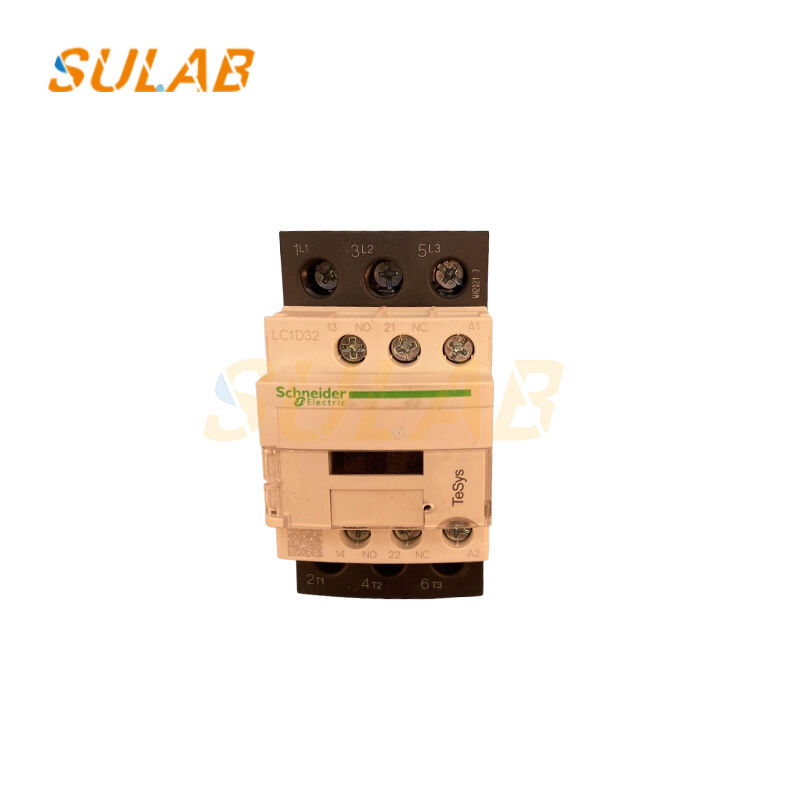

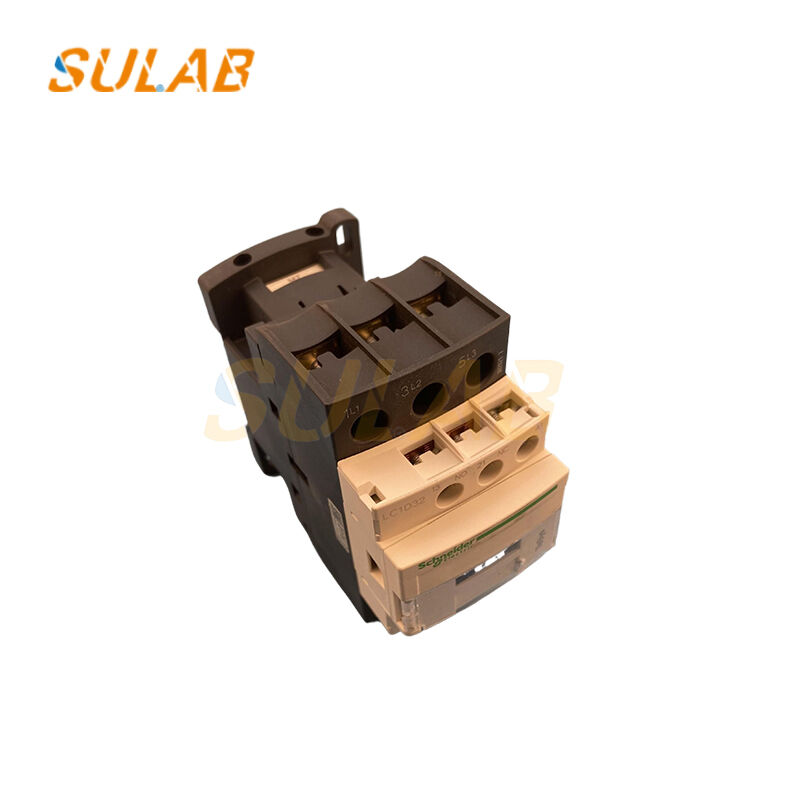

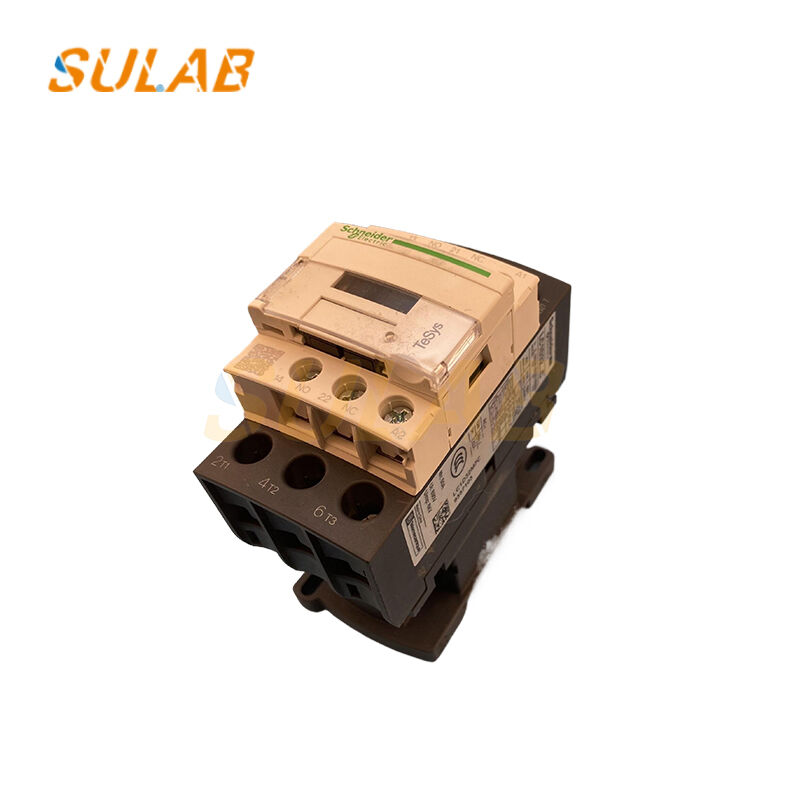

Schneider Electric 32A AC Magnetic Contactor LC1D32M7C with Fast Shipping for Elevator Applications

Schneider Electric Brand New Original Genuine Series 32A Contactors In Stock AC Magnetic Contactor Series Fast Shipping High Quality LC1D32M7C

Common Troubleshooting
Contact burning/sticking: Measure the main contact resistance (should be ≤50mΩ). If the burning is severe, replace the contact assembly; troubleshoot the causes such as overload and unstable voltage, and check if the arc suppressor is damaged.
Coil burnout: Measure the coil resistance (normally several hundred Ω). Burnout is often caused by overvoltage, incorrect wiring, or frequent switching; replace the coil and check the control circuit protection (such as fuses).
Poor auxiliary contact connection: Test the on/off status of the auxiliary contacts. Clean the contacts or replace the module if there is oxidation or wear, ensuring normal signal transmission.
Abnormal operation (loud noise/failure to engage): Check if the coil voltage meets the specifications, clean the oil and dirt from the core end face, and troubleshoot mechanical jamming or spring fatigue problems.

Flexible expansion and adaptation: Supports the addition of accessories such as time-delay heads and mechanical interlocks to form time-delay contactors, reversible contactors, or star-delta starters; 50/60Hz universal coil adapts to different power grids, and DIN rail mounting facilitates integration and maintenance.
High reliability and long service life: Mechanical life of up to 20 million cycles, electrical life of up to 1.6 million cycles (AC-3, 32A), suitable for environments from -40℃ to 60℃, and adaptable to demanding working conditions such as elevator machine rooms/shafts.
