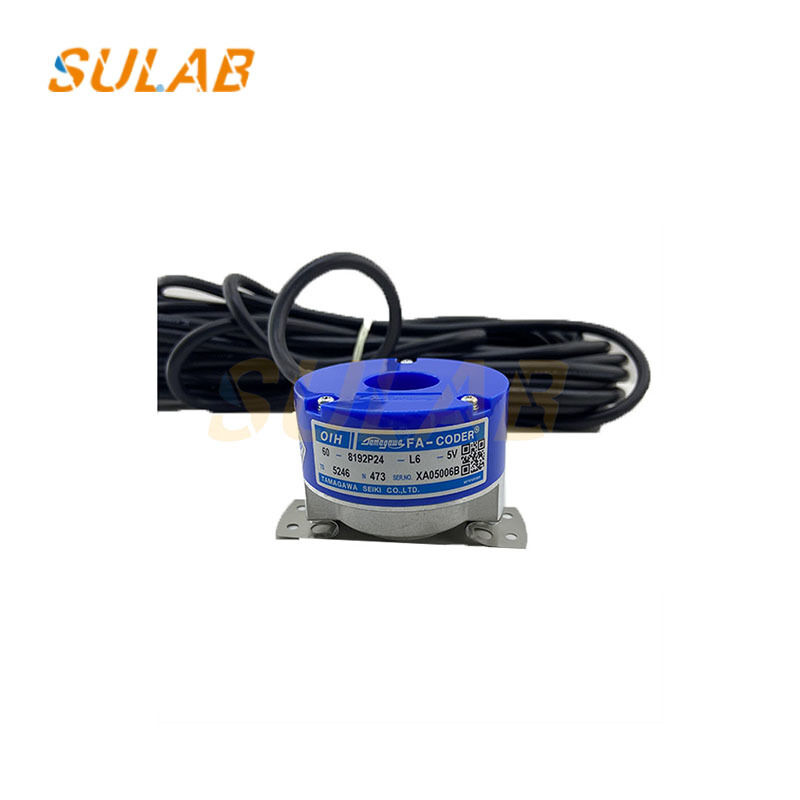

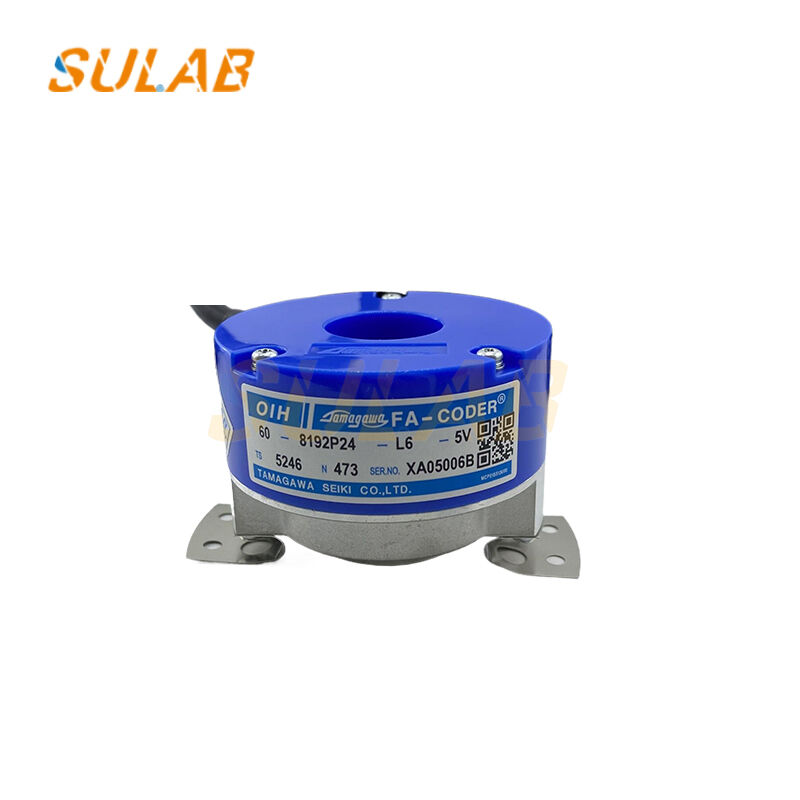

Incremental Photoelectric Encoder with 500PPR Resolution and Push-Pull Output Compatible with Schindler Door Operators XA05006B

Incremental Photoelectric Encoder For Door Operator Input Interface Matched With Door Operator Controller XA05006B

Compatibility: Confirm the elevator door operator model. XA05006B is compatible with some Schindler door operators. For other brands or models, verify the installation dimensions, shaft diameter, flange type, etc.

Resolution: Select according to the door operator's control accuracy requirements. 500PPR is common, but other specifications are also available. The controller's pulse receiving capability must be matched.

Signal Type: XA05006B is a push-pull output, requiring compatibility with the door operator controller's input interface. If the controller has differential input, select a compatible differential output model.

Environmental Adaptability: Elevator shaft environments are complex. Ensure the encoder's protection level, operating temperature, etc., meet on-site requirements.

Installation and Maintenance

Maintenance: Regularly check the encoder mounting bolts for looseness and the cables for damage.

Keep the encoder clean to prevent dust and oil from entering and affecting the optical components.

If signal loss or fluctuations occur, check the wiring, power supply, and coaxiality; replace the encoder if necessary.
