BR32A 32mm Universal Specification Elevator Button with LED Backlight Indicator and Normally Open Momentary Contact
Brand Name:
Sulab
Model Number:
BR32A
Minimum Order Quantity:
1
Delivery Time:
2-3 working days
Payment Terms:
D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
32mm Universal Specification Elevator Button
,LED Backlight Indicator Elevator Push Button
,Normally Open Momentary Contact Elevator Command Button
Brand:
Sulab
Description:
Elevator Button
Model:
BR32A
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description

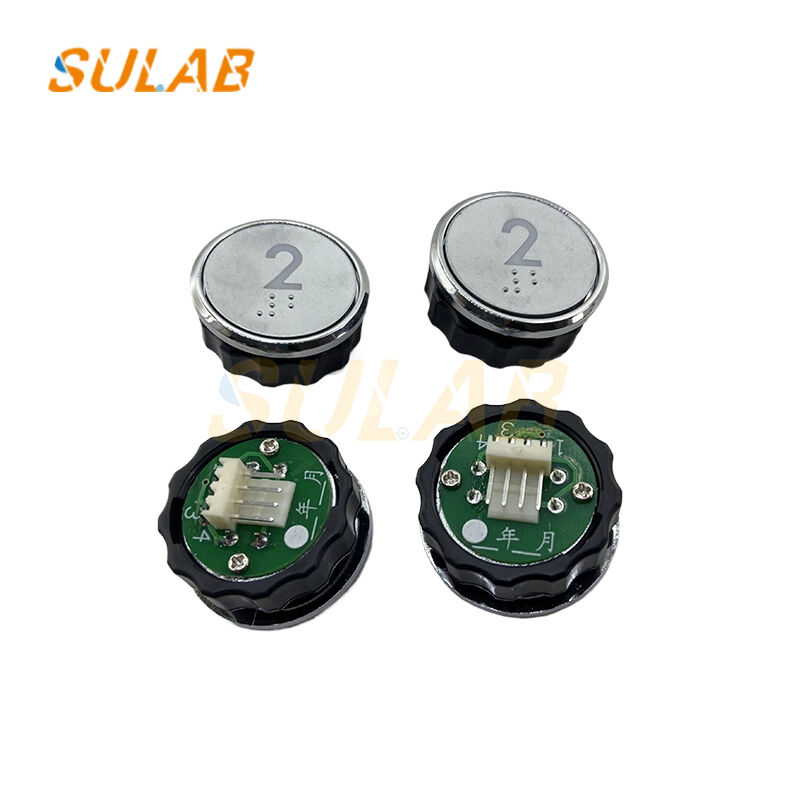

Elevator Buttons BR32 BR32A B Round Buttons With Braille Compatible With Xizi Accessories
Product Overview

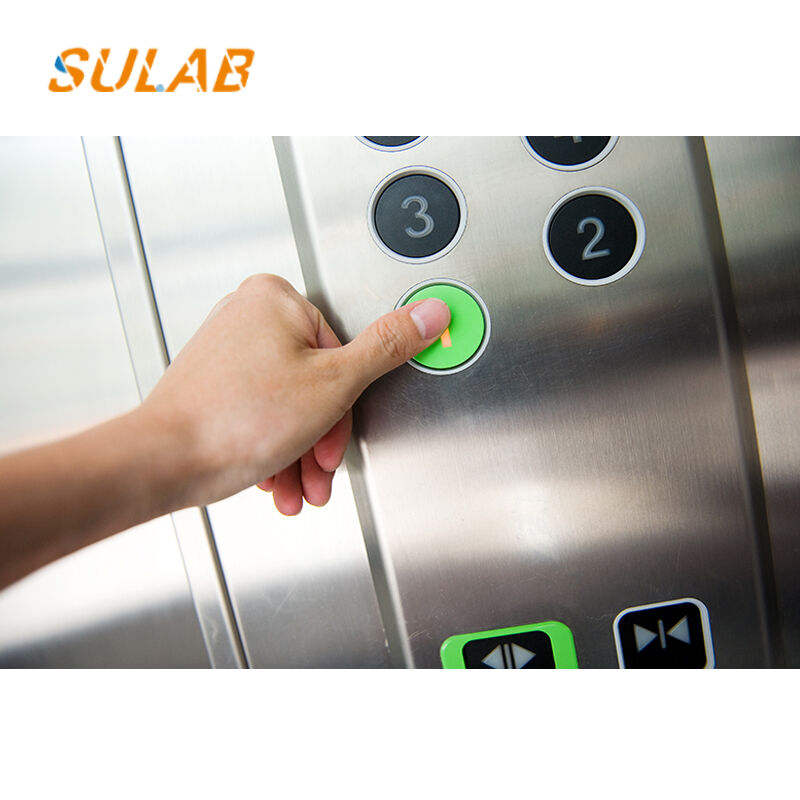

The BR32A is a universal round embedded elevator button designed as a standardized adapter for multiple elevator brands. This versatile component is widely used in car floor selection and hall call panels for mainstream elevator systems including Otis, KONE, and Thyssen, primarily for elevator command signal input.
Technical Specifications
Nominal diameter: 32mm
Mounting hole diameter: 28mm standard
Panel thickness compatibility: 1-5mm
Electrical rating: DC12/24V universal
Contact design: Normally open momentary contact
Contact resistance: ≤50mΩ
LED backlight: High-brightness indicator (red/green/blue/white optional)
Operating modes: Always-on/trigger-on
Mechanical life: ≥2 million operations
Electrical life: ≥100,000 operations
Protection class: IP40
Operating temperature: -15°C to +60°C
Humidity: ≤90%RH (no condensation)
Mounting hole diameter: 28mm standard
Panel thickness compatibility: 1-5mm
Electrical rating: DC12/24V universal
Contact design: Normally open momentary contact
Contact resistance: ≤50mΩ
LED backlight: High-brightness indicator (red/green/blue/white optional)
Operating modes: Always-on/trigger-on
Mechanical life: ≥2 million operations
Electrical life: ≥100,000 operations
Protection class: IP40
Operating temperature: -15°C to +60°C
Humidity: ≤90%RH (no condensation)
Product Details
| Brand | Sulab |
| Description | Elevator button |
| Model | BR32A |
| MOQ | 1PC |
| Transportation | TNT, UPS, DHL, Fedex, Air, Sea |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, Alibaba, Paypal etc |
Key Features
- Universal 32mm specification - Industry-standard size that directly replaces original brand buttons with same hole diameter
- Uniform LED backlight - Glare-free illumination with adaptable brightness for different elevator panel color schemes
- Gold-plated contact mechanism - Anti-oxidation design with low contact resistance prevents call signal failure
- Snap-on quick installation - No additional bolt fixing required, easy disassembly and assembly
- Durable construction - Flame-retardant ABS+PC alloy material, wear-resistant, scratch-resistant and high-temperature resistant
- Intuitive signal feedback - Clear visual indication after triggering enhances user experience
Application & Compatibility
Specifically designed for high-frequency and multi-environment elevator working conditions, this button is compatible with Xizi accessories and suitable for daily use in elevator cars, providing reliable performance even with frequent use and minor impacts.
