KONE Elevator Door Operator Board KM603800G01 DC24V Power KDM Series Compatible IP20 Protection
Brand Name:
Kone
Model Number:
KM603800G01
Minimum Order Quantity:
1
Delivery Time:
2-3 working days
Payment Terms:
D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
DC24V Power Elevator Door Operator Board
,KDM Series Compatible Elevator Control Board
,IP20 Protection KONE Door Board
Brand:
Kone
Description:
Elevator Board
Model:
KM603800G01
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description
KONE Elevator Door Operator Board KM603810G01 KM603800G01

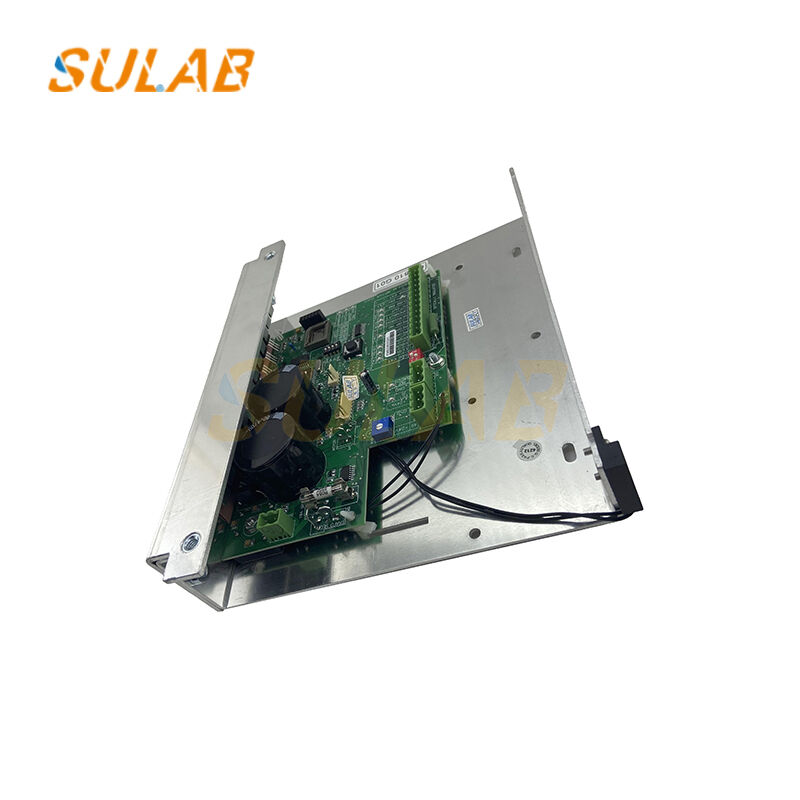

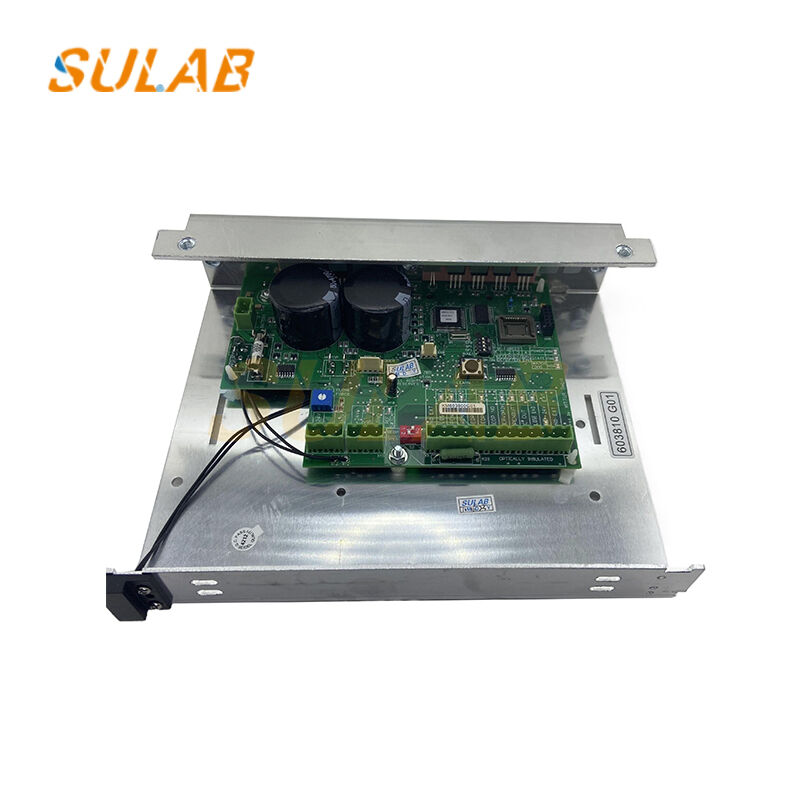

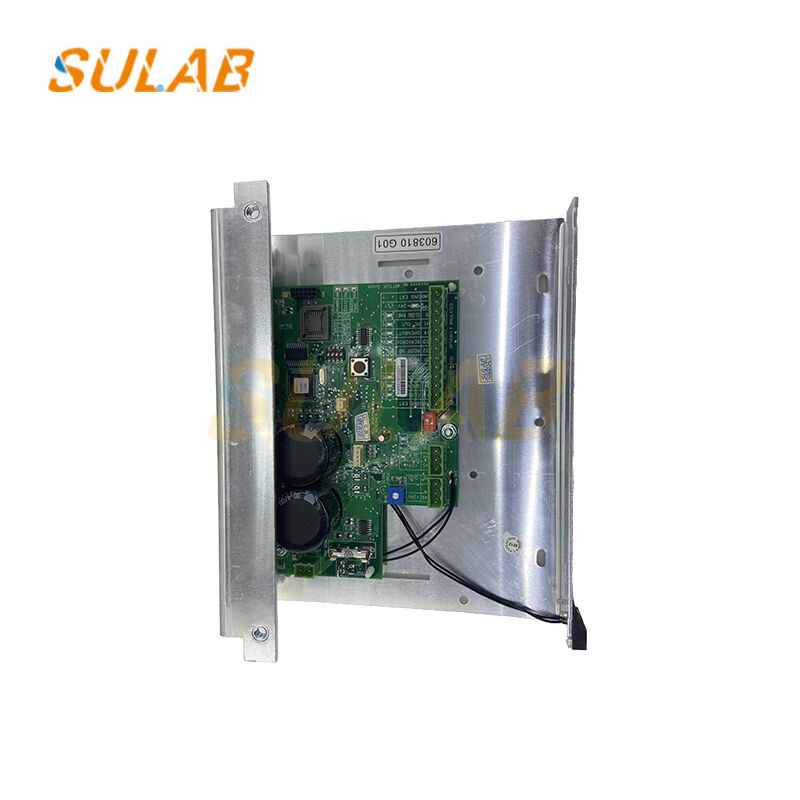

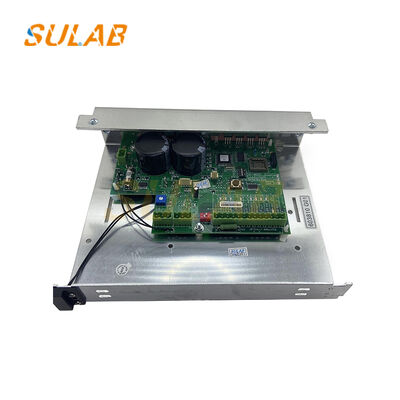

The KM603800G01 serves as the core control board for KONE elevator door machine systems, designed for machine-room-less and small machine room elevators including MiniSpace and EcoSpace models. This board functions as the command center for door operations, managing car door and hall door opening-closing control, speed regulation, torque feedback, and safety protection.
Key Features
- DC24V power supply with ±10% fluctuation tolerance
- Integrated door motor drive module and encoder signal acquisition interface
- Safety circuit detection port for enhanced operational security
- Automatic door width self-learning capability
- Customizable opening-closing speed curves
- Operating temperature range: -10°C to +50°C
- IP20 protection class rating
- Optimized for high-frequency start-stop elevator door system operations
Product Specifications
| Brand | KONE |
|---|---|
| Description | Elevator Control Board |
| Model | KM603800G01 |
| Minimum Order Quantity | 1 Piece |
| Shipping Methods | TNT, UPS, DHL, FedEx, Air, Sea |
| Packaging Options | Carton, Wooden Case, Pallet |
| Delivery Time | 2-3 working days after payment |
| Warranty | One Year |
| Payment Methods | Company Bank Transfer, Western Union, Alibaba, PayPal |
Compatibility Information
Primarily compatible with KONE MiniSpace small machine room elevators and EcoSpace machine-room-less elevators with rated loads of 800-1600kg and running speeds of 1.0-2.5m/s. Fully compatible with all models of KONE KDM series door motors. Can directly replace the same series KM603810G01 (hardware is universal, with only software version differences requiring corresponding program flashing).
