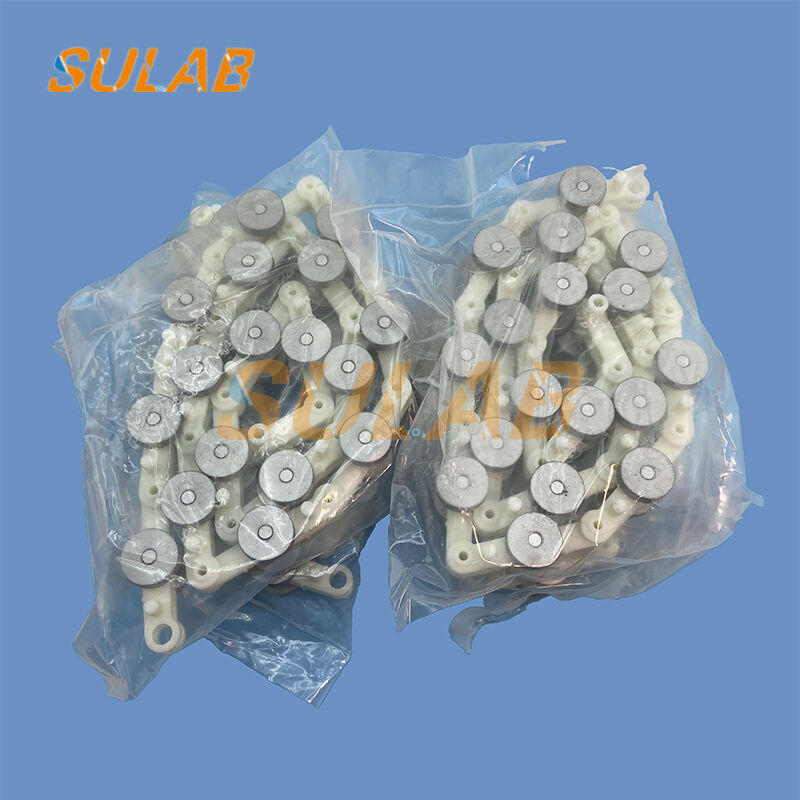

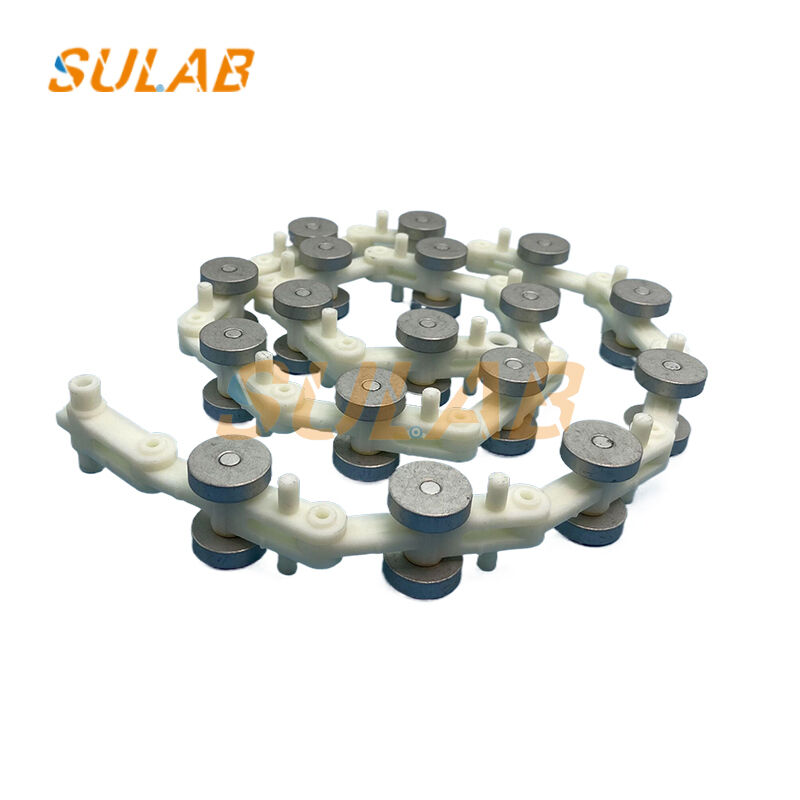

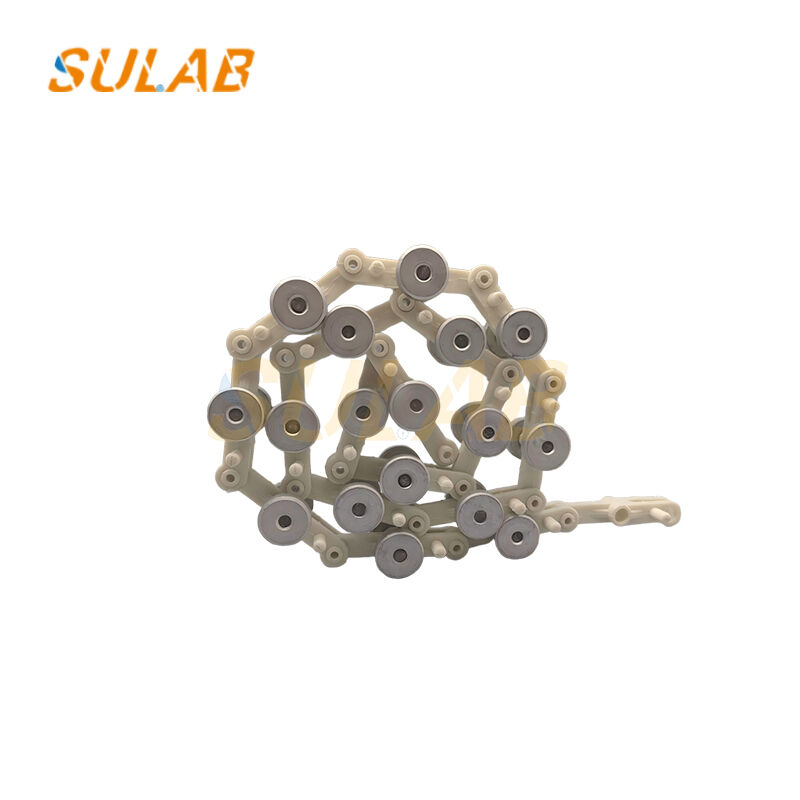

Xizi Otis Escalator Slewing Chain XAA332DS with 17-section Handrail and 50.5mm Pitch Made of PA66+30%GF
Brand Name:
Sulab
Model Number:
XAA332DS
Minimum Order Quantity:
1
Delivery Time:
2-3 working days
Payment Terms:
D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
17-section Escalator Slewing Chain
,PA66+30%GF Handrail Slewing Chain
,50.5mm Pitch Pulley Group
Brand:
Sulab
Description:
Newel Chain
Model:
XAA332DS
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description
Xizi Otis Escalator Slewing Chain XAA332DS White New 17-section Handrail With Pulley Block Elevator Accessories
XAA332DS is the handrail slewing chain (also known as pulley group) for Xizi OTIS escalators, suitable for XO21NP and other series of public transport/commercial escalators. It is used for the steering and tensioning of handrails at the upper and lower ends, with a core structure of 17-section sealed bearings, chain pitch 50.5mm, suitable for handrail width 800-1000mm.
Technical Specifications
| Brand | Sulab |
| Description | Newel chain |
| Model | XAA332DS |
| MOQ | 1PC |
| Transportion | TNT, UPS, DHL, Fedex, Air, Sea |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, alibaba, Paypal etc |
Material & Performance
Made of PA66+30%GF engineering plastic + 6202RS sealed bearings, it has wear resistance, low noise and anti-aging properties, operating temperature -10~+60℃, single group load ≤15kg, suitable for escalator running speed 0.5~0.65m/s.
Key Features & Benefits
- Guides the handrail to complete 180° steering at the end through 17 sets of double-row pulleys
- Disperses handrail tension and avoids wear caused by local stress concentration
- Bearing rotation resistance ≤0.5N, ensuring stable and non-stuck operation of the handrail
- Cooperates with tension springs at both ends to automatically compensate for handrail elongation
- Maintains stable tension (adjustable tension force 80-120N)
- Prevents handrail slipping or deviation during long-term operation
This escalator slewing chain is designed for reliable performance in demanding commercial and public transport applications, ensuring smooth handrail operation and extended service life.
