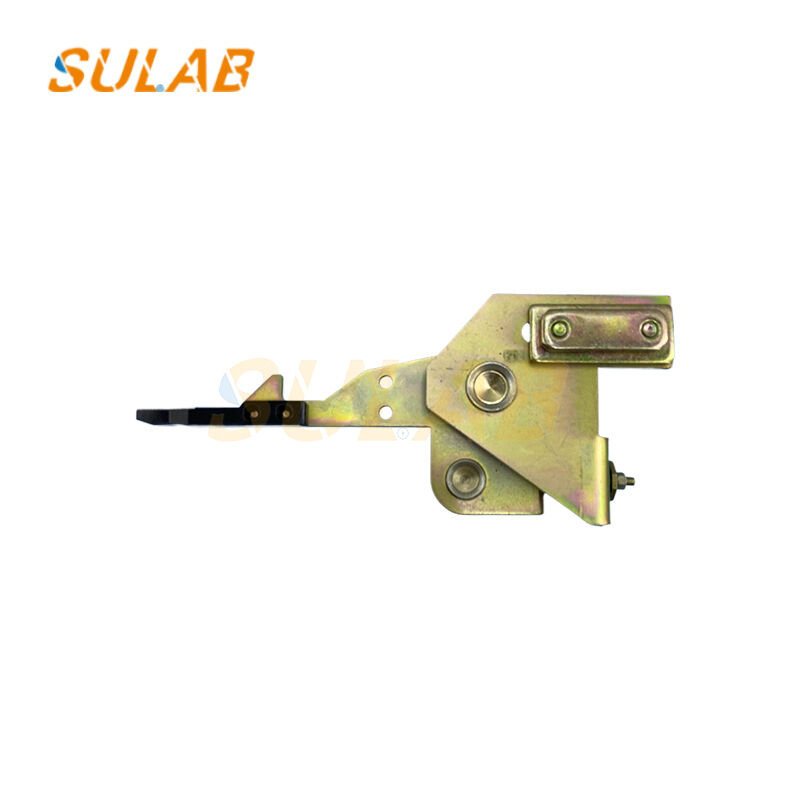

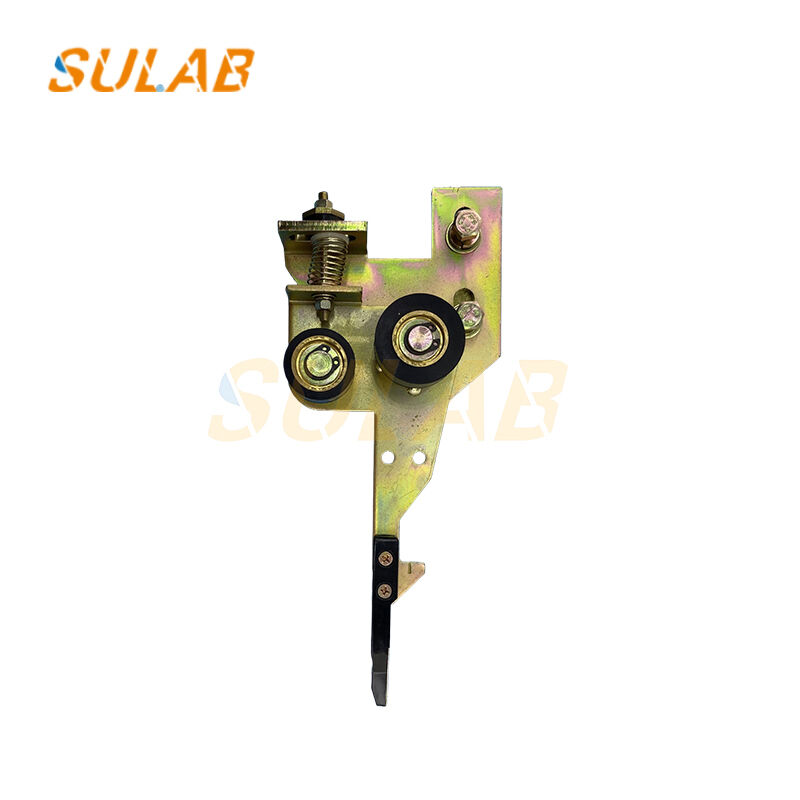

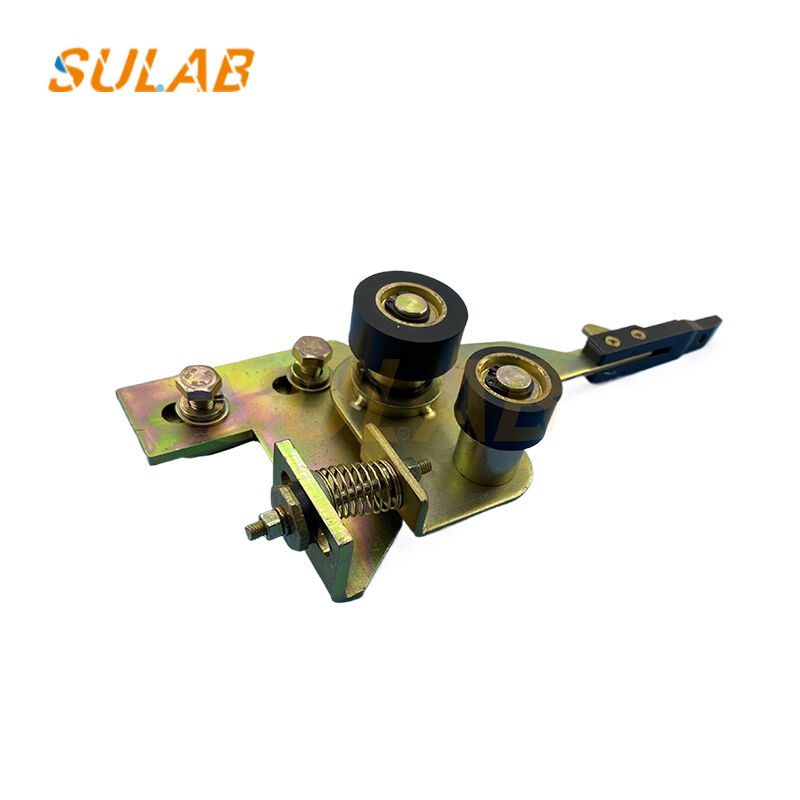

Fujitec Elevator Door Lock with Galvanized Surface AC 250V/10A and Lateral Tension ≥1000N Landing Door Lock Hook MA630-05
Brand Name:
Fujitec
Model Number:
MA630-05
Minimum Order Quantity:
1
Delivery Time:
2-3 working days
Payment Terms:
D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
Galvanized Surface Elevator Door Lock
,AC 250V/10A Landing Door Lock Hook
,Lateral Tension ≥1000N Door Lock Device
Brand:
Fuji
Description:
Door Lock
Model:
MA630-05
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description

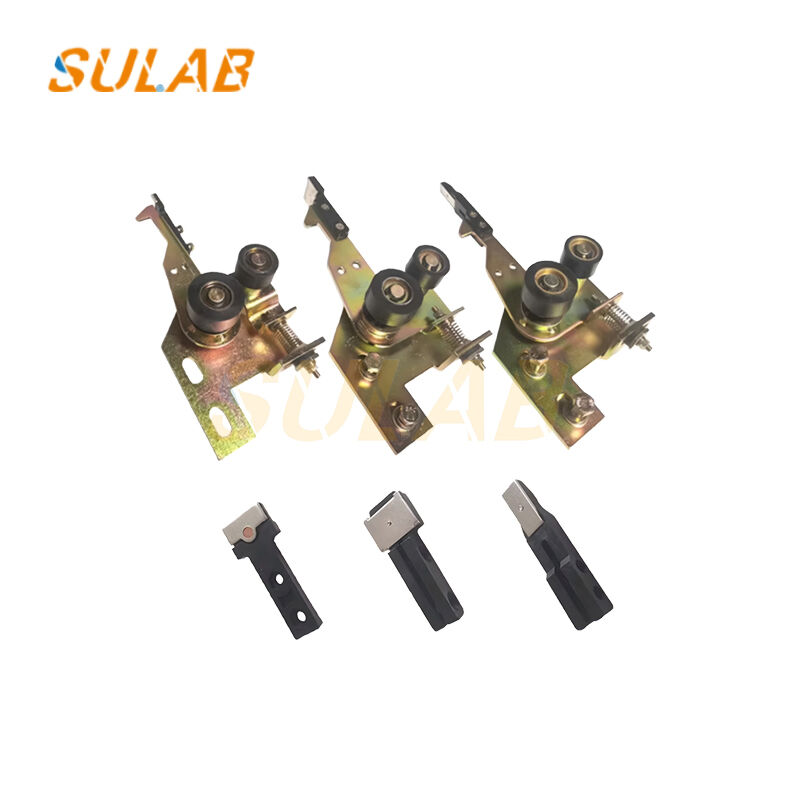

Fujitec Elevator Landing Door Lock Hook MA630-05 06 Elevator Door Lock Device MKG161-06
The MA630-05 is a specialized landing door hook lock designed for Huasheng Fujitec elevators. This essential safety component features a robust construction including lock box, lock hook, lock arm, and safety contact switch. Engineered for reliability and durability in demanding elevator applications.
Application & Compatibility
Specifically designed for landing doors of Fujitec ZEXIA, ECEED, and other passenger elevator series. Ensures seamless integration with existing Fujitec elevator systems.
Technical Specifications
| Material Construction | Q235 carbon steel with galvanized surface treatment for superior corrosion resistance |
| Lock Hook Closing Gap | ≤ 0.5mm precision tolerance |
| Contact Capacity | AC 250V / 10A trigger contact rating |
| Operating Temperature | -20°C to +60°C operational range |
| Protection Class | IP40 rated for industrial environments |
| Unit Weight | Approximately 2.2kg per set |
| Door Thickness Compatibility | 1.5mm - 2.0mm landing door thickness |
| Mechanical Strength | Withstands lateral tension ≥ 1000N when locked |
Product Details
| Brand | Fuji |
| Description | Door lock |
| Model | MA630-05 |
| Minimum Order Quantity | 1 PC |
| Shipping Methods | TNT, UPS, DHL, Fedex, Air, Sea |
| Packaging Options | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Methods | Company Bank, Western union, Alibaba, Paypal etc |
Safety & Operational Features
Safety Interlock Function: When the elevator is running, the lock hook engages with the landing door sill lock seat to provide mechanical locking. Built-in safety contacts automatically cut off the elevator running circuit if the landing door is not fully closed, preventing operation with open doors and ensuring personnel safety.
Controlled Access & Operation: The lock mechanism is operated using a triangular key to rotate the door lock lever, which drives the lock arm to lift the lock hook for unlocking. When the elevator stops, the car door knife triggers the landing door lock unlocking mechanism, enabling synchronized opening of both landing and car doors for coordinated operation.
