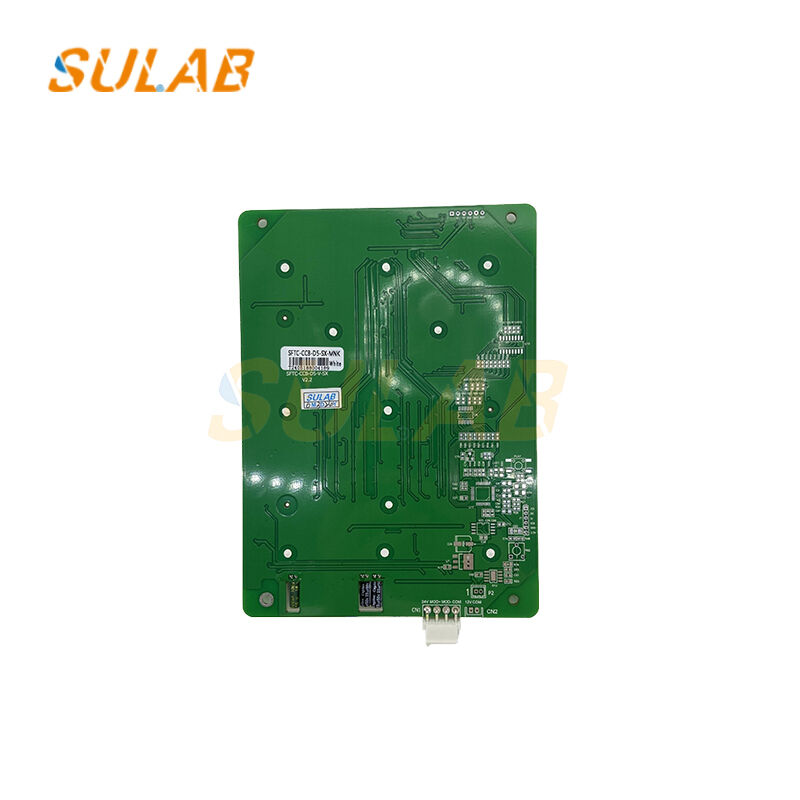

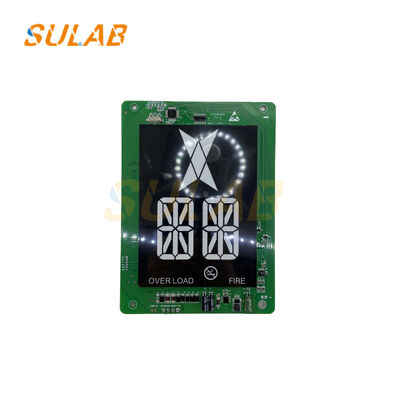

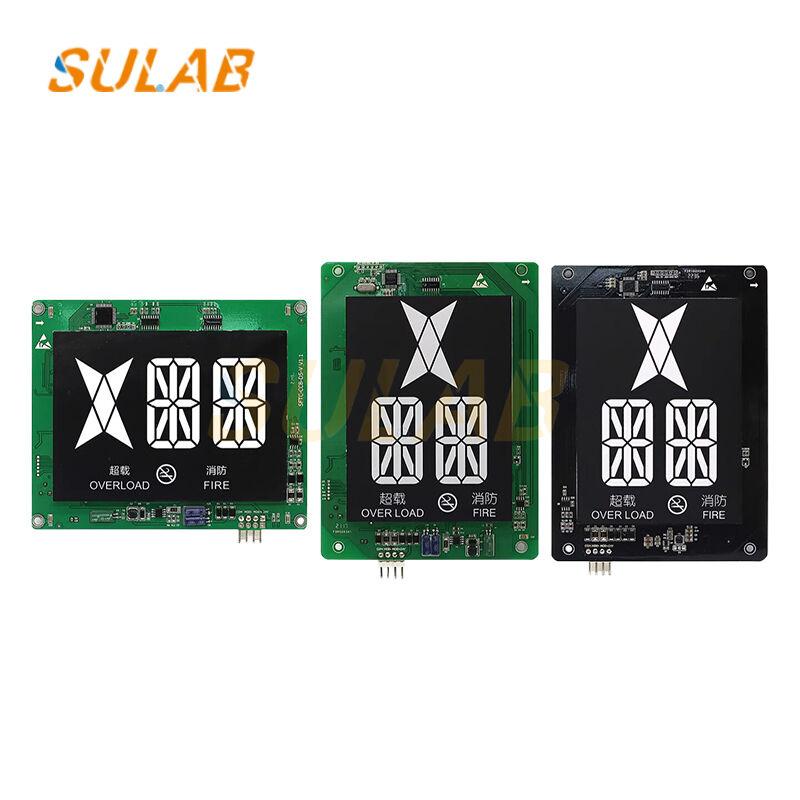

Monarch Elevator Command Board with 4.3-inch LCD Display CAN Communication Interface and Voice Control
Brand Name:
Monarch
Model Number:
SFTC-CCB-D5-SX
Minimum Order Quantity:
1
Delivery Time:
2-3 working days
Payment Terms:
D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
4.3-inch LCD Display Elevator Command Board
,CAN Communication Interface Elevator Display Board
,Voice Control Monarch Elevator Board
Brand:
Monarch
Description:
Elevator Board
Model:
SFTC-CCB-D5-SX
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description
SFTC-CCB-D5/SD5-V/SD5-SX Monarch MCTC-HCB-V5G With Voice Control
The SFTC-CCB-D5-SX is a new-generation integrated car command and display board from Monarch, designed for modern elevator systems. This advanced unit combines a 4.3-inch ultra-thin white LCD display with 16-bit command buttons and CAN communication interface for seamless elevator operation.
Technical Specifications
| Brand | Monarch |
|---|---|
| Description | Elevator Board |
| Model | SFTC-CCB-D5-SX |
| Minimum Order Quantity | 1PC |
| Transportation | TNT, UPS, DHL, Fedex, Air, Sea |
| Packaging | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, Alibaba, Paypal etc |
Key Features
- Rated working voltage: DC24V (fluctuation ±10%)
- Working current: ≤500mA
- Display resolution: 480×272 pixels
- Button life: ≥1 million operations
- Operating temperature: -10°C to +50°C
- Protection class: IP30
- Embedded installation design for elevator cars
- 5-level display brightness adjustment
- 16-floor command registration capability
- LED backlight indication for successful registration
Display Capabilities: The LCD displays current floor, running direction, elevator status (full load, inspection, fire protection), and fault codes in real-time, adapting to various car lighting environments.
Communication & Compatibility
Utilizes CANopen communication protocol for real-time interaction with Monarch main controllers MCTC-MCB2/MCB3. Default communication baud rate is 250kbps (supports 500kbps switching) and features address code DIP switch setting (1-32 addresses optional).
Fully compatible with Monarch standard car communication protocol and can directly replace older command boards such as MCTC-CCB-A1/A2. Supports NICE3000+/NICE900 and other series of elevator control systems.
