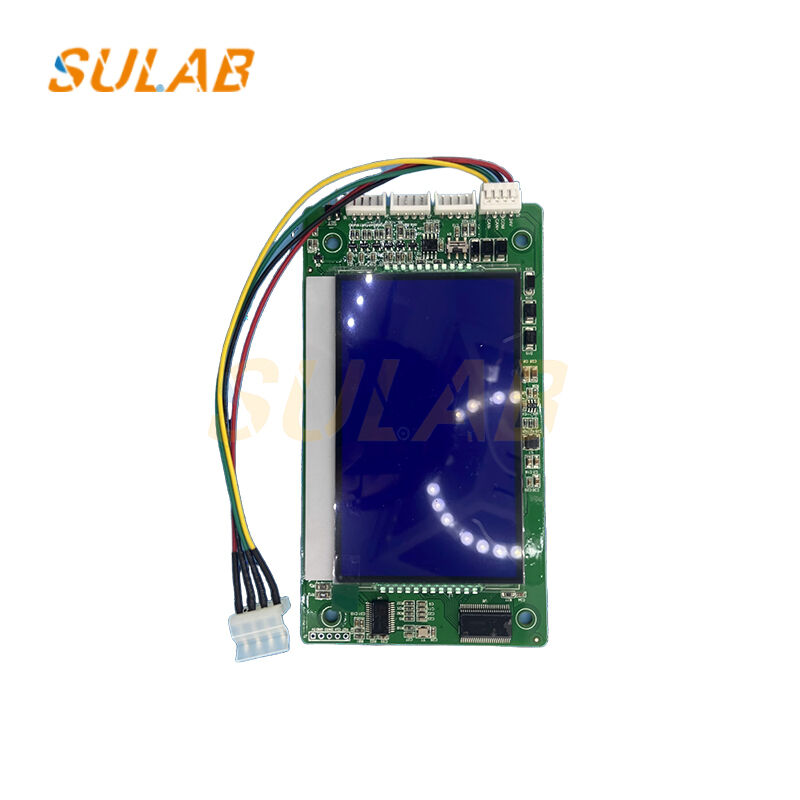

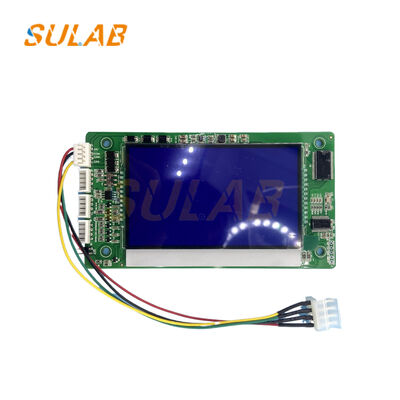

Monarch SFTC-HCB-L-BO Elevator Call Panel with 4.3-inch White LCD Display CAN Communication and DC24V Working Voltage
Brand Name:
STEP
Model Number:
SFTC-HCB-SL-BO
Minimum Order Quantity:
1
Delivery Time:
2-3 working days
Payment Terms:
T/T,D/P,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
4.3-inch White LCD Elevator Call Panel
,CAN Communication LCD Display Board
,DC24V Working Voltage Landing Call Board
Brand:
STEP
Description:
Elevator Board
Model:
SFTC-HCB-SL-BO
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description
Monarch SFTC-HCB-L-BO Elevator Call Panel with STEP Display
The Monarch SFTC-HCB-L-BO Elevator Call Panel with HCB-SL-BO STEP Display is a universal landing call LCD display board compatible with mainstream elevator control systems including STEP S8 and Monarch NICE3000+/NICE900.
Key Features
- 4.3-inch white LCD display with 480×272 resolution
- Integrated up/down call buttons with LED backlighting
- Rated working voltage: DC24V (±10% fluctuation)
- Working current ≤300mA
- Button life ≥1 million operations
- Operating temperature range: -10°C to +50°C
- IP30 protection class
- CAN communication support (default 250kbps, compatible with 500kbps)
- Designed for landing embedded installation
Technical Specifications
| Brand | STEP |
|---|---|
| Description | Elevator board |
| Model | SFTC-HCB-SL-BO |
| MOQ | 1PC |
| Transportation | TNT, UPS, DHL, Fedex, Air, Sea |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, Alibaba, Paypal etc |
Display & Operation Features
Features LED backlit call buttons that remain illuminated when registration is successful. The LCD display provides real-time information including:
- Current floor position
- Elevator running direction
- System status (full load/inspection/fire protection)
- Fault code display
- 5-level brightness adjustment for optimal visibility in various lighting conditions
Compatibility & Integration
Utilizes CANopen protocol for real-time interaction with main controllers such as MCTC-MCB2/MCB3. Features optional DIP switch address coding from 1-32. Fully compatible with STEP standard landing call protocol and can directly replace older landing call boards including SFTC-HCB-L-BO and SM.04.VRF models.
