Mitsubishi Elevator Car Communication Board P235765B000G with RS-485 Communication and Hot-Swappable Design for LHS Panel
Brand Name:
Mitsubishi
Model Number:
P235765B000G
Minimum Order Quantity:
1
Delivery Time:
3-5 Working Days
Payment Terms:
D/A,D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
RS-485 Communication Elevator Car Communication Board
,Multi-Variant Compatibility COP Control PCB
,Hot-Swappable Design LHS Panel PCB
Type:
P235765B000G
Product Name:
Mitsubishi Elevator Car Communication Board P235765B000G
Transportation:
Clients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
Application:
Lift Parts,hoist,elevator
Business Type:
Manufacturer
Packing:
Packed In Carton
Product Description

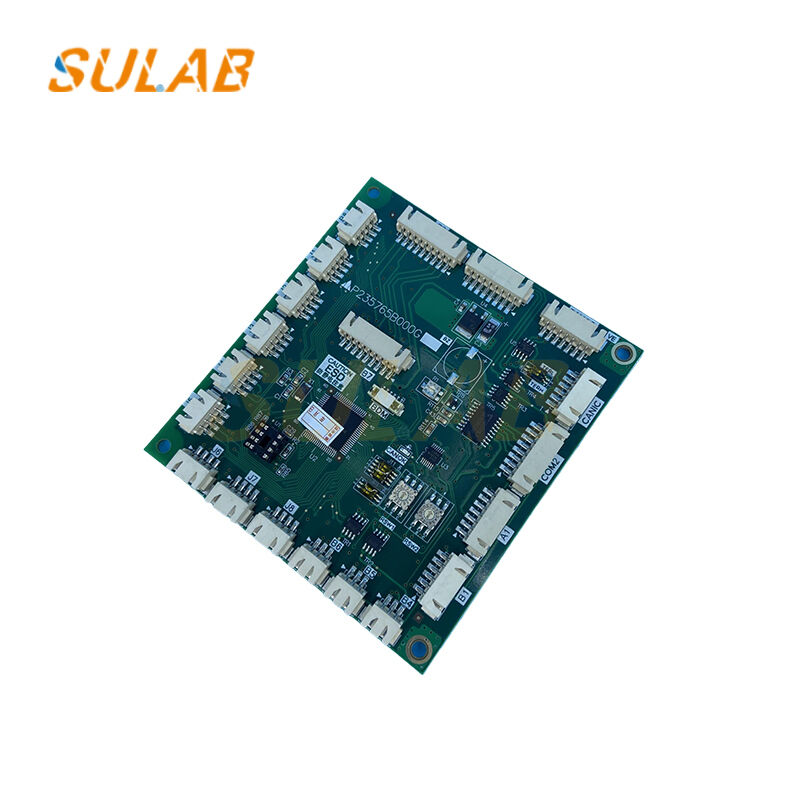

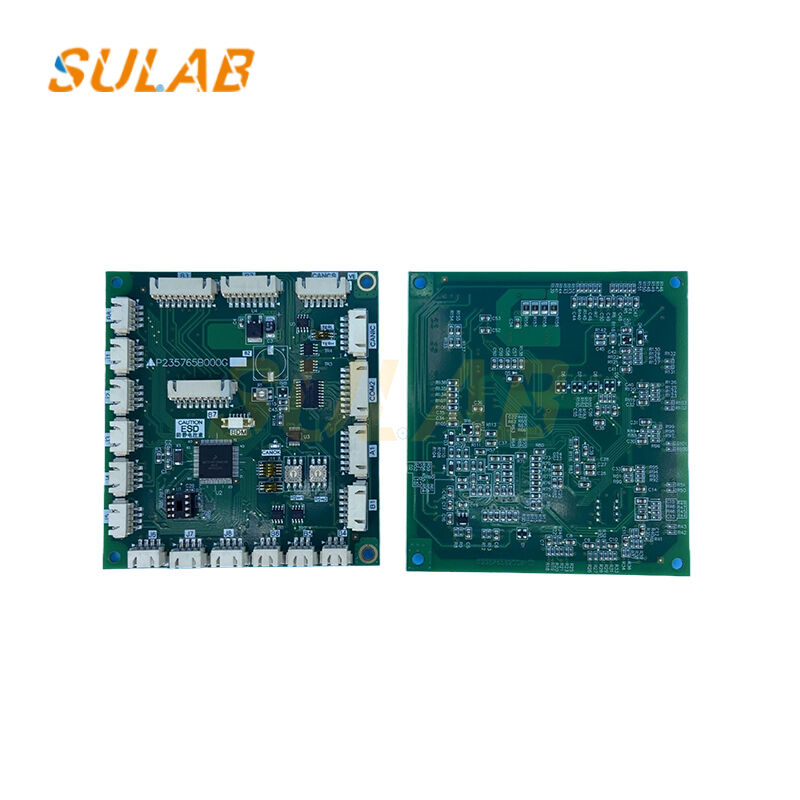

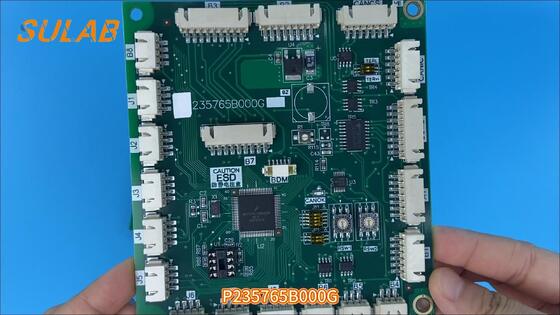

Mitsubishi Elevator Car Communication Board P235765B000G
COP Control PCB for LHS Panel | G01/G02/G03/G04/G05 Series
Product Overview
The Mitsubishi P235765B000G Car Communication Board is an essential elevator control PCB designed for the Car Operating Panel (COP) in Mitsubishi elevator systems. This communication interface board manages signal transmission between the car interior buttons, floor display, and the elevator main control system.
| Attribute | Details |
|---|---|
| Product Name | Mitsubishi Elevator Car Communication Board |
| Part Numbers | P235765B000G01, P235765B000G02, P235765B000G03, P235765B000G04, P235765B000G05 |
| Alternative Models | P235776B000G05, P235752B000G01, P235711B000G02, P235741B000G02 |
| Brand | Mitsubishi/Shanghai Mitsubishi |
| Function | Car Communication Control Board / COP (Car Operating Panel) Controller |
| Application | Elevator car interior button control, floor display, intercom system |
| Compatible Systems | Mitsubishi GPS-III, HOPE, LEHY series elevators |
| Bus Type | RS-485 serial communication with main board |
| Input Points | 8-16 floor button inputs (depending on model variant) |
| Display Output | 7-segment or LCD floor display control |
| Condition | Original New / Compatible New / Refurbished |
| Weight | 0.3 kg |
| Package Size | 250×180×100 mm |
| Warranty | 12 months |
| Certification | ISO9001, CE |
Key Features
- Multi-Variant Compatibility: Available in G01 through G05 versions to match different floor counts and software configurations
- Bidirectional Communication: RS-485 serial communication protocol ensuring reliable data transmission between car and hoistway
- Button Input Processing: Supports up to 16 floor button inputs with LED indicator control
- Display Drive Circuit: Controls 7-segment or LCD floor position indicators inside the car
- Intercom Interface: Integrated communication circuit for emergency intercom systems
- Hot-Swappable Design: Standard Mitsubishi connector interface for quick replacement without rewiring
Common Applications
- GPS-III series elevator COP panels
- HOPE series residential elevators
- LEHY series machine-room-less elevators
- Modernization of legacy Mitsubishi lift systems
Troubleshooting Symptoms Solved
- Floor buttons not registering or intermittent response
- Car display showing wrong floor or flickering
- Communication errors between car and controller
- Complete loss of car call functionality
