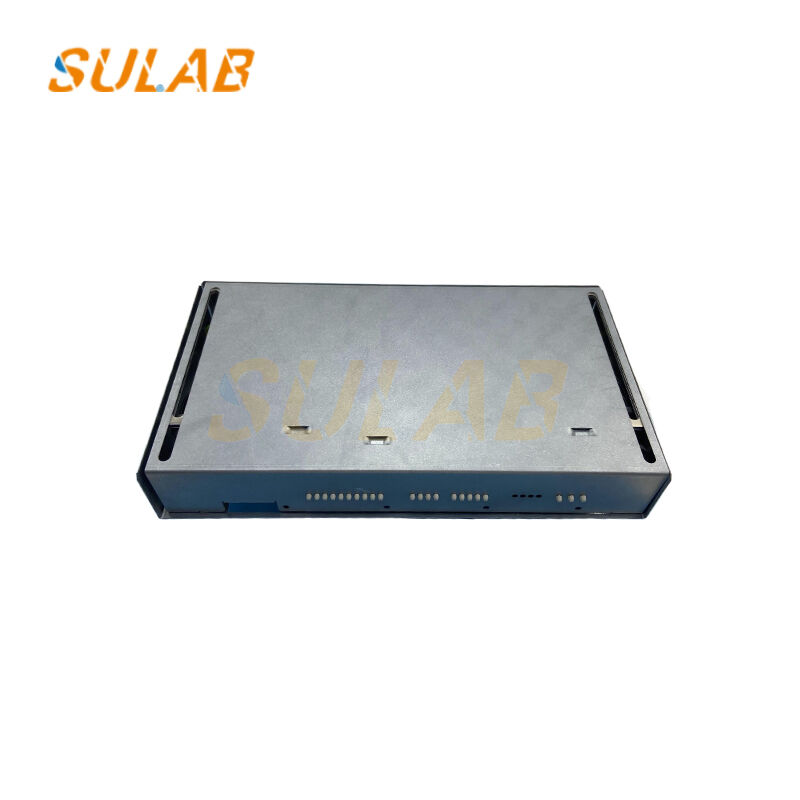

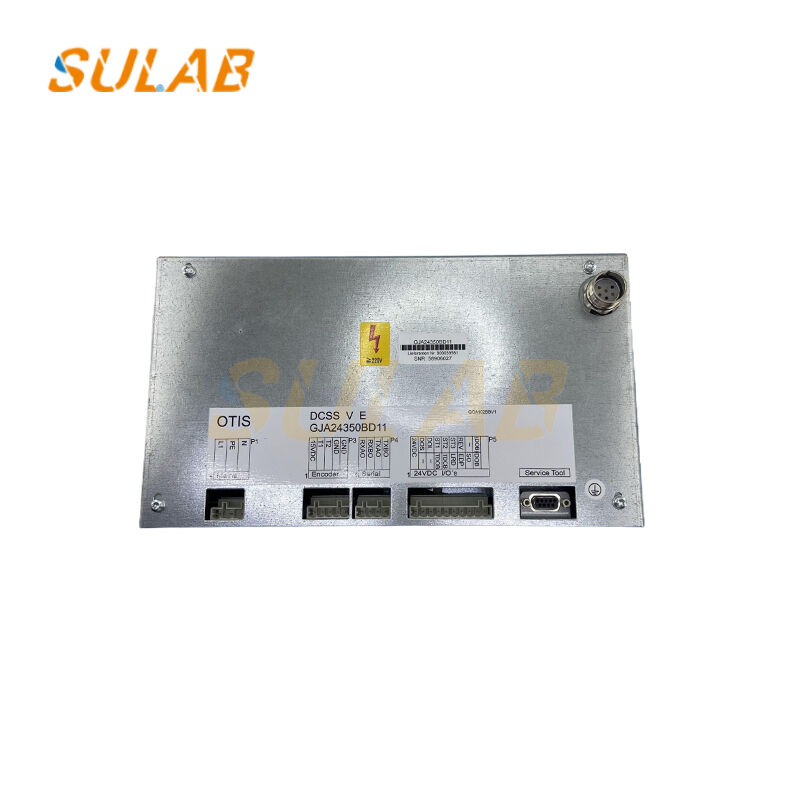

GBA24350BH1 Door Operator Inverter - Elevator Door Controller with Variable Frequency Drive Speed Regulation Safety Logic Execution and Status Monitoring

GBA24350BH1 Door Operator Inverter - Original OTIS Lift Spare Part For DCSS5‑E System Stable & Compatible With Elevator DCSS5‑E Door Operator

Variable frequency drive speed regulation: Employing vector control technology, the fixed-frequency input power is converted into an output with adjustable frequency and voltage, driving the door operator motor to achieve smooth speed regulation (low-speed start → high-speed operation → low-speed arrival), preventing door impact or trapping of passengers and improving passenger comfort.

Safety logic execution: Real-time reception of signals from door locks, light curtains, safety touch panels, etc. Upon encountering an obstacle, the door immediately stops closing and reverses to open; the elevator is only allowed to start after the door is fully locked, which is the core guarantee of door system safety.

Status Monitoring and Protection: Real-time monitoring of door operator motor current, voltage, and temperature; overload, overcurrent, and overheat protection to prevent door operator burnout; simultaneously feeding back door position status (fully open/fully closed/fault) to the elevator main control system for easy fault diagnosis and maintenance.

Parameter Adaptation and Communication: Supports on-site parameter adjustment (such as door opening and closing speed, torque, and holding force), adapting to different door types and load capacities; stable communication with the elevator main control system; compatible with the DCSS5-E door operator system, offering strong compatibility.

Elevator Door Controller – Frequently Asked Questions

Q1: How do I identify the correct replacement elevator door controller?

Check the original controller part number, hardware revision, supply voltage, motor type, connector layout, and communication interface. Similar-looking controllers may have different control functions or software requirements.

Q2: Can an elevator door controller work with a different door motor?

Not necessarily. Compatibility depends on the motor type, rated electrical parameters, position feedback, and control method. The controller and motor specifications must be verified together.

Q3: Does an elevator door controller require door travel learning after replacement?

Some door controllers require door travel learning, motor parameter configuration, or position calibration after replacement. Other systems use different setup procedures. Requirements depend on the controller model and door operator design.

Q4: What causes an elevator door controller to report faults?

Possible causes include power supply problems, motor feedback errors, wiring faults, incorrect settings, or controller failure. Fault indications should be interpreted using the specific controller's technical documentation.

Q5: Can I replace only the elevator door controller instead of the complete door operator?

In some systems, the controller can be replaced separately if it is compatible with the existing motor, feedback device, wiring, and control interfaces. Compatibility should be confirmed before ordering.
