Original EL-1375 Elevator Speed Governor Tensioner Switch with SPDT Contact Structure Rated Voltage AC250V/DC30V and Mechanical Life ≥1 Million Times
Brand Name:
Mitsubishi
Model Number:
EL-1375
Minimum Order Quantity:
1
Delivery Time:
2-3 working days
Payment Terms:
D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
SPDT Contact Structure Elevator Speed Governor Tensioner Switch
,Rated Voltage AC250V/DC30V EL-1375 Switch
,Mechanical Life ≥1 Million Times Safety Switch
Brand:
Mitsubishi
Description:
Elevator Switch
Model:
EL-1375
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description

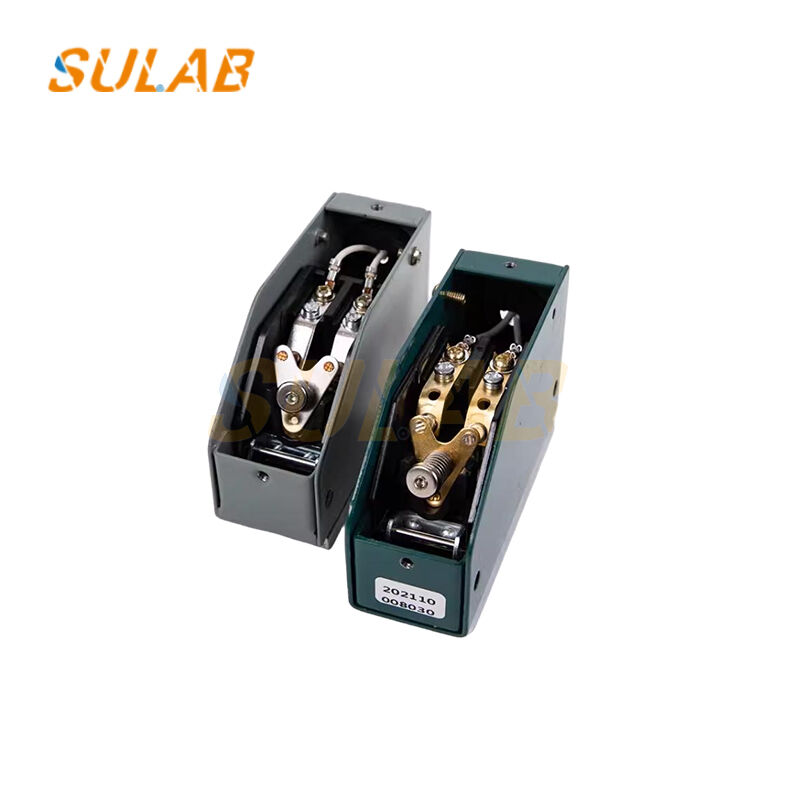

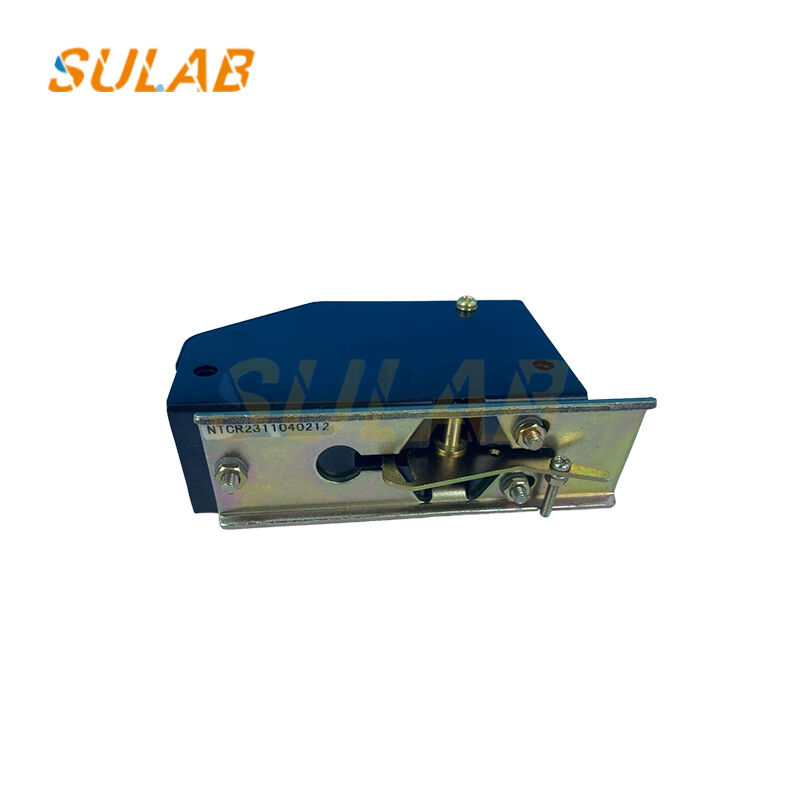

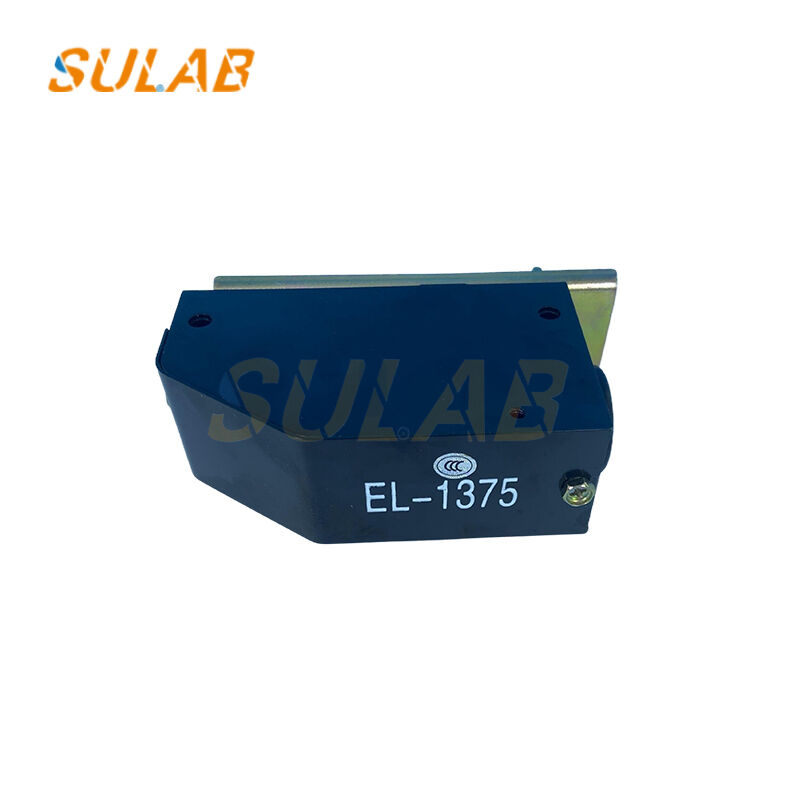

Original EL-1375-1 Elevator Speed Governor Tensioner Switch
EL-1375 is a specialized safety switch designed for elevator governor/tension pulley/rope break applications. Compatible with major elevator brands including Mitsubishi, OTIS, Xizi OTIS, and Fujitec.
Key Features
- Single-pole double-throw (SPDT) contact structure
- Rated voltage: AC250V/DC30V
- Rated current: 10A
- Mechanical life: ≥1 million operations
- Electrical life: ≥500,000 operations
- Operating force: 5-10N
- Stroke: 2-3mm
- Painted metal housing with IP40 protection
- Operating temperature: -20°C to +60°C
- Bolt fixing installation
- Plug-in terminal block design
Product Specifications
| Brand | Mitsubishi |
| Description | Elevator Safety Switch |
| Model | EL-1375 |
| Minimum Order Quantity | 1PC |
| Shipping Methods | TNT, UPS, DHL, Fedex, Air, Sea |
| Packaging Options | Carton, Wooden case, Pallet |
| Delivery Time | 2-3 working days after payment |
| Warranty | One year |
| Payment Methods | Company Bank, Western Union, Alibaba, PayPal |
Safety Operation
When elevator running speed exceeds 115% of the rated speed, the governor triggers mechanical action and simultaneously activates the EL-1375 switch contact. This action cuts off the elevator safety circuit, forcing an emergency stop to prevent top or bottom collision accidents.
