KONE Elevator Push Button Panel with Genuine KONE Compatibility Integrated LED Illumination and Braille Compliance
-
Highlight
Genuine KONE Compatibility Push Button Panel
,Integrated LED Illumination Button Control Board
,Braille Compliance Elevator Control Panel
-
TypeKM1368846G01
-
Product NameKONE Elevator COP LOP Push Button Panel KM1368846G01
-
ApplicableElevator Parts,Elevator Equipment,General For Escalator Parts,Passenger Lift,Passenger Elevator
-
TransportationClients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
-
Business TypeManufacturer
-
PackingPacked In Carton
-
Brand NameKONE
-
Model NumberKM1368846G01
-
Minimum Order Quantity1
-
Delivery Time3-5 Working Days
-
Payment TermsD/A,D/P,T/T,Western Union
KONE Elevator Push Button Panel with Genuine KONE Compatibility Integrated LED Illumination and Braille Compliance
KONE Elevator COP LOP Push Button Panel KM1368846G01

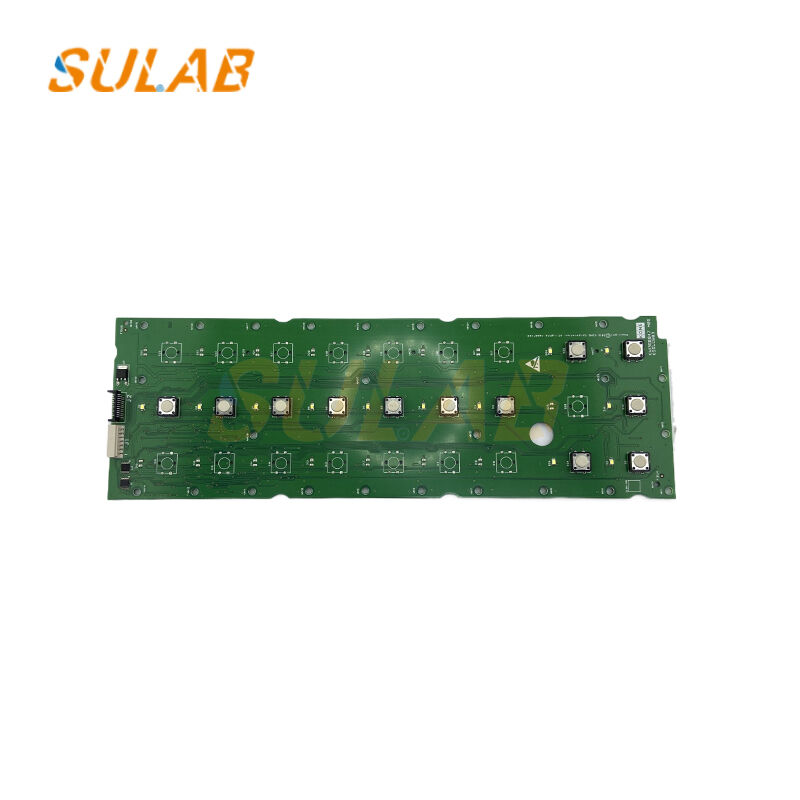

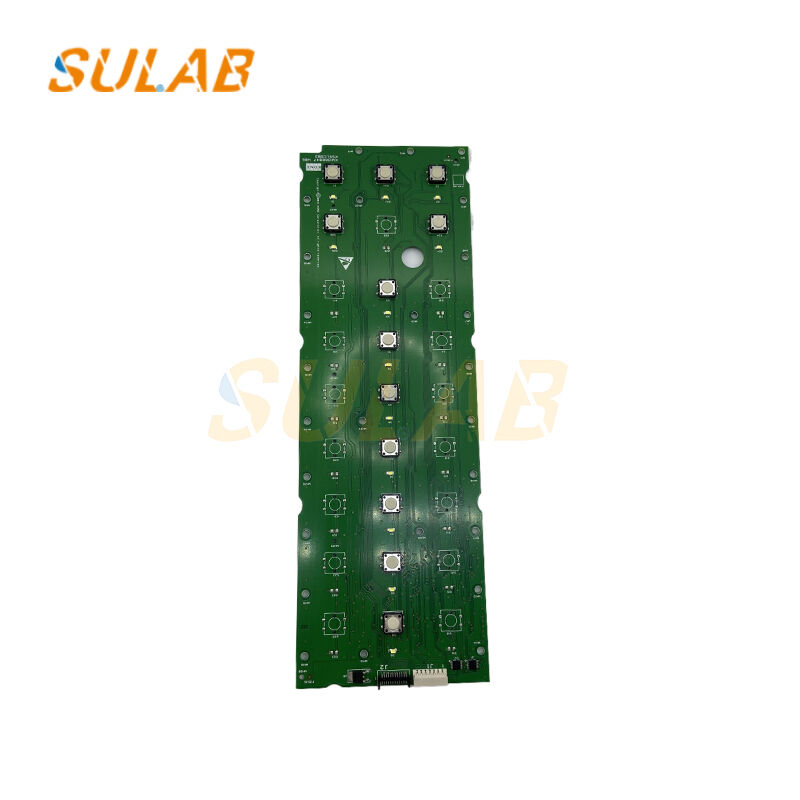

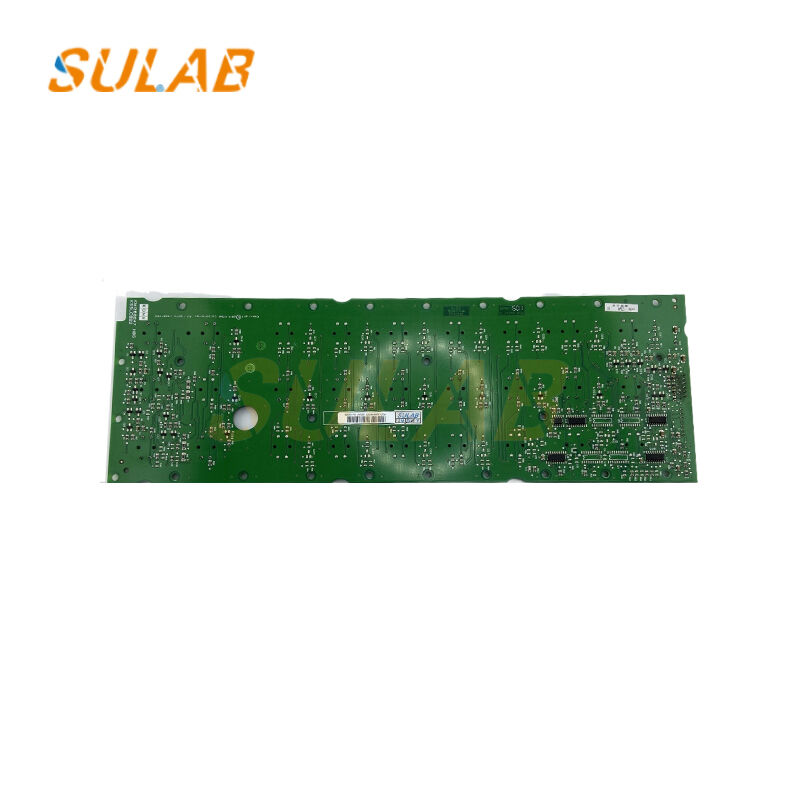

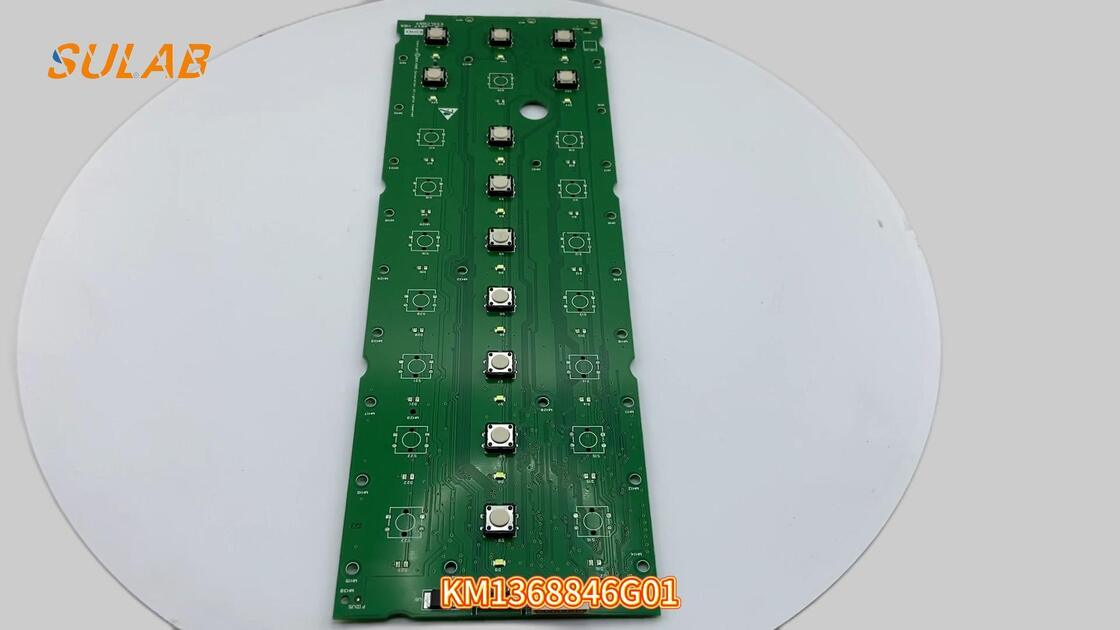

The KONE KM1368846G01 Push Button Panel is an original OEM replacement button control board designed for KONE Ecodisc and MonoSpace elevator systems. This high-quality PCB assembly integrates illuminated push buttons, braille markings, and microprocessor-controlled signaling to provide reliable floor selection and door control functionality for both Car Operating Panels (COP) and Landing Operating Panels (LOP).
Key Features
- Genuine KONE Compatibility: Exact replacement for KM1368846G01 part number
- Integrated LED Illumination: Low-power blue/white button backlighting
- Braille Compliance: Tactile markings meeting ADA/EN 81-70 accessibility standards
- Vandal-Resistant Design: Stainless steel or plastic button options available
- Plug-and-Play Installation: Direct replacement with original connectors
- Multi-Voltage Support: 12V/24V DC operation compatible with KONE LCE/LCD controllers
Technical Specifications
| Parameter | Specification |
|---|---|
| KONE Part Number | KM1368846G01 (G01 Revision) |
| Product Type | COP/LOP Push Button PCB Assembly |
| Compatible Elevator Types | KONE Ecodisc, MonoSpace, MiniSpace |
| Control System | LCE (Lift Control Equipment) / LCD (Lift Control Drive) |
| Button Configuration | 1-8 Floors (Expandable) |
| Button Type | Momentary Push Button with LED |
| LED Color | Blue (Standard) / White / Amber (Optional) |
| Operating Voltage | DC 12V / DC 24V (Auto-detect) |
| Current Consumption | ≤50mA per button (illuminated) |
| Contact Rating | 24V DC, 0.1A (Signal Level) |
| PCB Material | FR-4 Flame Retardant, Double-sided |
| Surface Finish | HASL Lead-free |
| Connector Type | KONE Standard 10-pin / 20-pin Header |
| Button Marking | Raised Numerals + Braille Dots |
| Operating Temperature | -10°C to +55°C |
| Humidity | ≤95% RH (Non-condensing) |
| Protection Class | IP20 (Panel Front IP54 with bezel) |
| Dimensions (W × H × D) | 180mm × 120mm × 25mm (Standard) |
| Weight | Approx. 250g |
| Certifications | CE, KONE Factory Certified, ISO 9001 |
| Warranty | 2 Years Standard / 5 Years Extended |
