22-teeth Escalator Comb Plate with High-strength Engineering Plastic for Smooth Transition and EN 115-1 Compliance
Brand Name:
Sulab
Model Number:
L47312022A22
Minimum Order Quantity:
1
Delivery Time:
2-3 working days
Payment Terms:
D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
22-teeth Escalator Comb Plate
,High-strength engineering plastic Escalator Comb Plate
,EN 115-1 compliant Escalator Comb Plate
Brand:
Sulab
Description:
Escalator Comb Plate
Model:
L47312022A22
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description
Escalator Comb Plates L47312024A L47312023A L47312022A22
Escalator Comb Plates L47312024A L47312023A L47312022A22 are precision-engineered safety components designed for optimal escalator performance and passenger protection.
Product Overview

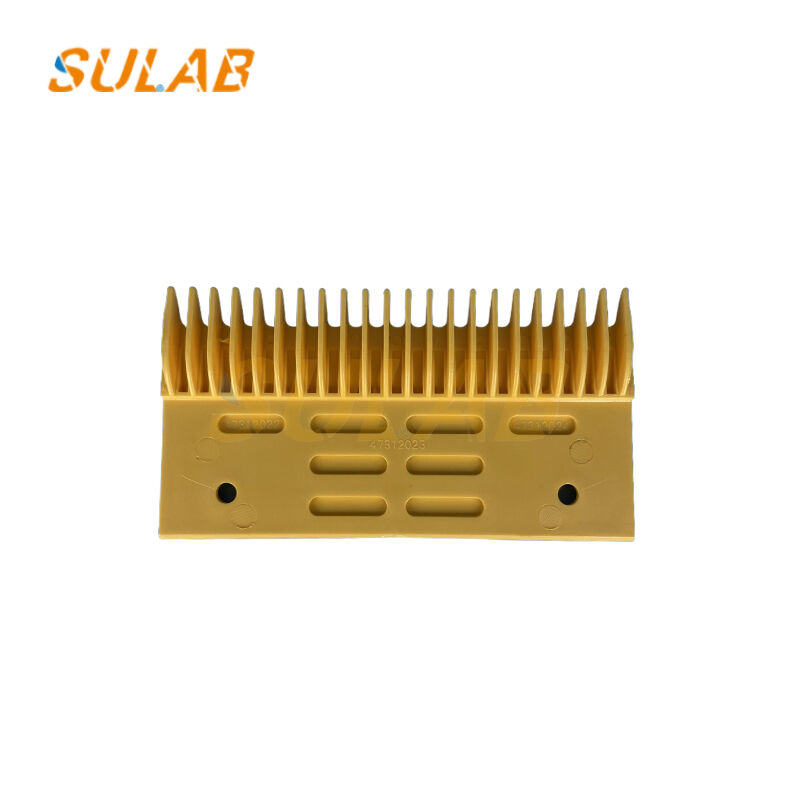

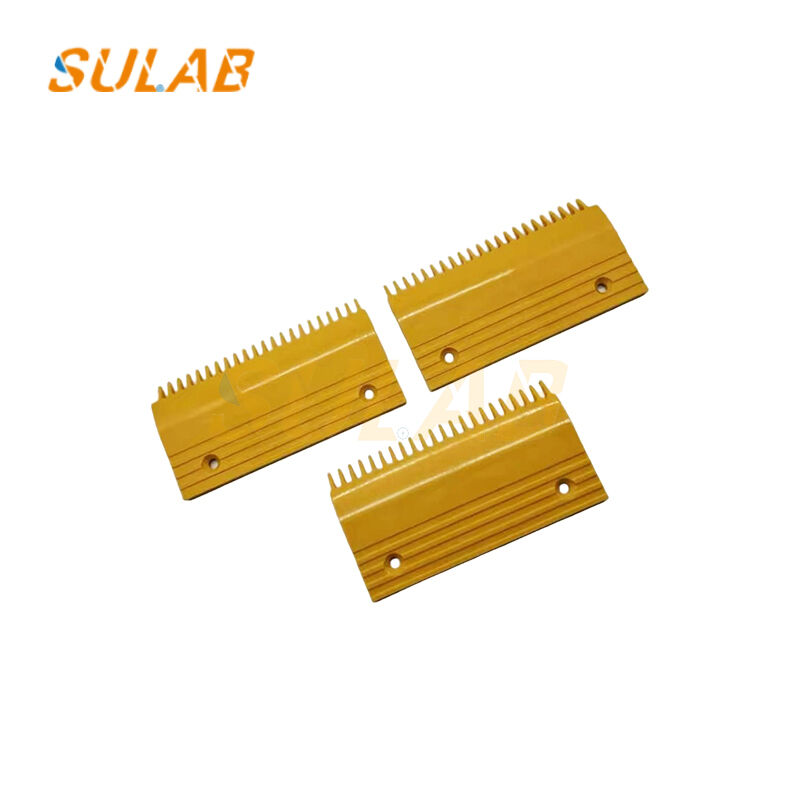

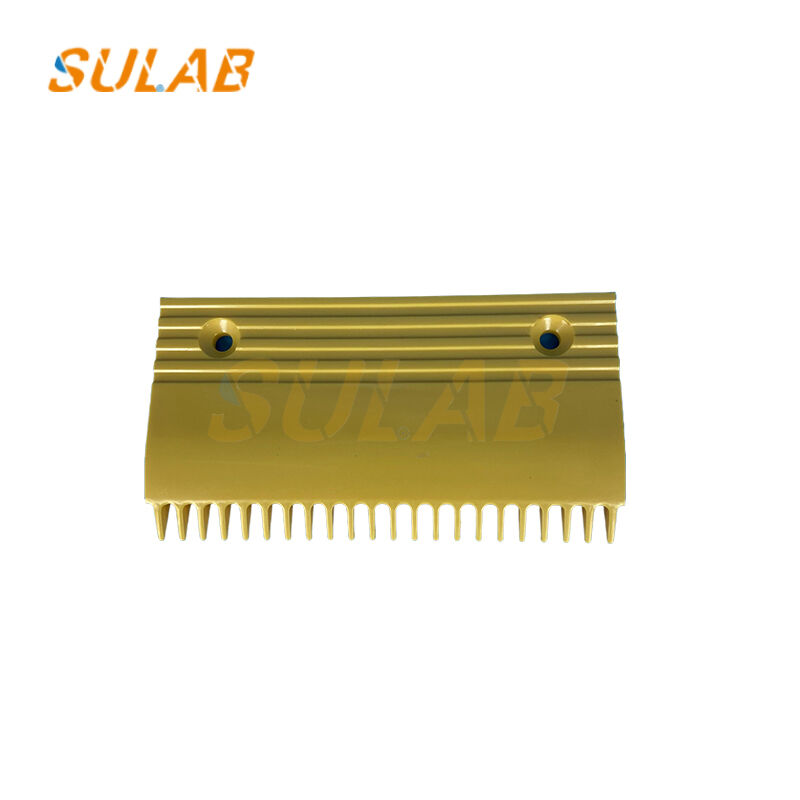

L47312022A22 is a standard 22-teeth right-side escalator comb plate specifically designed for OTIS/Xizi OTIS systems. As a core safety component of the Otis Canny series, it ensures smooth transitions between steps and landing plates while providing essential foreign object entrapment protection.
Key Specifications
| Brand | Sulab |
| Description | Escalator comb plate |
| Model | L47312022A22 |
| Material | High-strength engineering plastic + yellow warning strip |
| Comb Teeth | 22 teeth |
| Tooth Pitch | 4mm |
| Tooth Height | 15mm |
| Installation Size | 290×120×25mm |
| Fixing Hole Distance | 60mm×180mm |
| Weight | Approximately 0.8kg |
| Operating Temperature | -10°C to +60°C |
| Protection Class | IP42 |
| Safety Standards | EN 115-1, GB 16899 |
| Certifications | CE/CCC |
| Warranty | 12 months |
Safety Features & Benefits
- Precision-meshing comb teeth with step grooves (tooth pitch error ≤0.1mm)
- Forms smooth transition surface to prevent passenger shoe and clothing entrapment
- Yellow warning strip enhances visual recognition for safety boundary awareness
- Protects against foreign object entrapment between steps and landing plates
Ordering & Delivery Information
| Minimum Order Quantity | 1PC |
| Transportation Options | TNT, UPS, DHL, Fedex, Air, Sea |
| Packaging Options | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Payment Methods | Company Bank, Western union, Alibaba, Paypal etc |
