Mitsubishi Elevator Power Communication Board with 7-segment digital tube and LED direction indicator DC24V compliant with EN 81-20 and GB 7588 standards
-
Highlight
7-segment digital tube Elevator Power Communication Board
,DC24V Elevator Control Board
,EN 81-20 Elevator Display Board
-
BrandMitubishi
-
DescriptionElevator Board
-
ModelLHH-1010B
-
MOQ1PC
-
TransportionTNT, UPS, DHL, Fedex, Air, Sea
-
PackagesCarton, Wooden Case, Pallet Etc
-
Delivery TimeNormally 2-3 Working Days After Payment
-
WarrantyOne Year
-
Payment MethodCompany Bank, Western Union, Alibaba, Paypal Etc
-
Brand NameMitubishi
-
Model NumberLHH-1010B
-
Minimum Order Quantity1
-
Delivery Time2-3 working days
-
Payment TermsD/P,T/T,Western Union
Mitsubishi Elevator Power Communication Board with 7-segment digital tube and LED direction indicator DC24V compliant with EN 81-20 and GB 7588 standards
Mitsubishi Elevator Power Communication Board
Model: LHH-1010A / LHH-1210B / YE604B501A
Professional arrival light control board designed for Mitsubishi elevator systems, providing reliable floor position display and directional indication.
Product Overview

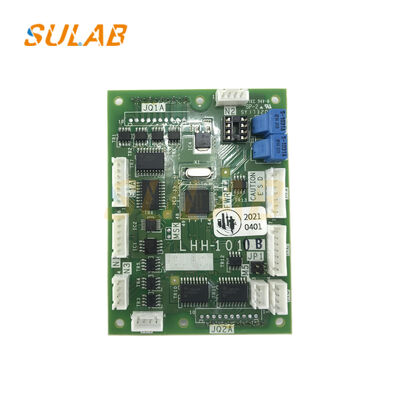

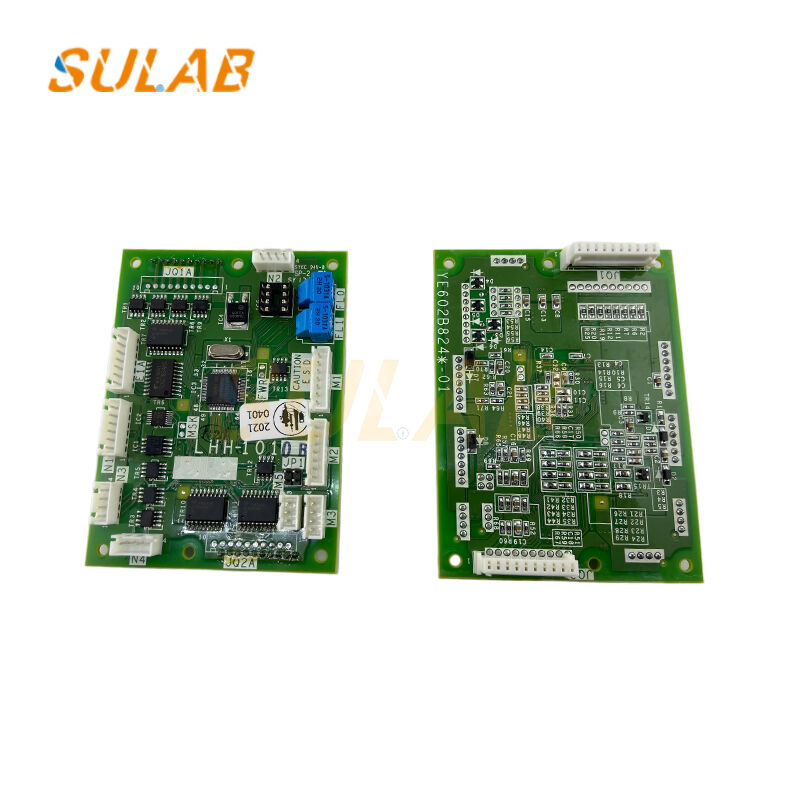

The LHH-1010B is a standard hall horizontal panel header display board engineered for Mitsubishi elevators. This advanced control board serves critical functions including elevator floor position display, running direction indication, and arrival prompts. Compatible with Mitsubishi GPS, LEHY, and MAXIEZ series elevators.
Key Features
- 7-segment digital tube + LED direction indicator design
- Comprehensive floor display range: 1-64 floors
- High-brightness display (≥300cd/m²) with wide viewing angle (≥120°)
- Clear visibility within 10 meters distance
- Customizable floor number settings for various building layouts
- Up/down LED direction indicators with synchronized response (≤100ms)
- Direction locking function during stopped state
Technical Specifications
| Rated Working Voltage | DC24V (±10%) |
| Working Current | ≤500mA |
| Power Consumption | ≤12W |
| External Dimensions | 180×60×30mm |
| Installation Method | Embedded snap-in fixing |
| Interface Type | 8-pin RJ45 communication interface |
| Operating Temperature | -10°C to +50°C |
| Protection Class | IP42 |
| Safety Standards | EN 81-20, GB 7588 |
| Certifications | CE/CCC certified |
Ordering & Support Information
| Brand | Mitsubishi |
| Description | Elevator Board |
| Model | LHH-1010B |
| Minimum Order Quantity | 1 PC |
| Transportation Options | TNT, UPS, DHL, Fedex, Air, Sea |
| Packaging | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Methods | Company Bank, Western Union, Alibaba, PayPal etc |

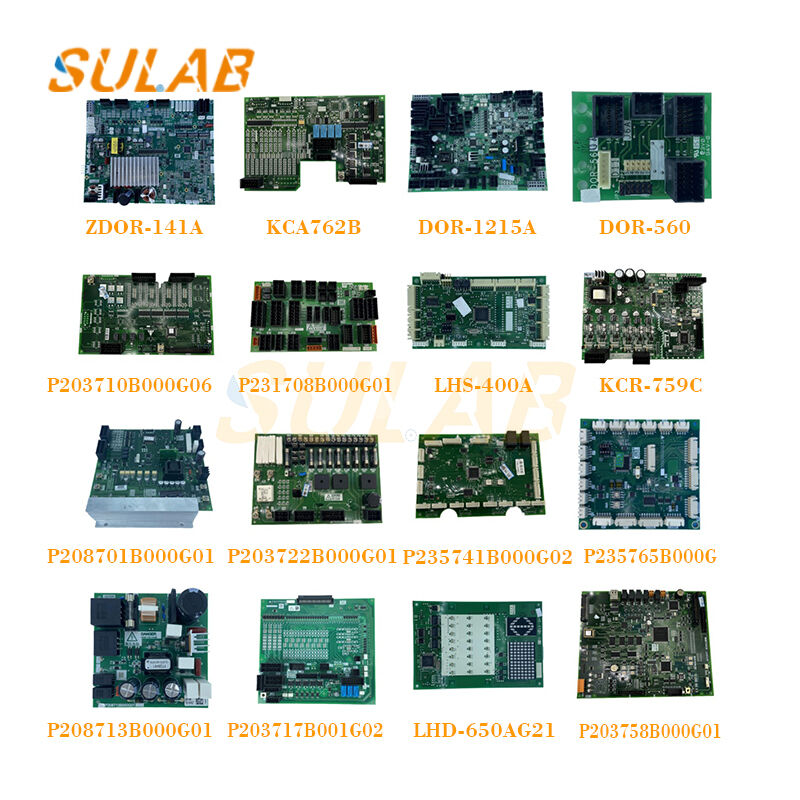

Related Products
