KONE Elevator TF-2 Car Top Intercom with Emergency Communication Two-Wire Bus Technology for Five-Party Communication System
Brand Name:
Sulab
Model Number:
KM896384
Minimum Order Quantity:
1
Delivery Time:
2-3 workday days
Payment Terms:
D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
Emergency Communication Elevator Intercom
,Two-Wire Bus Technology Car Top Intercom
,Five-Party Communication System Machine Room Intercom
Brand:
Sulab
Description:
Elevator Intercom
Model:
KM896384
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description

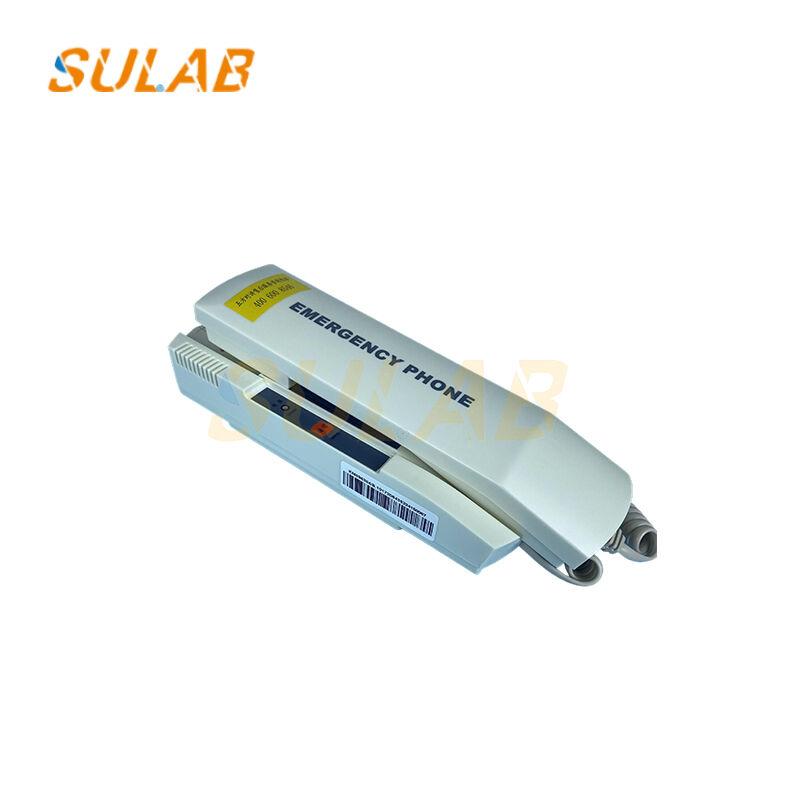

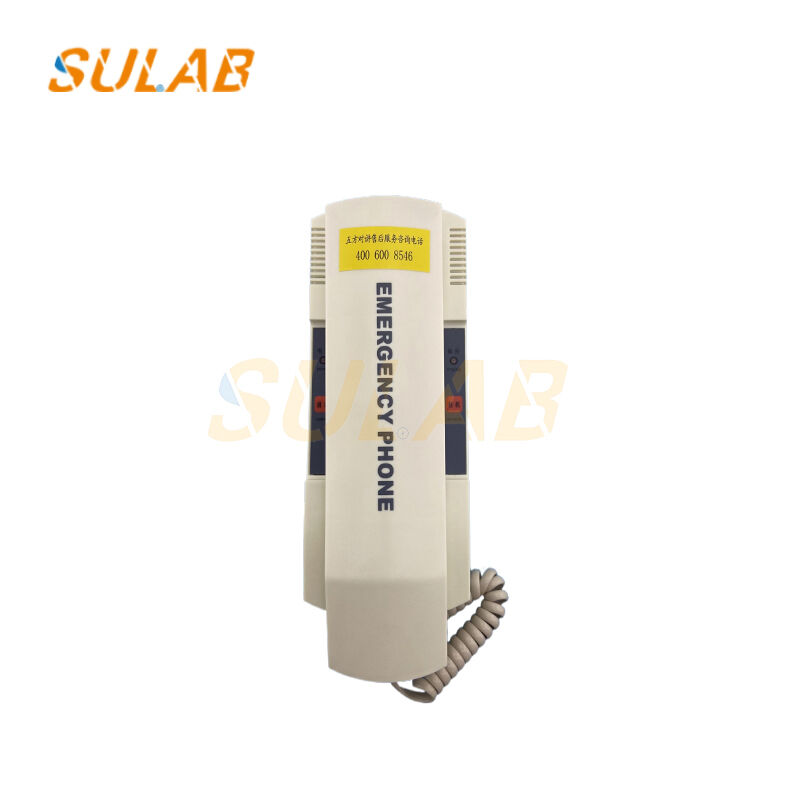

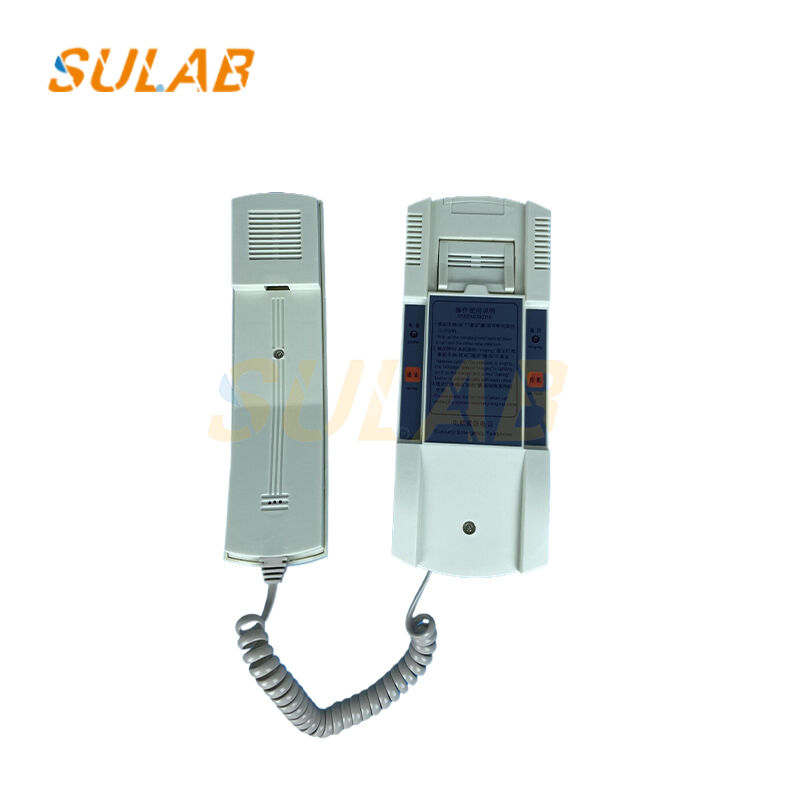

KONE Elevator TF-2 Car Top Intercom Elevator Room Intercom KM896384
The KONE Elevator TF-2 Car Top/Machine Room Intercom (KM896384) is a specialized communication device designed for KONE elevator five-party communication systems. Primarily used for emergency communication during elevator entrapment or malfunction, this intercom ensures reliable two-way voice communication between car top/machine room and other elevator locations.
Product Specifications
| Brand | Sulab |
|---|---|
| Description | Elevator intercom |
| Model | KM896384 |
| MOQ | 1PC |
| Transportation | TNT, UPS, DHL, Fedex, Air, Sea |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, alibaba, Paypal etc |
Technical Specifications
- Rated working voltage: DC12V(±10%)
- Working current: ≤50mA
- Communication frequency: 300-3400Hz
- Signal-to-noise ratio: ≥45dB
- Distortion: ≤5%
- External dimensions: 120×80×50mm
- Installation method: Wall-mounted/embedded
- Interface type: 2-pin phoenix terminal
- Operating temperature: -10~+50℃
- Protection class: IP42
- Compliance: EN 81-20, GB 7588 safety standards
- Certifications: CE/CCC certified
Key Features & Applications
Suitable for KONE MiniSpace, MonoSpace, EcoDisc and other series elevators. In case of elevator entrapment, malfunction or during maintenance, this intercom enables two-way voice communication between car top/machine room and car, duty room, and pit with:
- Communication distance: ≤1000m
- Response time: ≤1s
- Ensures timely transmission of rescue instructions and passenger safety
System Integration
Utilizes advanced two-wire bus technology that supports connection of multiple extensions (up to 16 simultaneously). Forms a complete five-party communication system when integrated with KONE TB-10 (KM896385) duty room main unit, TJ-2Y (KM896383) car extension, and TF-3 pit extension. Features call priority function with car calls having the highest priority for emergency situations.
