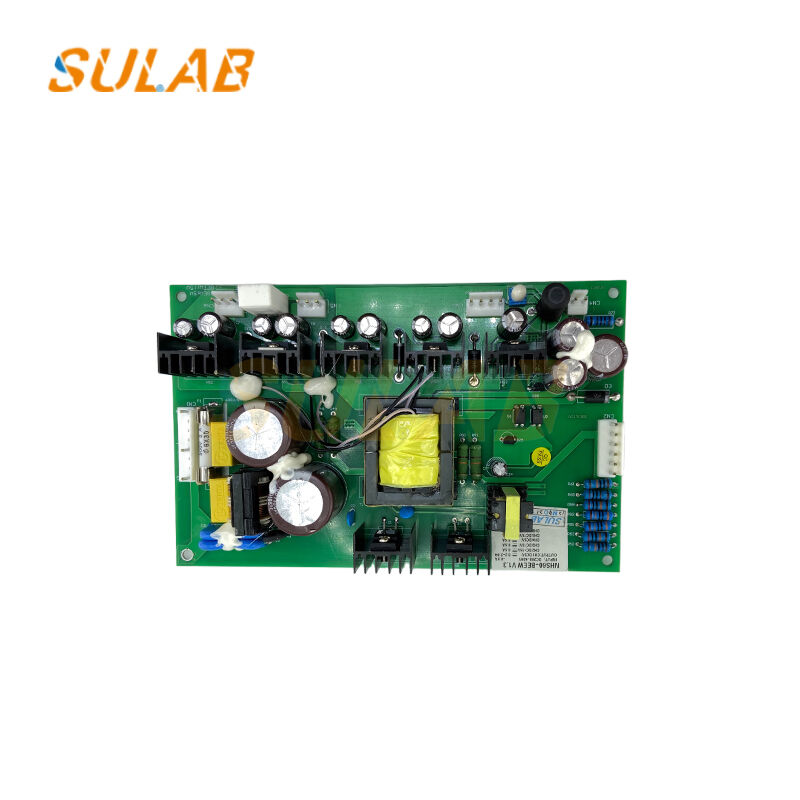

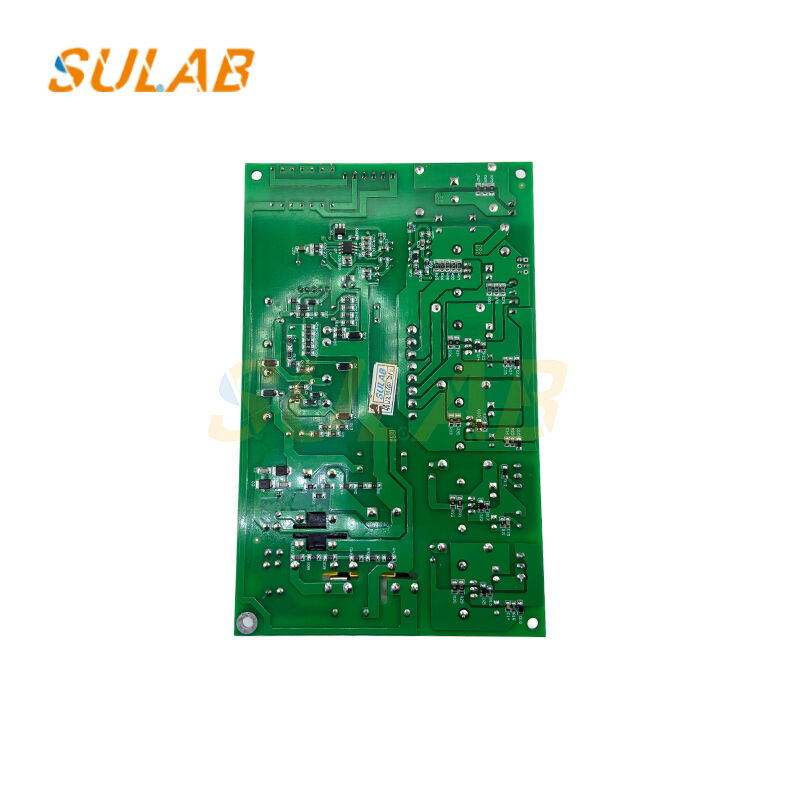

Hyundai Elevator Inverter Power Supply Board for STVF9/WB100 Series with Switching Power Supply Design and Multiple Protection Circuits
Brand Name:
Hyundai
Model Number:
NHS60-BEEW V1.3
Minimum Order Quantity:
1
Delivery Time:
2-3 working days
Payment Terms:
D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
STVF9/WB100 Series Inverter Power Supply Board
,Switching Power Supply Design Elevator Power Board
,Multiple Protection Circuits Hyundai Elevator Board
Brand:
Hyundai
Description:
Elevator Board
Model:
NHS60-BEEW V1.3
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description
Hyundai Elevator WB100 Inverter Power Supply Board
Model: NHS60-BBEW NHS60-BEEW V1.3 - Hyundai Elevator STVF9/WB100 series inverter-specific power board providing stable control and drive power for elevator inverters.
Product Overview
The NHS60-BEEW V1.3 is designed specifically for Hyundai STVF9, WB100, and HIVD900 series elevator inverters with rated power of 7.5-18.5kW. This switching power supply features input voltage AC220V(±10%) and provides multiple output voltages to support various inverter components.
| Specification | Details |
|---|---|
| Brand | Hyundai |
| Model | NHS60-BEEW V1.3 |
| Minimum Order Quantity | 1PC |
| Shipping Methods | TNT, UPS, DHL, Fedex, Air, Sea |
| Packaging Options | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Payment Methods | Company Bank, Western union, Alibaba, Paypal etc |
Technical Specifications
- Output Voltages: DC5V(2A), DC15V(1A), DC24V(0.5A)
- Communication Interface: RS485(9600bps)
- Dimensions: 180*120*30mm
- Mounting: 35mm standard guide rail
- Protection Class: IP20
- Compliance: EN 81-20/50, GB 7588 safety standards
- Certifications: CE/ISO9001
Power Supply Features
- Provides three isolated power supplies (DC5V, DC15V, DC24V) for inverter CPU board, drive board, sensors, and indicator lights
- Voltage ripple ≤50mV and load regulation rate ≤2% for stable operation
- Ensures all inverter components operate reliably without being affected by power grid fluctuations
Protection Systems
- Built-in multiple protection circuits: overvoltage, undervoltage, overcurrent, short circuit, and overheating
- Automatic power cutoff when input voltage exceeds AC198-242V range or output current exceeds rated value
- Triggers alarm and displays fault type via LED indicator (red/green dual-color, 4 states)
- Prevents inverter damage due to power supply abnormalities
Warranty & Support
This product includes a comprehensive 12-month warranty with full technical support.
Elevator Power Supply Module - FAQ
Q1: What is the function of an elevator power supply module?
An elevator power supply module provides regulated electrical power to designated control circuits or electronic components. Its function and outputs depend on the module design.
Q2: Can elevator power supply modules with the same output voltage be interchangeable?
Not necessarily. Modules may differ in current capacity, output configuration, electrical isolation, protection functions, connector arrangements, and system requirements.
Q3: What can cause an elevator power supply module to fail?
Possible causes include abnormal input voltage, excessive loading, overheating, short circuits in connected equipment, or internal component deterioration.
Q4: What should be checked when an elevator power supply module has no output?
A qualified technician should investigate the input supply, connected loads, fault indications, and associated circuitry. A missing output does not always mean the module itself is defective.
Q5: What specifications are required to identify a replacement power supply module?
Please provide the original part number, input and output voltage ratings, current or power capacity, connector details, mounting dimensions, and clear nameplate photos.
