LG Sigma Elevator Door Operator Board with Vector Control Algorithm RS485 Communication Interface and 300W Driving Power
-
Highlight
Vector Control Algorithm Elevator Door Operator Board
,RS485 Communication Interface Elevator Control Board
,300W Driving Power Door Machine Drive Control Board
-
BrandLG
-
DescriptionElevator Board
-
ModelDCD-22
-
MOQ1PC
-
TransportionTNT, UPS, DHL, Fedex, Air, Sea
-
PackagesCarton, Wooden Case, Pallet Etc
-
Delivery TimeNormally 2-3 Working Days After Payment
-
WarrantyOne Year
-
Payment MethodCompany Bank, Western Union, Alibaba, Paypal Etc
-
Brand NameLG
-
Model NumberDCD-22
-
Minimum Order Quantity1
-
Delivery Time2-3 Working days
-
Payment TermsD/P,T/T,Western Union
LG Sigma Elevator Door Operator Board with Vector Control Algorithm RS485 Communication Interface and 300W Driving Power
LG Sigma Elevator Door Operator Control Boards

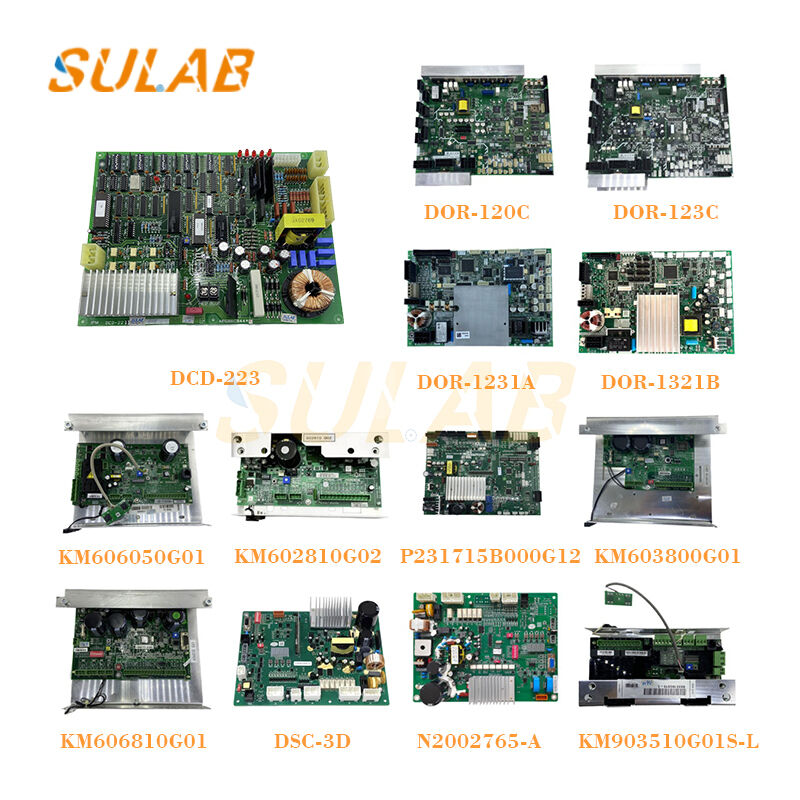

Brand new original LG Sigma elevator door operator boards including models DCD-230, DCD-201, DCD-22, and DCD-220 are currently in stock and available for immediate delivery.
Product Overview

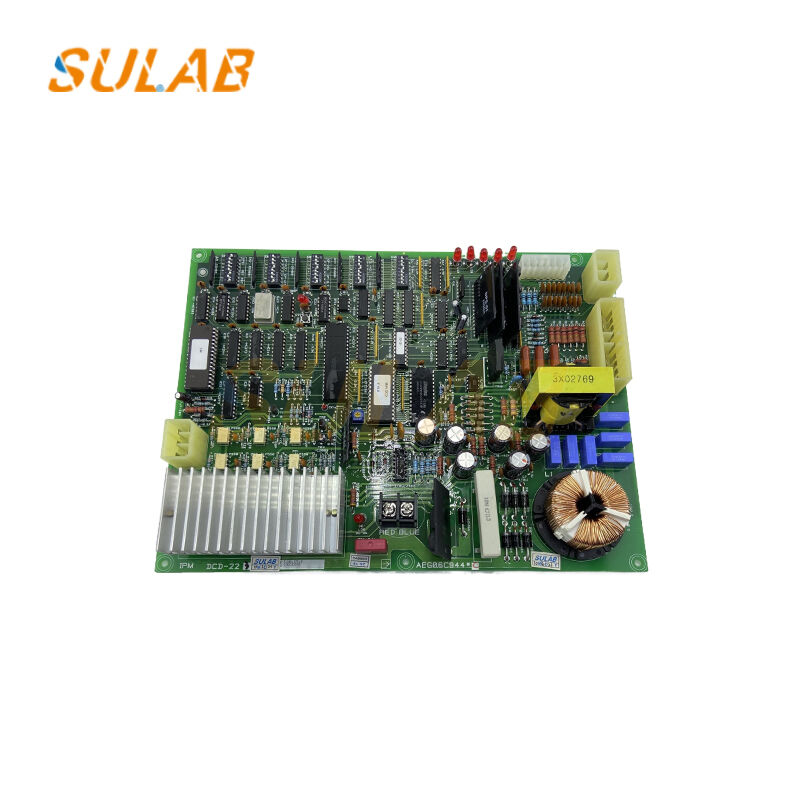

The DCD-223 is LG SIGMA Elevator's dedicated door machine drive control board with material number AEG06C944*C. This core component of the SIGMA series elevator door system provides precise speed and position control of the door machine motor, ensuring smooth opening and closing of elevator car doors and hall doors.
Technical Specifications
- 8-bit microcontroller architecture
- Working voltage: DC24V (±10%)
- Driving power: 300W
- Compatible with three-phase permanent magnet synchronous door machine motors
- RS485 communication interface (9600bps)
- External dimensions: 160×120×30mm
- Guide rail mounting (35mm standard guide rail)
- Protection class: IP20
- Compliance: EN 81-20/50, GB 7588 safety standards
- Certifications: CE/ISO9001
- Warranty: 12 months
Advanced Control Features
Utilizes vector control algorithm to achieve precise speed and position closed-loop control of the door machine motor. Configurable door opening/closing speed (0.1-0.8m/s) and timing (2-5 seconds) with integrated stall protection (maximum stall current 12A, duration ≤3 seconds) ensures smooth, quiet elevator door operation and enhanced passenger comfort.
Safety and Compatibility
Built-in comprehensive door opening/closing logic control supports multiple door types including single door, double door, center-opening door, and side-opening door. Features door position detection, door lock status monitoring, and light curtain/safety edge signal processing with anti-pinch protection. Automatically reverses door direction during opening or stops door closing when obstacles are detected, ensuring full compliance with elevator safety standards.
Ordering Information
| Brand | LG |
| Description | Elevator board |
| Model | DCD-22 |
| MOQ | 1PC |
| Transportation | TNT, UPS, DHL, Fedex, Air, Sea |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, Alibaba, Paypal etc |
