KONE Elevator Display Board KM51353495H05 with 16×32 Pixel Amber Dot Matrix and CAN/LCECAN Interface for KDS330 Signal System
Brand Name:
Kone
Model Number:
KM51353495H05
Minimum Order Quantity:
1
Delivery Time:
2-3 working days
Payment Terms:
D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
16×32 Pixel Amber Dot Matrix Elevator Display Board
,CAN/LCECAN Communication Interface KDS330 Signal System Board
,DC24V Working Voltage Dot Matrix Display Board
Brand:
Kone
Description:
Elevator Board
Model:
KM51353495H05
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description

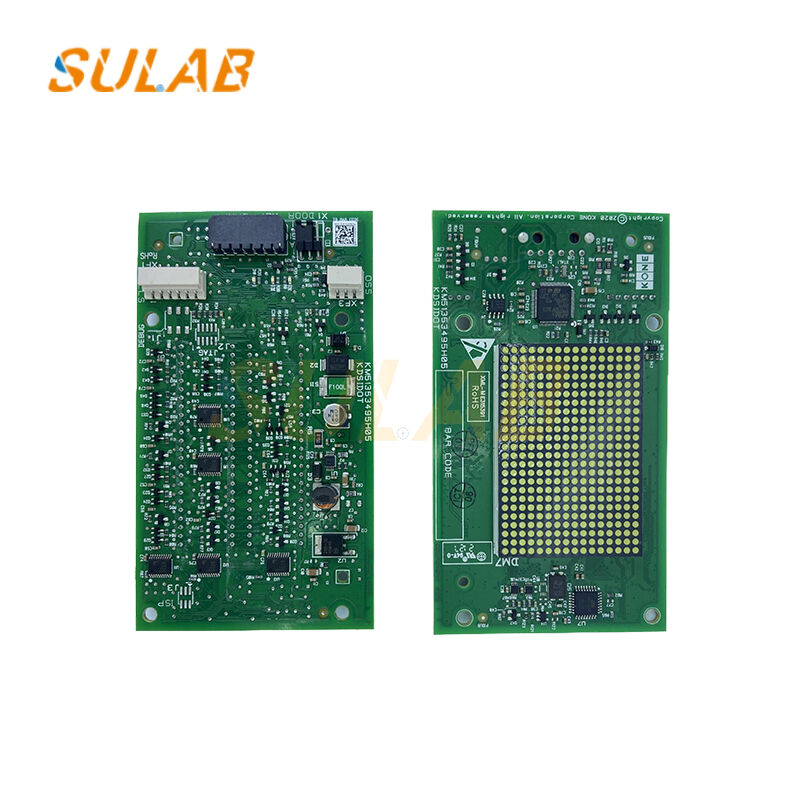

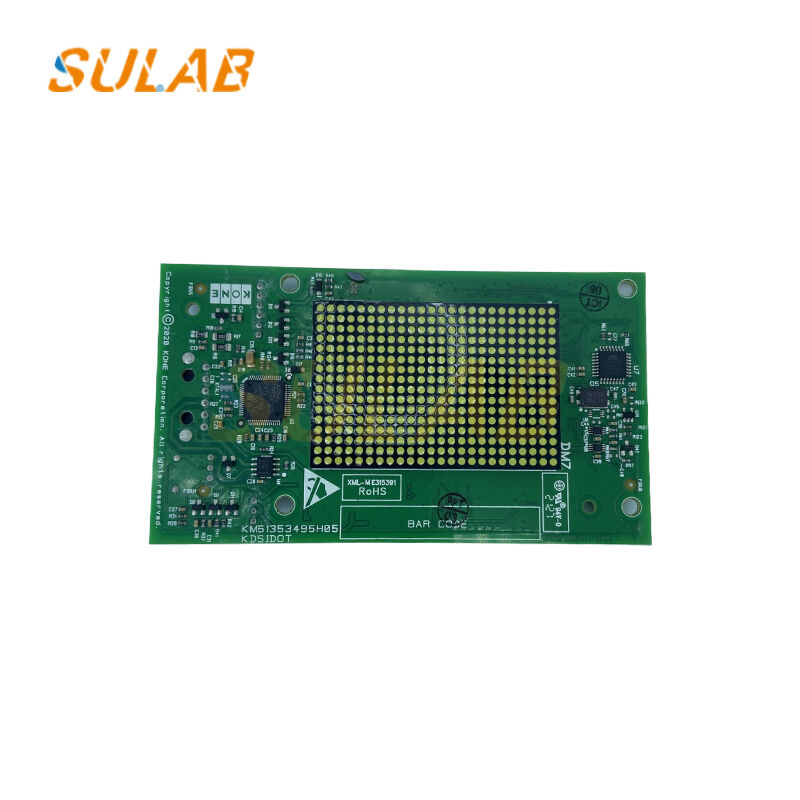

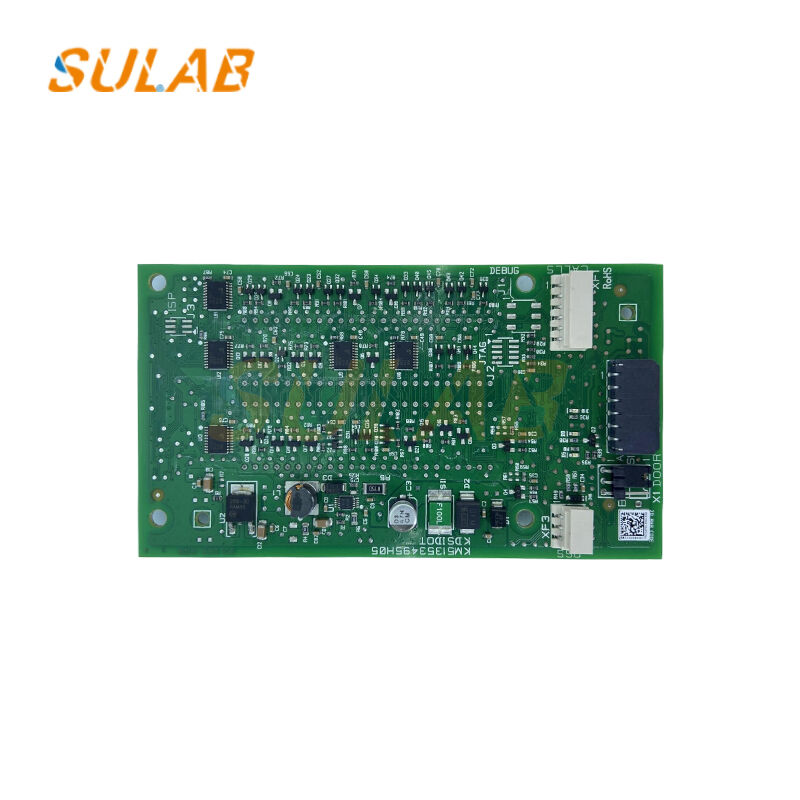

KONE Elevator Display Board KM51353495H05
Brand new KONE Elevator Display Boards KM51353495H05, H03H02, and KM51353494G12 are immediately available from stock inventory.
Product Overview
The KM51353495H05 is a specialized dot matrix display board designed for KONE's KDS330 signal system. This component is compatible with both Car Operating Panels (LOP) and Landing Call Stations (HOP), providing clear display of elevator operation status, floor information, direction indicators, and other essential data.
Technical Specifications
| Brand | KONE |
| Description | Elevator Display Board |
| Model | KM51353495H05 |
| Minimum Order Quantity | 1 Piece |
| Working Voltage | DC24V (±10%) |
| Display Type | Amber Dot Matrix (16×32 pixels) |
| Communication Interface | CAN/LCECAN (125kbps) |
| Dimensions | 100×80×20mm |
| Mounting | Snap-on |
| Protection Class | IP20 |
| Compliance Standards | EN 81-70, GB 7588 |
| Certifications | CE, ISO9001 |
| Warranty | 12 Months |
Display Features
- 16×32 pixel amber dot matrix display for optimal visibility
- Supports floor numbers (0-99) and running direction indicators (↑/↓)
- Displays elevator operational modes: normal, fire service, and inspection
- Shows overload and full load status indicators
- Integrated scrolling display function for custom text messages
- 8-level brightness adjustment for different ambient lighting conditions
- Enhanced passenger readability and user experience
Communication & Integration
The display board maintains real-time communication with the elevator main board (LCECPU) through the CAN/LCECAN interface. It receives floor information, operational status data, and direction commands while reporting its own working status and key inputs. The communication protocol adheres to KONE LCECAN standards and supports hot swapping functionality, allowing replacement without system power-down for improved maintenance efficiency.
Shipping & Payment
| Transportation Methods | TNT, UPS, DHL, FedEx, Air, Sea |
| Packaging Options | Carton, Wooden Case, Pallet |
| Delivery Time | Typically 2-3 working days after payment |
| Payment Methods | Company Bank Transfer, Western Union, Alibaba, PayPal |
